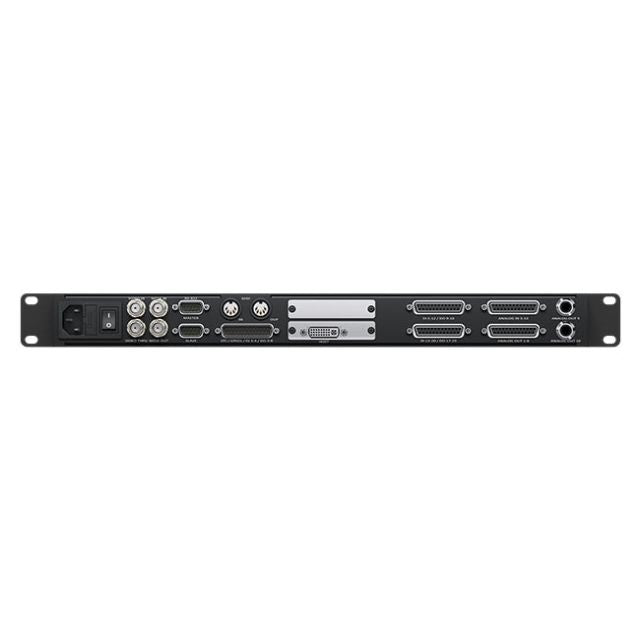

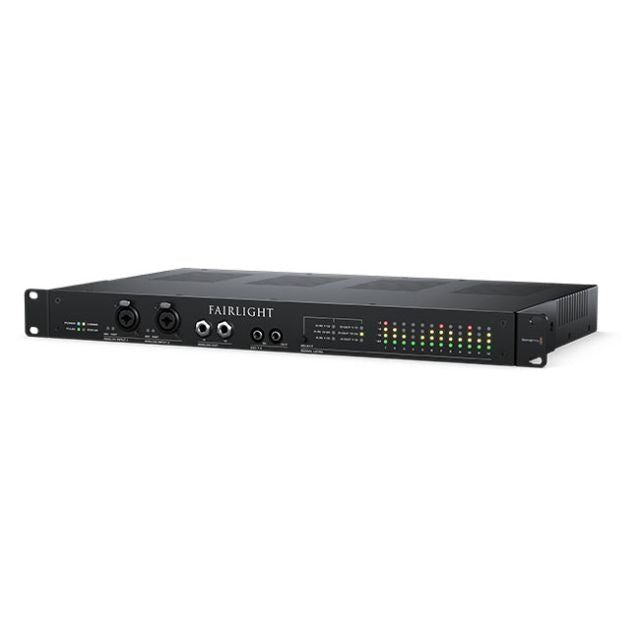

Blackmagic Design BMD-DV/RFL/AUDIF Fairlight Audio I/O Interface

Blackmagic Design BMD-DV/RFL/AUDIF Fairlight Audio I/O Interface

SoundPro Item: 23906 | Part Number: BMD-DV/RFL/AUDIF

$2,795.00
$2,795.00 $2,795.00
Your Price Sold out
MSRP: $2,795.00 | MAP: $2,795.00

Usually ships in 5-7 business days

  • Remote-Controlled XLR/TRS Mic Preamps With 48V Phantom Power For Flexible Input Routing
  • Built-In Sample Rate Conversion On S/PDIF Input Eliminates External Converters
  • Dual RS-422 9-Pin Machine Control Ports Enable Direct Deck Control
  • Comprehensive Sync I/O Supports Tri-Sync, Black Burst, Word Clock, And AES/EBU
  • GPI And GPO Connections Support Cough And On-Air Tally Control
  • Automatic Power Management Tied To Fairlight Audio Accelerator State
Log in or register for YOUR best price

The Blackmagic Design Fairlight Audio Interface is built for professional audio post-production engineers who need a comprehensive, single-unit I/O solution integrated into a Fairlight-based workstation. It pairs directly with the Fairlight Audio Accelerator via a supplied proprietary multi-pin cable, making it purpose-built for DaVinci Resolve Fairlight workflows in dedicated post suites, dubbing stages, and broadcast facilities.

Where generic audio interfaces force engineers to patch together multiple boxes for analog, digital, and sync connectivity, the Fairlight Audio Interface consolidates all of that into one rackmount unit. It handles analog mic and instrument inputs with phantom power, high-headroom balanced line I/O, AES digital inputs and outputs, S/PDIF with onboard sample rate conversion, and full sync I/O including Tri-Sync, Black Burst, word clock, and AES/EBU. Dual RS-422 9-pin machine control ports enable direct deck control without a separate router, and GPI/GPO connections support cough and on-air tally workflows commonly required in broadcast environments.

The interface is compatible with macOS 10.15 Catalina or later and Windows 10 64-bit, and powers on automatically when the Fairlight Audio Accelerator is active. For audio professionals standardizing on the Fairlight platform, this interface removes the need for third-party I/O expansion while maintaining the tight synchronization and low distortion figures demanded in high-end post-production and broadcast audio.

View full details

Specifications

Connectivity
Analog Inputs
2 x XLR/TRS mic/instrument (remote controlled, 48V phantom power), 8 x balanced +24dBu line
Analog Outputs
12 x balanced +24dBu with mute protection
Digital Inputs
9 x AES stereo (transformer coupled), 1 x S/PDIF with sample rate conversion
Digital Outputs
11 x AES stereo, 1 x S/PDIF stereo
Interface Connector
Standard 25-pin Tascam for analog and AES looms
Sync Input
1 x 75 ohm BNC reference (Tri-Sync/Black Burst), 1 x 75 ohm BNC word clock
Sync Output
1 x 75 ohm BNC reference loop out (Tri-Sync/Black Burst), 1 x 75 ohm BNC word clock regenerated
Device Control
1 x RS-422 9-pin machine control input, 1 x RS-422 9-pin machine control output
Timecode
Input and output with regeneration
GPIO
GPI and GPO for cough and on-air control
MIDI
Present (reserved for future use)
Audio
Sample Rate
44.1, 48, 96, 192 kHz
Max Input (Mic, Inputs 1-2)
+2.5dBu
Max Input (Instrument, Inputs 1-2)
+24dBu
Max Input (Line, Inputs 3-10)
+24dBu
Gain Range (Mic, Inputs 1-2)
50dB (+21.5 to +71.5dB)
Gain Range (Instrument, Inputs 1-2)
50dB (0 to +50dB)
Mic EIN Unweighted (Inputs 1-2)
-127dBu @ 40dB (61.5dB) gain, 150 ohm source
THD+N Mic Input (Inputs 1-2, 0dB gain)
<0.001% @ 1kHz, -1dBFS
THD+N Mic Input (Inputs 1-2, 40dB gain)
<0.004% @ 1kHz, -1dBFS
THD+N Line Input (Inputs 1-2)
<0.001% @ 1kHz, -1dBFS, unweighted
THD+N Line Input (Inputs 3-10)
<0.001% @ 1kHz, unweighted
Dynamic Range Line Input (Inputs 1-2)
108dB @ 0dB gain, unweighted
Dynamic Range Line Input (Inputs 3-10)
110dB, unweighted
Input Frequency Response
+0.05/-0.05dB, 20Hz - 20kHz
Input Impedance (XLR, Inputs 1-2)
2k ohm
Input Impedance (1/4", Inputs 1-2)
>1M ohm
Input Impedance (Inputs 3-10)
15k ohm
Max Output (Outputs 1-12)
+24dBu
THD+N Line Output (Outputs 1-12)
<0.002%
Dynamic Range Line Output (Outputs 1-12)
109dB, unweighted
Output Frequency Response
+0.05/-0.5dB, 20Hz - 20kHz
Output Impedance (Outputs 1-12)
50 ohms
Electrical
Power Supply
Internal 100-240V AC, 50/60Hz, IEC C14 mains input
Power Usage
40W
Power Management
Auto powers on/off with Fairlight Audio Accelerator
Environmental
Operating Temperature
0 to 40 C (32 to 104 F)
Storage Temperature
-20 to 60 C (-4 to 140 F)
Relative Humidity
0% to 90% non-condensing
Compatibility
Operating Systems
macOS 10.15 Catalina or later, Windows 10 64-bit
Required Hardware
Fairlight Audio Accelerator
Shipping
Weight
15 lbs
Identifiers
UPC
9 338716 004854
