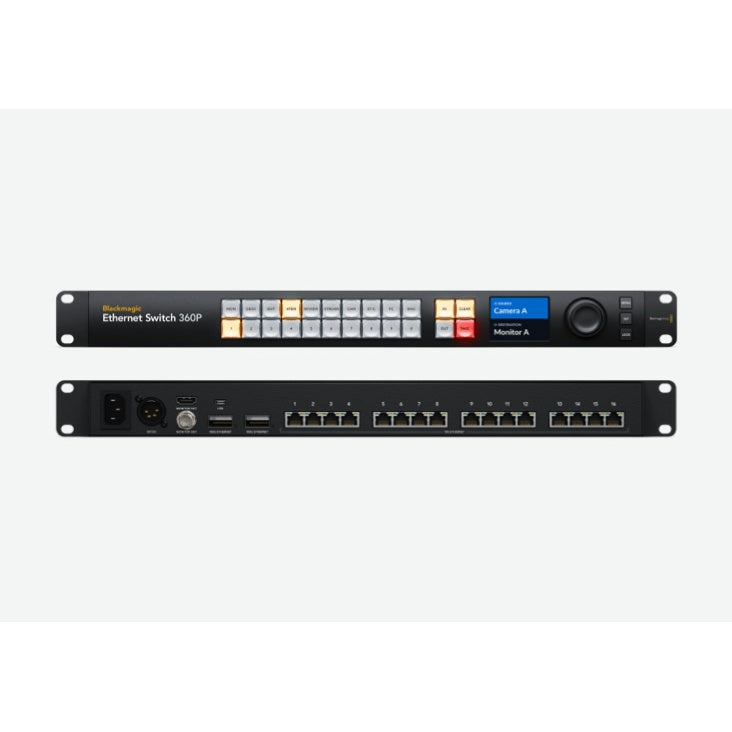

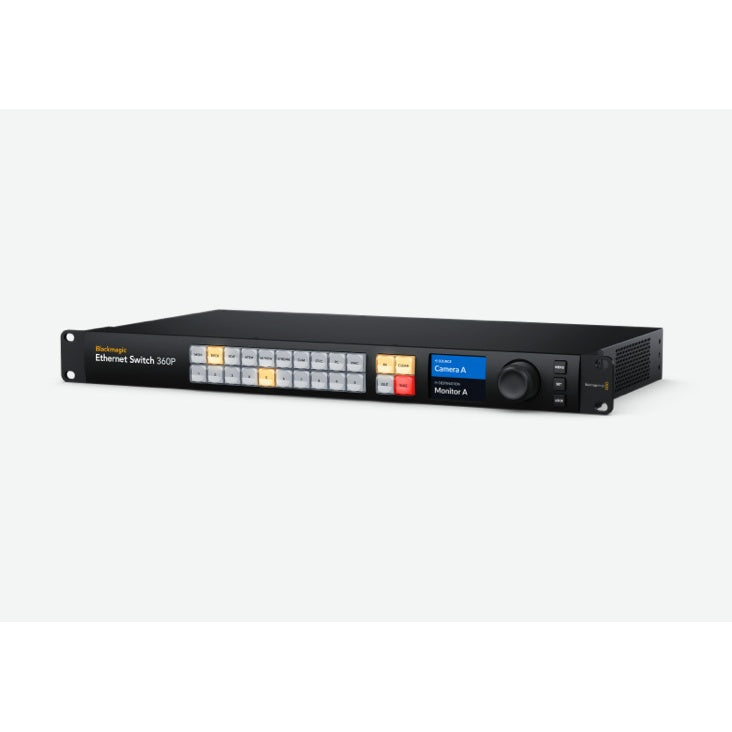

Blackmagic Design BMD-DWCSWA/MODC360P 1RU Ethernet Switch for IP Video
Blackmagic Design BMD-DWCSWA/MODC360P 1RU Ethernet Switch for IP Video
SoundPro Item: 144344 | Part Number: BMD-DWCSWA/MODC360P
Usually ships in 5-7 business days
- Front-Panel Video Router Enables 2110 IP Multicast Configuration Without External Control
- NMOS IS-04, IS-05, BCP-002-01, And BCP-004-01 Compliance For Full IP Orchestration Integration

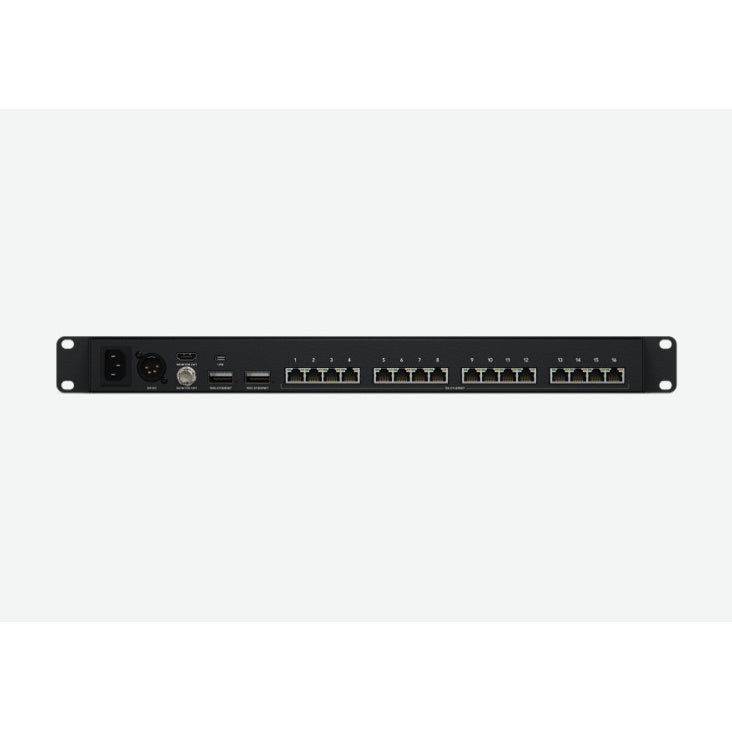

- Rear-Mounted Ports Keep Cable Runs Organized And Secured In Machine Room Environments
- Dual QSFP28 Uplink Sockets Support Both Copper Cables And Optical Fiber Modules

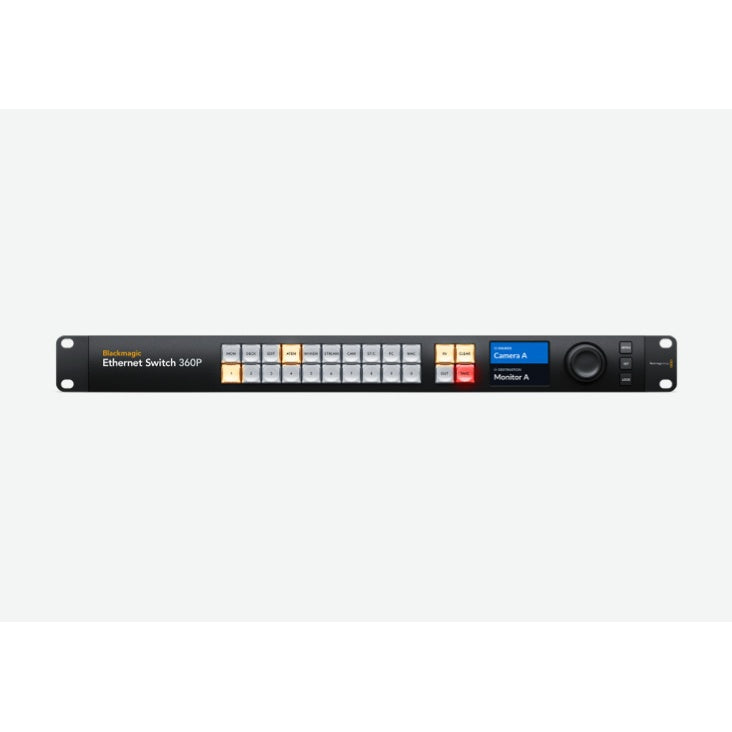

- Built-In LCD Provides At-A-Glance Device And Network Activity Monitoring
- IEEE 1588-2008 PTP v2 Support Ensures Precise Timing Sync Across IP Video Infrastructure
- Universal Internal Power Supply With IEC C14 Input For Straightforward Rack Installation
The Blackmagic Ethernet Switch 360P is engineered specifically for broadcast and film production environments running SMPTE ST 2110 IP video infrastructure. Network engineers, broadcast facility designers, and live production integrators will find it addresses the core challenge of managing high-density IP video traffic with minimal latency — a critical requirement that general-purpose data center switches are not optimized to meet. The combination of 16 rear-mounted 10G RJ-45 ports and two 100G QSFP28 uplink sockets provides the bandwidth headroom needed for multi-channel uncompressed video distribution across both copper and fiber plant.
What separates this unit from standard managed switches in a broadcast rack is the integrated front-panel video router. Operators can configure SMPTE ST 2110 IP multicast routing directly from the front panel without requiring a separate control system or diving into a web GUI — an efficiency that matters during live events and tight facility buildouts. Full NMOS IS-04, IS-05, and BCP compliance means it integrates cleanly into existing IP orchestration ecosystems. The rear-facing connectivity layout keeps cable runs disciplined and out of view, which benefits both aesthetics and security in shared machine room environments.
A built-in 2.2-inch LCD displays device name, network connections, and activity at a glance, while SDI and HDMI monitor outputs allow direct confidence monitoring. The internal universal power supply eliminates the need for an external PSU, and the unit ships ready for immediate deployment with software accessible via included QR code.
