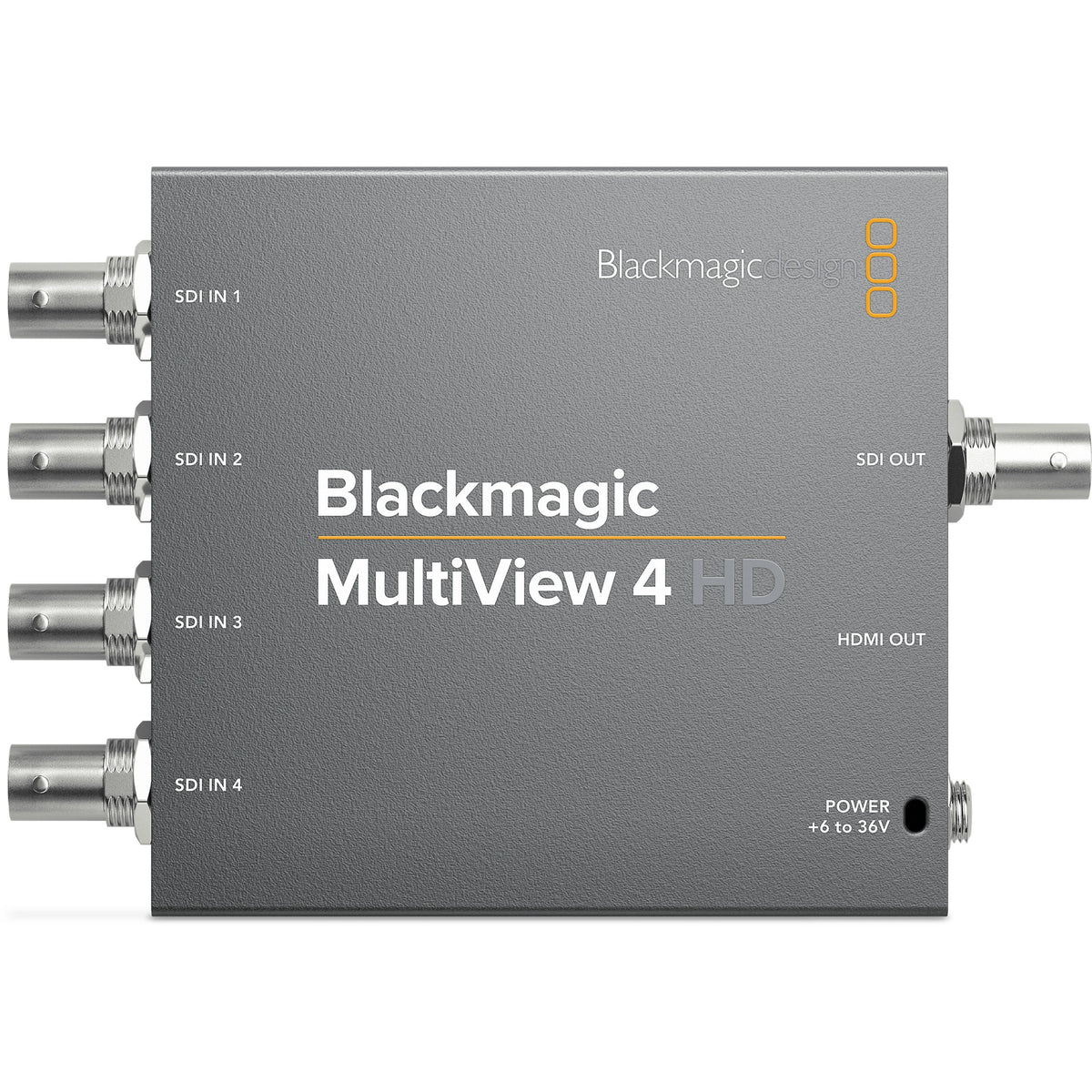

• Blackmagic Design MultiView 4 HD top view with four SDI inputs, SDI out, HDMI out and power labels

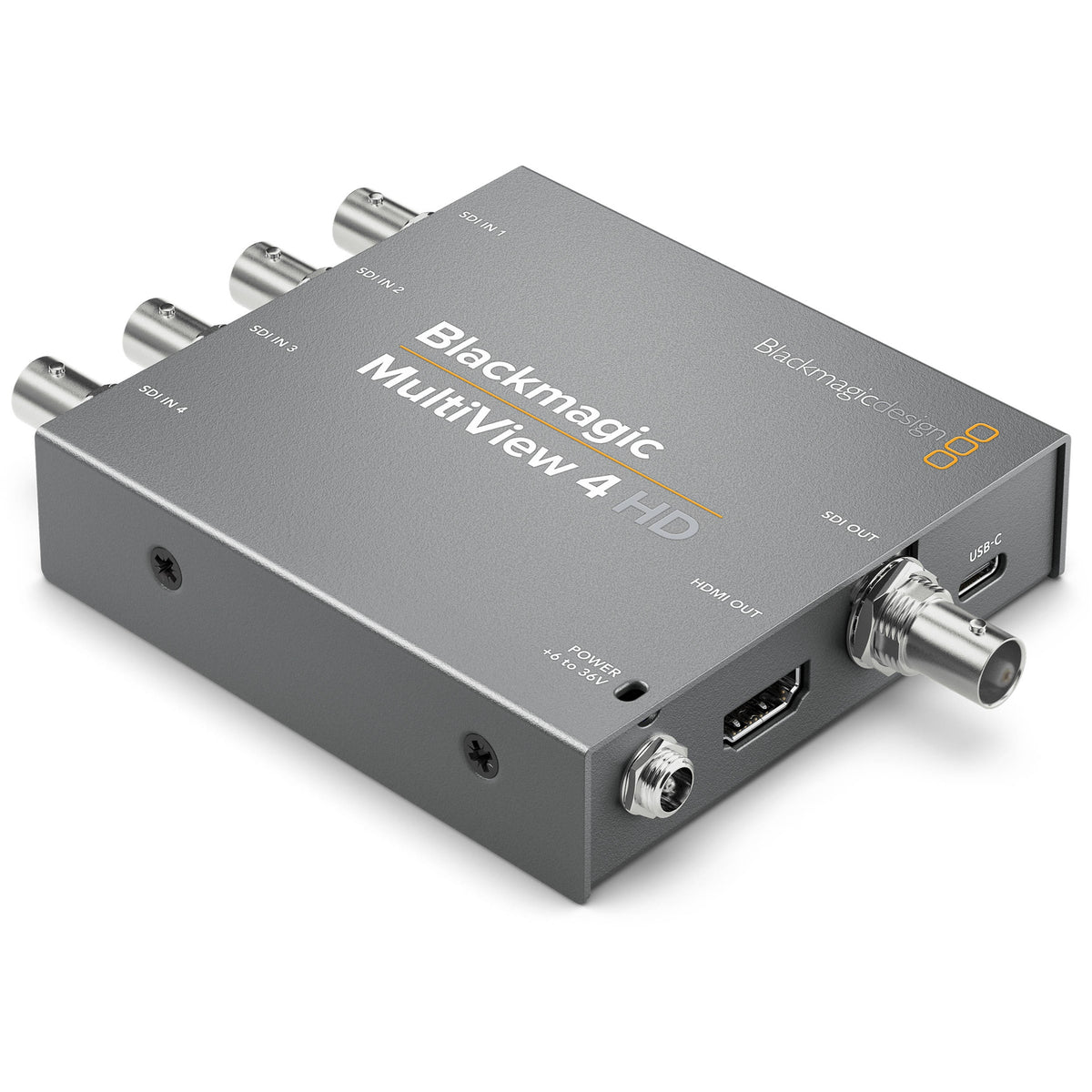

  • Blackmagic Design MultiView 4 HD angled rear view showing HDMI out, SDI out BNC, USB-C and power jack

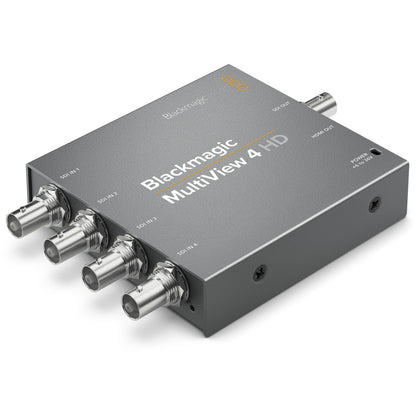

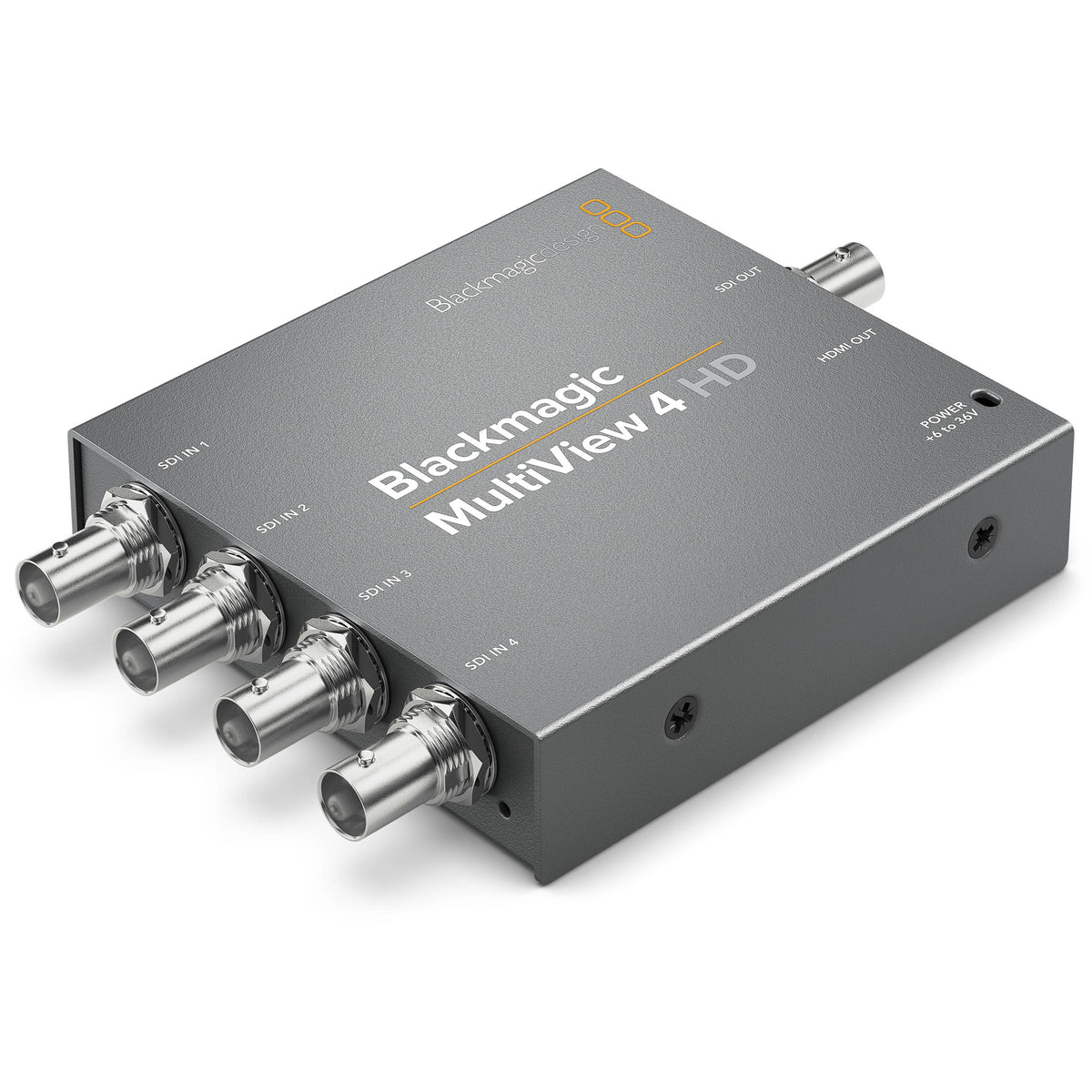

  • Blackmagic Design MultiView 4 HD angled front view with four BNC SDI input connectors

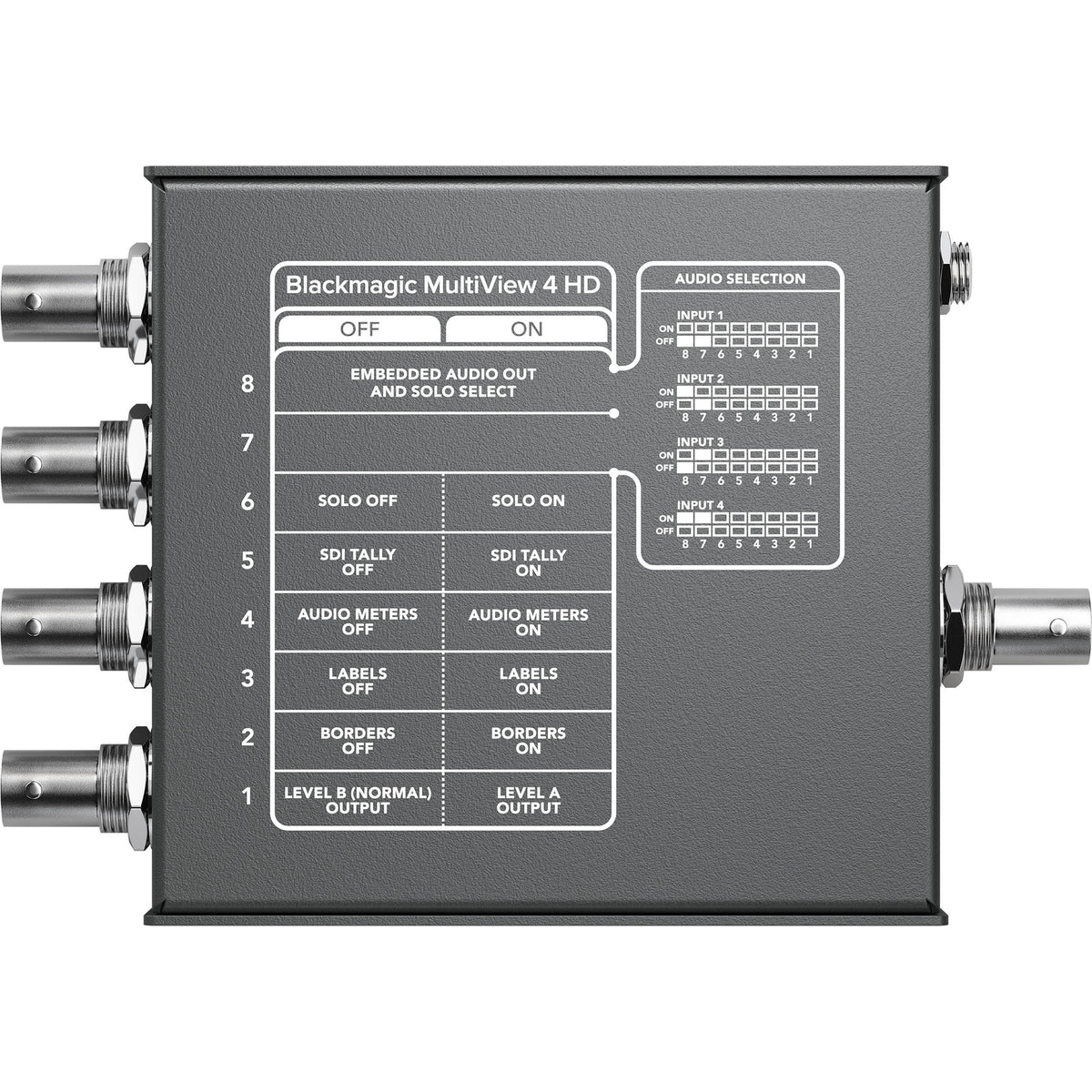

  • Blackmagic Design MultiView 4 HD underside switch settings chart for solo, tally, labels and audio
1 4

Blackmagic Design MultiView 4 HD

Blackmagic Design MultiView 4 HD

SoundPro Item: 17204 | Part Number: BMD-HDL-MULTIP3G/04HD

$239.00
$239.00 $239.00
Your Price Sold out
MSRP: $239.00 | MAP: $239.00

Usually ships in 5-7 business days

  • Monitor multiple SDI sources on an HD or Ultra HD display or TV
  • Multi rate SDI connections
  • Well-suited for studio or live use
  • Full frame re-synchronization
  • Custom labels
  • Tally
  • Audio meters
  • Can be daisy chained
  • Can be controlled from included software utility on Mac or Windows
Log in or register for YOUR best price

Monitor completely independent SDI video sources on HD or Ultra HD displays with the Blackmagic MultiView 4 HD. Full frame re-synchronization on every input lets you monitor any SD, HD, and Ultra HD formats and frame rates all at once on one display. Multi view monitoring is a perfect solution in large control rooms, live multi camera production, and when there isn’t room for multiple monitors.

This low cost multi viewer lets you simultaneously monitor four different SDI video sources on one display. Each view is completely independent with overlays such as custom labels, audio meters, and more. Those overlays can be turned on and off separately for each view. Monitor signals even at different frame rates with full frame re-synchronization on each input.

Multi rate 3G-SDI connections are compatible with SD, HD, and formats up to 1080p60. 3G-SDI and HDMI outputs are also available, so you can work with traditional SDI displays or low cost big screen TVs.

With MultiView 4 HD, you can see all your video sources without connecting multiple monitors and dozens of cables. Simply plug your cameras, decks, switchers, and routers into the SDI connections.</p.

Get 4 independent monitors in one with full-frame re-synchronization. Every input can take a different video standard and frame rate from referenced or non-referenced NTSC, PAL, 720p, 1080i, and 1080p.

Advanced monitoring tools such as custom labels, audio meters, and tally indicators can be displayed with your video. Choose which audio source gets routed to the video output. Anamorphic support is provided in standard definition, letting you view 16 x 9 anamorphic video sources in widescreen.

View full details

Specifications

Certifications
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
Electrical
Power Consumption
5.5 Watts
Operational Voltage Range
6 to 36V D
Audio
Audio Meters
Each view, VU standard.
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
Connectivity
SDI Video Inputs
4 x 10-bit SD-SDI and HD-SDI.
SDI Video Outputs
1 x HD-SDI.
SDI Video Multi View Outputs
1 x 10-bit HD-SDI.
HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor.
Reference Input
None
Construction
SDI Color Precision 10-bit
4:2:2 and 4:4:4.
SDI Color Space
YUV or RGB for inputs, YUV for outputs.
Controls
Built in Control Panel
None
External Control Panel
None
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
General
SDI Rates
270Mb, 1.5G, 3G.
SDI Reclocking
On all SDI outputs, auto switching between standard definition or high definition.
Multi Rate Support
Auto detection of SD or HD.
Updates
USB 2.0 high speed (480Mb/s) interface.
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
Source Routing
None
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Auto Switching
Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Software Control
MultiView software included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Fail Protection
MultiView 4 HD settings preserved and restored instantly at power on.
Cable
Configuration
USB 2.0
Indicators
Display
None
