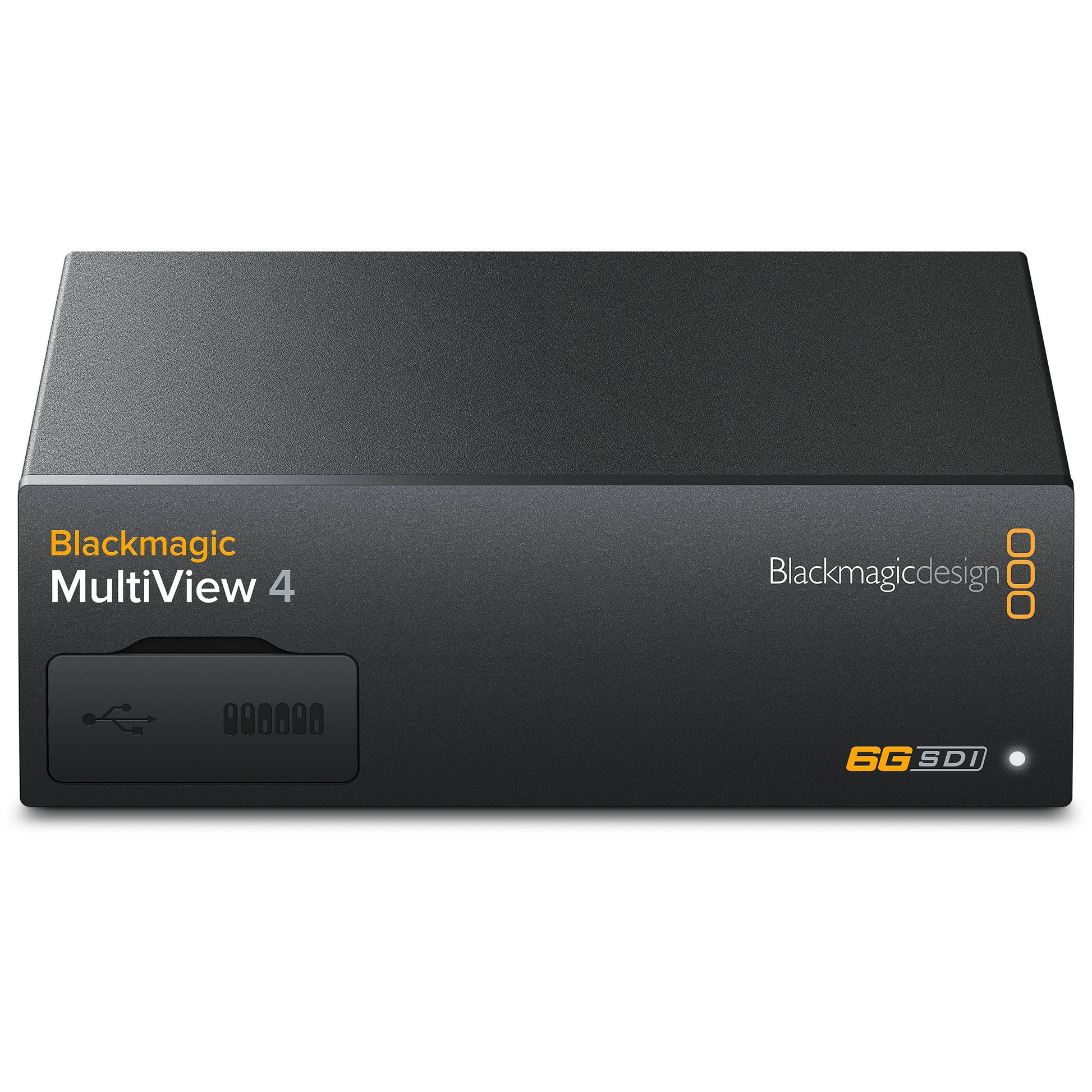

• Blackmagic Design MultiView 4 multiviewer front panel with USB port cover and 6G SDI badge

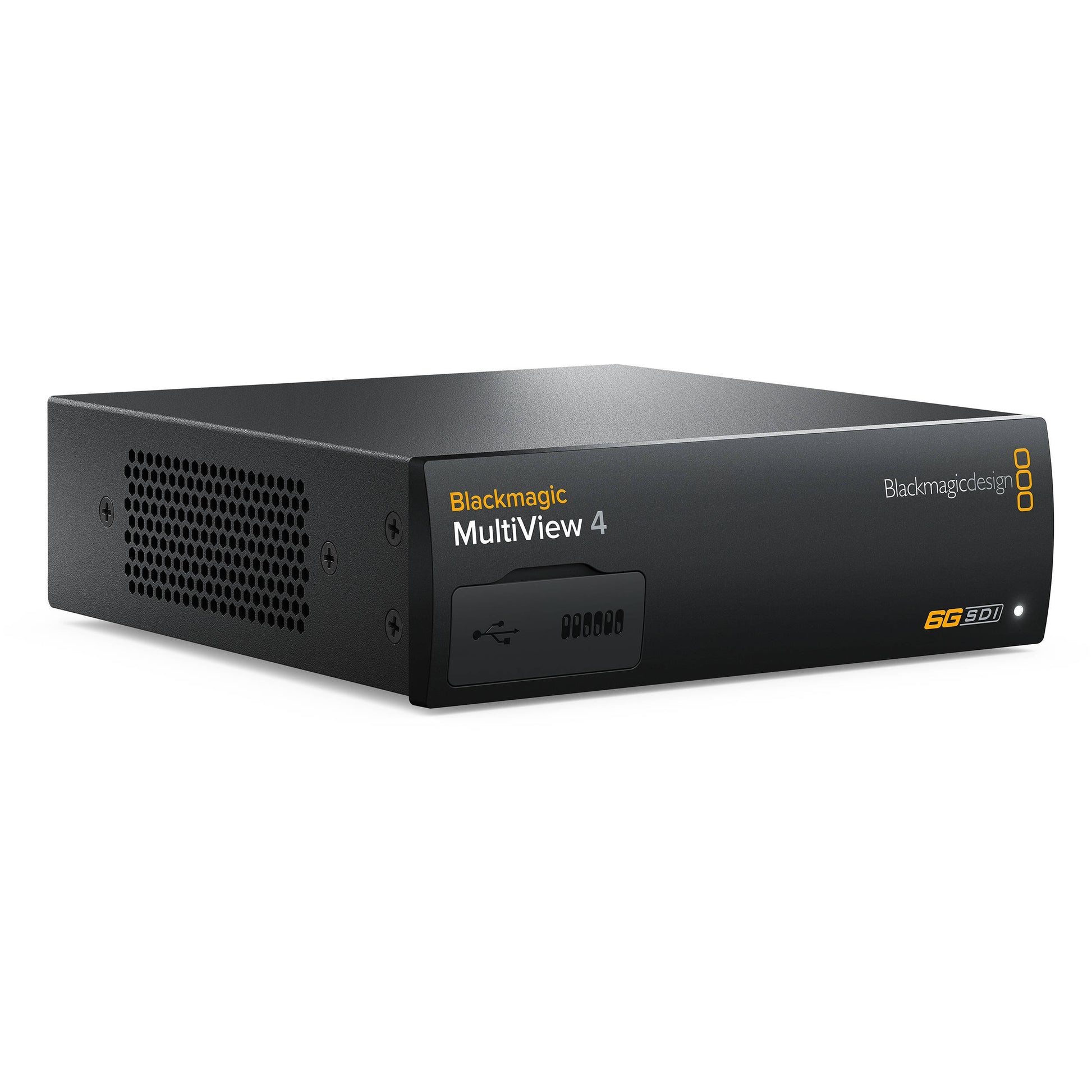

  • Blackmagic Design MultiView 4 angled view showing vented side panel and front USB port

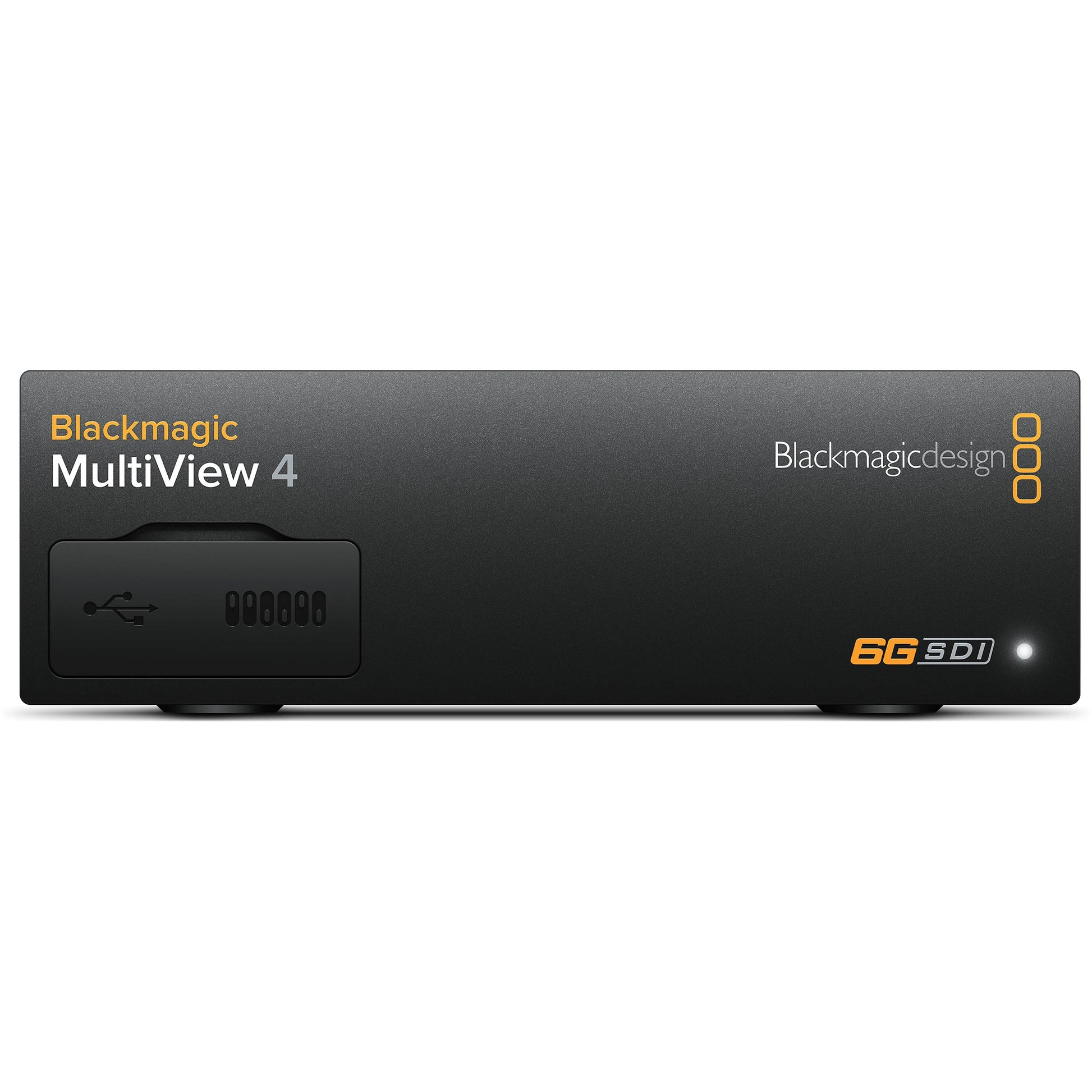

  • Blackmagic Design MultiView 4 straight-on front view with lit status indicator and rubber feet

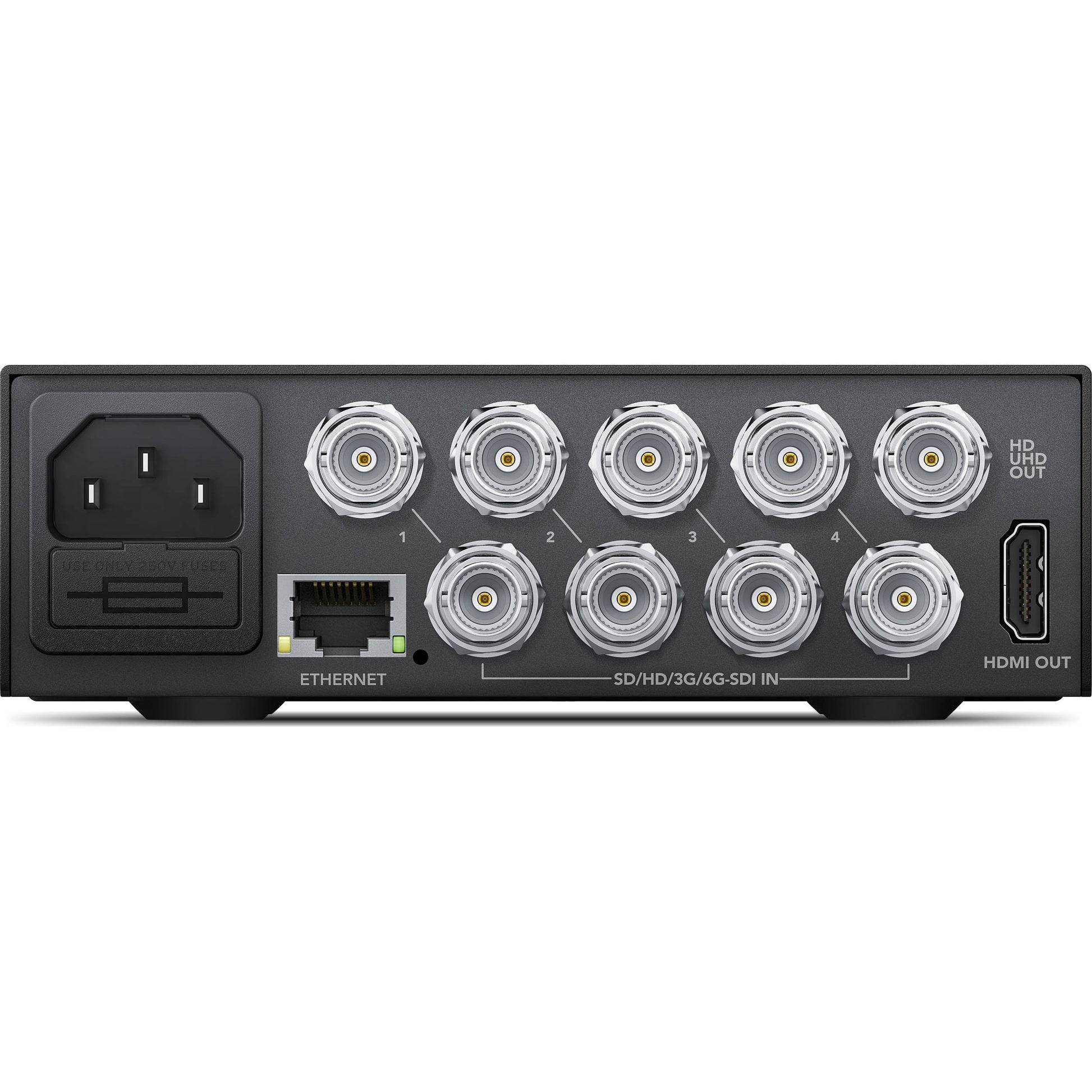

  • Blackmagic Design MultiView 4 rear panel with BNC SDI in and out, Ethernet, HDMI out, and IEC power inlet
1 4

Blackmagic Design MultiView 4

Blackmagic Design MultiView 4

SoundPro Item: 23916 | Part Number: BMD-HDL-MULTIP6G/04

$705.00
$705.00 $705.00
Your Price Sold out
MSRP: $689.00 | MAP: $689.00

Usually ships in 5-7 business days

  • Power supply not included - requires IEC cable
  • Monitor multiple SDI sources on an HD or Ultra HD display or TV
  • Multi rate SDI connections
  • Well-suited for studio or live use
  • Full frame re-synchronization
  • Custom labels
  • Tally
  • Audio meters
  • Can be daisy chained
  • Can be controlled from included software utility on Mac or Windows
  • Add Teranex Mini Smart Panel (sold separately) for full front panel control
  • Add Teranex Mini Rack Shelf (sold separately) for rack mounting
Log in or register for YOUR best price

Monitor completely independent SDI video sources on HD or Ultra HD displays with the Blackmagic MultiView 4. Full frame re-synchronization on every input lets you monitor any SD, HD, and Ultra HD formats and frame rates all at once on one display. Multi view monitoring is a perfect solution in large control rooms, live multi camera production, and when there isn’t room for multiple monitors.

The MultiView 4 has four independent 6G-SDI independent inputs compatible with SD, HD, and Ultra HD formats up to 2160p30. Sources are displayed in a 2x2 grid. Ethernet remote control software gives you the ability to turn on audio meters, select audio to output, and create custom labels.

With MultiView 4, you can see all your video sources without connecting multiple monitors and dozens of cables. Simply plug your cameras, decks, switchers, and routers into the SDI connections.

Get 4 independent monitors in one with full-frame re-synchronization. Every input can take a different video standard and frame rate from referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30.

The MultiView 4 offers maximum compatibility with your existing equipment. Compatible with HD displays, SDI and HDMI outputs allow you to connect to televisions, video projectors, broadcast monitors, and more. SDI inputs detect and automatically re-sync SD and HD formats.

Advanced monitoring tools such as custom labels, audio meters, and tally indicators can be displayed with your video. Choose which audio source gets routed to the video output. Anamorphic support is provided in standard definition, letting you view 16 x 9 anamorphic video sources in widescreen.

View full details

Specifications

Certifications
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
Dimensions
Dimensions (H X W X D)
1.75 x 5.51 x 6.69 inches
Electrical
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet)
Power Consumption
16 Watts
Audio
Audio Meters
Each view, VU standard
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit
Connectivity
SDI Video Inputs
4 x 10-bit SD-SDI, HD-SDI and 6G-SDI
SDI Video Outputs
4 loop, 1 HD/Ultra HD
SDI Video Multi View Outputs
1 x 10-bit HD-SDI and 10 bit 6G-SDI
HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor
Reference Input
None
Construction
SDI Color Precision
10-bit 4:2:2 and 4:4:4
SDI Color Space
YUV or RGB for inputs, YUV for outputs
Controls
Built in Control Panel
None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display.
External Control Panel
None
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
1.28 lbs
General
SDI Rates
270Mb, 1.5G, 3G, 6G
SDI Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video
Updates
USB 2.0 high speed (480Mb/s) interface or via Ethernet
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 24p
Source Routing
None
SDI Video Sampling
4:2:2 and 4:4:4
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M
Software Control
MultiView software included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Power Supply
IEC power cable required, 100 - 240V AC input
Power Fail Protection
MultiView 4 settings preserved and restored instantly at power on
Cable
Configuration
RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting
Indicators
Display
Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings
