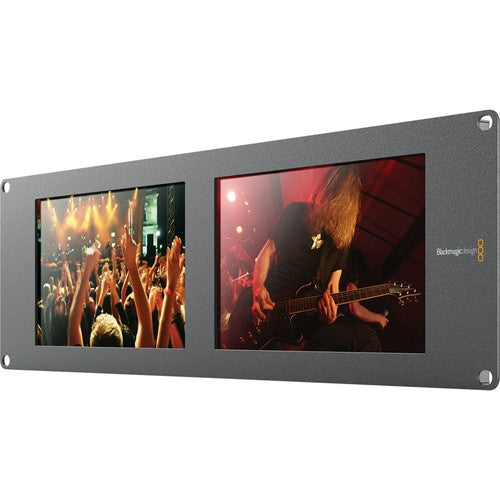

• Blackmagic Design SmartView Duo angled view of rack-mount dual monitor showing live concert footage on both screens

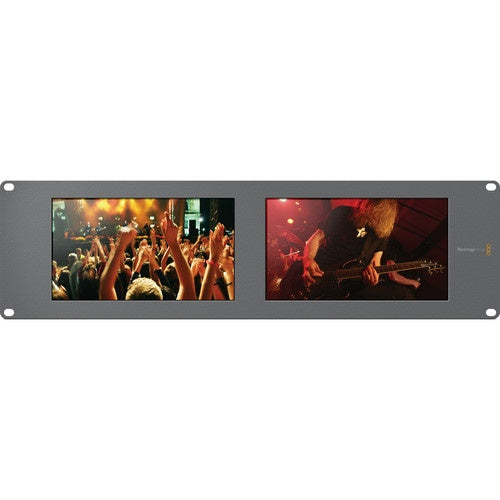

  • Blackmagic Design SmartView Duo front view with two LCD screens and rack ears for rack mounting
  • Blackmagic Design SmartView Duo rear panel with Monitor 1 and Monitor 2 BNC, Ethernet, USB and power connections
1 3

Blackmagic Design SmartView Duo

Blackmagic Design SmartView Duo

SoundPro Item: 23927 | Part Number: BMD-HDL-SMTVDUO2

$689.00
$689.00 $689.00
Your Price Sold out
MSRP: $675.00 | MAP: $675.00

Usually ships in 5-7 business days

  • Supports SD, HD and 3Gb/s SDI formats
  • Perfect SDI monitoring
  • Compact and lightweight construction
  • LCD screens with RGB tally borders
  • Ideal for live production
  • Standard 12 volt power supply with socket adapters supports international use
  • Remote control with software
Log in or register for YOUR best price

Experience high quality SDI monitoring with Blackmagic Design’s SmartView Duo monitor. SmartView Duo has two 8" LCD screens that can operate independently of each other. The monitor automatically switches between SD, HD, and 3G-SDI formats. Video formats can be connected and changed any time with SmartView’s automatic detect and switch capability taking under a second to change format. Lightweight design and thickness just under an inch make the monitor work well for broadcast and portable use.

High quality filtering and scaling keep fine detail in an image. Fully digital design uses SDI inputs to ensure color that is precise and easy to manage across multiple displays. Ethernet allows you to connect the SmartView to your network, controlling multiple monitors from your computer with SmartView software utility. Even in this setup, color remains stable over time since adjustments are electronic. With the software you can adjust monitor brightness, contrast and saturation that apply to individual monitors or both monitors. A white border appears on the monitor that settings are being adjusted for.

Full loop through SDI connections and ethernet network connection are included. Standard 12 volt power supply also has socket adapters for use in different countries. Super clear LCD screens utilize tally borders for quick and easy identification of camera status. Monitor automatically senses the screen’s rotation angle and flip the image to the correct rotation. This function comes in especially helpful in crowded installations in busy production facilities.

Used for broadcast, post production, on set monitoring, flyaway kits, and broadcast trucks, this monitor is well suited for travel. Pair with live production switchers to build a video wall of camera monitors in your control room.

View full details

Specifications

Certifications
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.
Standards
SDI Format Support 525i59.94 NTSC, 625i50 PAL720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF301080i50, 1080i59.94, 1080i60, 2K Format Support 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Dimensions
Color Depth
16.7 Million Colors.
Electrical
Power Consumption
< 20 Watts
Operational Voltage Range
12V - 15V
Connectivity
SDI Video Input
Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
Ethernet
10/100 BaseT with loop through.
Construction
SDI Color Space
REC 601, REC 709
Controls
Display Element
TFT Active Matrix LCD
Display Resolution
800 x 480 pixels
Display Orientation
Displays can rotate upside down for optimum viewing angle
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
General
Multi Rate Support
Auto detection of 2K, HD or standard definition inputs.
Updates and Configuration
Via USB 2.0 high speed (480 Mb/s)
Tally
9-pin D connector
SDI Auto Switching
Automatically selects between SD, HD and 3 Gb/s SDI.
Video Sampling
4:2:2 and 4:4:4
Internal Software Upgrade
Via included firmware updater software
SmartView Utility Software
Via USB or Ethernet
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Response
< 15 ms
Contrast Ratio
Typically 500:1
Power Supply
12V universal power supply included with international socket adapters for all countries
