Blackmagic Design HyperDeck Shuttle 4K Pro Touchscreen Recorder Player | No Internal Storage

Blackmagic Design HyperDeck Shuttle 4K Pro Touchscreen Recorder Player | No Internal Storage

SoundPro Item: 202396 | Part Number: BMD-HYPERD/PTSKD

$1,659.00
$1,659.00 $1,659.00
Your Price Sold out
MSRP: $1,659.00 | MAP: $1,659.00

Usually ships in 5-7 business days

  • Broadcast-Style Transport Controls And Search Dial Mirror Traditional Deck Operation
  • 12G-SDI Connectivity Supports Full UHD And 4K DCI Professional Signal Chains
  • Built-In Broadcast Scopes Eliminate Need For A Separate Monitoring Device
  • HDR Recording Across Multiple ST2084 Levels Supports Modern Camera Workflows
  • RS-422 Remote Control Enables Integration With Legacy Deck Control Systems
  • 10G Ethernet Allows Direct Recording To Network Storage Without Local Media
  • Optional M.2 PCIe NVMe Slot Provides High-Speed Cache Recording Capability
Log in or register for YOUR best price

The HyperDeck Shuttle 4K Pro is built for broadcast engineers, live production teams, and post-production facilities that need a portable deck capable of handling professional signal chains without compromise. The 7-inch LCD touchscreen doubles as a monitoring surface and scope display, giving operators real-time waveform, RGB parade, vectorscope, and histogram feedback at 10-bit broadcast quality — eliminating the need for a separate monitoring solution in tight rack or field setups.

Twelve-gigabit SDI inputs and outputs make this deck a natural fit for UHD and 4K DCI broadcast workflows, while HDMI 2.0 I/O extends compatibility to cameras and monitors outside the SDI ecosystem. RS-422 remote control support allows integration into traditional tape-style deck control environments, and the large search dial with dedicated transport buttons mirrors the muscle memory of legacy broadcast equipment — reducing operator error under pressure.

For facilities prioritizing file-based workflows, the HyperDeck Shuttle 4K Pro records H.264, H.265, Apple ProRes in multiple variants, and DNx directly to SD card, external USB-C disk, or network storage over 10G Ethernet. Compared to basic portable recorders, the combination of broadcast-grade scopes, multi-format codec support, HDR compatibility across multiple ST2084 levels, and 3D LUT capability positions this unit as a primary record deck rather than a backup or confidence monitor.

Downloads

View full details

Specifications

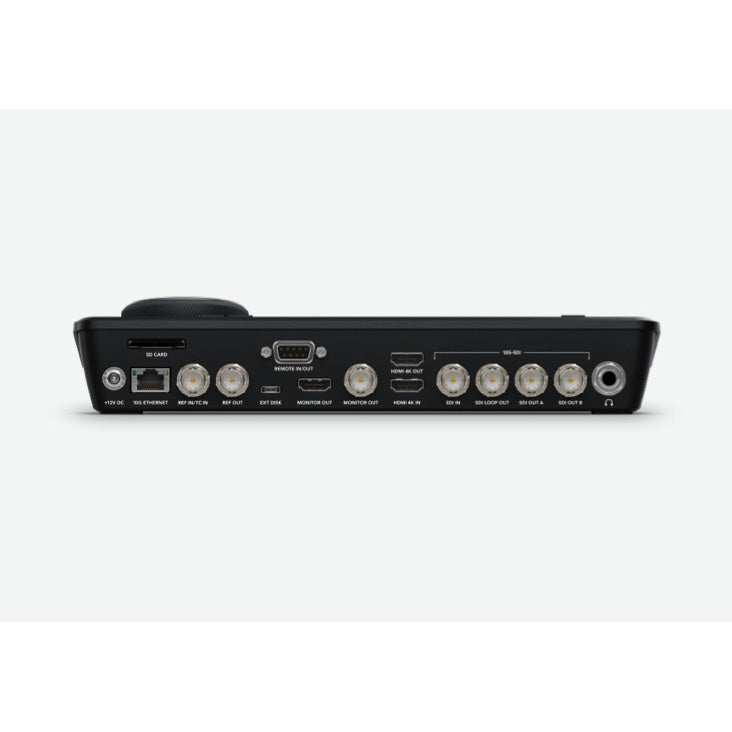

Connections
SDI Video Inputs
1
SDI Loop Outputs
1
SDI Video Outputs
2
SDI Monitor Outputs
1
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
HDMI 2.0 Video Inputs
1
HDMI 2.0 Video Outputs
1
HDMI Monitor Outputs
1
Built-In Speaker
Mono
Audio Output
1 x 6.35 mm headphone jack
Screen
7 inch LCD
Reference Input
1 x BNC In
Reference Output
1 x BNC Out
SDI Audio Inputs
64 channels embedded audio
SDI Audio Outputs
64 channels embedded audio
HDMI Audio Inputs
8 channels embedded audio
HDMI Audio Outputs
8 channels embedded audio
Remote Control
1 x RS-422 In
Ethernet
1 x 10Gb/s RJ-45 connector supporting 1000/10G BASE-T
External Recording
1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording
Computer Interface
1 x USB-C for software updates
Media
Cache Recording
Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s; supports 60mm, 80mm, and 110mm cards
Internal Storage
None included
SD Card Slot
1 x SD card slot
Media Type
UHS-I and UHS-II SD cards
Media Format
ExFAT (Windows/Mac) or HFS+ (Mac)
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SDI Compliance
SMPTE 259M, 292M, 296M, 424M, 425M level A and B, 2081-1, 2081-10, 2082-1, 2082-10, 2084, 2108-1
Video Sampling
4:2:2 YUV
Color Precision
REC 601, REC 709, REC 2020
HDR Support
Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Audio Sampling
24-bit, 48 kHz
Multi Rate Support
Auto detection of SD, HD, 6G-SDI and 12G-SDI
Supported Codecs
Video Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60
Audio Codecs
AAC 2 Channels
Power
Power Supply
1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use
Power Usage
60 W max
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Software
Software Included
Blackmagic OS
Compatible Operating Systems
Mac 15.0 Sequoia, Mac 26.0 Tahoe or later; Windows 11
Included Items
What's Included
HyperDeck Shuttle 4K Pro
Warranty
1 Year Limited Manufacturer's Warranty
