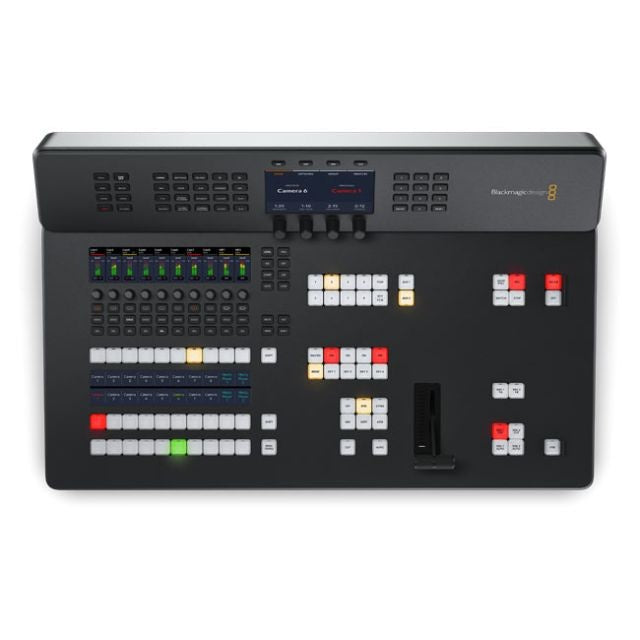

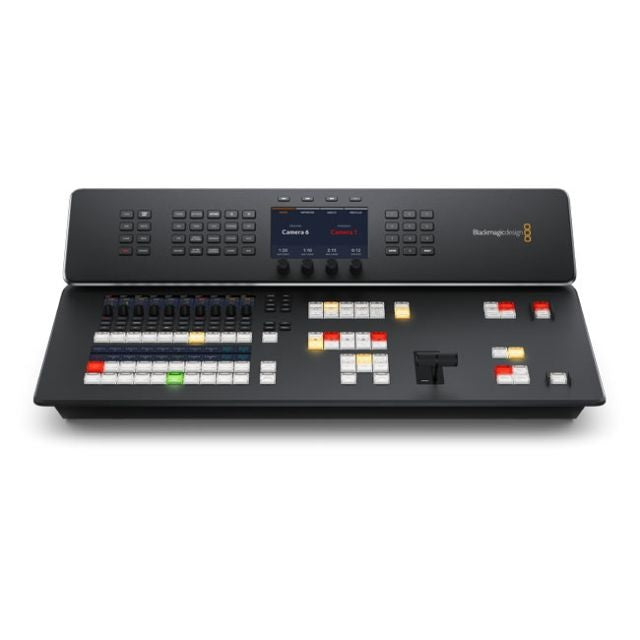

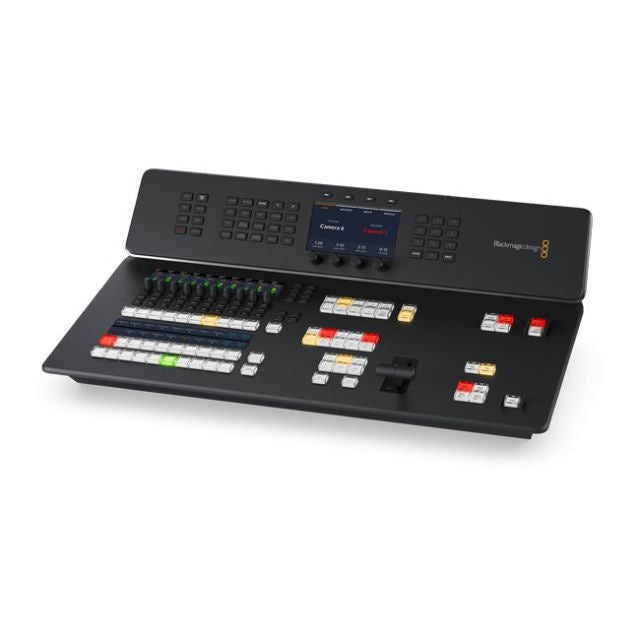

Blackmagic Design ATEM Television Studio HD8 8-Input | No Storage

Blackmagic Design ATEM Television Studio HD8 8-Input | No Storage

SoundPro Item: 207951 | Part Number: BMD-SWATEMTVSTA/HD08/0

$2,965.00
$2,965.00 $2,965.00
Your Price Sold out
MSRP: $2,965.00 | MAP: $2,965.00

Usually ships in 5-7 business days

  • 8 Standards-Converted 3G-SDI Inputs Accept Mixed Frame Rates Without Manual Sync
  • 4 ATEM Advanced Chroma Keyers Enable Green Screen And Virtual Set Productions
  • Built-In Hardware Streaming Engine Delivers RTMP Output Without An External Encoder
  • 58-Channel Fairlight Audio Mixer With Live LCD Metering Eliminates A Separate Console
  • 16-Way Multiview Output Consolidates Camera Monitoring Onto A Single Display
  • SuperSource Multilayer Processing Adds Four Extra DVEs For Complex Compositions
  • Integrated Broadcast Control Panel Matches Traditional Operator Workflows On Location
Log in or register for YOUR best price

The ATEM Television Studio HD8 targets broadcast engineers, live event producers, and AV integrators who need a full-featured production switcher without dedicated rack infrastructure. With 8 standards-converted 3G-SDI inputs, the unit accepts cameras operating at mixed frame rates and resolves sync automatically, so multi-camera setups in small venues, sports facilities, houses of worship, and education environments can go live quickly without signal chain troubleshooting. The integrated broadcast-style control panel puts program row selection, t-bar fader, transition triggers, and aux switching directly on the front surface, matching the muscle memory of operators trained on traditional broadcast desks.

For productions that require post-event editing, the ISO model records all inputs to separate files with frame-accurate timecode, enabling multicam editing in any compatible NLE. The built-in hardware streaming engine encodes to H.264 and supports RTMP delivery, allowing simultaneous recording and live distribution without an external encoder. A 58-channel Fairlight audio mixer with live metering on a dedicated LCD handles complex audio routing that would otherwise require a separate console, making the unit practical for single-operator or small-crew productions in broadcast vans, comedy clubs, theaters, and sports sidelines.

Where comparable switchers in this category require external keyers, graphics systems, or multiview processors, the HD8 integrates 4 ATEM Advanced Chroma Keyers, SuperSource multilayer processing, 2 media players with alpha channel support, and a 16-way multiview output. Cloud integration and network storage enable collaborative workflows across multiple users. Free ATEM Software Control for macOS and Windows exposes the full feature set when front-panel access is not sufficient, and a Photoshop plug-in streamlines graphics preparation for operators managing their own motion graphics pipeline.

View full details

Specifications

Mix Effects
M/E Layers
8 M/E
DVE
1x DVE, Stinger
Chroma Keys
4x Chroma Key
Luma Keys
7x Luma Key
Downstream Keys
2x Chroma, Luma, DVE
Pattern Generators
7x Pattern
Color Generators
2x Color
Audio Mixing
58-Channel Mixing
Processing
Switching Type
Pushbutton, Software, T-Bar
Processing Resolution
1080p at 60
Color Processing
10-Bit 4:2:2 RGB
Dimensions
Unit Dimensions
23 x 14.8 x 6.35"
Box Dimensions
28.5 x 21.5 x 10"
Weight
Unit Weight
14.9 lbs
Package Weight
26.15 lbs
Input
Video Input Count
8
Video Inputs
8x BNC (3G-SDI) Female
Input Video Formats
1080p at 23.98/24/25/29.97/30/50/60 fps; 1080i at 50/59.94/60 fps; 720p at 50/59.94/60 fps
Audio Inputs
1x BNC MADI Female, 1x 2RCA Stereo Analog Female, 2x XLR 3-Pin Analog Female, 1x XLR 5-Pin Female
Embedded Audio Input
SDI
Output
Video Output Channels
8
Video Outputs
8x BNC
Output Video Formats
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps; 1080i at 50/59.94/60 fps; 720p at 50/59.94/60 fps
Audio Outputs
2x 1/4" TRS Stereo Analog Female
Embedded Audio Output
SDI
Multiview Output
16-Way Multiview
Monitor Output
1x HDMI
Connectivity
Other I/O
1x BNC Reference Input, 1x BNC Reference Output, 1x BNC Timecode In, 1x BNC Timecode Out, 4x RJ45 LAN, 1x RJ45 Talkback, 1x RJ12 Remote, 2x USB-C Output
Video Standard Compliance
SMPTE 292M/296M/424M/425M-A/425M-B
Wireless
No
IP Encoding
IP Video
H.264: 1920 x 1080 at 60p Encoding
Transport Protocols
RTMP, TCP/IP
Power
AC Input
1x IEC C14 (100 to 240 VAC)
DC Input
1x XLR 4-Pin (12 VDC)
Power Consumption
100 W
Environmental
Operating Temperature
32 to 72 degrees F / 0 to 40 degrees C
Operating Humidity
Up to 90%
Storage Temperature
-4 to 140 degrees F / -20 to 60 degrees C
Storage Humidity
Up to 90%
Compatibility
OS Compatibility
macOS 12 or Later / Windows 10 or Later
