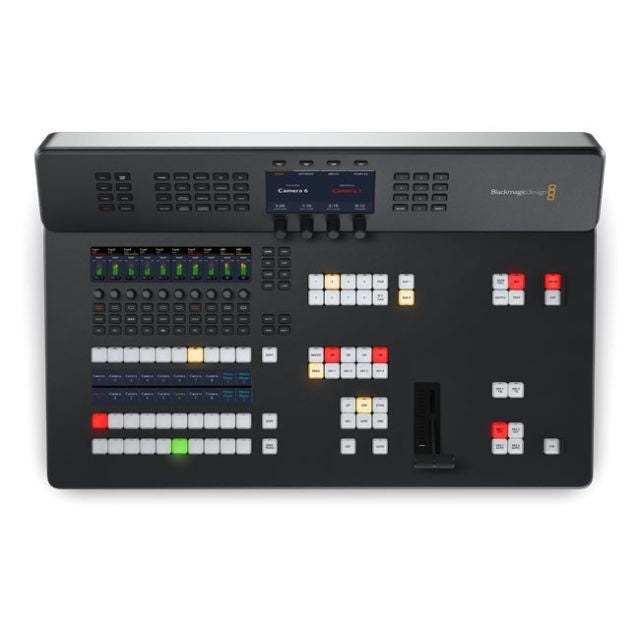

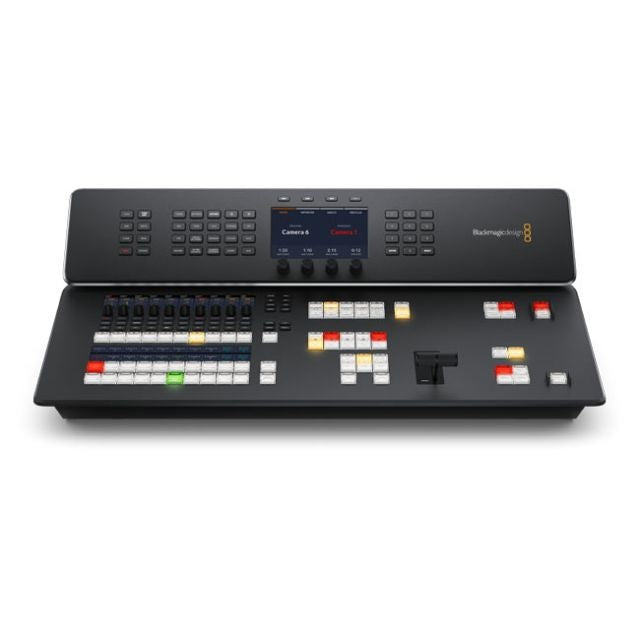

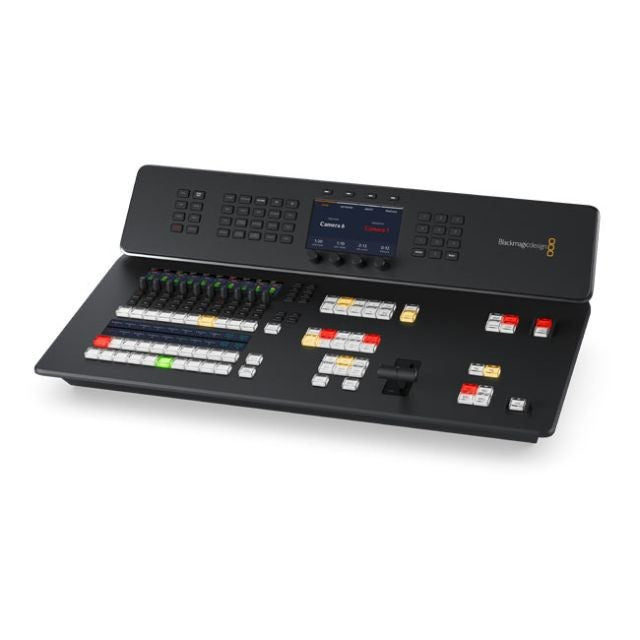

Blackmagic Design 8-Input Live Production Switcher With 2TB

Blackmagic Design 8-Input Live Production Switcher With 2TB

SoundPro Item: 207392 | Part Number: BMD-SWATEMTVSTC/HD08ISO/2

$5,495.00
$5,495.00 $5,495.00
Your Price Sold out
MSRP: $5,495.00 | MAP: $5,495.00

Usually ships in 5-7 business days

  • Eight Standards-Converted SDI Inputs Accept Mixed-Format Sources Without External Sync
  • Four ATEM Advanced Chroma Keyers Enable Professional Virtual Set And Keying Workflows
  • Integrated 2TB M.2 NVMe Storage Records Program Output Directly Without External Media
  • Built-In RTMP Streaming Engine Delivers Live Content Over Ethernet Or USB-C Tethering
  • BNC MADI I/O Connects Directly To Professional Audio Consoles For Full Digital Audio Integration
  • Integrated 58-Channel Audio Mixer Includes Six-Band Parametric EQ And Full Dynamics Processing
  • Four-Way Gigabit Ethernet Switch Simplifies Network Infrastructure In Compact Production Environments
Log in or register for YOUR best price

The ATEM Television Studio HD8 ISO 2TB is engineered for broadcast engineers, live event producers, and video integrators who need a self-contained production switcher without external hardware dependencies. The integrated control panel eliminates the need for a separate surface, while the onboard 4-way Ethernet switch, built-in streaming engine, and 2TB M.2 NVMe storage reduce rack complexity and cable overhead in OB vans, houses of worship, studios, and corporate broadcast environments.

With 8 standards-converted 3G-SDI inputs, the HD8 ISO accepts mixed-format sources and re-syncs each input independently, making it practical for facilities running multiple camera types or legacy infrastructure. Four ATEM Advanced Chroma Keyers, two DVEs, SuperSource, and a 58-channel audio mixer with 6-band parametric EQ and full dynamics processing deliver a feature set typically associated with much larger frames. MADI I/O on both input and output sides supports integration with professional audio consoles without additional conversion hardware.

Compared to software-only or tablet-controlled switchers in this class, the HD8 ISO provides a hardwired panel with dedicated macro buttons, a 3-axis joystick, and labeled crosspoint buttons — reducing operator error in high-stakes live environments. USB-C webcam output and RTMP streaming over Ethernet or USB tethering make it equally capable for hybrid productions requiring simultaneous broadcast and internet delivery.

View full details

Specifications

Dimensions
Product Width
23"
Product Length
14.8"
Product Height
6.35"
Weight
Product Weight
6.35 lbs
Shipping
Package Width
27"
Package Length
19"
Package Height
10"
Package Weight
11 lbs
Video Inputs
SDI Video Inputs
8
SDI Rates
1.5G, 3G
Video Input Re-Sync
On all 8 inputs
Frame Rate and Format Converters
On all 8 inputs
Video Outputs
SDI Video Outputs
12
HDMI Video Outputs
1
SDI Aux Outputs
2
SDI Program Outputs
1
Webcam Output
2 x USB-C supporting 720p or 1080p at PGM frame rate
Audio Inputs
Total Audio Inputs
2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback
SDI Audio Inputs
4 Ch embedded audio on all SDI inputs
Audio Outputs
Total Audio Outputs
4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio up to 50 active, 1 x 5 pin XLR Talkback
SDI Audio Outputs
2 Ch embedded audio on all SDI outputs
Audio Mixer Channels
58
Connectivity
Timecode Connections
1 x BNC In, 1 x BNC Out
Reference Input
1 x BNC In, 1 x BNC Out; Tri-Sync or Black Burst
Control Panel Connection
Ethernet; direct or via network
Remote
RJ12 supports RS-422
Talkback
RJ45 for 3rd party talkback systems
Ethernet
4 x RJ45; supports 10/100/1000 BASE-T
Computer Interface
2 x USB-C supports USB 3.0
Power Connector
1 x IEC C14 AC inlet; 1 x 4 pin XLR 12V DC In
Video Standards
HD Video Input Standards
720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
Rec 709
SDI Auto Switching
Automatically detects 1.5G-SDI and level A or level B 3G-SDI
Switching
Number of Mix Effects Rows
1
Direct Cross Points
10
Shifted Cross Points
20
Crosspoint Button Type
Tri-Color LED
Crosspoint Label
6 rows 24 character LCD
Upstream Keyers
4
Downstream Keyers
2
Advanced Chroma Keyers
4
SuperSource
1
DVEs
2
Linear/Luma Keyers
7
Transition Keyer
1 Stinger, 1 DVE
Total Number of Layers
8
Pattern Generators
7
Color Generators
2
Controls
Dedicated Macro Buttons
10 plus shift 10
Transition Type Buttons
5
Key Buttons
8
AUX Buttons
12
Fader Bar
1
Record Buttons
2
Stream Buttons
2
DSK Transition Selectors
6
Fade to Black Buttons
1
System LCD Displays
1
Numeric Keypad
1
3 Axis Joystick
1
Control Panel
Integrated
Multi View
Total Multi Views
1 x 3G-SDI, 1 x HDMI
Multi View Video Standard
HD
Display Minimum Resolution
1366 x 768
Rotatable Windows
16
Configurable Views
16, 13, 10, 7, or 4 up
Media
Media Players
2
Media Player Channels
Fill and key for each media player
Media Pool Still Image Capacity
20
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG, TIFF
Media Pool Clip Capacity
2 x up to 1080p60
Media Player Clip Length 720 HD
400 frames
Media Player Clip Length 1080 HD
200 frames
Media Pool Video File Format
TGA sequence
Media Pool Audio File Format
WAV, MP3, AIFF
Internal Storage
2TB M.2 NVMe installed
Media Format Support
ExFAT, APFS, HFS+
Recording and Streaming
Streaming Protocol
RTMP over Ethernet or USB-C
Video Recording Format
H.264 .mp4 with AAC audio
Processing
Processing Delay
Less than 10 lines when genlocked and in same format as switcher
Power
Power Supply
1 x Internal 100-240V AC 50/60Hz
Power Usage
100 W max
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Included Items
In The Box
ATEM Television Studio HD8 2TB, Welcome wallet with QR code for software download
