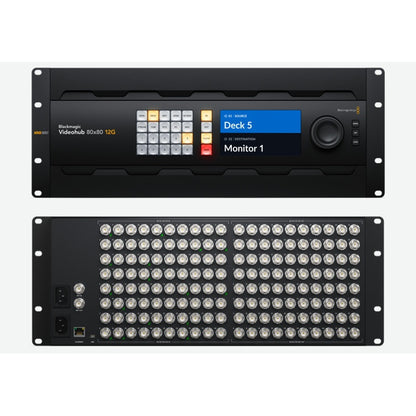

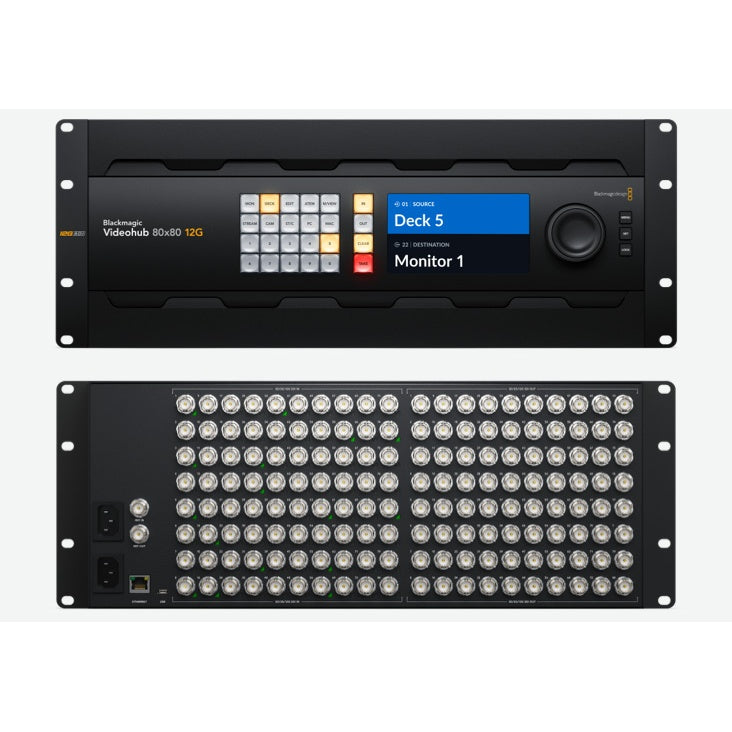

Blackmagic Design BMD-VHUBSMAS12G080080 80x80 12G-SDI Video Router

Blackmagic Design BMD-VHUBSMAS12G080080 80x80 12G-SDI Video Router

SoundPro Item: 151897 | Part Number: BMD-VHUBSMAS12G080080

$11,405.00
$11,405.00 $11,405.00
Your Price Sold out
MSRP: $11,405.00 | MAP: $11,405.00

Usually ships in 5-7 business days

  • Zero Latency Routing Preserves Signal Timing Across All 80 Inputs And Outputs
  • LED Indicators On Every BNC Confirm Active SDI Signal At A Glance
  • SDI Re-Clocking On All Outputs Maintains Signal Integrity Over Long Cable Runs
  • Dual Internal Power Supplies With Crosspoint Preservation Protect Against Outages
  • Built-In LCD Provides Live Video Preview And Routing Label Confirmation
  • Open Ethernet Control Protocol Enables Third-Party System Integration
  • Automatic SDI Rate Detection Per Input Allows True Mixed-Format Operation
Log in or register for YOUR best price

The Blackmagic Design Videohub 80x80 12G is built for broadcast facilities, large-scale live production, and post-production environments that demand high-density signal routing without compromise. With 80 12G-SDI inputs and 80 12G-SDI outputs, it handles any combination of SD, HD, 2K, Ultra HD, and 4K DCI signals simultaneously — making it viable for mixed-format infrastructures where standardizing on a single signal type is not practical.

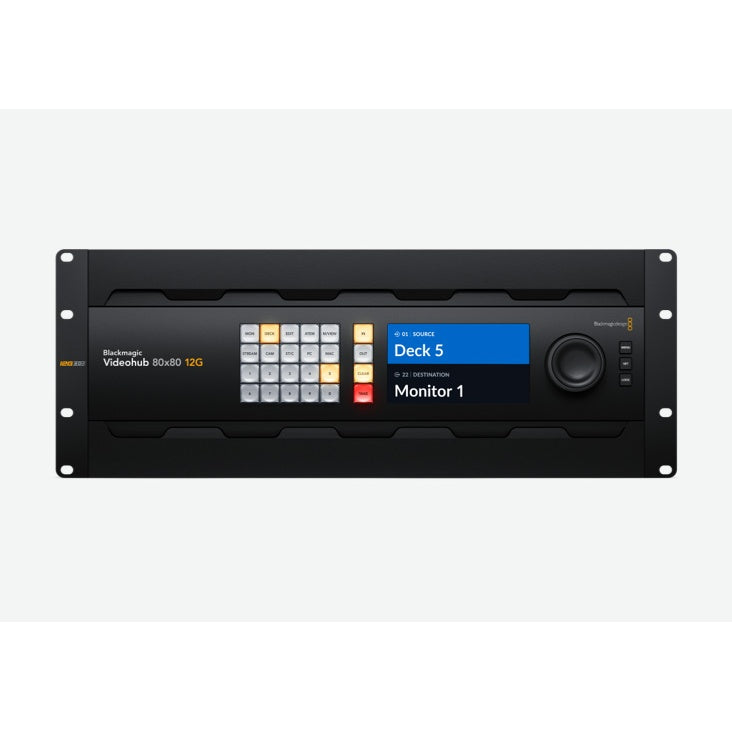

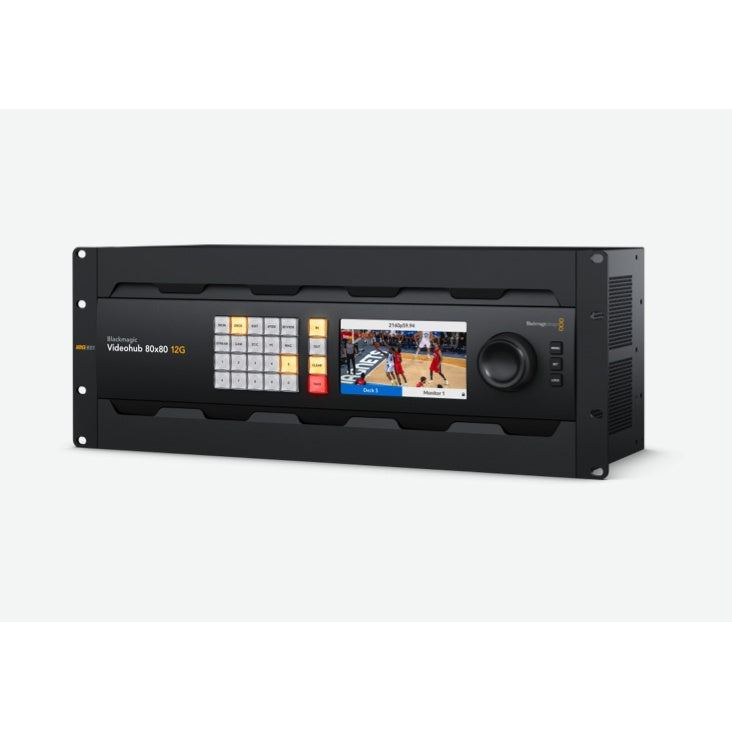

On-router control eliminates the need for a dedicated external panel in many workflows. The built-in five-inch full HD LCD displays live video and routing labels, while 24 direct-entry buttons and an electronically clutched spin knob allow fast, confident route changes. SDI re-clocking on every output ensures signal integrity across long cable runs, and dual internal power supplies with crosspoint preservation protect against unexpected outages — a critical requirement in live broadcast and master control environments.

External control via Ethernet supports Blackmagic's hardware control panels and third-party systems using the open Videohub Control Protocol, giving integrators the flexibility to incorporate this router into existing facility control architectures. The four rack unit chassis consolidates what would otherwise require multiple smaller routers, reducing rack space and complexity for demanding production and broadcast installations.

Downloads

View full details

Specifications

Connections
SDI Video Inputs
80
SDI Video Outputs
80
SDI Rates
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
Video Input Re-Sync
None
SDI Reclocking
On all SDI outputs
Reference Inputs
Tri-Sync or Black Burst
Reference Outputs
Reference terminating loop output
Ethernet
Supports 10/100/1000 BASE-T
Computer Interface
USB-C
Standards
HD Video Standards
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU-R BT.656, ITU-R BT.601
SDI Audio Sampling
48kHz, 24-bit
SDI Video Sampling
YUV 4:2:2 and RGB 4:4:4
SDI Color Precision
10, 12-bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI; 10-bit YUV 4:2:2 in all modes
SDI Color Space
REC 601, REC 709, REC 2020
SDI Auto Switching
Automatically selects between 270Mb SD-SDI, 1.5G HD-SDI, 3G level A and B, 6G HD-SDI, 12G-SDI per input
SDI Metadata Support
Video payload identification ancillary data per SMPTE 352M
Control
Built-In Control Panel
24 buttons for local control, 3 buttons and search dial for menu control, 5 inch color display
External Control Panel
Blackmagic Videohub software for Mac and Windows; supports Videohub Smart Control Pro and Videohub Master Control Pro; includes SDK and Ethernet Videohub Control Protocol
Control Panel Connection
Ethernet
Software Control
Router control included free for Windows and Mac
Internal Software Upgrade
Via included updater application
Display
Display
Built-in 5 inch LCD for video and menu settings
Power
Power Supply
2 x Internal 100-240V AC 50/60Hz; IEC power cables required
Power Fail Protection
Crosspoint connections preserved and restored instantly at power on
Power Usage
92 W max
Physical
Rack Height
4 rack units
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Compatibility
Operating Systems
Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 10 64-bit; Windows 11
Warranty
Warranty
3 Year Limited Manufacturer's Warranty
