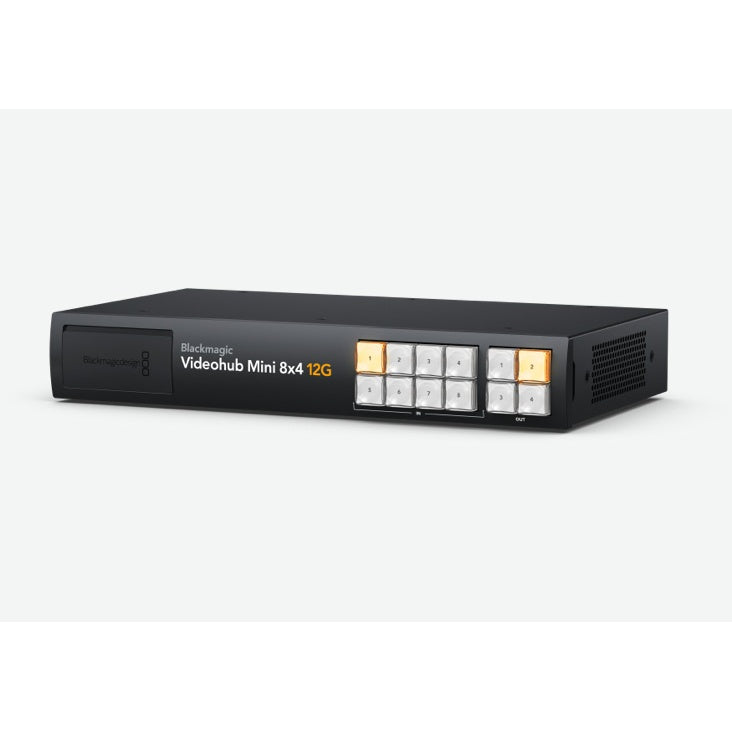

Blackmagic Design Videohub Mini 12G Compact SDI Router | 8x4

Blackmagic Design Videohub Mini 12G Compact SDI Router | 8x4

SoundPro Item: 203552 | Part Number: BMD-VHUBSMTK12G0804

$1,185.00
$1,185.00 $1,185.00
Your Price Sold out
MSRP: $1,185.00 | MAP: $1,185.00

Usually ships in 5-7 business days

  • Clean Switch On Every Output Eliminates Glitches During Live Source Switching
  • Auto-Detecting SDI Inputs Accept Any Mix Of SD, HD, And Ultra HD Simultaneously

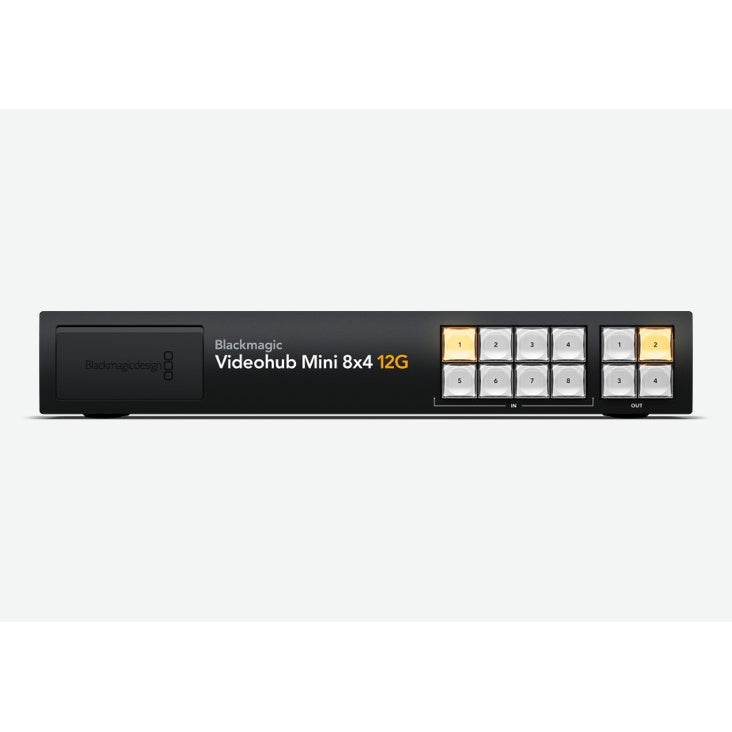

  • Front Panel SDI And USB-C Connections Provide Quick Access Without Rear Panel Changes
  • SDI Reclocking On All Outputs Maintains Signal Integrity Through The Routing Chain
  • Ethernet Control Integrates With Videohub SDK And Hardware Control Panels

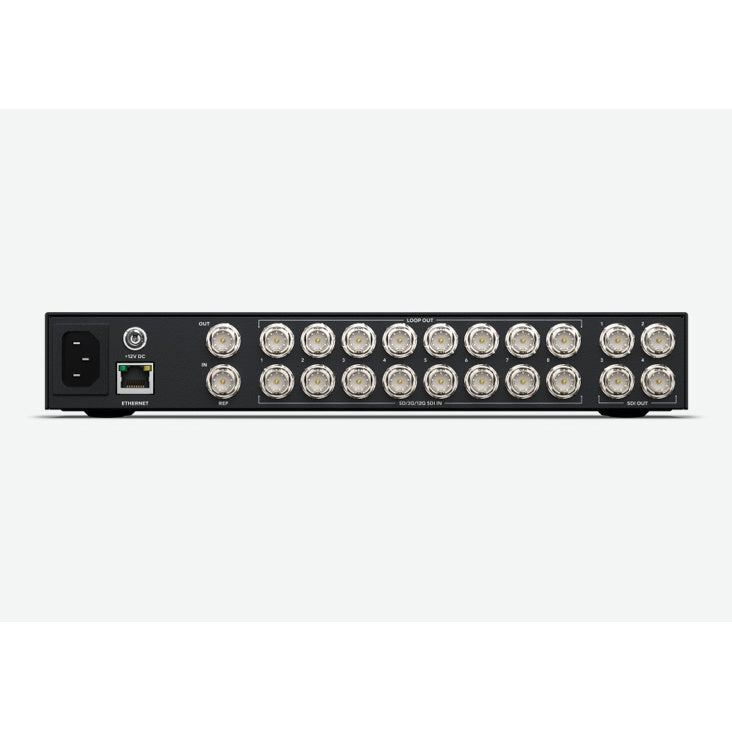

  • Loop Output On Each Input Enables Non-Destructive Signal Distribution
Log in or register for YOUR best price

The Blackmagic Design Videohub Mini 12G is built for broadcast engineers, live production crews, and systems integrators who need to route multiple SDI sources in space-constrained environments — OB trucks, fly packs, rack-dense studios, and installed AV systems where full-size routers are impractical. The auto-switching SDI inputs handle any mix of SD, HD, 2K, Ultra HD, and 4K DCI standards simultaneously, eliminating the need for format-matched signal chains and reducing infrastructure complexity on multi-camera workflows.

Where fixed-matrix switchers force engineers to commit to a single format, the Videohub Mini 12G re-clocks all SDI outputs and re-syncs all inputs for clean, glitch-free switching — a critical requirement for live broadcast and confidence monitoring setups. The front-panel SDI input and USB-C webcam output add flexibility for direct camera feeds and software-based monitoring without breaking into the rear panel. Ethernet-based control integrates with Blackmagic Videohub hardware control panels and the Videohub SDK, making it a practical building block in larger Videohub-managed routing architectures.

Compared to compact HDMI routers or fixed-format SDI matrices, the Videohub Mini 12G supports the full 12G-SDI rate suite — 270Mb through 12G — with SMPTE compliance across every major SD, HD, and UHD standard, making it a future-resistant choice as workflows migrate from HD to Ultra HD production.

Downloads

View full details

Specifications

Connectivity
SDI Video Inputs
8
SDI Video Outputs
4
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
Video Input Re-Sync
On all 8 inputs for clean switch
SDI Reclocking
On all SDI outputs
Reference Inputs
Tri-Sync or Black Burst
Reference Outputs
Reference terminating loop output
Webcam Output
USB-C
Ethernet
Supports 10/100/1000 BASE-T
Computer Interface
1 x USB Type-C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection
Standards
HD Video Standards
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
SDI Audio Sampling
48kHz and 24-bit
SDI Video Sampling
YUV 4:2:2 and RGB 4:4:4
SDI Color Precision
10, 12-bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI; 10-bit YUV 4:2:2 in all modes
SDI Color Space
REC 601, REC 709, REC 2020
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M
Controls
Built-In Control Panel
12 x buttons
External Control Panel
Blackmagic Videohub software control panel for Mac and Windows; supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels; includes Videohub SDK and Ethernet Videohub Control Protocol
Control Panel Connection
Ethernet
Power
Power Supply
1 x Internal 100-240V AC 50/60Hz
Power Usage
23W max
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Software
Software Control
Router control included free for Windows and Mac
Internal Software Upgrade
Via included updater application
Operating Systems
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later; Windows 10 64-bit, Windows 11
Certifications
Warranty
1 Year Limited Manufacturer's Warranty
Included Items
In the Box
Blackmagic Videohub Mini 8x4 12G, Welcome wallet with QR code for software download
