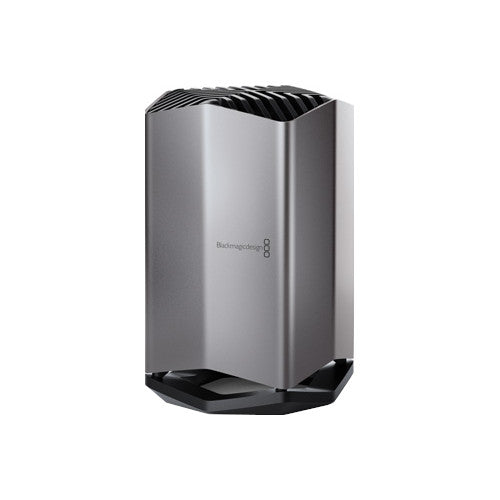

• Blackmagic Design Cloud Store 20TB
  • Blackmagic Design Cloud Store 20TB front

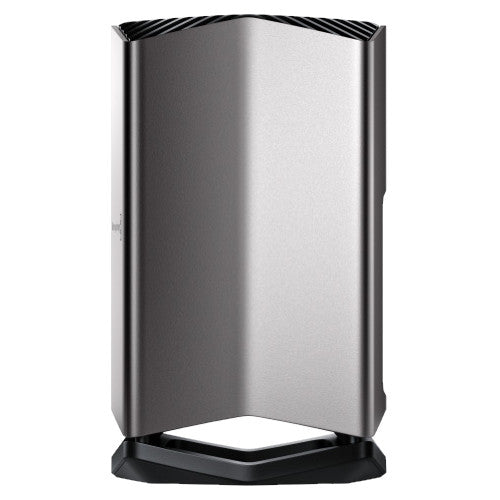

  • Blackmagic Design Cloud Store 20TB side

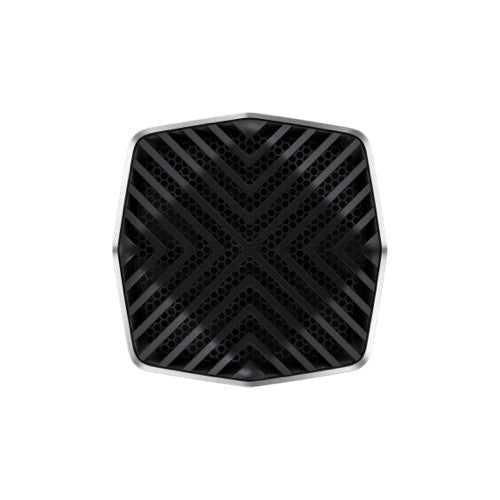

  • Blackmagic Design Cloud Store 20TB bottom
1 4

Blackmagic Design Cloud Store 20TB

Blackmagic Design Cloud Store 20TB

SoundPro Item: 134687 | Part Number: BMD-DWCLDI/CLD020

$15,065.00
$15,065.00 $15,065.00
Your Price Sold out
MSRP: $15,065.00 | MAP: $15,065.00

Usually ships in 5-7 business days

  • Extremely high performance 20TB network storage
  • 4 x 10G Ethernet ports, Dropbox
  • Google Drive sync
  • Redundant RAID 5 design
Log in or register for YOUR best price

Extremely high performance 20TB network storage designed for distributing media files globally. Includes 4 x 10G Ethernet ports, Dropbox and Google Drive sync and redundant RAID 5 design.

View full details

Specifications

Dimensions
Dimensions (WxDxH)
7x7x11.6”
Connectivity
10G Ethernet Ports
4 x 100/1000/10G BASE-T
1G Ethernet Ports
2 x 100/1000 BASE-T
Ingest USB-C Port
1 x USB 3.0 (up to 5Gb/s). Automatically transfers files from USB drive to Cloud Store.
Backup USB-C Port
1 x USB 3.0 (up to 5Gb/s). Automatically backs up files from Cloud Store to USB drive.
HDMI Monitor Outputs
1
HDMI Monitor Out Standards
1080p50, 1080p59.94, 1080p60.
Power Inputs
1 x IEC C14 mains input.
Controls
Protocol
SMB
Monitor Out Displays
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graphs.
Included Items
Software Included
Blackmagic Cloud Setup Utility, Blackmagic Proxy Generator Lite, Internal software upgrade via Blackmagic Cloud Setup using USB-C port.
Environmental
Operating Temperature
0° to 40° C (32°to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
13.2 lbs
General
Computer Interface
Ethernet for shared file access, configuration and software updates. USB-C for configuration and software updates.
Computer Connections
50 max.
Cloud Synchronization
Compatible Services DropboxGoogle Drive
Storage Type
M.2 NVMe SSD
Total Capacity
20TB, 80TB or 320TB
Redundancy
RAID 5 distributed parity
External Storage
USB Disks
External Storage Format
ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Status Indicator
Underside white glow indicating normal operation or red glow indicating disk or power supply fault.
Device Control
External Control: USB-C or Ethernet for configuration and software updates.
Operating Systems
Mac 11.1 Big Sur, Mac 12.0 Monterey or later., Windows 10 and 11.
Power Supply
2 x internal 100 - 240V AC 50/60Hz.
Power Usage
400W max.
