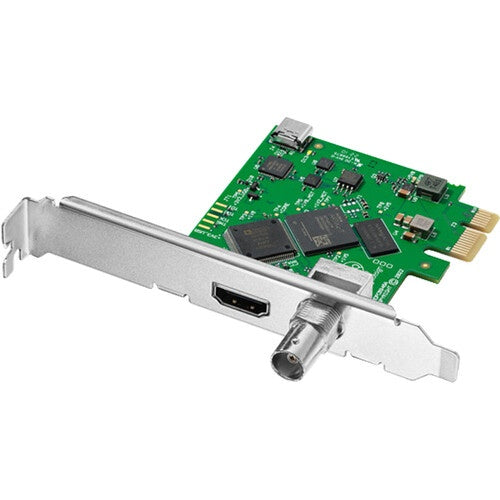

• Blackmagic Design DeckLink Mini Monitor HD PCIe card angled view with HDMI and BNC outputs on bracket

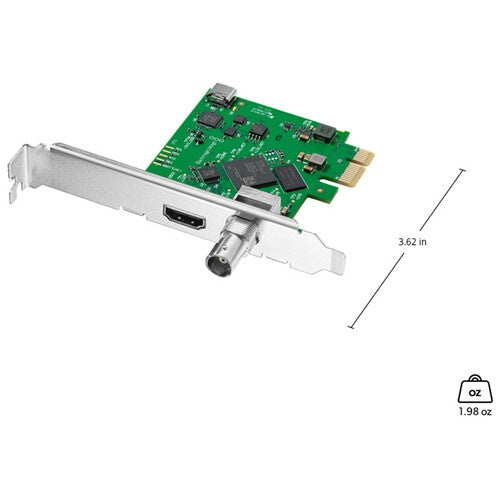

  • Blackmagic Design DeckLink Mini Monitor HD capture card shown with 3.62 in height and 1.98 oz weight callouts
1 2

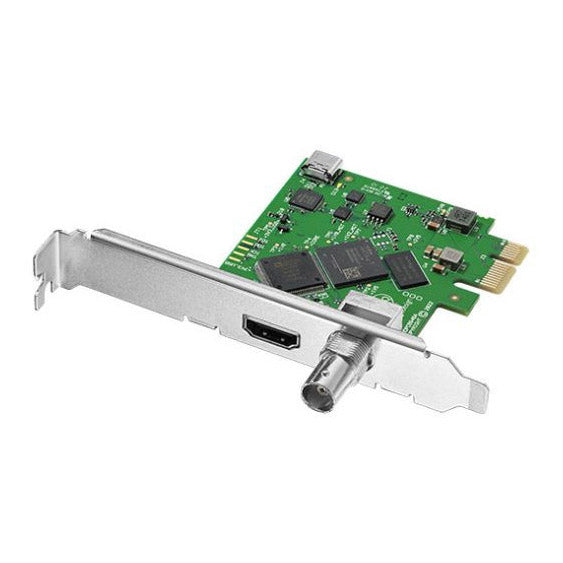

Blackmagic Design DeckLink Mini Monitor HD

Blackmagic Design DeckLink Mini Monitor HD

SoundPro Item: 134275 | Part Number: BMD-BDLKMINIMON3G

$155.00
$155.00 $155.00
Your Price Sold out
MSRP: $155.00 | MAP: $155.00

Usually ships in 5-7 business days

  • Broadcast quality HDMI and SDI video playback and monitoring from your PCIe computer
  • Includes 3G-SDI and HDMI 2.0
  • Works with DaVinci Resolve, Final Cut Pro and more
  • 3 Year Limited Manufacturer's Warranty
Log in or register for YOUR best price

DeckLink Mini Monitor HD includes 3G-SDI and HDMI 2.0 to connect to any TV, monitor or projector for broadcast monitoring, including the latest HDR formats!

Get broadcast quality HDMI and SDI video playback and monitoring from your PCIe computer! DeckLink Mini Monitor HD includes 3G-SDI and HDMI 2.0 that let you connect to any television, monitor or projector for broadcast monitoring, including the latest high dynamic range (HDR) formats! Works with software such as DaVinci Resolve, Final Cut Pro and more.

View full details

Specifications

Dimensions
Dimensions
3.62"
Electrical
Power Consumption
3W
Audio
SDI Audio Output
16 channels embedded in SD/HD
HDMI Audio Output
8 channels embedded in SD/HD
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit
HDMI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit
Connectivity
SDI Video Output
1 x 10-bit SD/HD switchable
HDMI Video Output
1 x HDMI 2.0 type A connector
HDMI Video Standards
HD Video Standards
HDMI Video Sampling
4:2:2 and 4:4:4
HDMI Color Precision
10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards
HDMI Configuration
HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display.
HDMI Color Space
REC 601, REC 709 and REC 2020
HDMI HDR Support
HDR metadata packing, HLG and PQ transfer characteristics.
Construction
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards
SDI Color Space
REC 601, REC 709 and REC 2020
Environmental
Operating Temperature
32°F to 104°F
Storage Temperature
-4°F to 113°F
Relative Humidity
0% to 90%
General
SDI Rates
270Mb, 1.5G, 3G
Computer Interface
PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Software
Included
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Software Applications
DaVinci Resolve, Adobe Premiere Pro CC, Adobe Photoshop CC, Adobe After Effects CC, Steinberg Cubase, Steinberg Nuendo, Avid Pro Tools, Avid Media Composer, Fusion, Final Cut Pro
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning
SDI Video Sampling
4:2:2, 4:4:4
SDI HDR Support
HDR metadata packing, HLG and PQ transfer characteristics
Multiple Rate Support
SDI video connection is switchable between SD and HD
Hardware Frame Buffer
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB)
Real Time Effects
DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Colorspace Conversion
hardware based real time
Operating Systems
Mac 11.1 Big Sur, Mac 12.0 Monterey or later, Linux, Windows 10 64-bit, Windows 11
