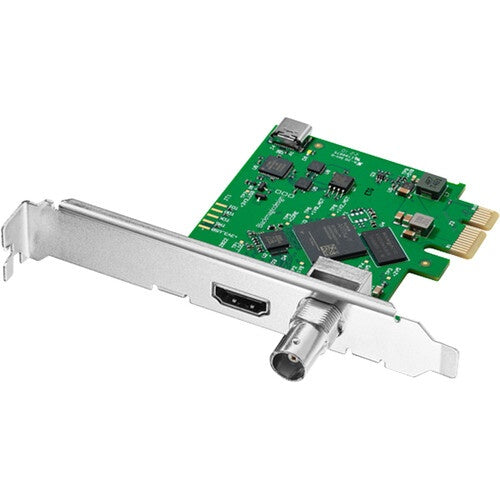

• Blackmagic Design DeckLink Mini Recorder HD PCIe capture card angled view with HDMI and BNC inputs on bracket

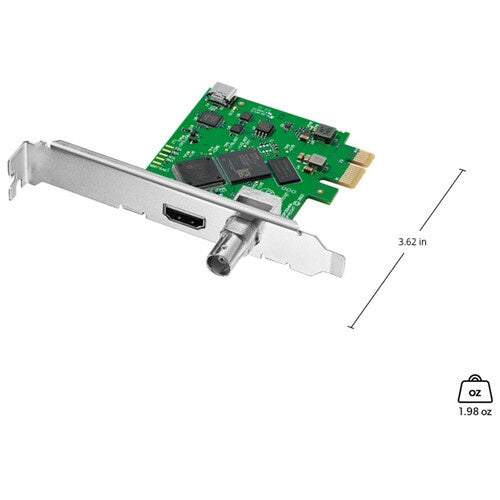

  • Blackmagic Design DeckLink Mini Recorder HD card shown with 3.62 in height and 1.98 oz weight callouts
1 2

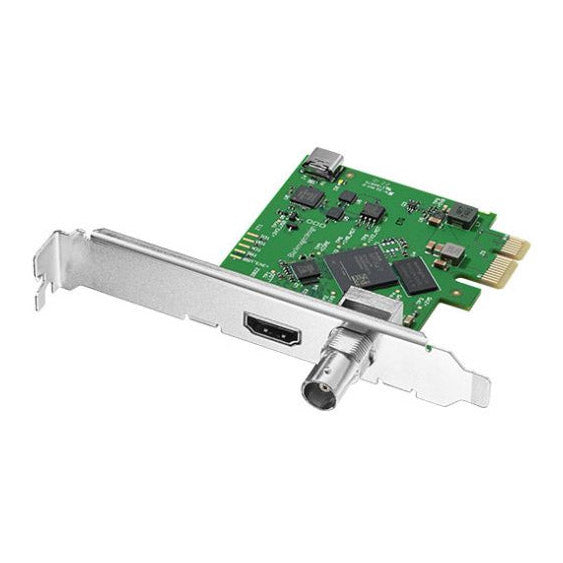

Blackmagic Design DeckLink Mini Recorder HD

Blackmagic Design DeckLink Mini Recorder HD

SoundPro Item: 134276 | Part Number: BMD-BDLKMINIREC3G

$149.00
$149.00 $149.00
Your Price Sold out
MSRP: $149.00 | MAP: $149.00

Usually ships in 5-7 business days

  • Broadcast quality HDMI and SDI video capture for your PCIe computer
  • 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI
  • Compatible with virtually all SD and HD equipment, and popular video software like DaVinci Resolve, and more
  • 3 Year Limited Manufacturer's Warranty
Log in or register for YOUR best price

Blackmagic Design DeckLink Mini Recorder HD features 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI!

Get broadcast quality HDMI and SDI video capture for your PCIe computer! DeckLink Mini Recorder HD features 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI! You get a broadcast quality capture card that’s compatible with virtually all SD and HD equipment and popular video software such as DaVinci Resolve and more.

View full details

Specifications

Certifications
SDI Compliance
SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
Dimensions
Dimensions
3.62"
Electrical
Power Consumption
3 watts
Audio
SDI Audio Input
16 channels embedded in SD/HD
HDMI Audio Input
8 channels embedded in SD/HD
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit
HDMI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit
Connectivity
SDI Video Input
1 x 10-bit SD/HD switchable
HDMI Video Input
1 x HDMI 2.0 type A connector
HDMI Video Standards
HD Video Standards
HDMI Video Sampling
4:2:2 and 4:4:4
HDMI Color Precision
8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards
HDMI Configuration
HDMI 2.0 supports Deep Color
HDMI Color Space
REC 601, REC 709 and REC 2020
Construction
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards
SDI Color Space
REC 601, REC 709 and REC 2020
Environmental
Operating Temperature
32°F to 104°F
Storage Temperature
-4°F to 113°F
Relative Humidity
0% to 90% non-condensing
General
SDI Rates
270Mb, 1.5G, 3G
Computer Interface
PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Software
Included
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Software Applications
Wirecast, vMix, OBS
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning
SDI Video Sampling
4:2:2, 4:4:4
Multiple Rate Support
SDI video connection is switchable between SD and HD
Mutliple Rate Support
HDMI video connection is switchable between SD and HD
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Hardware Frame Buffer
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB)
Colorspace Conversion
hardware based real time
Operating Systems
Mac 11.1 Big Sur, Mac 12.0 Monterey or later, Windows 10 64-bit, Windows 11, Linux
