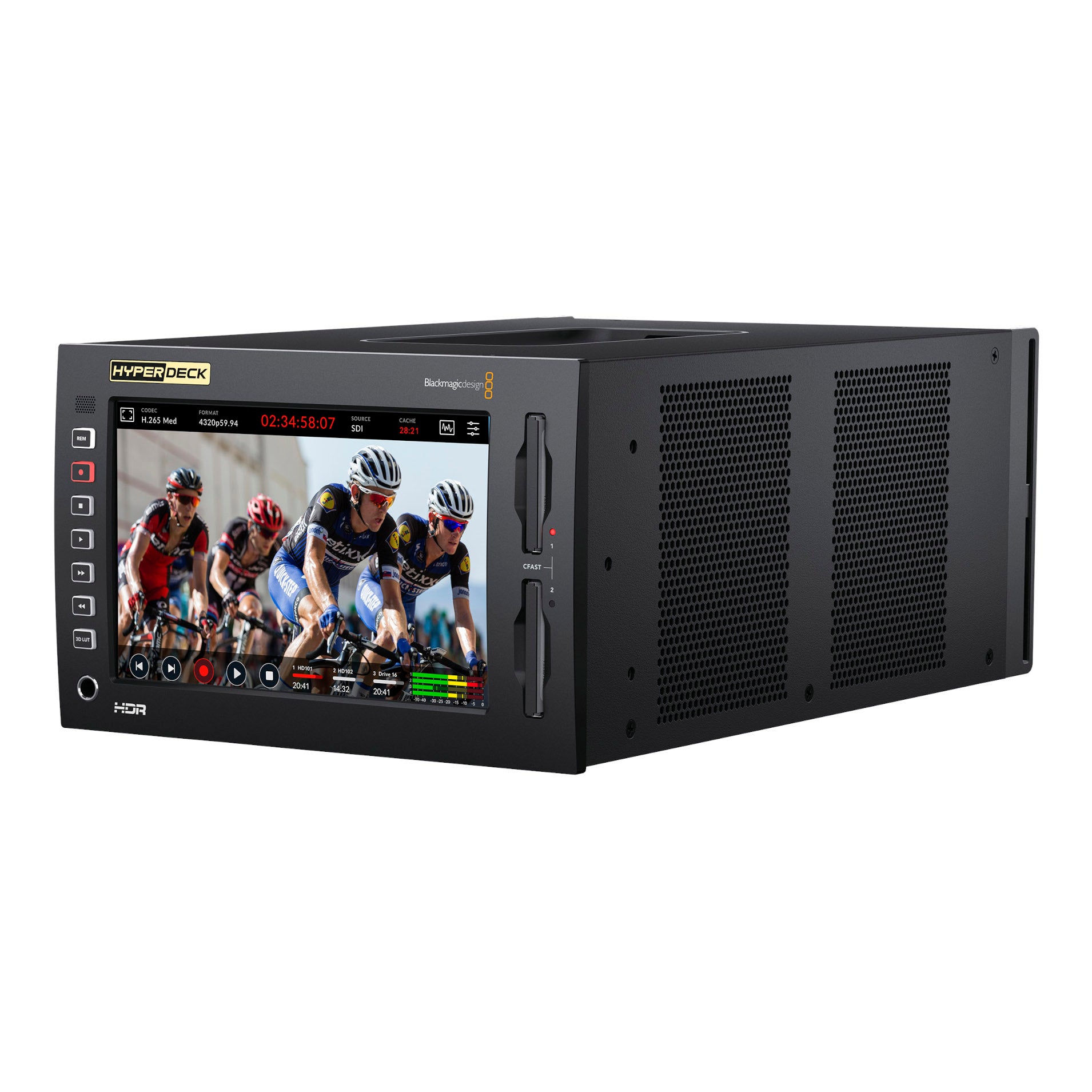

Blackmagic Design HyperDeck Extreme 8K HDR
Blackmagic Design HyperDeck Extreme 8K HDR
SoundPro Item: 41316 | Part Number: BMD-HYPERD/RSTEX8KHDR
Usually ships in 5-7 business days
- Power supply not included - requires IEC cable
- Modern design with traditional controls

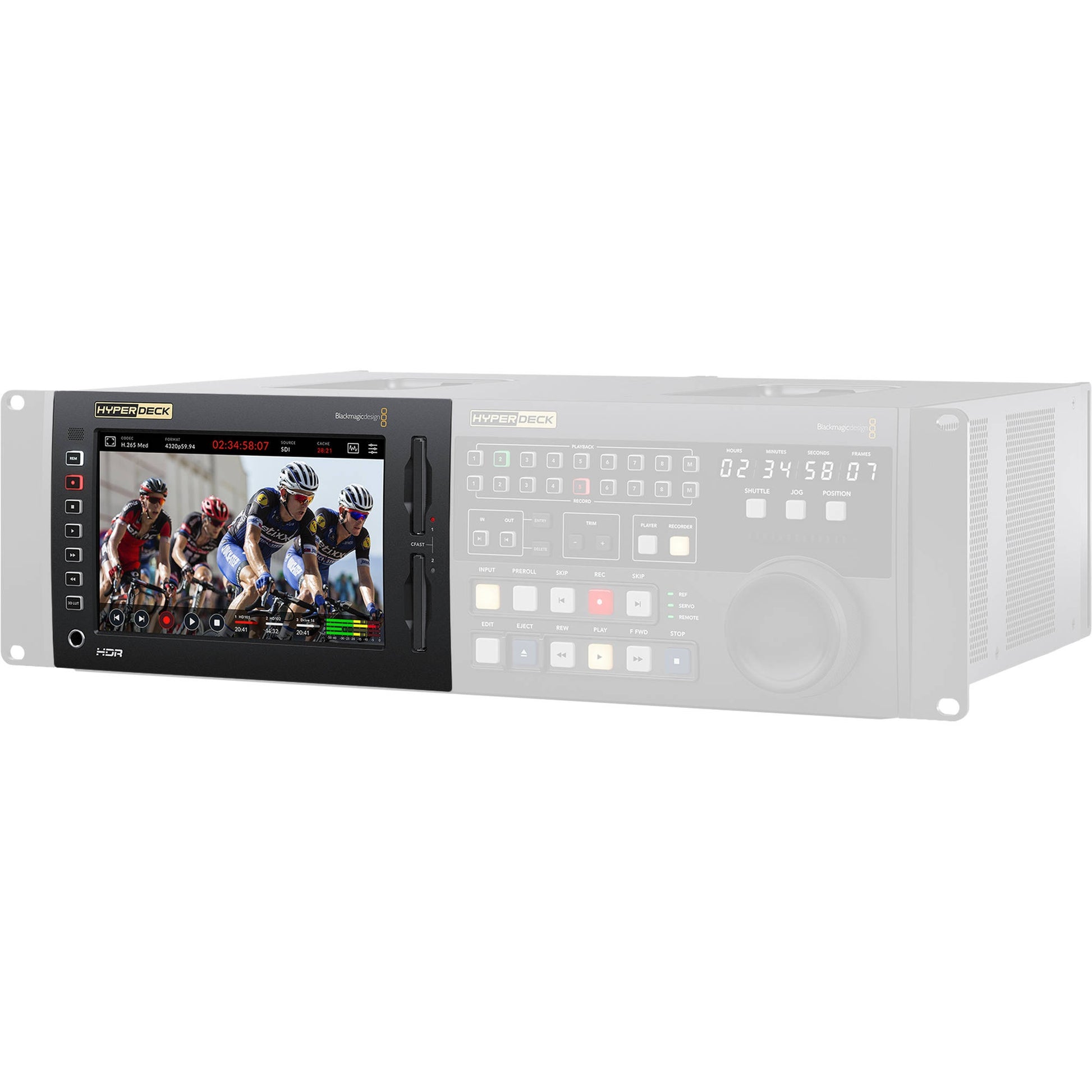

- Rack mountable
- Live production, digital signage and archive
- Dual CFast media for nonstop recording
- Record direct to external USB-C media disks
- Compatible with controllers, switchers, converters, and more
- Advanced HDR support and bright wide gamut LCD
- Built in scopes ensure compliance with broadcast standards
- Professional audio with multi channel SDI and analog audio
- Localized for 11 common languages
HyperDeck Extreme 8K HDR has the reliable features of HyperDeck, with new features of space-saving H.265 files, optional internal cache, 3D LUTs, native 8K and HDR support. Ability to record native 8K in H.265 storage reduces storage costs and image quality stays amazing. Large touch screen ensures you can see your recording and easily control all deck settings. HyperDeck Extreme 8K HDR is an excellent solution for broadcast, live production, and digital signage.
Great for live production as a master recorder, clip player and for recording ISO cameras. Analog inputs allow recording from old video tapes, so legacy programming is compatible with the latest streaming services and can be edited. 10G Ethernet makes digital signage easy with fast media uploads, and a simple remote control protocol. Use as a field recorder with HDMI, SDI and analog inputs with built in scopes and 3D LUTs.
AC and DC power connections help make sure you can use the HyperDeck Extreme 8K HDR in studio or on location. Record to commonly available flash memory cards with dual CFast media support.

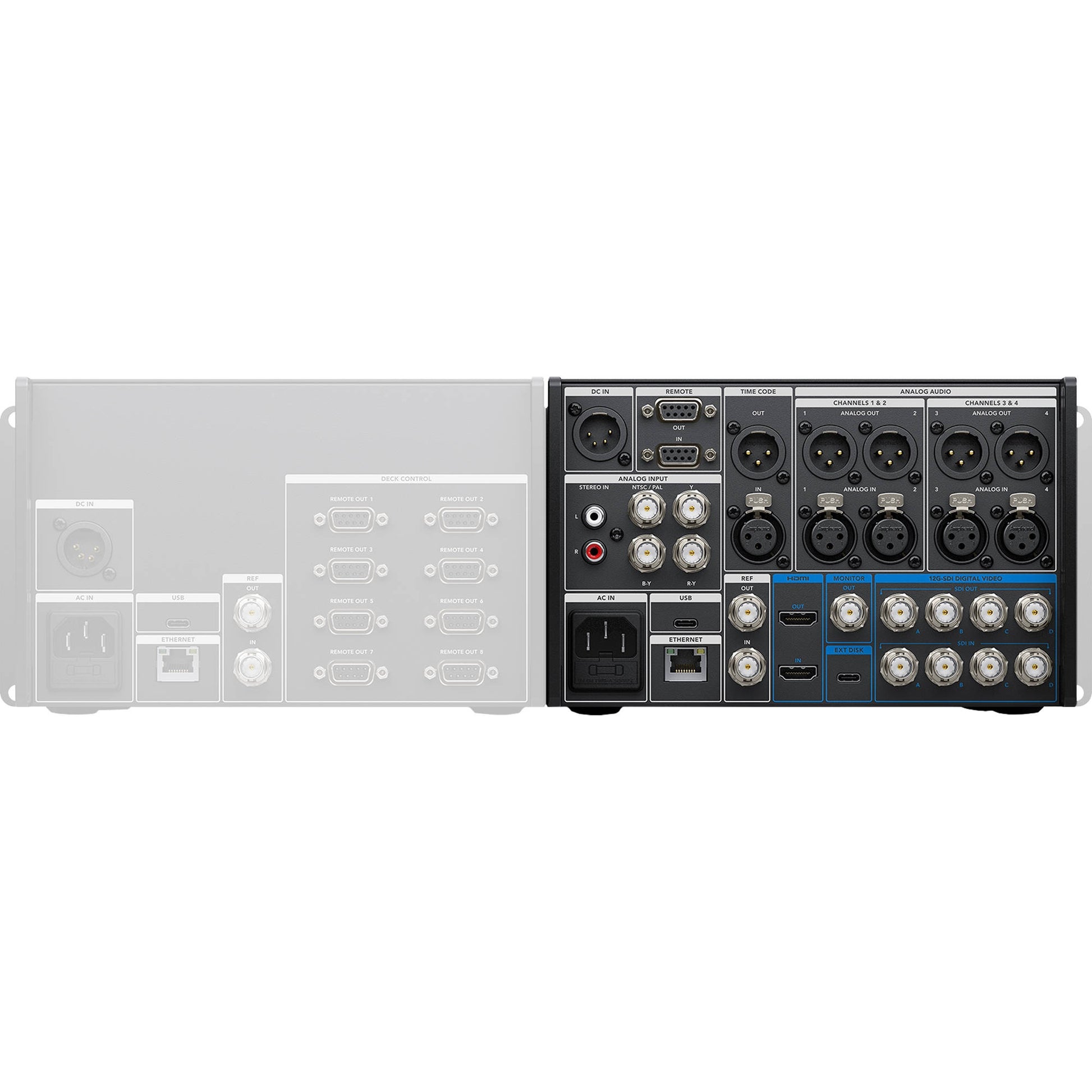

The HyperDeck Extreme 8K HDR includes two media slots, Quad 12G-SDI for 8K, analog connections for archiving, USB-C external disk recording, front panel speaker and headphone jack. Install a PCIe flash disk as a record cache to eliminate dropped frames when your media becomes full or is too slow. Record and playback in full resolution 8K is possible with the included Quad Link 12G-SDI. SDI connections are multi-rate, so you can use with other 8K products, or switch to SD, HD or Ultra HD.

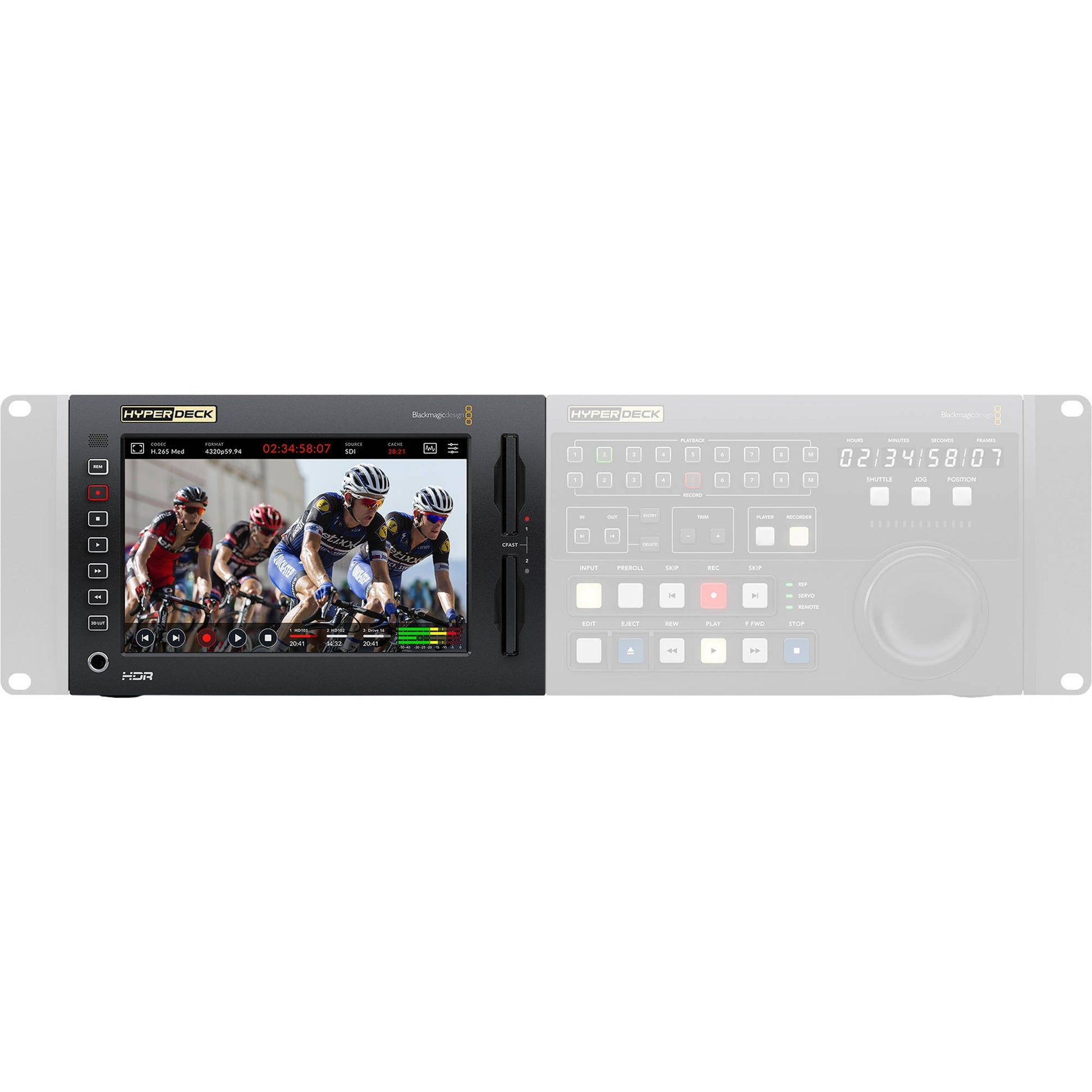

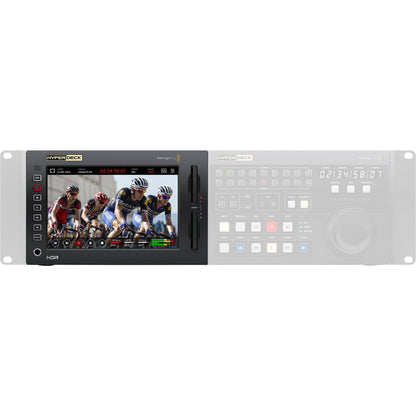

Touch LCD screen provides incredible control with dedicated buttons for play, stop, record, a timeline for scrolling through recordings, image swipe to jog, and more. Heads up display on the LCD shows timecode, video standard, media status, and audio meters. Enable scopes, load and save 3D LUTs, and remote control the HyperDeck from the touch screen.
Full internal waveform monitoring ensures compliance with broadcast standards. RGB and YUV parade displays are ideal for color correction and checking for illegal levels. Histogram shows distribution of white to black detail, and highlights or shadows clipping.
- Connections
- SDI Video Inputs: 4
- SDI Video Outputs: 5 (12G-SDI A,B,C,D and 3G-SDI Monitor Out)
- SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
- HDMI 2.0 Video Inputs: 1
- HDMI 2.0 Video Outputs: 1
- Analog Video Inputs
- 1 x Component YUV on 3 BNCs
- 1x Composite NTSC/PAL on 1 BNC
- Analog Video Outputs: None
- Analog Audio Inputs: 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors
- Built in Speaker: Mono
- Screen: 7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
- Timecode Connections: 1 x XLR in and 1 x XLR out
- Reference Input: Tri-Sync or Black Burst
- SDI Audio Inputs: 16 channels embedded audio
- SDI Audio Outputs: 16 channels embedded audio
- HDMI Audio Inputs: 8 channels embedded audio
- HDMI Audio Outputs: 8 channels embedded audio
- Remote Control: 1 x RS-422 In, 1 x RS-422 Out
- Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol
- Ethernet: 10Gb/s
- External Recording: 1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording
- Computer Interface: 1 x USB-C for software updates
- Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards
- 720p50, 720p59.94, 720p60
- 1080i50, 1080i59.94, 1080i60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 2K DCI Video Standards
- 1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI
- 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 4K DCI Video Standards: 2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI
- 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60
- 8K DCI Video Standards: 4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084
- SDI Metadata Support: HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI
- Audio Sampling: Television standard 24-bit, 48 kHz sample rate
- Video Sampling: 4:2:2 YUV
- Color Precision: 10-bit
- Color Space: REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab
- Multi Rate Support: Auto detection of SD, HD, 6G-SDI, 12G-SDI, 2SI Quad Link 12G-SDI
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
- Media
- Cache Recording: Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported.
- Media: 2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, Ultra HD and 8K.
- Media Type: CFast card and external USB-C flash drives
- Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
- Supported CodecsProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime for all formats up to 4320p60. H.265 High, H.265 Medium, H.265 Low for all progressive formats up to 4320p60.
- Scopes
- Scopes: Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit.
- Viewing Modes: Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
- Computer CaptureNone
- Control
- Built in Control Panel: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
- External Control: RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.
- Software
- Software Included
- Blackmagic OS
- Blackmagic HyperDeck Setup
- Internal Software Upgrade: Loaded at system start, or via Blackmagic HyperDeck Setup using USB port
- Operating Systems
- Mac 10.14 Mojave
- Mac 10.15 Catalina or later
- Windows 8.1 and 10
- Software Included
- DisplaysBuilt in LCD for video, audio and timecode monitoring and menu settings
- Power Requirements
- Power Supply
- 1 x Internal 100 - 240V AC
- 1 x 4 pin XLR 12V DC IN for external power or battery use
- Power Usage: 190W max.
- Power Supply
- Physical Specifications
- Dimensions (H x W x D): 5.14 x 8.28 x 13.15 inches
- Weight: 8.05 lbs
- Physical Installation: 3 rack units height, half rack width
- Environmental Specifications
- Operating Temperature: 0° to 40° C (32°to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
