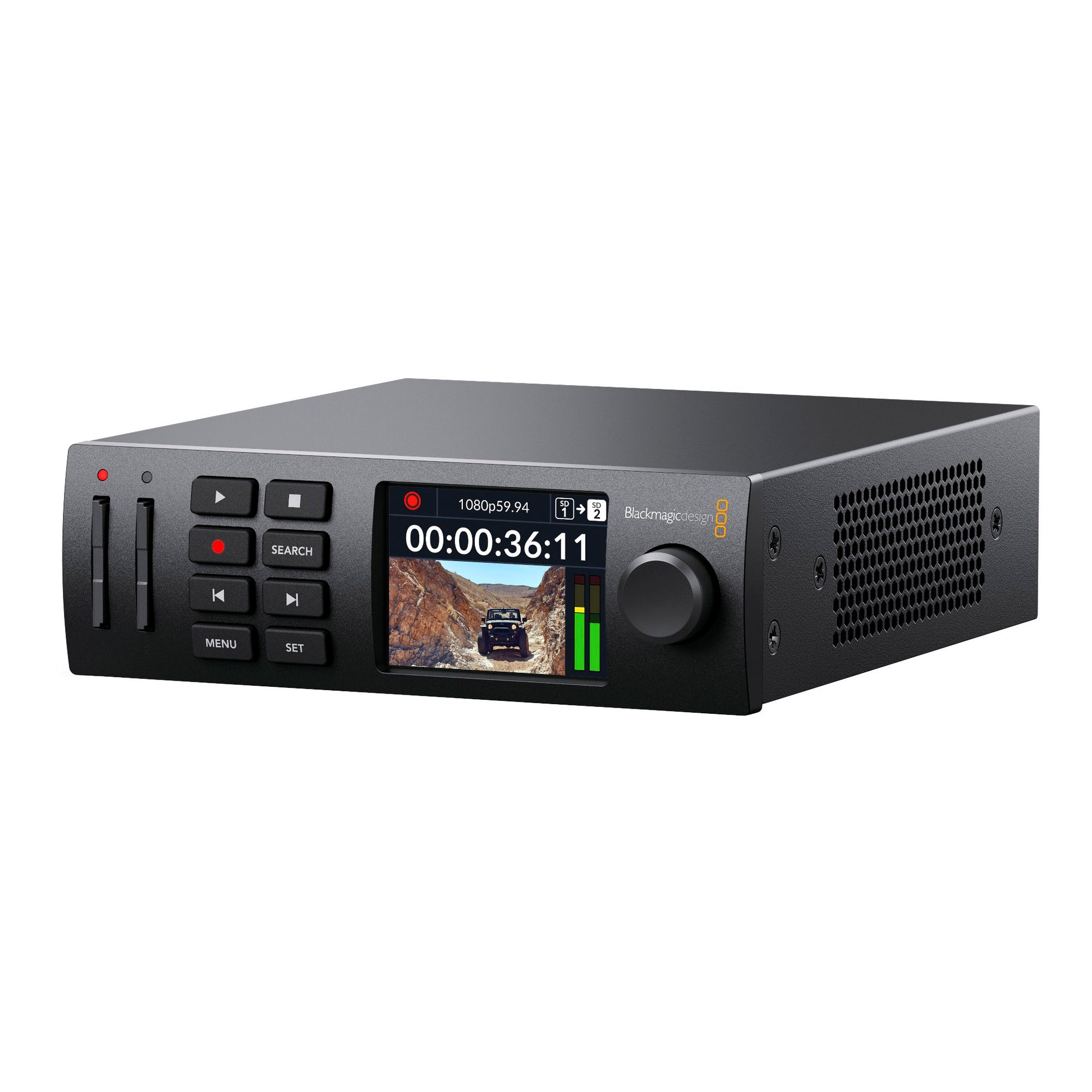

• Blackmagic Design HyperDeck Studio HD Mini

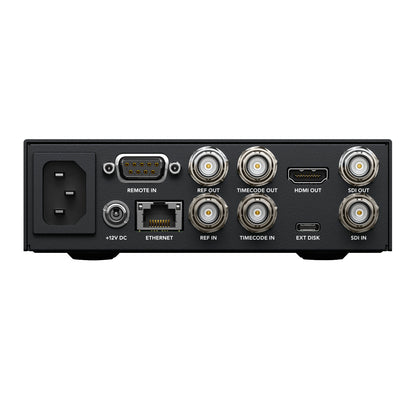

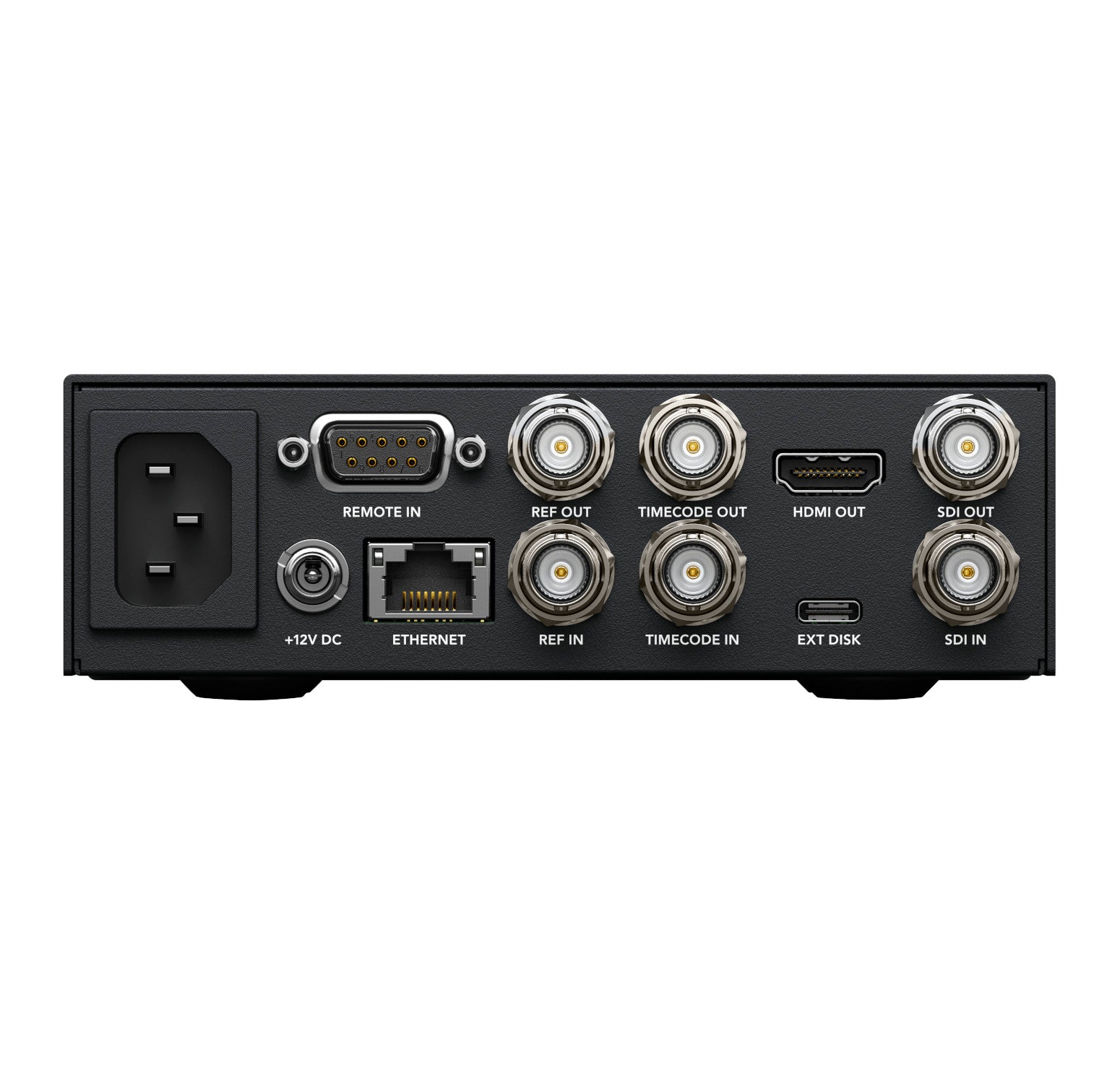

  • Blackmagic Design HyperDeck Studio HD Mini back
1 2

Blackmagic Design HyperDeck Studio HD Mini

Blackmagic Design HyperDeck Studio HD Mini

SoundPro Item: 121844 | Part Number: BMD-HYPERD/ST/DAHM

$649.00
$649.00 $649.00
Your Price Sold out
MSRP: $649.00 | MAP: $649.00

In stock and ready to ship

  • Record broadcast quality video files directly onto SD cards and SSD media
  • More codecs and quieter cooling than previous model (HyperDeck Studio Mini)
  • Supports recording to H.264, Apple ProRes or DNxHD files with either PCM or AAC audio
  • Dark and light mode for LCD screen
  • Timecode and reference generators, with outputs to loop to other HyperDecks
  • Can be used for broadcast archive
  • Traditional broadcast deck controls
  • Dual media slots for non-stop recording
  • Record to external USB-C media disks
  • USB webcam output for video software
  • Advanced HDR support and monitoring 3D LUTs
  • Includes professional multi channel SDI audio
  • Fast network file transfers
  • Traditional RS-422 broadcast deck control
  • Built-in timeconde and sync generators
  • Blackmagic OST
  • Built-in redundancy keeps you on air
  • Designed for portable or rack mount use
  • Compatible with switchers, disck docks and cameras
Log in or register for YOUR best price

Take your recording above and beyond with the HyperDeck Studio HD Mini from Blackmagic Design. This compact yet powerful member of the HyperDeck Studio family records H.264, ProRes, or DNxHD files onto SD/UHS-II cards or external USB disks in SD/HD formats to 1080p60. Includes timecode and reference generators, 3G-SDI in/out, and HDMI out. It’s the perfect piece of gear for a wide variety of projects, ranging from broadcast, live production, multi-screen digital signage, and much more!

Blackmagic Design’s HyperDeck Studio Series

Every member of the HyperDeck Studio series from Blackmagic Design is intended to provide versatile tools and powerful performance, no matter what your recording needs. Record broadcast-quality video files directly to SD cards and SSD media. HyperDeck Studio models boast a sleek, modern design, intuitive controls, more codecs, and quieter cooling—the perfect addition (or foundation) of any studio.

All models support recording to H.264, Apple ProRes, or DNxHD files with either PCM or AAC audio. Mount recorded media to any computer, giving you access to files from your favorite video software. When it comes to ISO recording, you can use the onboard timecode and reference generators to easily sync multiple units.

More about the HyperDeck Studio HD Mini

Based on the Teranex Mini form factor, the HyperDeck Studio HD Mini is the most compact member of the HyperDeck Studio family. Its modular design lets you use a Teranex Mini Rack Shelf (sold separately) to rack-mount three of them in a single rack unit, or mix-and-match them with other pieces of gear (such as switchers, converters, or streaming processors) to complete your setup.

Small but mighty, the HyperDeck Studio HD Mini boasts 3G-SDI in and out, HDMI output, dual SD card media slots, built in sync and timecode generators, front panel controls, and both AC and DC power inputs. Connect its USB to a computer to use the HyperDeck Studio HD Mini like a webcam in cooperation with your favorite video software.

View full details

Specifications

Certifications
Standards
HD Video Standards 720p50, 720p59.94, 720p601080i50, 1080i59.94, 1080i601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2084 and SMPTE 2108-1
Audio
SDI Audio Inputs
16 channels embedded audio
SDI Audio Outputs
16 channels embedded audio
HDMI Audio Outputs
8 channels embedded audio
Audio Sampling
Television standard 24-bit, 48 kHz sample rate
Connectivity
SDI Video Inputs
1
SDI Video Outputs
1
HDMI Video Outputs
1
Connections
Reference Connections 1 x BNC In, 1 x BNC OutTri-Sync or Black Burst
Ethernet
1Gb/s
Supported HDMI Formats
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Construction
Color Precision
10-bit
Color Space
REC 601, REC 709, REC 2020
Controls
Built in Control Panel
8 buttons for transport and device control with search dial and 2.2 inch color display
Displays
Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings, LED indicator lights above the SD media slots
Environmental
Specifications Operating Temperature
0° to 40° C (32°to 104°
F)Storage Temperature
-20° to 60° C (-4° to 140°
F)Relative Humidity
0% to 90% non-condensing
General
SDI Rates
270Mb, 1.5G, 3G
Screen
2.2 inch LCD
Timecode Connections
1 x BNC In, 1 x BNC Out
Remote Control
1 x RS-422 In
Recorder Configuration
Via user interface or Blackmagic HyperDeck Ethernet Protocol
Computer Interface
1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates
SD Video Standards
525i59.94 NTSC, 625i50 PAL
2K DCI Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
SDI Metadata Support
HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.
Video Sampling
4:2:2 YUV
HDR Support
Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support
Auto detection of SD and HD
Media
Media 2 x SD card slots1 x USB-C 3.0 expansion port for external recording of SD, HD and 2K DCI
Media Type
UHS-I and UHS-II SD cards
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
Supported Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. H.264 High 4:2:0 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all formats up to 1080p60.
External Control
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Software
Software Included Blackmagic OSBlackmagic HyperDeck Setup
Internal Software Upgrade
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Usage
50 W max.Physical InstallationOne third rack unit width, 1 rack unit heightPhysical Specifications Dimensions (H x
W X D)
1.74 x 6.96 x 5.51 inchesWeight: 1.8 lbsEnvironmental
