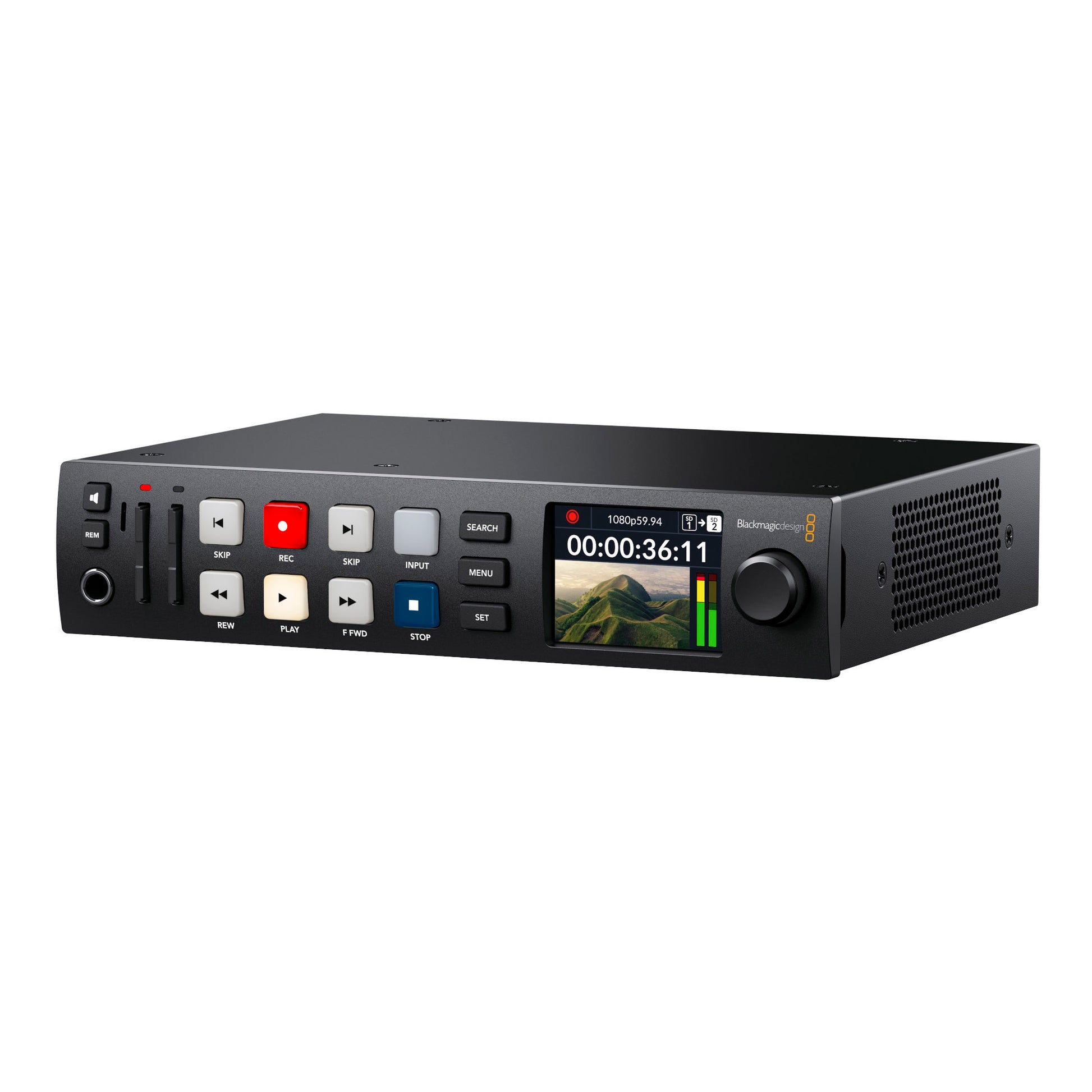

• Blackmagic Design HyperDeck Studio HD Plus

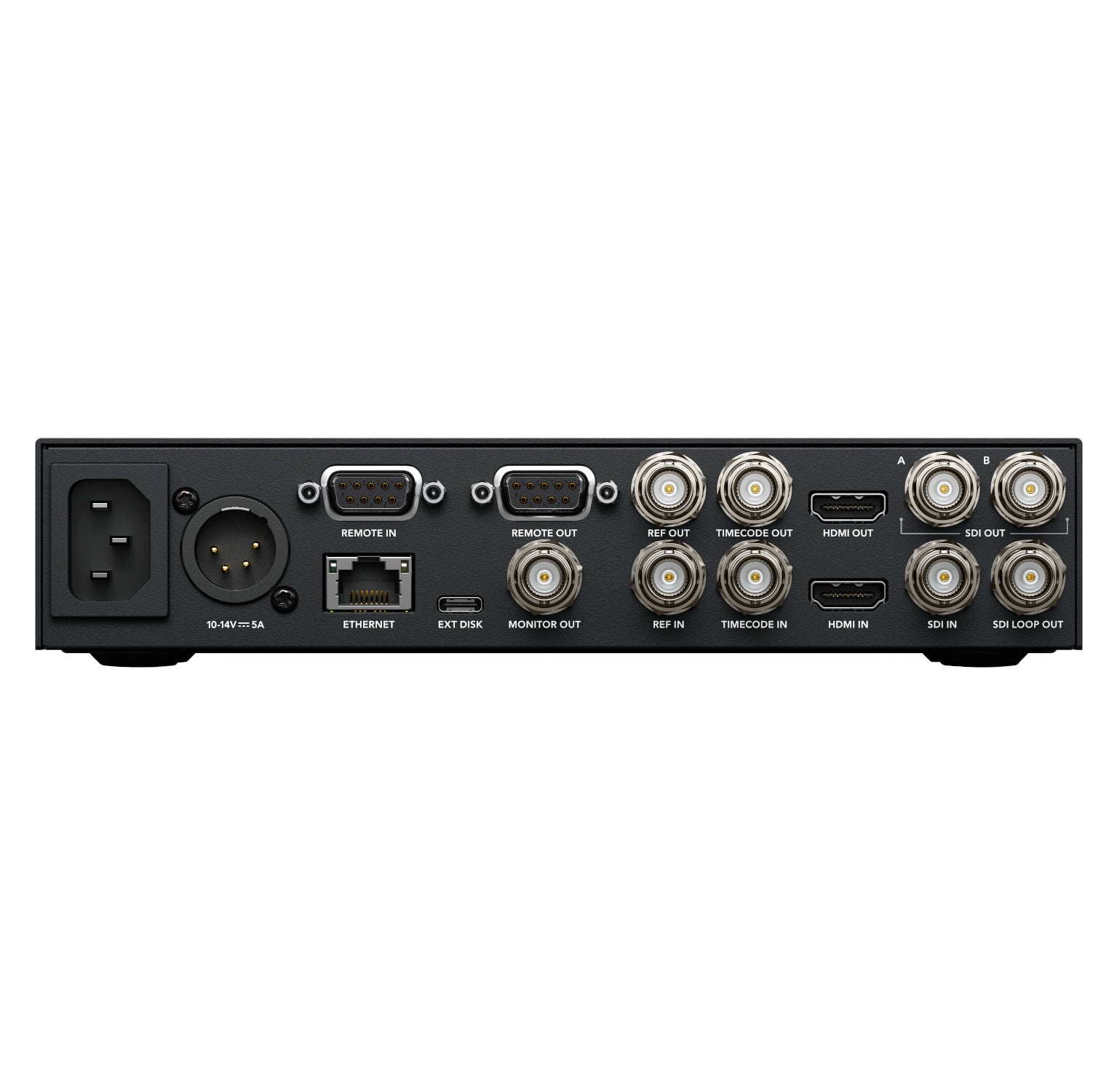

  • Blackmagic Design HyperDeck Studio HD Plus back
1 2

Blackmagic Design HyperDeck Studio HD Plus

Blackmagic Design HyperDeck Studio HD Plus

SoundPro Item: 121845 | Part Number: BMD-HYPERD/ST/DCHP

$795.00
$795.00 $795.00
Your Price Sold out
MSRP: $795.00 | MAP: $795.00

Usually ships in 5-7 business days

  • Professional broadcast decks that record and playback using SD cards and SSD media
  • Ideal for live production, broadcast and archive
  • Bright color LCD status display
  • Traditional broadcast deck controls
  • Supports SD cards, UHS-II cards, or SSDs
  • Dual media slots for non-stop recording
  • Record to external USB-C media disks
  • Supports ProRes, DNx, H.264, and H.265 files
  • Fill and key outputs for broadcast animations
  • USB webcam output for video software
  • Advanced HDR support and monitoring 3D LUTs
  • Includes professional multi-channel SDI audio
  • Incredibly fast network file transfers
  • Traditional RS-422 broadcast deck control
  • Built-in timecode and sync generators
  • Powered by Blackmagic OST
  • Use all video software and streaming site
  • Built-in redundancy keeps you on air
  • Compatible with switchers, disk docks, and cameras
Log in or register for YOUR best price

Take your recording above and beyond with the HyperDeck Studio HD Plus from Blackmagic Design. This member of the HyperDeck Studio family expands on the features of its Mini counterpart, giving you more space to work and more controls and connections. It’s the perfect piece of gear for a wide variety of projects, ranging from broadcast, live production, multi-screen digital signage, and much more!

Blackmagic Design’s HyperDeck Studio Series

Every member of the HyperDeck Studio series from Blackmagic Design is intended to provide versatile tools and powerful performance, no matter what your recording needs. Record broadcast-quality video files directly to SD cards and SSD media. HyperDeck Studio models boast a sleek, modern design, intuitive controls, more codecs, and quieter cooling—the perfect addition (or foundation) of any studio.

All models support recording to H.264, Apple ProRes, or DNxHD files with either PCM or AAC audio. Mount recorded media to any computer, giving you access to files from your favorite video software. When it comes to ISO recording, you can use the onboard timecode and reference generators to easily sync multiple units.

More about the HyperDeck Studio HD Plus

Give yourself more room to work with the HyperDeck Studio HD Plus. This model features an expanded and enhanced front panel that includes better transport control buttons, a headphone socket, and onboard speaker.

The HyperDeck Studio HD Plus adds 6G-SDI to allow for recording and playing back ProRes up to Ultra HD 30fps. It also includes an SDI loop out and HDR support. Its two 6G-SDI outputs allow fill and key playback up to 1080p60.

This model also boasts an HDMI input and a dedicated 3G-SDI monitoring output with overlays. Press any button on the front panel to send commands to a dedicated RS-422 remote output, while a broadcast-style XLR connector delivers DC power.

View full details

Specifications

Certifications
Standards
HD Video Standards 720p50, 720p59.94, 720p601080i50, 1080i59.94, 1080i601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, and SMPTE 2108-1
Dimensions
Dimensions (H X W X D)
1.74 x 8.27 x 6.96 inches
Electrical
Power Requirements
Power Supply 1 x Internal 100 - 240V AC 50/60Hz1 x 4 pin XLR 12V DC In for external power supply or battery use
Audio
Audio Output
1 x 6.35 mm headphone jack
SDI Audio Inputs
16 channels embedded audio
SDI Audio Outputs
16 channels embedded audio
HDMI Audio Inputs
8 channels embedded audio
HDMI Audio Outputs
8 channels embedded audio
Audio Sampling
Television standard 24-bit, 48 kHz sample rate
Connectivity
SDI Video Inputs
1
SDI Video Outputs
2
SDI Monitor Outputs
1
HDMI 2.0 Video Inputs
1
HDMI 2.0 Video Outputs
1
Connections
Reference Connections 1 x BNC In, 1 x BNC OutTri-Sync or Black Burst
Ethernet
1Gb/s
Supported HDMI Formats
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Construction
Color Precision
10-bit
Color Space
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out.
Controls
Built in Control Panel
13 buttons for transport and device control with search dial and 2.2 inch color display
Displays
Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings, LED indicator lights above the SD media slots
Environmental
Operating Temperature
0° to 40° C (32°to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
2.53 lbs
General
SDI Rates
270Mb, 1.5G, 3G, 6G
Built in Speaker
Mono
Screen
2.2 inch LCD
Timecode Connections
1 x BNC In, 1 x BNC Out
Remote Control
1 x RS-422 In, 1 x RS-422 Out
Recorder Configuration
Via user interface or Blackmagic HyperDeck Ethernet Protocol
Computer Interface
1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates
SD Video Standards
525i59.94 NTSC, 625i50 PAL
2K DCI Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K DCI Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SDI Metadata Support
HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.
Video Sampling
4:2:2 YUV
HDR Support
Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support
Auto detection of SD, HD and 6G-SDI
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media 2 x SD card slots1 x USB-C 3.0 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI
Media Type
UHS-I and UHS-II SD cards
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
Supported Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p30. Playback only of ProRes 4444 QuickTime up to 1080p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 30fps. H.264 SDI 4:2:2 10-bit, H.264 High 4:2:0 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all formats up to 1080p60.
External Control
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Software
Software Included Blackmagic OSBlackmagic HyperDeck Setup
Internal Software Upgrade
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Power Usage
100 W max
Physical Installation
Half rack unit width, 1 rack unit height
