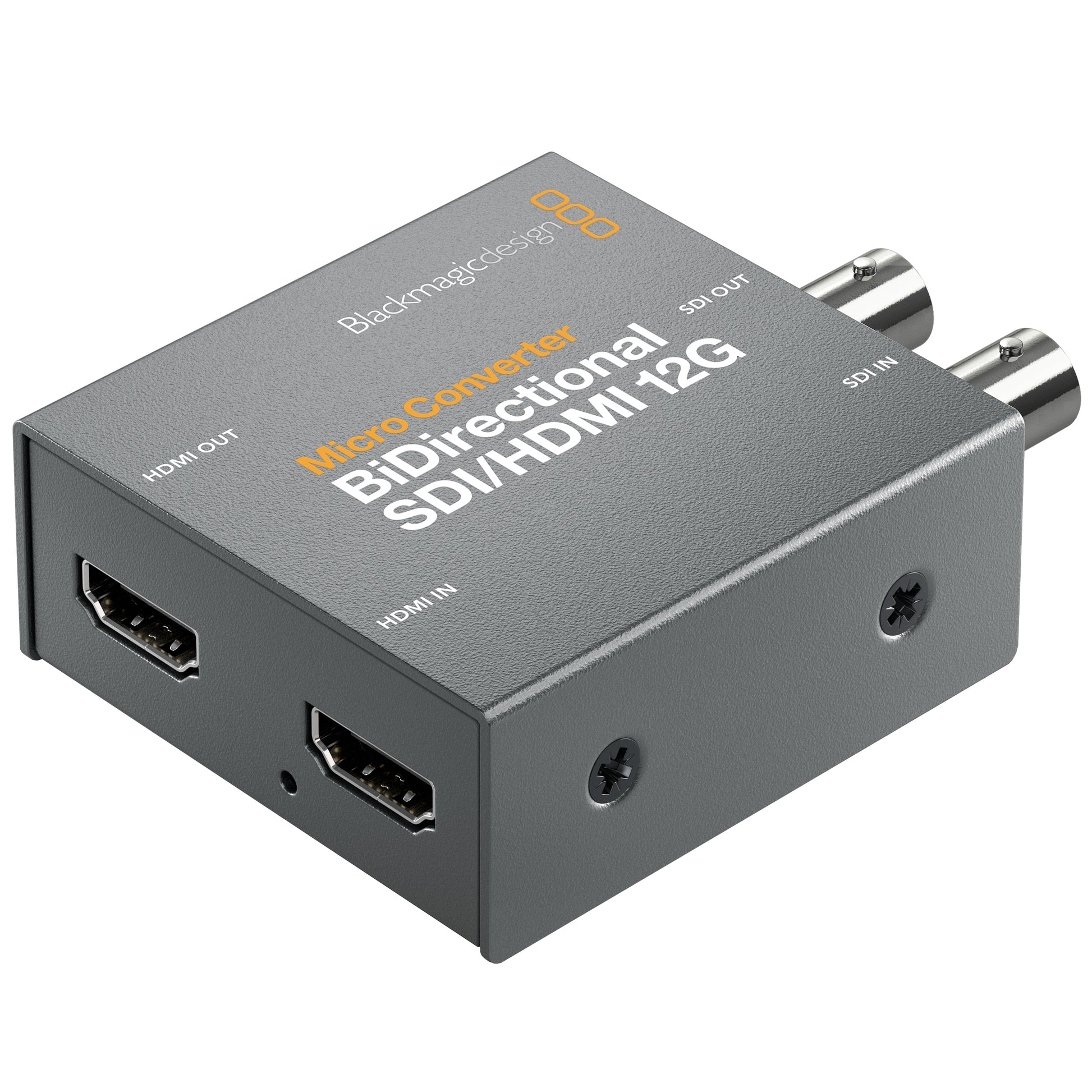

  • Blackmagic Design Micro Converter BiDirect SDI/HDMI 12G right angle

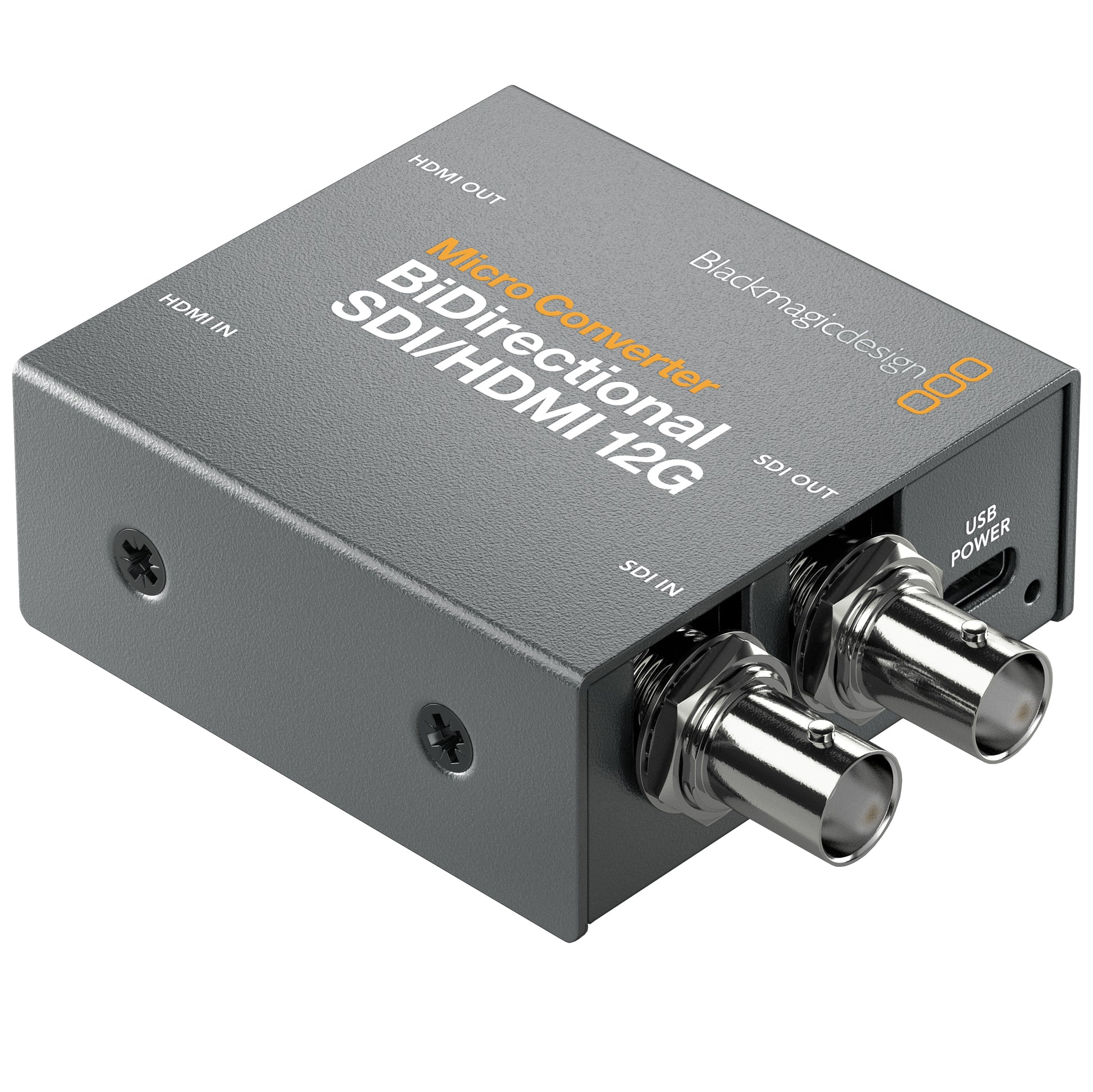

  • Blackmagic Design Micro Converter BiDirect SDI/HDMI 12G left angle
1 3

Blackmagic Design Micro Converter BiDirect SDI/HDMI 12G | Configuration: Without Power Supply

Blackmagic Design Micro Converter BiDirect SDI/HDMI 12G | Configuration: Without Power Supply

SoundPro Item: 132040 | Part Number: BMD-CONVBDC/SDI/HDMI12G

$189.00
$189.00 $189.00
Your Price Sold out
MSRP: $189.00 | MAP: $189.00

Usually ships in 5-7 business days

  • Converts SDI to HDMI, and converts HDMI to SDI
  • All metal durable design
  • For live production or broadcast
  • Powered via USB-C
Log in or register for YOUR best price

Get the world’s smallest bidirectional broadcast quality converter! Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers!

Now you can convert SDI to HDMI and HDMI to SDI in all SD, HD and Ultra HD formats up to 2160p60! Each conversion direction can be a different SD, HD or Ultra HD video standard, it’s like getting two converters in one! The all metal durable design is perfect for live production and broadcast. Plus it’s small enough to be hidden and used anywhere. It can be powered from any USB-C socket!

Blackmagic Micro Converters

The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies! Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications and can be updated to new standards in the future.

View full details

Specifications

Certifications
Standards
HD Video Standards 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48,1080p50, 1080p59.94, 1080p601080PsF25, 1080PsF29.97, 1080PsF301080i50, 1080i59.94, 1080i60, 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI, Ultra HD Video Standards:, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, HDMI Video Standards 525i59.94 NTSC, 625i50 PAL720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 1080i602160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p604Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
Dimensions
Dimensions (WxHxD)
3.13x2.32x0.98"
Electrical
Power Consumption
5W max.
Operational Voltage Range
4.4V to 5.25V DC
Connectivity
SDI Video Inputs
1
SDI Video Outputs
Automatically matches the HDMI video input
HDMI 2.0 Video Inputs
1 x type A
HDMI 2.0 Video Outputs
1 x type A
HDMI Color Precision
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
HDMI Color Space
YUV
Construction
SDI Color Precision
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color
SDI Color Space
YUV
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
6.13 oz
General
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K
Updates, Configurations and Power
USB Type-C
Reclocking
Yes
SD Video Standards
525i59.94 NTSC, 625i50 PAL
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
SDI Video Rates
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
SDI Auto Switching
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources, Always confirm copyright ownership before capture or distribution of content
Camera Control
Bidirectional signal conversion supports Blackmagic Camera Control and Tally
Settings Control
Via MacOS™ and Windows™ software utility connected by USB
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Software
Internal software upgrade via USB
