• Blackmagic Design Micro Converter SDI to HDMI 12G

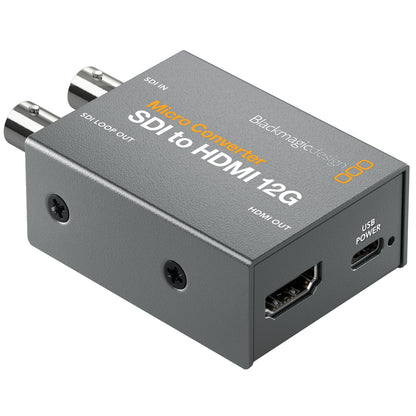

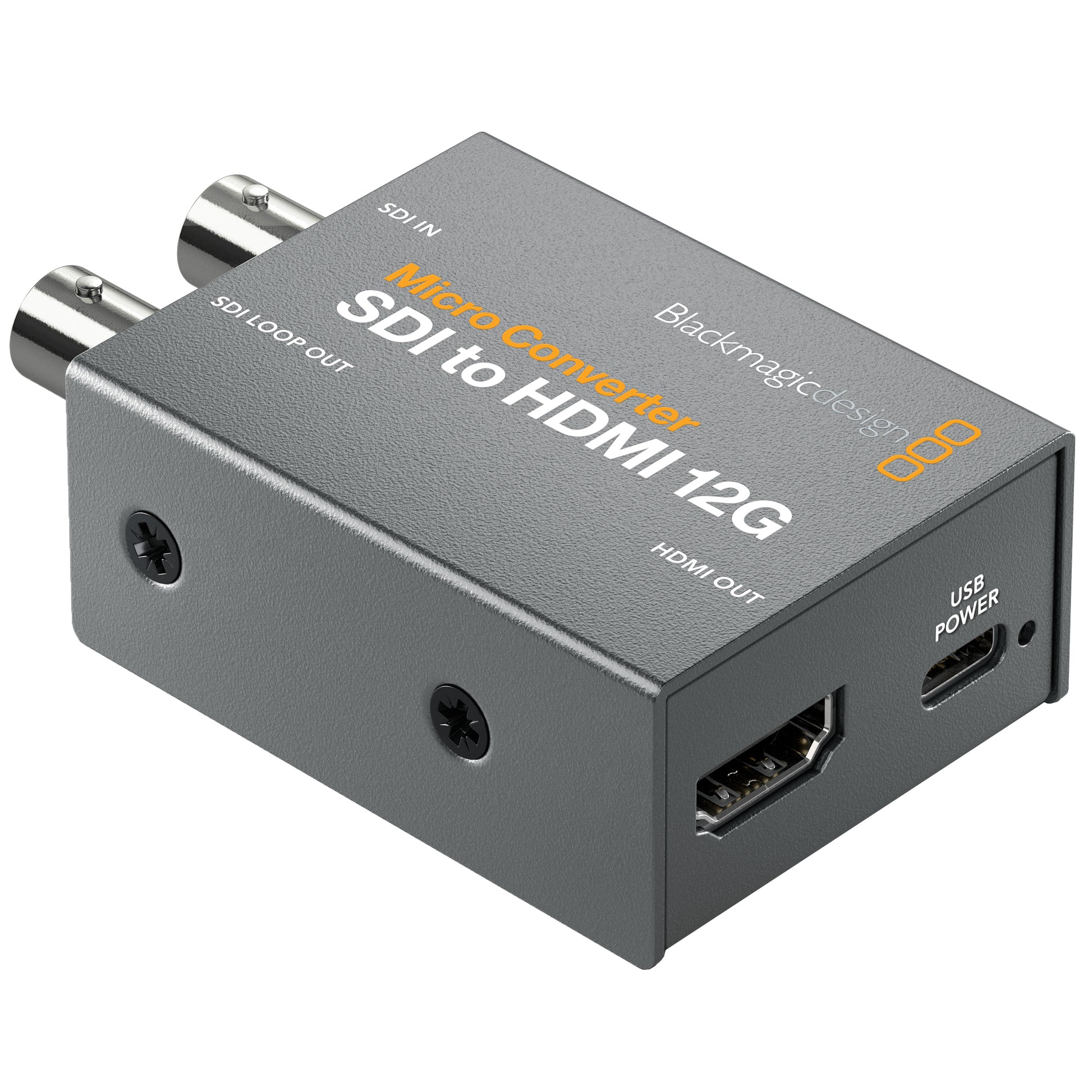

  • Blackmagic Design Micro Converter SDI to HDMI 12G right angle

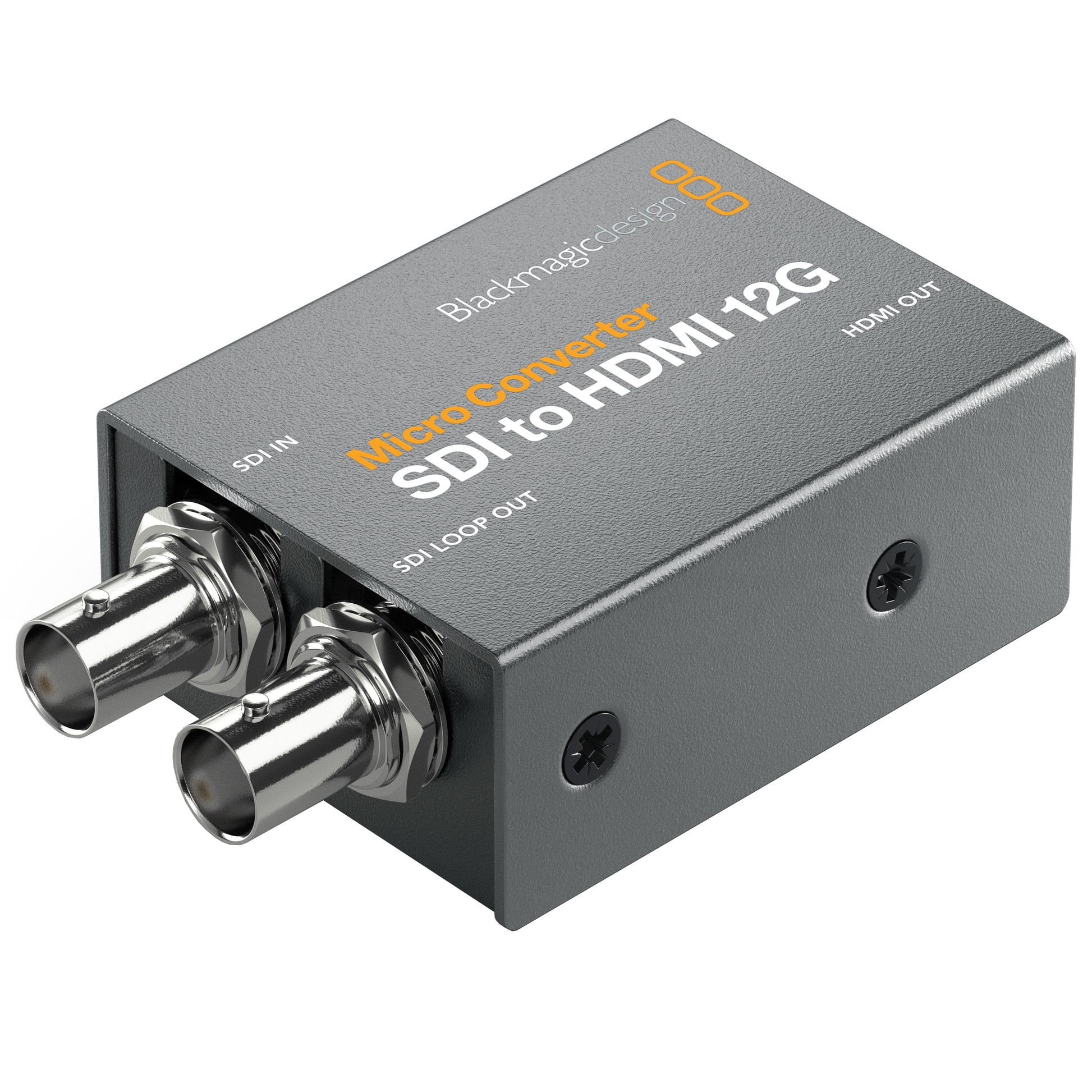

  • Blackmagic Design Micro Converter SDI to HDMI 12G left angle
1 3

Blackmagic Design Micro Converter SDI to HDMI 12G | Configuration: Without Power Supply

Blackmagic Design Micro Converter SDI to HDMI 12G | Configuration: Without Power Supply

SoundPro Item: 134271 | Part Number: BMD-CONVCMIC/SH12G

$165.00
$165.00 $165.00
Your Price Sold out
MSRP: $165.00 | MAP: $165.00

Usually ships in 5-7 business days

  • Available to purchase with or without the power supply
  • Incredibly small broadcast quality converter
  • Specifically designed for professional monitoring
  • 33 point 3D LUT
  • Full size HDMI and professional 12G-SDI connections
  • Can be powered over USB from a television or a mobile phone charger
Log in or register for YOUR best price

Blackmagic Micro Converter SDI to HDMI 12G is a miniaturized broadcast quality video converter that’s been specifically designed for professional monitoring. It includes a 33 point 3D LUT for color calibrating any monitor, projector or television. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p rates, including 4K DCI at 24/47.95/48. You can power it over USB from a television or a mobile phone charger.

View full details

Specifications

Certifications
Standards
HD Video Standards, 2K Video Standards, Ultra HD Video Standards, 4K Video Standards, SDI Compliance, HDMI Video Standards
Dimensions
Dimensions
3.07" x 1.8" x 0.98"
Electrical
Power Consumption
4W max.
Operational Voltage Range
4.4V to 5.25V DC
Connectivity
SDI Video Inputs
1
SDI Video Outputs
1x loop out
HDMI 2.0 Video Outputs
1x type A
HDMI Color Precision
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
HDMI Color Space
YUV
Construction
SDI Color Precision
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
SDI Color Space
YUV
Environmental
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
5.29 oz
General
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K
Updates, Configurations and Power
USB Type-C
SD Video Standards
525i59.94 NTSC, 625i50 PAL
SDI Video Rates
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI
SDI Auto Switching
automatically detects SD, HD level A or B for 3G-SDI, 2K DCI, Ultra HD and 4K DCI
Settings Control
via MacOS™ and Windows™ software utility connected by USB
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Software
internal software upgrade via USB
