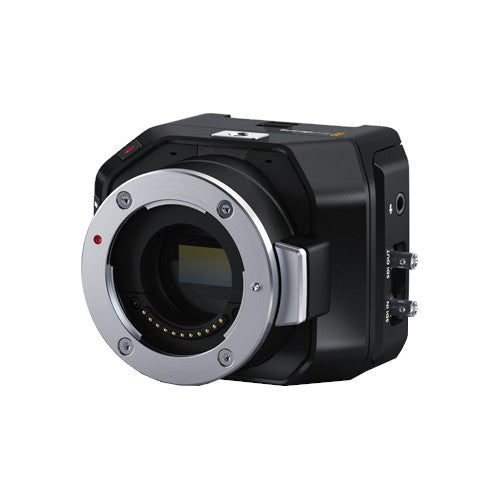

• Blackmagic Design Micro Studio Camera 4K G2

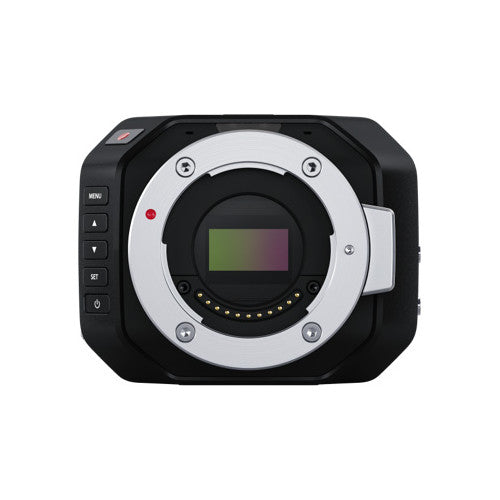

  • Blackmagic Design Micro Studio Camera 4K G2 front

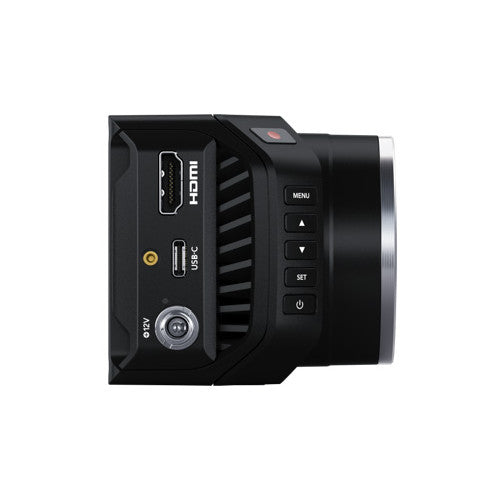

  • Blackmagic Design Micro Studio Camera 4K G2 side

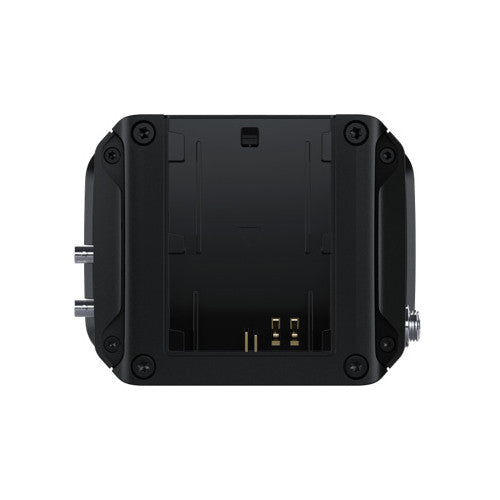

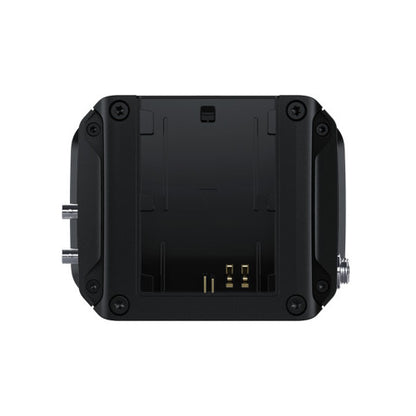

  • Blackmagic Design Micro Studio Camera 4K G2 back

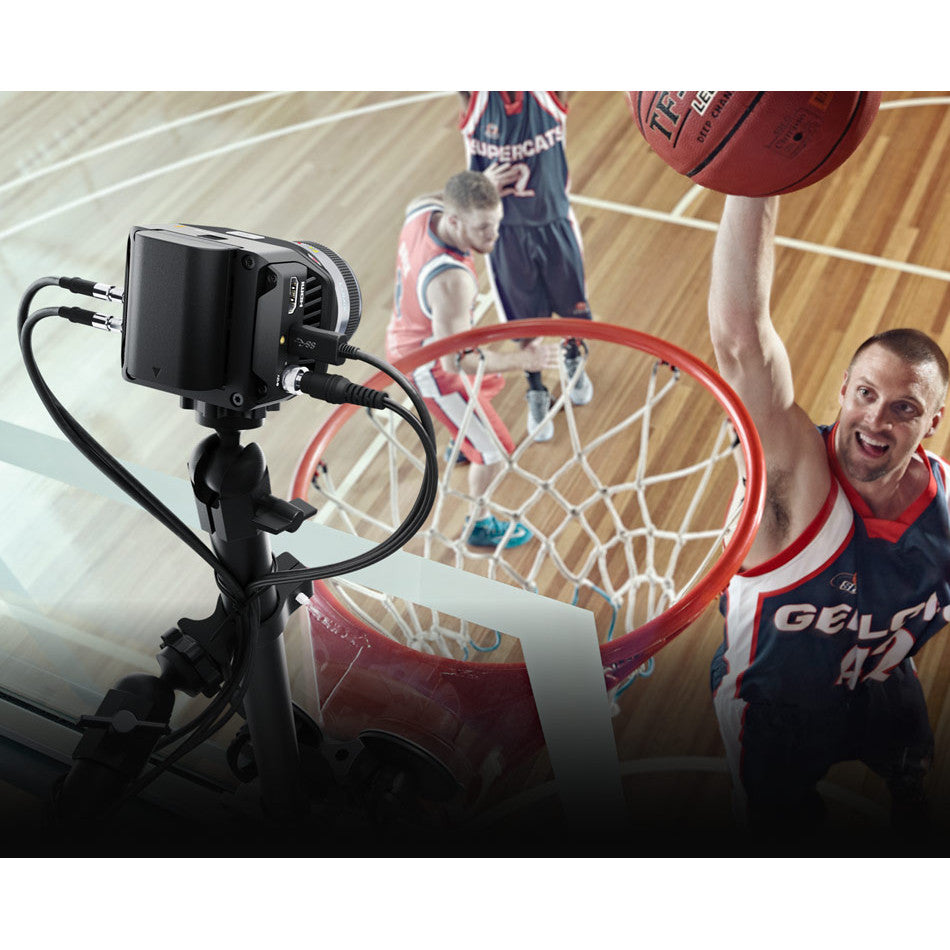

  • Blackmagic Design Micro Studio Camera 4K G2 lifestyle 1

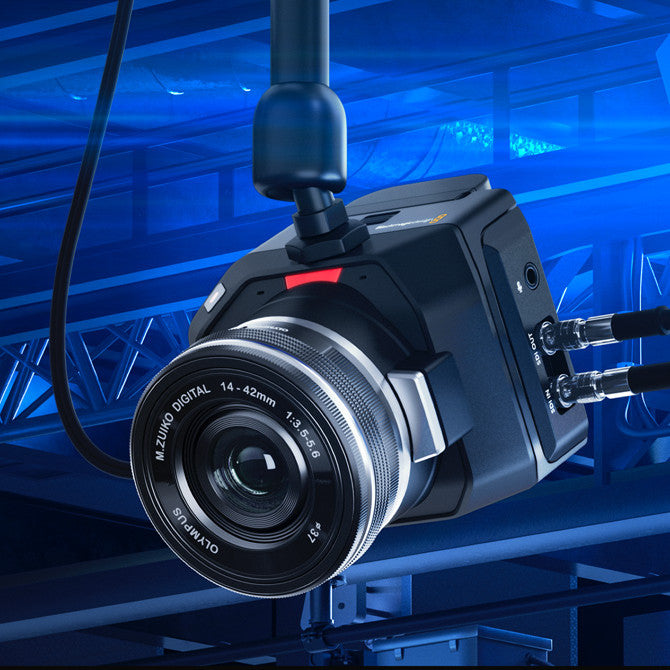

  • Blackmagic Design Micro Studio Camera 4K G2 lifestyle 2
1 6

Blackmagic Design Micro Studio Camera 4K G2

Blackmagic Design Micro Studio Camera 4K G2

SoundPro Item: 141067 | Part Number: BMD-CINSTUDMFT/UHD/MRG2

$1,205.00
$1,205.00 $1,205.00
Your Price Sold out
MSRP: $1,205.00 | MAP: $1,205.00

Usually ships in 5-7 business days

  • Compact broadcast-quality live production camera
  • Four Thirds sensor with 13 stops
  • 12G-SDI Micro BNC connectors
Log in or register for YOUR best price

Blackmagic Micro Studio Camera 4K G2 is an amazing, broadcast quality live production camera in a tiny body. The Four Thirds sensor has 13 stops of dynamic range, incredible low light performance and produces stunning Ultra HD images in all lighting conditions. 12G-SDI Micro BNC connectors support 10-bit uncompressed video up to 2160p60 and 2 channel audio on the output. The input supports tally, camera control, control of the built-in color corrector plus lens control, from an ATEM switcher. Or when using an ATEM Mini switcher, the HDMI connector will output 1080 and support all control features. Plus it's even a Hollywood quality cinema camera because it can record Blackmagic RAW to external USB-C drives. With multiple mounting points, place Blackmagic Micro Studio Camera 4K G2 where no other camera will go!

Blackmagic Micro Studio Camera 4K G2 is the perfect solution for placing cameras on set when you don't have space for regular sized cameras! It includes the popular MFT lens mount, very low light 4K image sensor and cinematic color science! So it's small, but has the features of a full sized studio camera! You also get 12G-SDI for HD and Ultra HD operation up to 2160p60. It's also possible to control the built in color corrector and lens using the SDI and HDMI connections. It can even record Blackmagic RAW to USB disks! Plus Blackmagic Micro Studio Camera 4K goes well beyond broadcast quality with log gamma, allowing you to create cinematic color corrected looks, all in camera!

View full details

Specifications

Certifications
Standards
HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081 1, SMPTE 2081 10, SMPTE 2082 1 and SMPTE 2082 10.
Dimensions
Effective Sensor Size
17.78mm x 10mm (Four Thirds)
Audio
Signal to Noise Ratio
63dB for 2160p.
Analog Audio Input
1 x 3.5mm Stereo Input. Can also be used for Timecode input.
SDI Audio Output
2 channels of program audio embedded in 3G/6G/12G-SDI.
HDMI Audio Outputs
2 channels 48 kHz and 24 bit.
Microphone
Integrated stereo microphone.
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
Optics
Focus
Auto focus available using compatible lenses.
Connectivity
SDI Video Inputs
1
SDI Video Outputs
1
HDMI 2.0 Video Outputs
1
Connections
HDMI Video Outputs 1 x HDMI Type A output.HDMI output is always HD, up to 1080p60.
Reference Inputs
Program SDI Input on camera.
Power Inputs
1 x 12V DC locking 5.5 mm barrel connector
Construction
Lens Mount
Active MFT Mount.
Lens Control
Iris, focus, zoom on supported lenses.
Color Corrector
DaVinci YRGB
Included Items
Software Included
Blackmagic Camera Setup for Mac and Windows.
Environmental
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 45°C (-4° to 113°F)
Relative Humidity
0% to 90% non-condensing
General
Dynamic Range
13 Stops.
Dual Native ISO
0dB and 18dB gain.
Camera Features
Sensitivity at 0dB Gain f11 with 2160p59.94.f12 with 2160p50.at 2,000 lux with 89.9% reflectance., Frame Rates 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.Off-speed frame rates up to 60 fps in Ultra HD., Mounting Options 1 x 1/4 inch (top)3 x 1/4 inch (bottom)
Shooting Resolutions
3840 x 2160 (Ultra HD) up to 60 fps.
SDI Rates
3G, 6G, 12G.
Remote Control
Remote camera control over SDI, HDMI or USB Ethernet with suitable adapter.
Computer Interface
1 x USB Type C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB C Port.
Built in Speaker
None
SD Video Standards
None
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Media
1 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5
Storage Type
1 x USB C 3.1 Gen 1 expansion ports for external media.
Recording Formats
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Storage
Storage Rates Storage rates based on 30 frames per second.3840 x 2160 (Ultra HD)Blackmagic RAW 3:1 - 127 MB/sBlackmagic RAW 5:1 - 77 MB/sBlackmagic RAW 8:1 - 48 MB/sBlackmagic RAW 12:1 - 32 MB/sBlackmagic RAW Q0 - 96 to 190 MB/sBlackmagic RAW Q1 - 64 to 153 MB/sBlackmagic RAW Q3 - 43 to 109 MB/sBlackmagic RAW Q5 - 26 to 64 MB/sConstant Quality storage rates quoted are indicative only.Actual storage rates are entirely dependent on image subject matter.
Control
5 control buttons including Set, Up, Down, Menu, and Power.
NTP
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Web Media Manager
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
FTP
Download files from any drive attached to your camera using FTP.
SMB
File sharing using SMB.
Live Tally Indicator
1 x front facing for talent.
Operating Systems
Mac 12.0 Monterey, Mac 13.0 Ventura or later, Windows 10, 64-bit, Windows 11, 64-bit
Power Supply
1 x External 12V DC 36W power supply
Power Usage
18 25W
Optional Accessories
Blackmagic Focus Demand, Blackmagic Zoom Demand, ATEM Mini switchers, ATEM SDI switchers, ATEM Television Studio switchers, ATEM Constellation switchers, Blackmagic Video Assist, LP-E6 Battery, Micro BNC Cables
