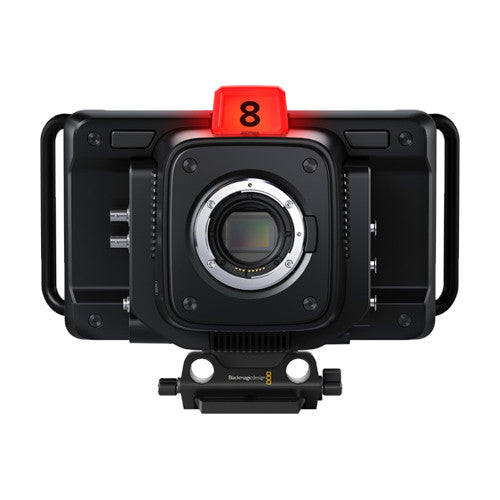

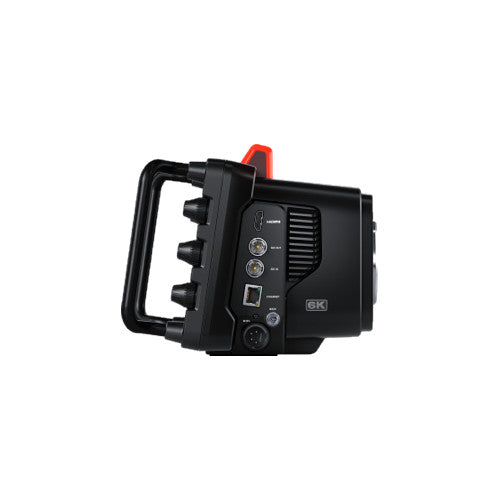

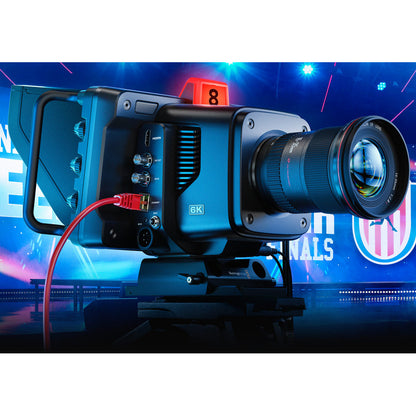

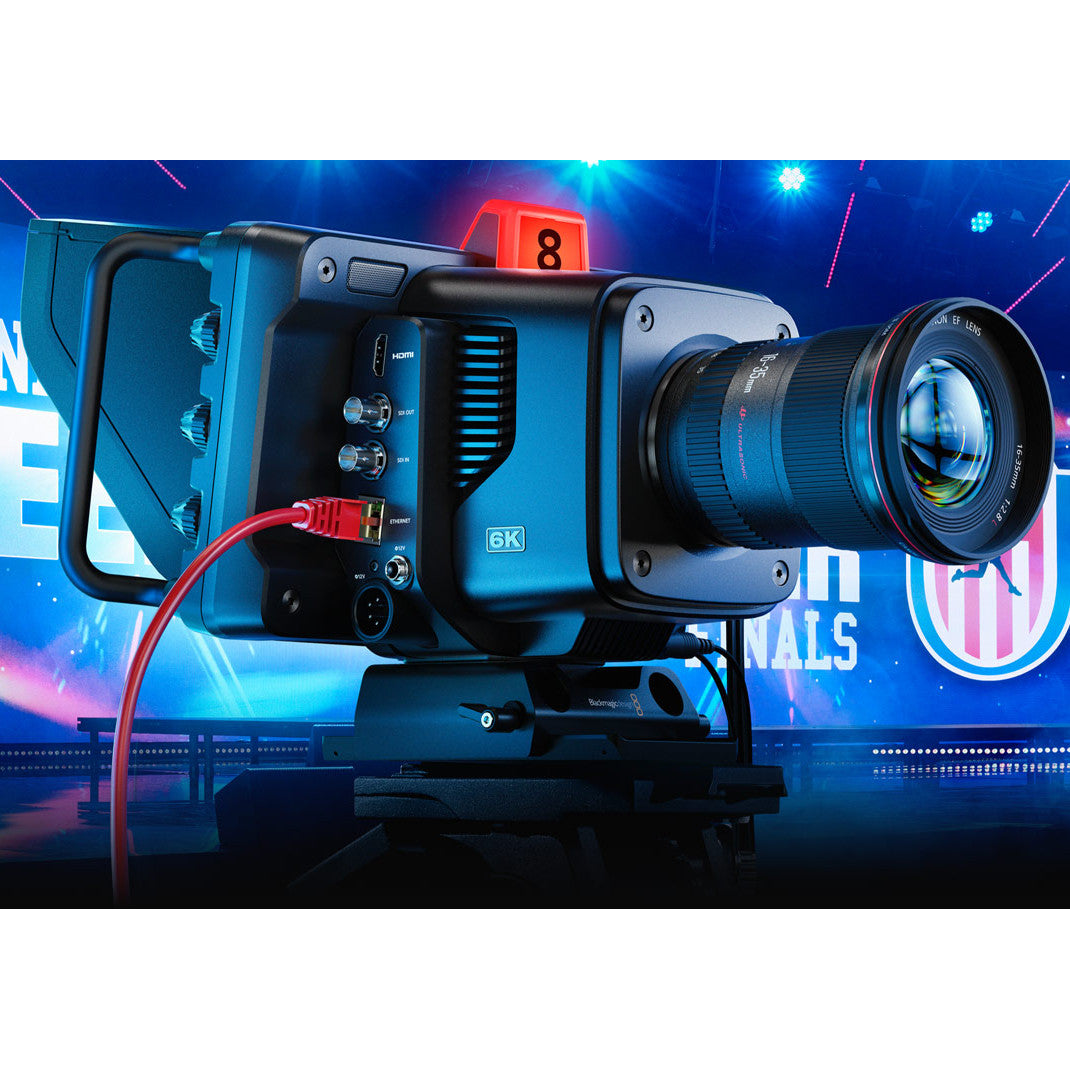

Blackmagic Design Studio Camera 6K Pro
Blackmagic Design Studio Camera 6K Pro
SoundPro Item: 138487 | Part Number: BMD-CINSTUDMFT/G26PDK
Regular price
$2,835.00
Regular price
$2,835.00
Sale price
$2,835.00
Unit price
per
MSRP: $2,835.00
| MAP: $2,835.00
Usually ships in 5-7 business days
- Designed for Live Production
- Revolutionary Studio Camera Design
- Exceptional Low Light Performance

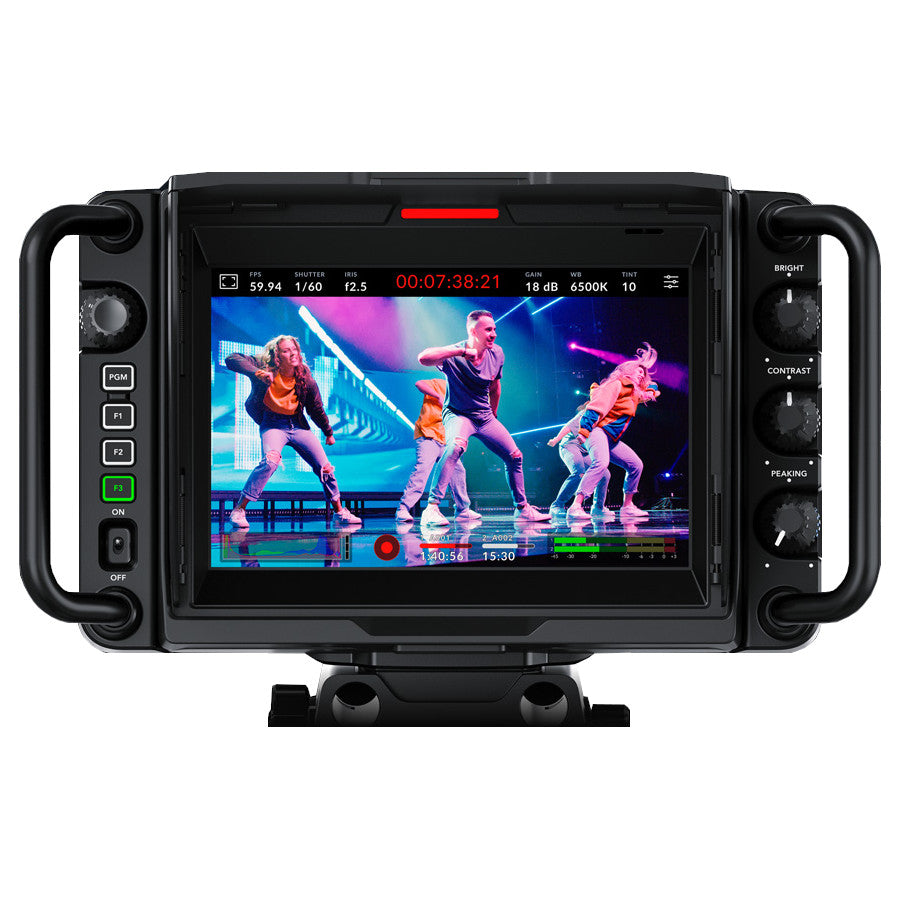

- Large 7" Viewfinder
- Physical and Touchscreen Controls
- Built-in Tally for On Air Status
- Talkback communication
- Powerful Broadcast Connections
- Connect via HDMI, SDI, Ethernet, or USB Disk
- Low Cost SMPTE Fiber Style Workflow
- Includes Built-in Microphones
- Built In ND Filters
- Powered by Blackmagic OS
- Supports 3D LUTs
- Powers From DC or 10G Ethernet
Designed as the ultimate studio camera, Blackmagic Studio Camera 6K Pro adds a larger 6K Super 35 sensor and EF lens mount for true cinematic images in live production. There are built in ND filters that let you reduce the amount of light entering the camera, allowing you to work in a wider range of situations, including in bright sunlight. Plus stream direct to the internet with built in streaming! You also get 12G-SDI, HDMI and 10G Ethernet which allows all connections on a single cable for a SMPTE style workflow that's much lower cost.
Specifications
Certifications
SDI Compliance
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081 1, SMPTE 2081 10, SMPTE 2082 1 and SMPTE 2082 10
Dimensions
Effective Sensor Size
23.10mm x 12.99mm (Super 35)
Screen Dimensions
7 inch 1920 x 1200
Camera Dimensions (WxDxH)
10.77x7.83x6.59”
Mount Dimensions (WxH)
4.48x1.4”
Weight
Camera Weight
4.28lbs
Mount Weight
1.16 lbs
Electrical
Power Requirements
Power Inputs 1 x 12V DC locking 5.5 mm barrel connector.1 x 12V DC 4 pin XLR input for external power supply or battery use.1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies., Power Usage 32 52 W using DC input.38 59 W using Type 4 PoE input.
Audio
Microphone
Integrated stereo microphone.
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
Optics
Focus
Auto focus available using compatible lenses.
Connectivity
Video Output Standards
2160p, 1080p, 1080i
SDI Video Inputs
1
SDI Video Outputs
1
HDMI 2.0 Video Outputs
1
Connections
Analog Audio Input 2 x XLR analog switchable between mic and line levels. Phantom power support.1 x 3.5mm Stereo Input. Can also be used for Timecode input., Analog Audio Output 1 x 5-pin XLR for talkback headset.1 x 3.5mm TRRS mini jack for headphones with mic., SDI Audio Output 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI.2 talkback channels on 15 and 16.
Reference Inputs
Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.
Ethernet
10Gb/s
Construction
Lens Mount
Active EF mount.
Lens Control
Iris, focus, zoom on supported lenses.
Color Corrector
DaVinci YRGB
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
General
Dynamic Range
13 Stops.
Dual Native ISO
0dB and 18dB gain.
Camera Features
Sensitivity at 0dB Gain f11 with 2160p59.94.f12 with 2160p50.at 2,000 lux with 89.9% reflectance., Signal to Noise Ratio 64.62dB for 2160pUltra HD scaled from 5.3K, Recording Resolutions 6144 x 3456 (6K) up to 50 fps6144 x 2560 (6K 2.4:1) up to 60 fps5376 x 3024 (5.3K 16:9) up to 60 fps3840 x 2160 (Ultra HD) up to 60 fps, Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.Off-speed frame rates 5 50 fps in 6K, and 5 60 fps for all otherrecording resolutions., Mounting Options 2 x 1/4 inch tripod mount.1 x 3/8 inch tripod mount.
Built in ND Filters
Four position ND filter with clear, 2 stop, 4 stop and 6 stop IR ND filters.
Screen Type
LCD capacitive touchscreen.
Screen Brightness
2000 nits
Controls
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
SDI Rates
1.5G, 3G, 6G, 12G.
Remote Control
Remote camera control over SDI, HDMI or Ethernet.
Computer Interface
2 x USB Type C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB C Port A.
Built in Speaker
1 x mono speaker.
Direct Streaming
Blackmagic Studio Camera 6K Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB C.
Streaming Platforms
ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.
SD Video Standards
None
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Media
2 x USB-C 3.1 Gen 1 expansion ports for externalmedia for recording Blackmagic RAW.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs Blackmagic RAW Constant Bitrate 3:1Blackmagic RAW Constant Bitrate 5:1Blackmagic RAW Constant Bitrate 8:1Blackmagic RAW Constant Bitrate 12:1Blackmagic RAW Constant Quality Q0Blackmagic RAW Constant Quality Q1Blackmagic RAW Constant Quality Q3Blackmagic RAW Constant Quality Q5
Storage Type
2 x USB C 3.1 Gen 1 expansion ports for external media.
Recording Formats
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in 6K (6144 x 3456), 6K 2.4:1 (6144 x 2560), 5.3K 16:9 (5376 x 3024), Ultra HD (3840 x 2160) at the selected frame rate.
Storage Features
Storage Rates Storage rates based on 30 frames per second.6144 x 3456 (6K) Blackmagic RAW 3:1 - 323 MB/sBlackmagic RAW 5:1 - 194 MB/sBlackmagic RAW 8:1 - 121 MB/sBlackmagic RAW 12:1 - 81 MB/sBlackmagic RAW Q0 - 242 to 483 MB/sBlackmagic RAW Q1 - 162 to 387 MB/sBlackmagic RAW Q3 - 108 to 277 MB/sBlackmagic RAW Q5 - 65 to 162 MB/s6144 x 2560 (6K 2.4:1) Blackmagic RAW 3:1 - 240 MB/sBlackmagic RAW 5:1 - 144 MB/sBlackmagic RAW 8:1 - 90 MB/sBlackmagic RAW 12:1 - 60 MB/sBlackmagic RAW Q0 - 180 to 359 MB/sBlackmagic RAW Q1 - 120 to 287 MB/sBlackmagic RAW Q3 - 80 to 205 MB/sBlackmagic RAW Q5 - 49 to 120 MB/s5376 x 3024 (5.3K 16:9) Blackmagic RAW 3:1 - 248 MB/sBlackmagic RAW 5:1 - 149 MB/sBlackmagic RAW 8:1 - 94 MB/sBlackmagic RAW 12:1 - 63 MB/sBlackmagic RAW Q0 - 186 to 371 MB/sBlackmagic RAW Q1 - 125 to 297 MB/sBlackmagic RAW Q3 - 84 to 212 MB/sBlackmagic RAW Q5 - 50 to 125 MB/s3840 x 2160 (Ultra HD) Blackmagic RAW 3:1 - 127 MB/sBlackmagic RAW 5:1 - 77 MB/sBlackmagic RAW 8:1 - 48 MB/sBlackmagic RAW 12:1 - 32 MB/sBlackmagic RAW Q0 - 96 to 190 MB/sBlackmagic RAW Q1 - 64 to 153 MB/sBlackmagic RAW Q3 - 43 to 109 MB/sBlackmagic RAW Q5 - 26 to 64 MB/sConstant Quality storage rates quoted are indicative only.Actual storage rates are entirely dependent on image subject matter.
Control
External Control Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.Blackmagic Control Protocol over SDI, RTMP and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.
Talkback and Tally
Live Tally Indicator 1 x front facing for talent,1 x rear facing for operator.
Talkback
SDI Channels 15 and 16.
Software
Software Included: Blackmagic Camera Setup for Mac and Windows.
Operating Systems
Mac 12.0 Monterey, Mac 13.0 Ventura or later., Windows 10, 64-bit., Windows 11.
Power Supply
1 x External 12V DC 60W power supply.
