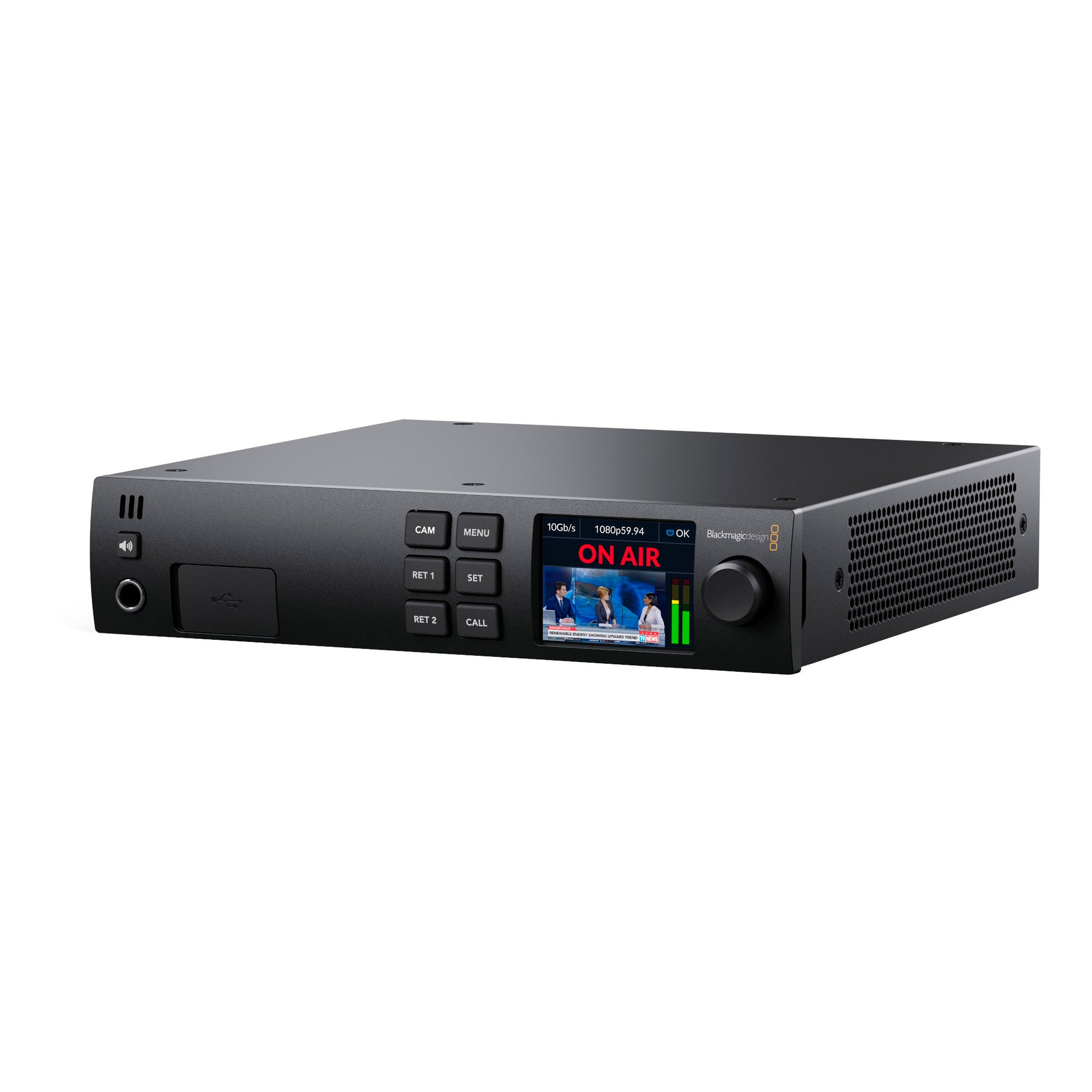

• Blackmagic Design Studio Converter

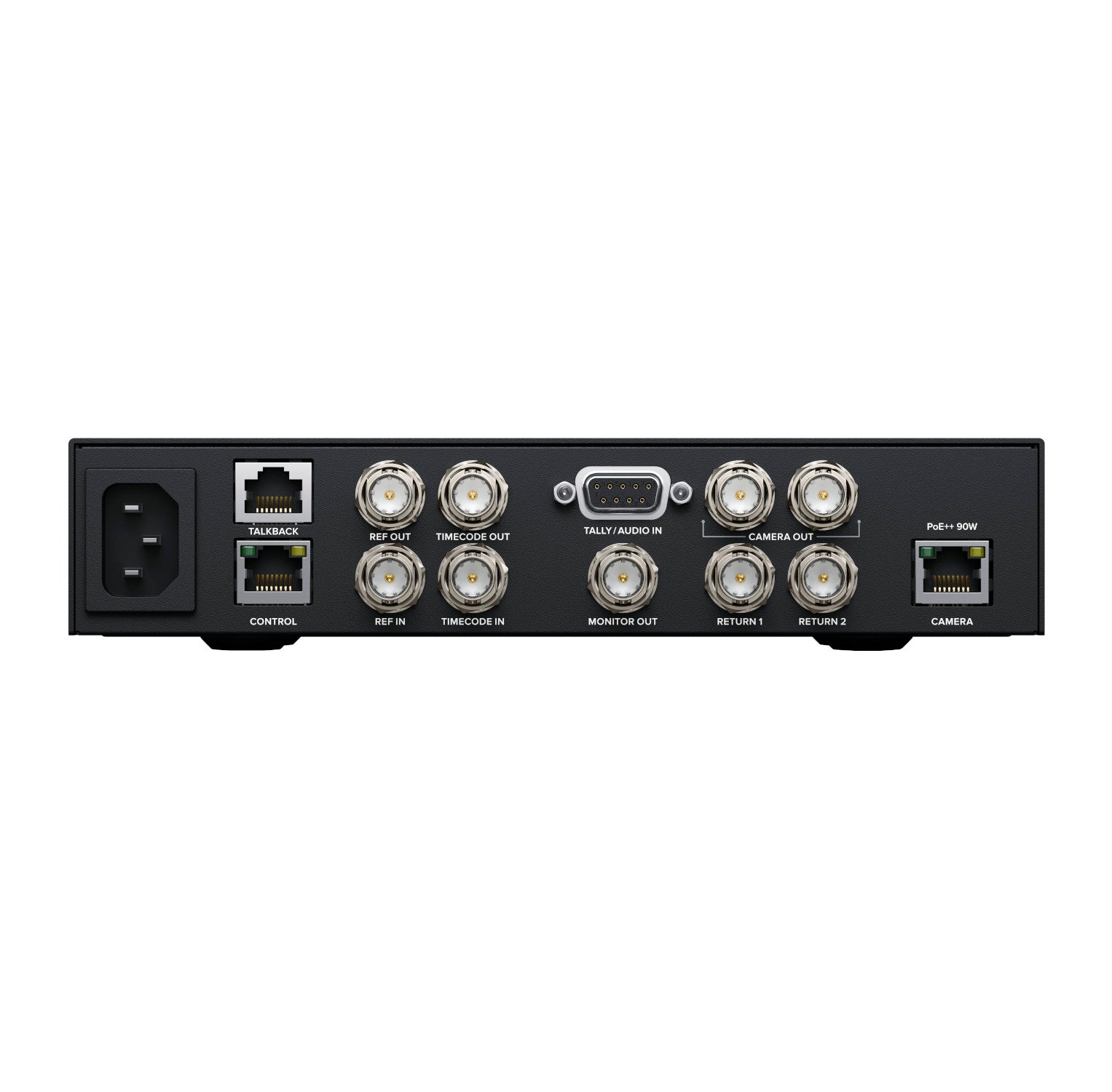

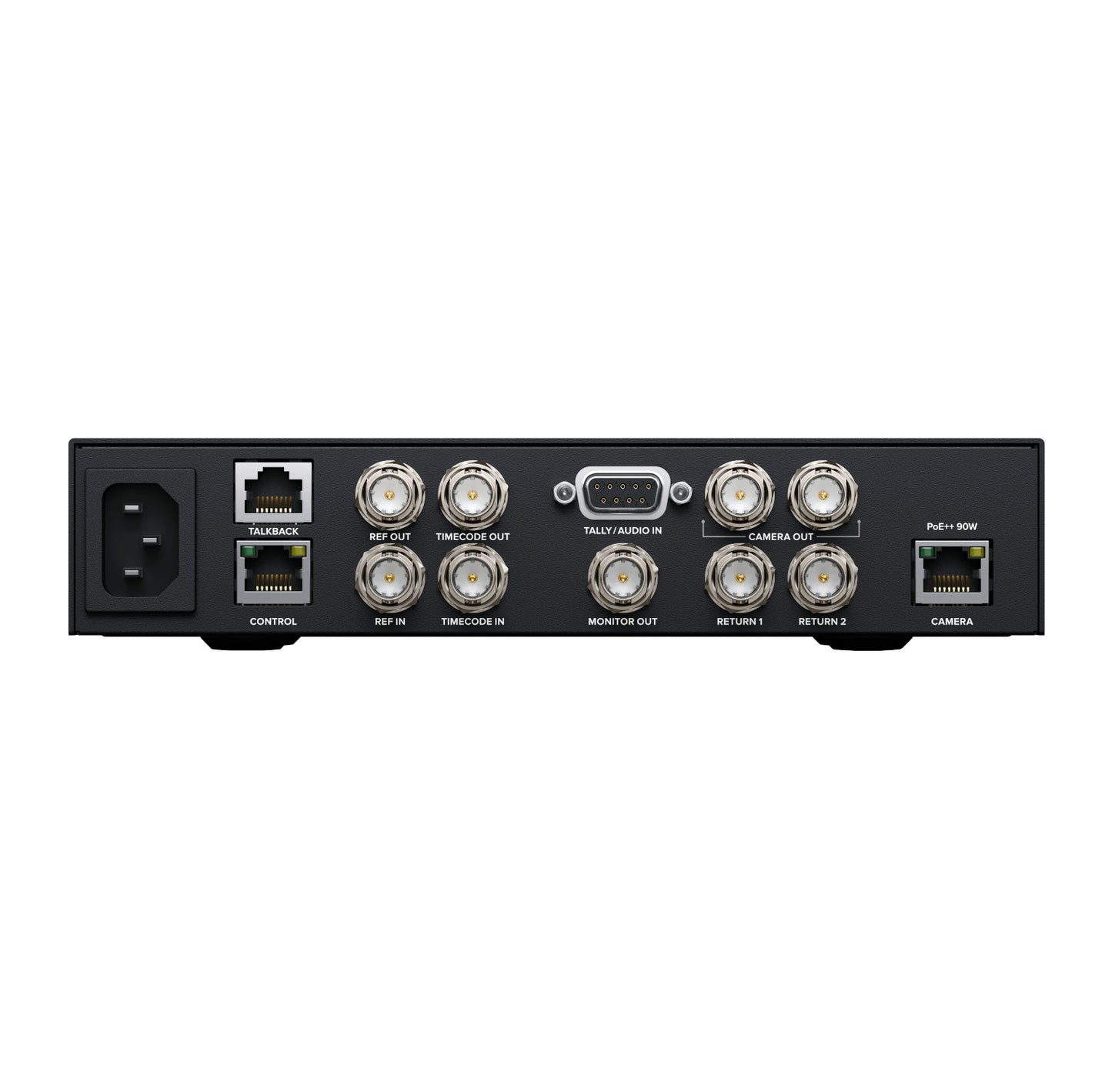

  • Blackmagic Design Studio Converter back
1 2

Blackmagic Design Studio Converter

Blackmagic Design Studio Converter

SoundPro Item: 121842 | Part Number: BMD-CINSTUDMFT/H/SC

$1,099.00
$1,099.00 $1,099.00
Your Price Sold out
MSRP: $1,099.00 | MAP: $1,099.00

Usually ships in 5-7 business days

  • Powers the camera via the Ethernet cable
  • Converts the camera and program return feeds to SDI
  • Allows breakout of all the video, audio, and talkback connections
  • Includes power supply that powers the camera down the Ethernet cable
Log in or register for YOUR best price

The Blackmagic Design Studio Converter will power the camera via the Ethernet cable and convert the camera and program return feeds to SDI.

Get the same workflow as SMPTE fiber, but using low cost 10G copper Ethernet cables. This converter will power the camera via the Ethernet cable and convert the camera and program return feeds to SDI.

With 10G Ethernet on Blackmagic Studio Converter and Blackmagic Studio Camera 4K Pro, you can connect all camera signals using one Ethernet IP link connection. That means the camera feed, return program feed, timecode, reference, tally, talkback and control are all sent down the single cable. That's the same benefits of SMPTE fiber, but the standard 10G copper Ethernet cable is much lower cost. The Blackmagic Studio Converter allows breakout of all the video, audio and talkback connections at the studio end. It also includes a massive power supply that powers the camera down the Ethernet cable, so you don't even need a power source near the camera.

View full details

Specifications

Certifications
Standards
HD Video Standards, Ultra HD Video Standards, SDI Compliance
Dimensions
Dimensions
8.27" x 8.93" x 1.74"
Audio
Analog Audio Inputs
2 channel analog program audio in supported via 9-pin connector
Analog Audio Outputs
1 x 6.35mm headphone jack
Audio Sampling
television standard sample rate of 48kHz and 24-bit
Connectivity
SDI Video Inputs
2
SDI Video Outputs
2
SDI Monitor Outputs
1
Connections
SDI Audio Input:, SDI Audio Output:, Talkback Audio
Ethernet
1 x 10Gb/s PoE RJ-45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable. 1 x 1Gb/s for external control and software updates.
Construction
Color Precision
10-bit
Color Space
REC 709, REC 2020
Controls
Built-in Control Panel
7 buttons with spin knob control and 2.2" color display for device control and menu settings
Included Items
Software (included)
Camera Utility for firmware update
Environmental
Operating Temperature
32° to 104° F (0° to 45° C)
Storage Temperature
-4° to 113° F (-20° to 45° C)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
3.17 pounds
General
SDI Rates
1.5G, 3G, 6G, 12G
Built in Speaker
mono
Timecode Connections
1x BNC in, 1x BNC out
Reference Connections
1x BNC in, 1x BNC Out,; Tri-Sync or Black Burst
Screen
2.2" LCD
Computer Interface
1x USB-C
Video Sampling
4:2:2
Multiple Rate Support
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI
External Control
RJ-45 1Gb/s Ethernet
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Power Supply
100-240V AC input
Power Usage
40W max plus camera power usage
