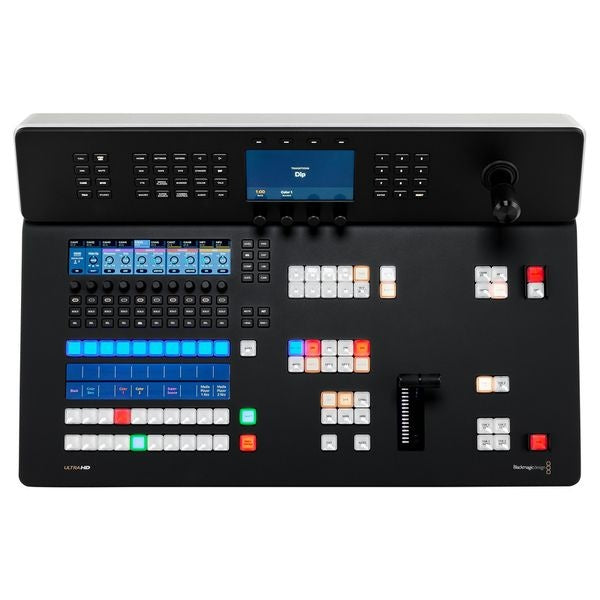

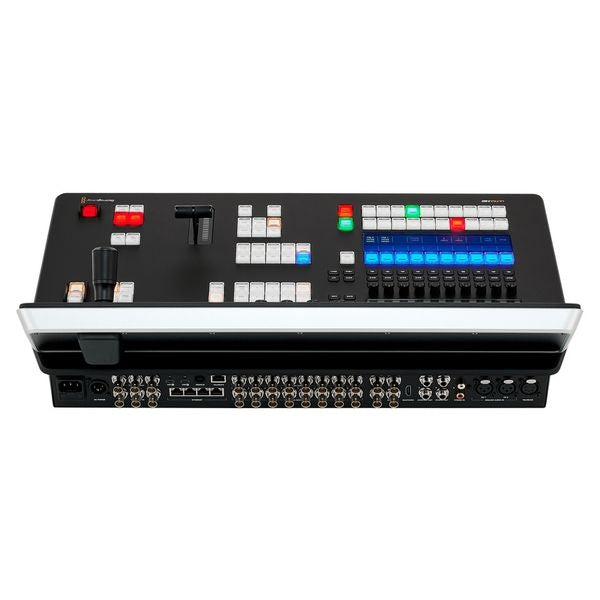

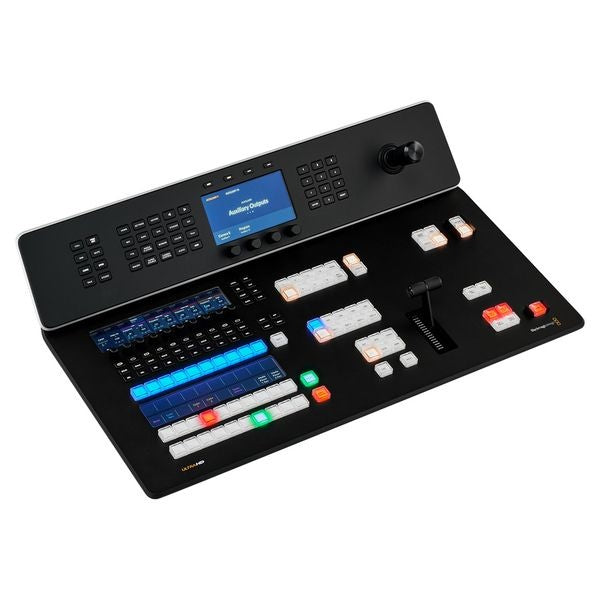

Blackmagic Design ATEM Television Studio 4K8 2TB Ultra HD Production Switcher

Blackmagic Design ATEM Television Studio 4K8 2TB Ultra HD Production Switcher

SoundPro Item: 207395 | Part Number: SWATEMTVSTC/K4K8/2

$7,695.00
$7,695.00 $7,695.00
Your Price Sold out
MSRP: $7,695.00 | MAP: $7,695.00

Usually ships in 5-7 business days

  • Standards Conversion On All Inputs Accepts Mixed 720p Through 2160p Formats Automatically
  • 10G Ethernet Network Switch Enables Multi-User Storage Access And Collaborative Post Workflows
  • Dual USB-C Webcam Output Integrates Broadcast Switching Into Software Platforms
  • Integrated Fairlight Audio Mixer Provides 58-Channel Processing With Parametric EQ And Dynamics
  • Four Advanced Chroma Keyers Support Green Screen Compositing And Virtual Set Production
  • SuperSource Multi-Layer Engine Delivers Four Independent DVE Processors With Custom Backgrounds

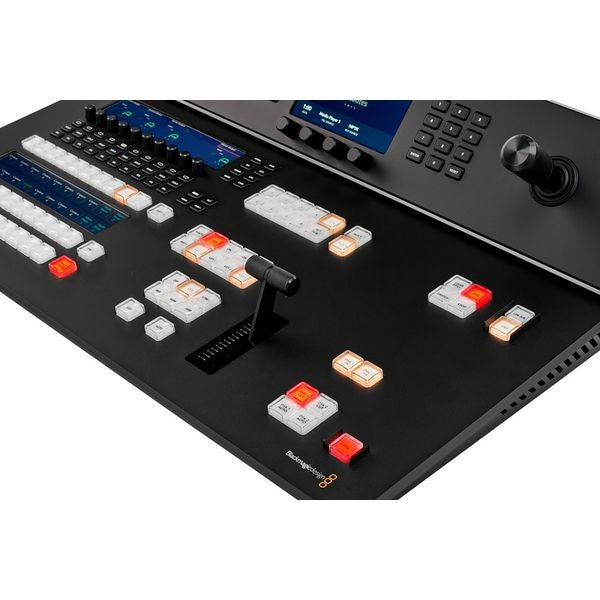

  • Dedicated Control Surface With T-Bar And Tri-Color LED Buttons Matches Professional Console Design
  • Dual Power Input Configuration Accepts AC Mains Or 12V DC Battery Operation
Log in or register for YOUR best price

ATEM Television Studio 4K8 2TB redefines portable broadcast infrastructure by consolidating essential production tools into a single transportable unit. Engineered for venues lacking equipment rack access and mobile crews requiring professional switching capabilities, this Ultra HD system combines 12G-SDI connectivity with integrated control surfaces, eliminating the need for separate panels and external processors.

The platform delivers eight standards-converted inputs with dedicated Fairlight audio mixing, four advanced chroma keyers, and SuperSource multi-layer processing alongside real-time hardware streaming. Internal 2TB M.2 storage enables network-shared recording and collaborative post-production workflows, while the 4-port 10G Ethernet switch facilitates multi-user editing during active events. Ten 12G-SDI aux outputs support simultaneous external recording and stage monitoring, backed by MADI expansion for scaled audio integration.

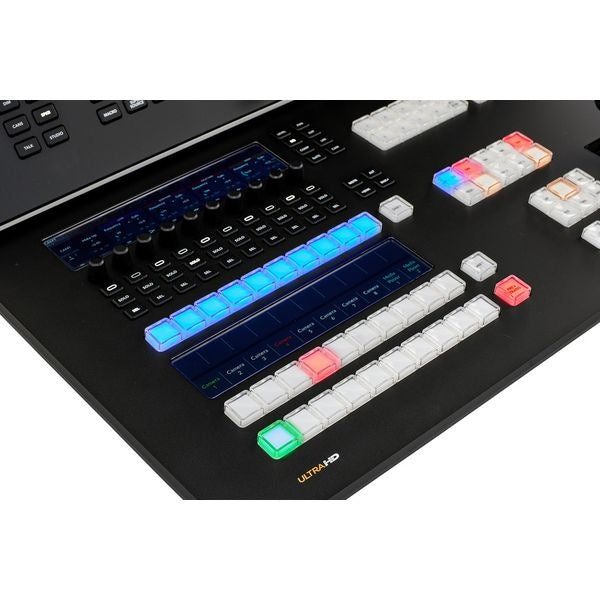

Built-in talkback, camera control, and USB webcam emulation provide complete studio functionality within a desk-mount form factor. The integrated t-bar, dedicated source selection buttons, and live LCD metering deliver tactile control matching broadcast-grade consoles. This architecture serves touring productions, education studios, sports venues, and compact broadcast vans requiring full production capabilities without the footprint of traditional rack systems.

View full details

Specifications

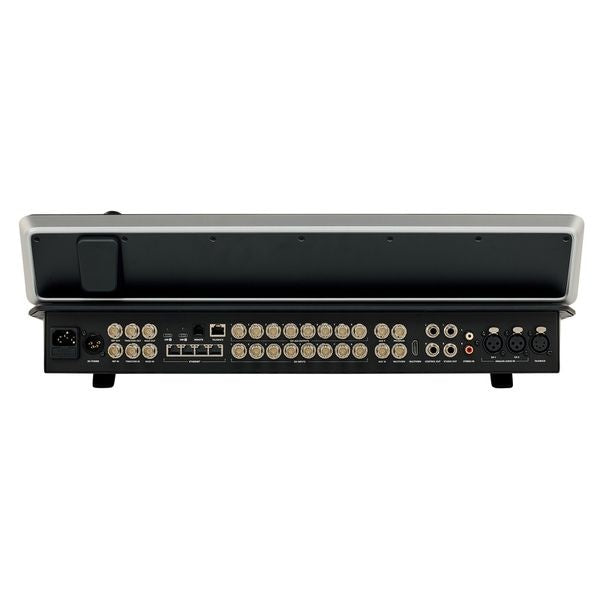

Video Inputs And Outputs
SDI Video Inputs
8
SDI Program Outputs
1
SDI Aux Outputs
10
HDMI Video Outputs
1
SDI Rates
1.5G, 3G, 6G, 12G
Multiview Outputs
1 x 12G-SDI, 1 x HDMI 2.0
Video Standards
HD Input Standards
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Input Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
Rec 709
Audio Connectivity
XLR Analog Inputs
2
RCA Stereo Inputs
2
MADI Digital Audio Input
1 x BNC, 32 channels
Talkback Input
1 x 5-pin XLR
1/4 Inch Jack Outputs
4
MADI Digital Audio Output
1 x BNC, 64 channels
SDI Audio Inputs
4 channels embedded on all SDI inputs
SDI Audio Outputs
16 assignable channels
Processing And Mixing
Mix Effects Rows
1
Upstream Keyers
4
Downstream Keyers
2
Advanced Chroma Keyers
4
SuperSource Layers
1
DVEs
2
Audio Mixer Channels
58
Audio Mixer Features
6 band parametric EQ, Expander, Gate, Compressor, Limiter
Processing Delay
Less than 10 lines when genlocked
Control And Interface
Direct Cross Points
10
Shifted Cross Points
20
Crosspoint Button Type
Tri-Color LED
Fader Bar
1
Dedicated Macro Buttons
20
System LCD Displays
1
Ethernet Ports
4 x RJ45, 10/100/1000/10G BASE-T
USB-C Ports
2
Webcam Output
720p or 1080p at program frame rate
Recording And Storage
Internal Memory
2TB M.2 NVMe
Recording Format
H.264 .mp4 (HD), H.265 HEVC (Ultra HD)
Media Format Support
ExFAT, APFS, HFS+
Media Pool Still Capacity
20
Media Pool Clip Capacity
2 x up to 2160p60
Media Players
Media Players
2
Still Image Formats
PNG, TGA, BMP, GIF, JPEG, TIFF
Video File Format
TGA sequence
Audio File Format
WAV, MP3, AIFF
Sync And Timecode
Timecode Connections
1 x BNC In, 1 x BNC Out
Reference Input
1 x BNC In, 1 x BNC Out, Tri-Sync or Black Burst
Internal Timecode Generator
Yes
Power
AC Power Input
100-240V AC 50/60Hz, IEC C14
DC Power Input
4-pin XLR 12V DC
Power Consumption
120W
Physical
Product Weight
15 lbs
Package Weight
27 lbs
Package Dimensions (W x L x H)
21.8" x 19" x 10.3"
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Software Compatibility
Operating Systems
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10, Windows 11
Standards Compliance
SDI Compliance
SMPTE 292M, 296M, 424M, 425M Level A and B, 2081-1, 2081-10, 2082-1, 2082-10
Included Items
Included Items
ATEM Television Studio 4K8 2TB, Welcome wallet with QR code
Warranty
Warranty
1 Year Limited Manufacturer's Warranty
