Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter

Power supply not included - requires IEC cable.

The Teranex Mini SDI to DisplayPort 8K HDR offers an advanced 8K monitoring solution for large screen TVs, video projectors, and DisplayPort monitors. Going beyond the ability of a basic converter, the Teranex Mini 8K HDR can use third party calibration probes to align connected displays for accurate and precise color. Two on-screen scopes can be selected between WFM, Parade, Vector, and Histogram. A single clip can drive one 8K display or four separate Ultra HD displays, making the converter excellent with digital signage. The Teranex Mini SDI to DisplayPort 8K HDR converter is designed with monitors like the Apple Pro Display XDR in mind.

All Quad Link 12G-SDI inputs have outputs for looping to other equipment. Single link HD, Ultra HD and quad link 8K standards are also supported for broadcast or film industry use. Quad Link 12G-SDI is used when working in full resolution 8K, but the converter can also switch to HD, Ultra HD, 2K DCI and 4K DCI formats. If a monitor in use can’t handle the resolution, it is automatically down converted for display, ensuring images are always on display regardless of the SDI standard. HDMI instant lock instantly locks the HDMI display if input video is interrupted. Control the converter remotely with Ethernet or included software utility for Mac or Windows. That software utility also updates the converter, ensuring it keeps up with video standards and features.

Get large and color accurate SDI monitoring in any broadcast, live production or feature film work with the SDI to DisplayPort converter. You can unload CPU and GPU processing, since the converter draws the 3D LUTs and scopes itself, making it excellent with accurate grading monitoring for DaVinci Resolve. This is particularly important with heavy 8K formats. When paired with an Apple Pro Display XDR, you can select from the monitor’s built-in color profiles to accurately match color space and gamma to the SDI input for precise color grading.Get HDR SDI monitoring by connecting an HDMI display or DisplayPort monitor. The Teranex Mini 8K converter handles ST2108-1, ST2084 and ST425 standards.

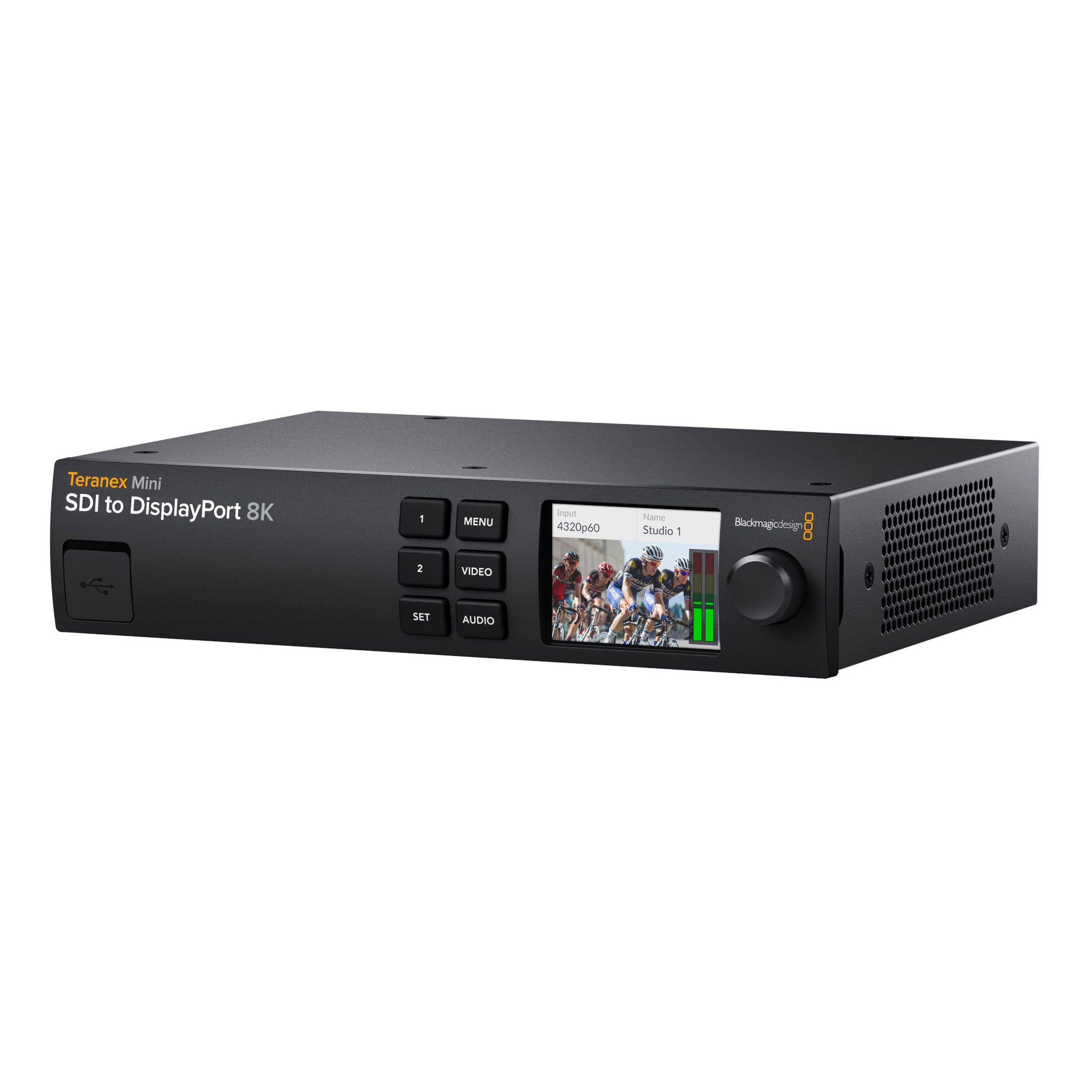

Design works well with broadcast and post production. Elegant front panel has buttons and a color display for video monitoring with audio meters and video standard. Rear panel has Quad Link 12G-SDI for HD, Ultra HD and up to 8K formats. Down conversion means 8K sources can be used on Ultra HD or HD TVs and monitors, and it is possible to automatically convert between 2SI and Square Division. Also included are AC power, analog audio HiFi out, and USB connection on the front panel. USB-C style connection allows the converter to be used with monitors such as the Apple Pro Display XDR. There are two full size DisplayPort connections for regular computer monitors. A built-in scaler scales the video input standard to the native resolution on whatever DisplayPort monitor is connected.

With two fully independent on-screen scopes, complying with broadcast standards during your project is easy. Five different scopes are available and can be positioned on screen in locations you can customize by the menus. Two different scopes can be displayed simultaneously, even showing different waveforms, opacity, and size. Scopes support HDR and the graticule automatically changes when a HDR SDI input is detected.

Experience a high level of color accuracy and editing with the various color features in the SDI to DisplayPort converter. View fine-tuned color from vectorscope display showing color intensity at 100% SDI reference levels, RGB and YUV parade displays for color correction and illegal levels, and histogram to show white to black distribution. Tailor color tone to the style of your production with the same 33 point 3D LUTs used in the professional film industry. Be sure a monitor is the correct color with the built-in monitor calibration in the converter. Using a third party USB probe, compatible monitors are automatically aligned.
