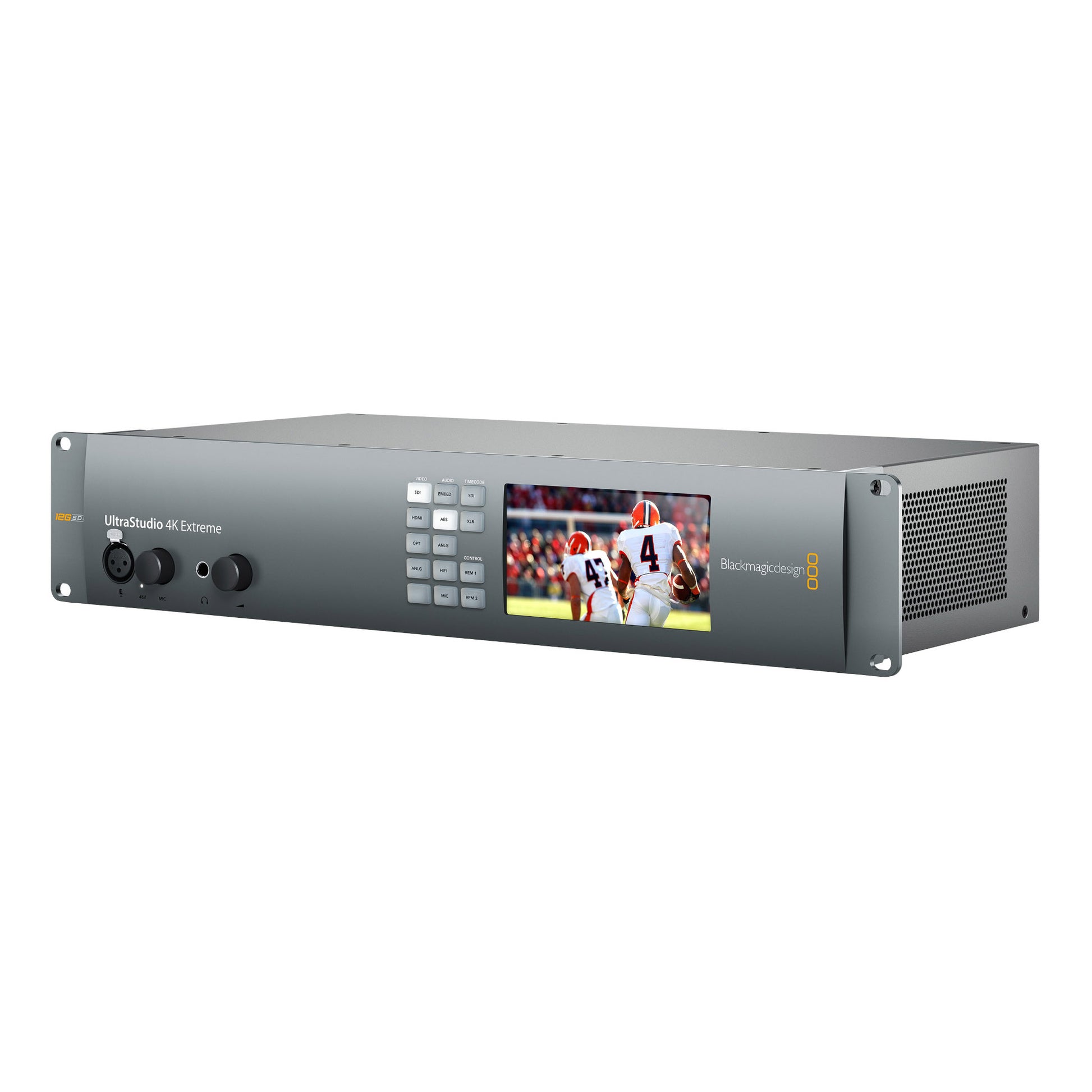

Electrical
Power Requirements
2 x Internal 100 - 240V AC
Audio
Analog Audio Inputs
4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors
Analog Audio Outputs
4 Channels of professional balanced analog audio via XLR connectors
AES/EBU Audio Inputs
2 Channels unbalanced with sample rate converter on BNC connector
AES/EBU Audio Outputs
2 Channels unbalanced on BNC connector
SDI Audio Inputs
16 Channels embedded in SD/HD/2K/4K
SDI Audio Outputs
16 Channels embedded in SD/HD/2K/4K
HDMI Audio Inputs
8 Channels embedded in SD/HD/4K
HDMI Audio Outputs
8 Channels embedded in SD/HD/4K
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
HDMI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
Connectivity
SDI Video Inputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable
SDI Video Outputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable
SDI Video Repeated Outputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable
Analog Video Inputs
1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC
Analog Video Outputs
1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC
Optical Fiber Inputs/Outputs (Optional)
2 x 12Gb/s Optical Fiber
HDMI Video Inputs
HDMI 2.0 type A connector with support for 2160p60
HDMI Video Outputs
HDMI 2.0 type A connector with support for 2160p60
Mic Input
1 x 48V microphone input via XLR connector. Phantom Power switchable via software control
Sync Input
1 x Reference input. Tri-Sync or Black Burst
Sync Output
1 x Reference Loop Output. Tri-Sync or Black Burst
HDMI Video Standards
HD Video Standards 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 1080i60, 3D Video Standards 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,1080i50, 1080i59.94, 1080i60
HDMI Video Sampling
4:4:4, 4:2:2, 4:2:0
HDMI Color Space
REC 601, REC 709, REC 2020.
HDMI Configuration
HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
Construction
SDI Color Space
REC 601, REC 709, REC 2020.
Color Precision
8, 10, 12-bit RGB 4:4:4 up to 2160p30 and 8, 10-bit YUV 4:2:2 in all standards
Controls
Built in Control Panel
14 buttons for input selection. 5 inch color display.
Included Items
Software Included
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Environmental
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
General
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G
Optical SDI
Supports 2 optional SMPTE modules
SDI Video Loop
4 x reclocked SD/HD/2K/4K linked to corresponding inputs
Timecode
Input 1 x XLR Input
Computer Interface
Thunderbolt™ 3 (Mac OS and Windows), PCI Express 4 lane generation 2
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Internal Software Upgrade Firmware built into software driver. Software driver loads upgrades at system start or via updater software
Software Applications
DaVinci Resolve, Adobe After Effects CC, Adobe Photoshop CC, Adobe Premiere Pro CC, Avid Media Composer, Avid Pro tools, Final Cut Pro X, Fusion, Steinberg Cubase, Steinberg Nuendo
Other Supported Applications Include
The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite
Tools on Air Just
Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Derivative TouchDesigner, Assimilate Scratch, Burst Video WebClip2Go, Burst Video [REC]Marker, Autodesk Flame, Zoom.
NOTE
HDR and REC 2020 playback and capture is application dependent, check with your software vendor.
SD Video Standards
525i59.94 NTSC, 625i50 PAL
SDI Video Standards
HD Video Standards 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p601080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF301080i50, 1080i59.94, 1080i60, 3D Video Standards 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p481080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i602Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI,2Kp48, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p484Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 435, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2082-10, SMPTE ST2108-1, ITU-R BT.656 and ITU-R BT.601.SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning.
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Video Sampling
4:4:4, 4:2:2
HDR Support
HDR metadata packing, HLG and PQ transfer characteristics.
SDI Configuration
SDI output is configurable for Quad Link 3Gb/s via Blackmagic Desktop Video Utility. When using single link 12Gb/s on SDI A or dual link 6Gb/s on SDI A and B, SDI C and D will output downconverted HD.
Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/UHD and 4K. Component analog video connections are switchable between SD and HD.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Hardware Frame Buffer
ARGB, BGRA (8-bit RGB 4:4:4:4), r210 (10-bit RGB 4:4:4), R12B and R12L (12-bit RGB 4:4:4) up to 2160p30., 2vuy (8-bit YUV 4:2:2) and v210 (10-bit YUV 4:2:2) in all modes.
Computer Capture
2 x Thunderbolt 3 for Mac and Windows plus PCI Express Gen 2 for Mac, Windows and Linux. Includes Blackmagic Desktop Video SDK
Device Control
2 x RS-422 deck control.
Encoding
Hardware based real time H.265 encoder.
Ultra HD Down Conversion
Built in, high quality hardware down converter outputs Ultra HD to HD with down-converted signal on SDI outputs C & D and HDMI output when connected to an HD-only TV.
HD to SD Down Conversion
Built in, high quality hardware down converter outputs HD to SD with down-converted signal on SDI output B, Component and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9 and center cut 4:3.
HD Up Conversion
Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
HD Cross Conversion
Built in, high quality hardware cross conversion from 720p to 1080HD and 1080HD to 720p on playback.
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Colorspace Conversion
Hardware based real time.
3D Processing
Dual stream and frame packed capture & playback.
Physical Installation
Requires a computer with either a Thunderbolt port or available PCI Express slot. Blackmagic PCI Express Cable Kit available separately for high speed PCI Express Gen 3 connection. Please check support pages to see the full system requirement.
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 8.1 and 10, both 64-bit, Linux
Power
Power
2 x built-in international AC power supply with IEC C14 inlet. 100-240V, 50-60Hz
