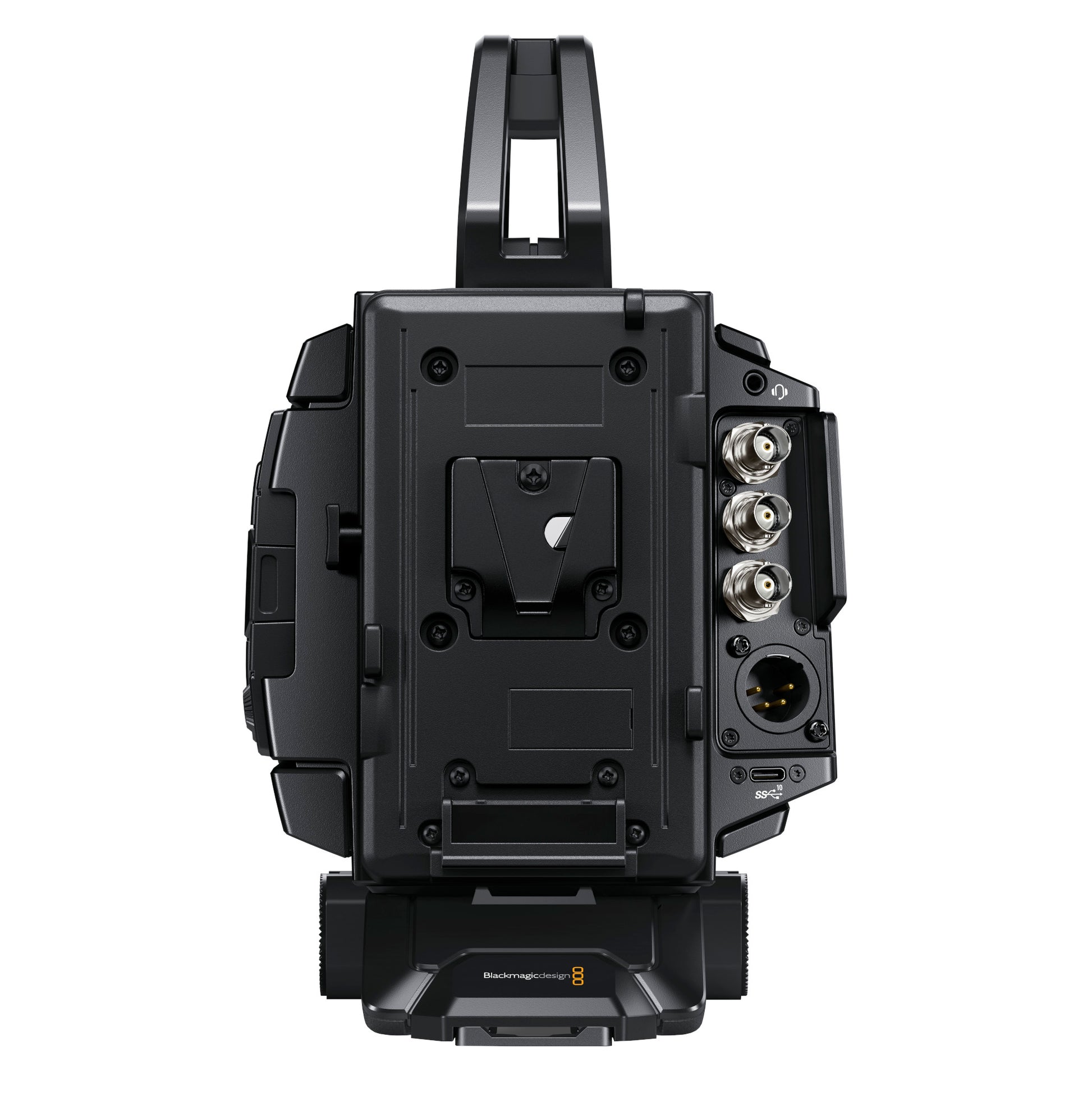

  • Blackmagic Design URSA Broadcast G2 Camera back
1 2

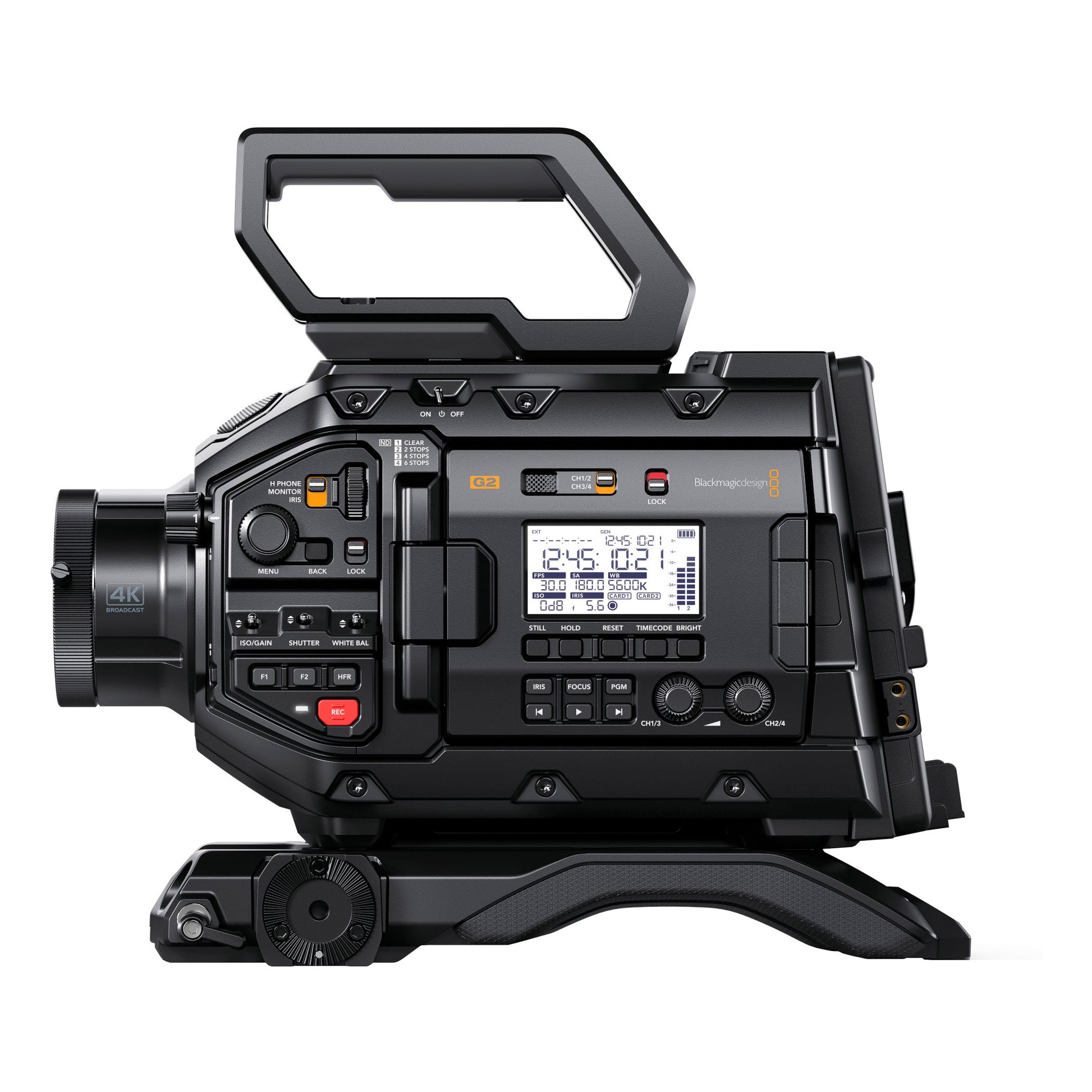

Blackmagic Design URSA Broadcast G2 Camera

Blackmagic Design URSA Broadcast G2 Camera

SoundPro Item: 130070 | Part Number: BMD-CINEURSAMWC6KG2

$4,925.00
$4,925.00 $4,925.00
Your Price Sold out
MSRP: $4,925.00 | MAP: $4,925.00

Usually ships in 5-7 business days

  • Three cameras in one: broadcast production, live studio, digital cinema
  • Enjoy digital film quality for broadcast
  • Exceptional low light performance
  • Compatible with B4 broadcast lenses
  • Built in optical ND filters
  • Designed to work with standard file formats used by all broadcast systems and editing software
  • Dual media slots for non-stop recording
  • USB-C for recording direct to external media disks
  • Strong and lightweight magnesium design
  • Built in LCD with touch controls
  • External status display
  • Program Video Monitoring
  • Load custom 3D LUTs to recreate film looks
  • Standard television industry connections
  • Supports all broadcast frame rates
  • Professional audio connections and built-in microphones
  • Get studio camera control via SDI
  • Work in HD or Ultra HD
  • Change to PL, EF, and F lens mounts
  • Latest Generation 5 color science
  • Incredible Blackmagic RAW quality
  • Powered by Blackmagic OS
  • Built in timecode generator
  • Focus and zoom demands
  • Add viewfinders, SMPTE fiber and lens mounts
  • Record to SSDs and U.2 media
  • Localized in 13 popular languages
  • Wireless Bluetooth camera remote control
  • Compatible with industry standard batteries
  • Includes DaVinci Resolve Studio
Log in or register for YOUR best price

The new Blackmagic URSA Broadcast G2 is an incredibly powerful camera designed for both traditional and online broadcasters. The 3 cameras in 1 design allows it to work as a 4K production camera, a 4K studio camera or a 6K digital film camera! You can record to common SD cards, UHS-II cards, CFast 2.0 cards or external USB disks, using common file formats such as H.265, ProRes and Blackmagic RAW. You can even change the lens mount! No other broadcast camera is so flexible!

The perfect solution for broadcasters, URSA Broadcast G2 includes ENG camera controls positioned around the camera so you can locate them by feel. It also features a low light sensor so you get amazing images using natural light. That's the perfect combination for broadcast news and programming. URSA Broadcast includes an advanced YRGB color corrector built in and full remote camera control. You can use B4 ENG lenses, large studio box lenses, or even change the lens mount and use any lens! Plus the optional Blackmagic focus and zoom demands let you control the lens from the tripod handles. URSA Broadcast G2 includes an advanced 6K digital film sensor, and you can change the lens mount! Use a PL mount for digital film lenses or EF for photo lenses. Plus the high dynamic range, great low light performance and Blackmagic RAW means you get a true "Hollywood" quality digital film camera.

The large 6K sensor combined with Blackmagic generation 5 color science gives you the same imaging technology used in digital film cameras. The 6K sensor features a resolution of 6144 x 3456 so it's flexible enough for broadcast and digital film work. When using B4 lenses, you get a 4K window of the sensor for Ultra HD broadcast use. Then if you change to a PL or EF lens mount, you can use the full 6K resolution of the sensor for digital film! With 13 stops of dynamic range, you get darker blacks and brighter whites, so it's perfect for color correction.

The new URSA Broadcast features incredible low light performance so you can shoot using ambient light or even under moonlight! In advanced cameras, ISO is a measurement of the image sensor’s sensitivity to light. The Blackmagic URSA Broadcast G2 features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it's optimized to reduce grain and noise in images, while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. Then the secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set via a camera switch, the LCD menu or remotely using the SDI remote camera control protocol.

URSA Broadcast is designed to work with standard file formats that are used by all broadcast systems and editing software. You can record in ProRes 422 HQ and ProRes 422 into QuickTime files. The new Blackmagic URSA Broadcast G2 model can even record into H.265 for incredibly small files at 60:1 to 285:1 compression ratios, in 10-bit broadcast quality. Plus you can record to Blackmagic RAW files, a revolutionary new format designed to capture and preserve the quality of the sensor data from the camera. That means you get the perfect range of file formats designed for all types of workflows.

If you're doing live production, sometimes you need to monitor program video back from the switcher. Simply press the camera’s PGM button and the viewfinder will switch from the camera display to the program return feed from the switcher. A built in speaker also lets you monitor the switcher audio as well. Program return is a fantastic feature as sometimes on large live shows, camera operators can be left waiting a long time for their camera to be used, so program return lets them watch the show while they wait. This means that even if the camera operator is a large distance away from the switcher, they can still keep up with what is happening and remain alert.

Blackmagic URSA Broadcast G2 features the latest technology and connections such as 12G-SDI. This includes 12G-SDI connections for both video output and return program feed input. The 12G-SDI connections are multi rate and switch between all HD and Ultra HD formats up to 2160p60. Other connections include a headphone connection, USB-C, balanced XLR audio with phantom power, and timecode/reference input. There's also a front mounted 12 pin Hirose connector for broadcast lens control which can also power the lens. Plus for connecting a viewfinder or on set monitor there's even an HD-SDI monitoring output and a broadcast style 4 pin XLR 12V DC power output.

View full details

Specifications

Certifications
Standards
HD Video Standards, Ultra HD Video Standards, SDI Compliance
Dimensions
Effective Sensor Size
2/3 inch sensor size when using 4K B4 mount (Actual sensor size 23.10mm x 12.99mm)
Screen Dimensions
4"
Dimensions
10.95" x 9.93" x 5.9"
Electrical
Power Requirements
External Power Input, Power Output
Audio
Analog Audio Inputs
2 x XLR switchable between mic, line and AES digital audio. Phantom power support.
Analog Audio Outputs
1 x 3.5mm headphone jack, supports iPhone style headset for talkback.
Microphone
integrated stereo microphone
SDI Audio Sampling
48kHz and 24 bit
Optics
Focus
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode.
Connectivity
SDI Video Inputs
1
SDI Video Outputs
1
SDI Monitor Outputs
1
Reference Inputs
Tri-Sync/Black Burst/Timecode
Construction
Lens Mount
B4 2/3 inch installed (Active EF mount also included)
Lens Control
Electronic control via 12-pin broadcast connector. Control via EF mount pins when using URSA Mini Pro EF Mount with compatible EF lenses.
Lens Correction
In-camera correction of color fringing when using compatible broadcast lenses.
Color Corrector
DaVinci YRGB
Included Items
Software Included
Blackmagic OS, DaVinci Resolve Studio for Mac and Windows including activation key, Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin
Environmental
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 113°F (-20°C to 45°C)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
7.83 pounds
General
Dynamic Range
13 stops
Dual Native ISO
0dB and 18dB gain
Camera Features
Sensitivity at 0dB Gain, Signal to Noise Ratio, ProRes Shooting Resolutions and Frame Rates, H.265 Shooting Resolutions and Frame Rates, H.264 Shooting Resolutions and Frame Rates, Blackmagic RAW Shooting Resolutions and Frame Rates, Project Frame Rates
Built in ND Filters
Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters
Screen Type
LCD capacitive touchscreen
Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys and 2 assignable shortcut keys (VTR and RET) on compatible broadcast lenses.
Metadata Support
Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
SDI Rates
1.5G, 3G, 6G, 12G
Remote Control
1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses
Computer Interface
1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording and connecting Blackmagic Focus and Zoom Demand. 1 x USB Type-C for software updates
Built-in Speaker
1x mono speaker
SD Video Standards
none
Media
2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media.
Media Format
Can format media to ExFAT for Windows and Mac or HFS+ for Mac (file systems).
Supported Codecs
Apple ProRes 422 HQ, Apple ProRes 422, H.265 SDI (10-bit 4:2:2), H.265 High (10-bit 4:2:0), H.265 Medium (10-bit 4:2:0), H.265 Low (10-bit 4:2:0), H.264 SDI (10-bit 4:2:2), H.264 High (8-bit 4:2:0), H.264 Medium (8-bit 4:2:0), H.264 Low (8-bit 4:2:0), Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5
External Control
Lens control of compatible lenses using Blackmagic Zoom Demand and Blackmagic Focus Demand, Blackmagic SDI Control Protocol, iPad control via Bluetooth, 1 x 2.5mm LANC for lens and record control.
Talkback
SDI Channels 15/16 and iPhone headset
Live Tally Indicator
Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder
Storage Type
2 x CFast 2.0, 2 x SD UHS-II cards, 1 x high speed USB-C expansion port for external media, 2.5 inch SSD using optional URSA Mini Recorder
Storage Rates (based on 30 Frames per second)
6144 x 3456 (6K), 6144 x 2560 (6K 2.4:1), 5376 x 3024 (5.3K 16:9), 3728 x 3104 (3.7K 6:5 anamorphic), 3840 x 2160 (Ultra HD), 1920 x 1080
Recording Formats
Apple ProRes 3840 x 2160 and 1920 x 1080 with film, video or extended video dynamic range or custom 3D LUT., H.265 3840 x 2160 with film, video or extended video dynamic range or custom 3D LUT. H.264 1920 x 1080 with film, video or extended video dynamic range or custom 3D LUT., Blackmagic RAW Q0, Q1, Q3, Q5, 3:1, 5:1, 8:1 and 12:1 at 6144 x 3456, 6144 x 2560, 5376 x 3024, 3728 x 3104, 3840 x 2160, 1920 x 1080 recorded in non-linear 12 bit with film dynamic range and extended video, video or custom 3D LUT embedded in metadata.
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Power Supply
1 x External 12V DC 100W power supply with 100 - 240V AC 50/60Hz IEC C14 input
Power
Power
Rear camera mount compatible with industry standard V-mount or gold mount battery plates
