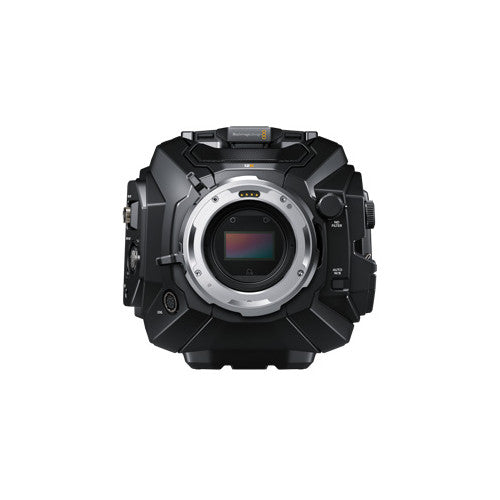

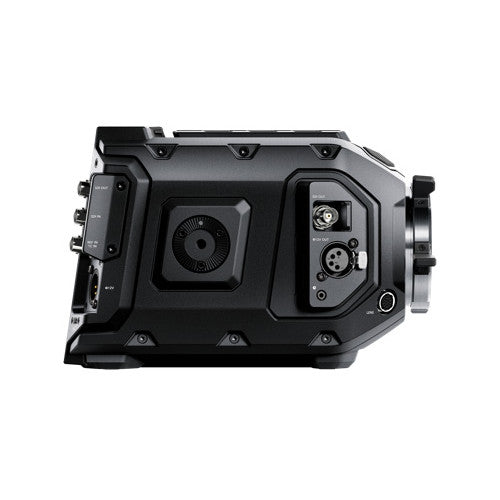

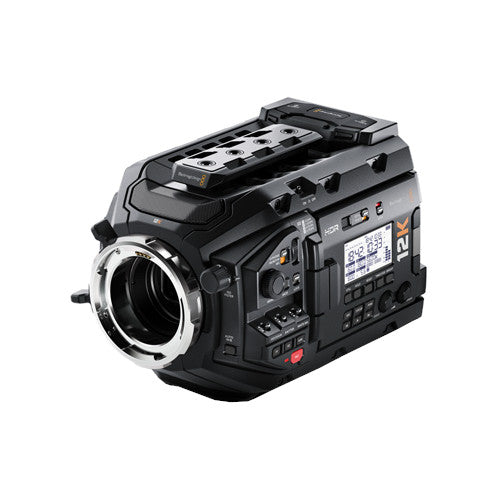

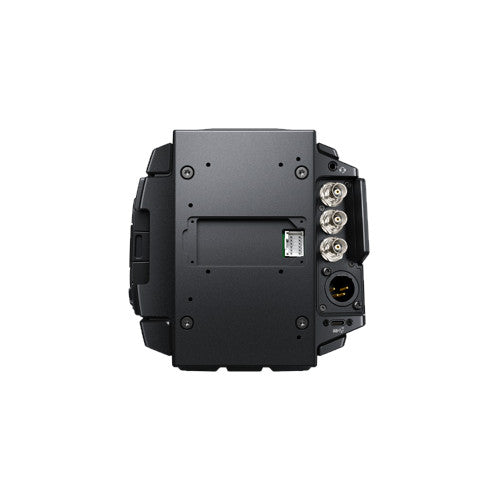

Blackmagic Design URSA Mini Pro 12K OLPF
Blackmagic Design URSA Mini Pro 12K OLPF
SoundPro Item: 139655 | Part Number: BMD-CINEURSAMUPRO12KOLPF
Usually ships in 5-7 business days
- 12,288 x 6480 12K Super 35 sensor
- 14 stops of dynamic range
- 80 megapixels per frame in Blackmagic RAW
- Built in ND filters
- User changeable lens mount
- Recording to dual CFast or SD cards
URSA Mini Pro 12K OLPF is a revolution in digital film with a 12,288 x 6480 12K Super 35 sensor and 14 stops of dynamic range. The third generation URSA Mini Pro features new color science and shoots 80 megapixels per frame in Blackmagic RAW. You also get built in ND filters, user changeable lens mount and recording to dual CFast or SD cards. URSA Mini Pro 12K even supports recording direct to a flash disk or SSD using its built in SuperSpeed USB-C connection!
- Camera Features
- Effective Sensor Size: 27.03mm x 14.25mm (Super35)
- Lens Mount: PL mount included. Interchangeable with optional EF and F lens mounts.
- Lens Control: 12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount.
- Dynamic Range: 14 Stops
- Shooting Resolutions
- 12,288 x 6480 (12K DCI)
- 11,520 x 6480 (12K 16:9)
- 12,288 x 5112 (12K 2.4:1)
- 7680 x 6408 (12K anamorphic)
- 8192 x 4320 (8K DCI)
- 7680 x 4320 (8K 16:9)
- 8192 x 3408 (8K 2.4:1)
- 5120 x 4272 (8K anamorphic)
- 6144 x 3240 (6K Super16)
- 4096 x 2160 (4K Super16)
- 4096 x 2160 (4K DCI)
- 3840 x 2160 (4K 16:9)
- 4096 x 1704 (4K 2.4:1)
- 2560 x 2136 (4K anamorphic)
- Frame Rates: Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
- High Speed Frame Rates
- 12K 17:9 full sensor up to 60 fps
- 12K 2.4:1 up to 75 fps
- 8K DCI full sensor up to 120 fps
- 4K DCI full sensor up to 120 fps
- 8K 2.4:1 and 4K 2.4:1 up to 160 fps
- 6K Super 16 up to 120 fps
- 4K Super 16 up to 240 fps
- Built in ND Filters: Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters.
- Focus: Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
- Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
- Screen Dimensions: 4 inch
- Screen Type: LCD capacitive touchscreen.
- Metadata Support: Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
- Controls: Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.
- Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
- Connections
- Total Video Inputs: 1 x 12G-SDI
- Total Video Outputs: 1 x 12G-SDI, 1 x 3G-SDI Monitoring.
- SDI Rates: 1.5G, 3G, 6G, 12G.
- Analog Audio Inputs: 2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
- Analog Audio Outputs: 1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
- Reference Inputs: Tri-Sync/Black Burst/Timecode.
- Remote Control: 1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
- Computer Interface
- 1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording.
- 1 x USB Type-C for software updates.
- Connections
- Total Video Inputs: 1 x 12G-SDI
- Total Video Outputs: 1 x 12G-SDI, 1 x 3G-SDI Monitoring.
- SDI Rates: 1.5G, 3G, 6G, 12G.
- Analog Audio Inputs: 2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
- Analog Audio Outputs: 1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
- Reference Inputs: Tri-Sync/Black Burst/Timecode.
- Remote Control: 1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
- Computer Interface
- 1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording.
- 1 x USB Type-C for software updates.
- Environmental
- Operating Temperature: 0° to 40°C (32° to 104°F)
- Storage Temperature: -20° to 45°C (-4° to 113°F)
- Relative Humidity: 0% to 90% non-condensing
