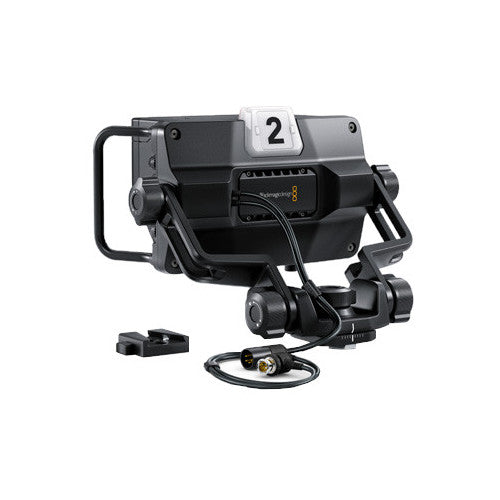

• Blackmagic Design URSA Studio Viewfinder G2

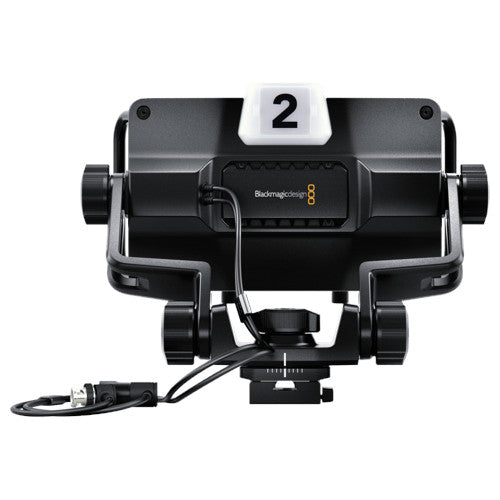

  • Blackmagic Design URSA Studio Viewfinder G2 front

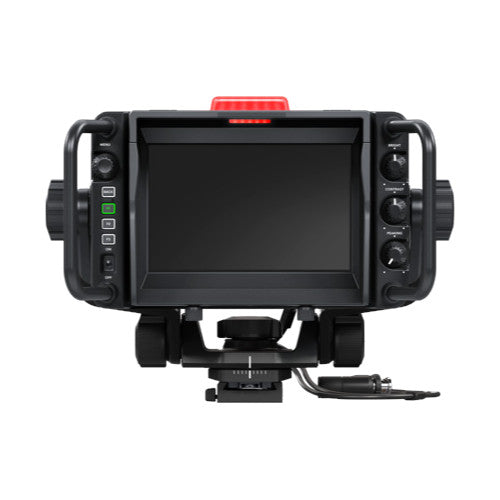

  • Blackmagic Design URSA Studio Viewfinder G2 back
1 3

Blackmagic Design URSA Studio Viewfinder G2

Blackmagic Design URSA Studio Viewfinder G2

SoundPro Item: 129128 | Part Number: BMD-CINEURSANSVF2

$1,745.00
$1,745.00 $1,745.00
Your Price Sold out
MSRP: $1,745.00 | MAP: $1,745.00

Usually ships in 5-7 business days

  • Bright 7" screen
  • Detachable sunshade
  • Large handled
  • Articulated pivot mount
  • Large rotary control dials
  • Customizable function buttons
  • V-lock plate
Log in or register for YOUR best price

If your project calls for a lot of over the shoulder or handheld shooting, you’ll want to add the Blackmagic URSA Viewfinder. You get a high resolution 1920 x 1080 color display that lets you get incredibly accurate focus and the screen is so sharp it’s just like using an optical viewfinder on a traditional film camera. The viewfinder can be adjusted for either left or right eye use. Installation is simple, and you only need to mount it and plug in the SDI and power connections to the side of URSA Broadcast. It’s so comfortable when using the camera shoulder mounted. The viewfinder also includes a sensor to turn off the screen when you’re not using it to extend the life of the OLED screen.

If you add the Blackmagic URSA Studio Viewfinder G2, you can turn an URSA Broadcast G2 into a professional studio camera. URSA Broadcast G2 has a digital film sensor and built in color corrector, so you get better image quality than a traditional studio camera. Plus you can add the Blackmagic Studio Fiber Converter to connect the camera with SMPTE fiber while adding additional studio camera controls to the rear of the camera. URSA Broadcast has a B4 lens mount, so it handles both ENG lenses as well as large "box" style broadcast lenses, for par focal focus and amazing zoom range. It even works with the Blackmagic Focus and Zoom demands to control B4 lenses while using the camera with two hands.

View full details

Specifications

Certifications
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084
Dimensions
Screen Dimensions
7" 1920 x 1200 resolution
Dimensions (WxH)
11.97x9.17"
Electrical
Power Requirements
12V power input via 4 pin XLR connected via URSA Mini 12v power output
Connectivity
SDI Video Input
1 x HD/Ultra HD 3G-SDI via BNC
Power Input
1 x 4 pin XLR 12V
Construction
Color Precision
10-bit
Color Space
REC 601, REC 709
Handles
Built in grab handles for positioning the monitor independently from the camera.
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
5.27 lbs
General
Screen Type
7" high brightness TFT LCD
Screen Brightness
2000 nits
Computer Interface
1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software
SDI Video Standards
HD Format Support 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 1080i60
Video Sampling
4:2:2 YUV
Multiple Rate Support
SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD
Controls
Dial, knobs and customizable function buttons for settings, short cut features and navigating menus
Position Adjustment Options
Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments
Mounting Options
Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle
Tally
Large LED tally light with customizable perspex camera numbers
Metadata Support
Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more
Screen Interface
On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more
Operating Systems
Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10
