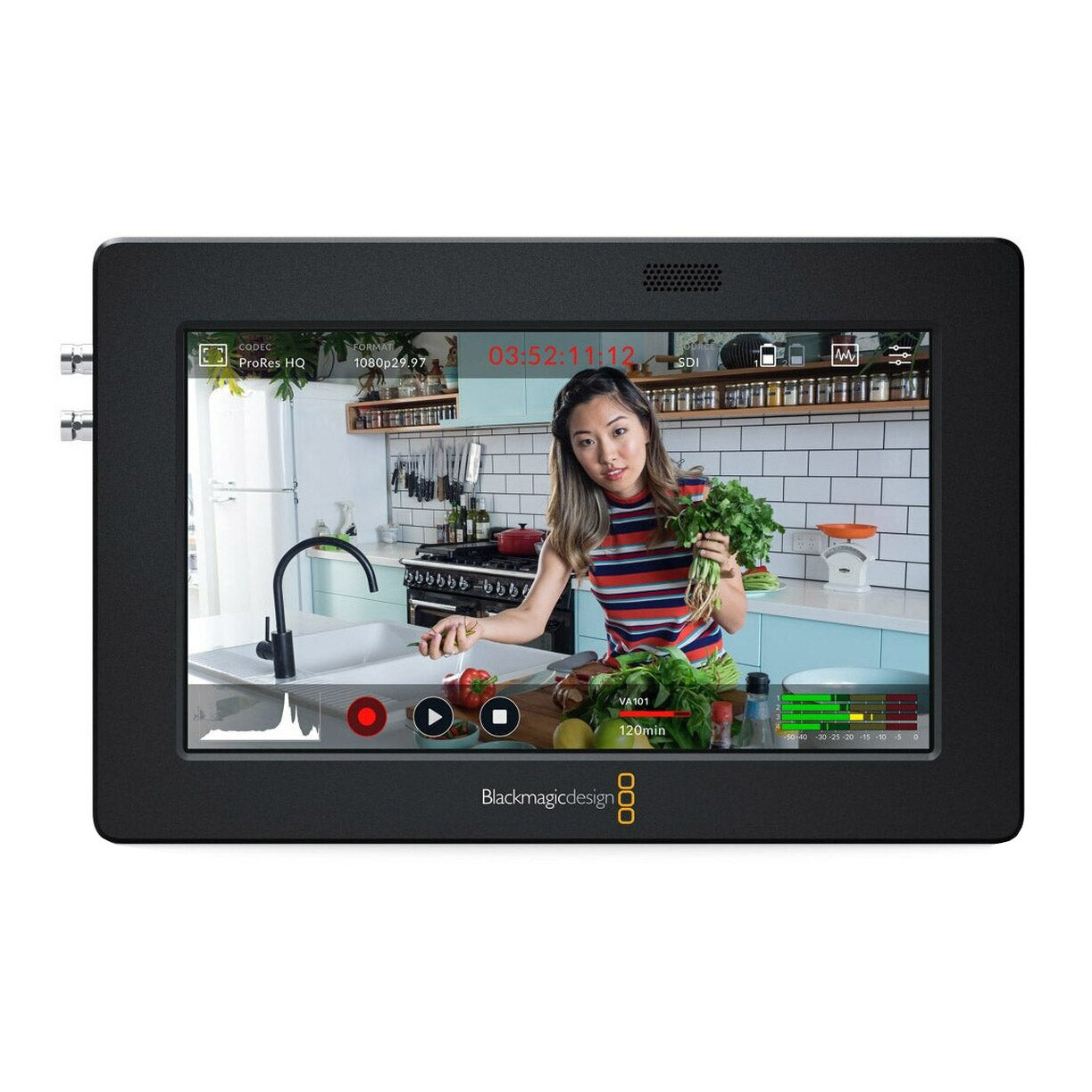

Blackmagic Design Video Assist 5-Inch 3G

The Blackmagic Video Assist 5-INCH 3g acts as a portable monitor, professional recorder, portable scope, and camera viewfinder all in one. Large touchscreen is central to operation, containing all controls for recording, playback, viewing scopes, and setting focus assist features. Enjoy visual features such as focus peaking, zebra, false color, scopes, 3D LUTs, and more. The Video Assist is a perfect solution for digital cinema, broadcast test, and live production.

Connect via HDMI and SDI inputs to upgrade your consumer camera, broadcast camera, or DSLR camera. Supports formats up to 1080p06. Feel more comfortable during shoots since the touchscreen is closer to eye level and provides more detail by being larger than small camera display screens. You also get professional focus assist features, higher quality file formats, and support for editing software.

Large touchscreen makes it easy to frame shots and accurately focus. Touchscreen includes dedicated buttons for play, stop, record, and a mini timeline to scroll through. Critical information such as timecode, transport control, audio meters and a histogram for exposure are displayed on the touchscreen while shooting. Use the touchscreen to add or remove overlays, enable scopes, load and save 3D LUTs.

Scopes are built in to ensure compliance with broadcast standards. Waveform display provides brightness level view for video inputs or playback signal. Vectorscope shows color intensity at 100% SDI reference levels. RGB parade display is ideal for color correction. Histogram indicates white to black distribution and calls attention to clipping. Overlay the scope on live video, or at the top of the scope with as a small picture in picture view.

Preview the look images will have when editing with 3D LUTs. Load custom 17 or 33 point 3D LUT files, or work with built-in LUTs such as Extended Video, Film to Video, and more.

Recordings are made in standard open file formats, so you don’t have to spend time transcoding media. Files are compatible with post production software. Record to SD cards from the SD card slot.

Webcam support on the USB connection powers live streaming by plugging into a computer. Software is tricked into seeing the video assist as a webcam, so you get webcam functions but with full HD resolution 1080p quality.
