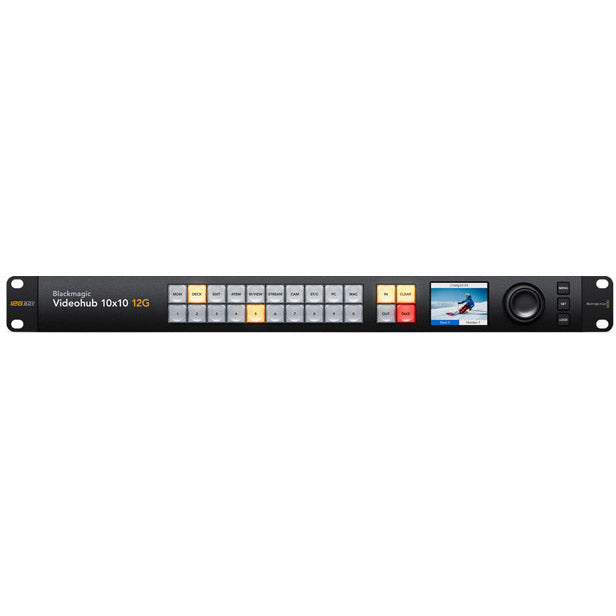

Blackmagic Design Videohub 10x10 12G

Blackmagic Design Videohub 10x10 12G

SoundPro Item: 139301 | Part Number: BMD-VHUBSMAS12G010010

$1,575.00
$1,575.00 $1,575.00
Your Price Sold out
MSRP: $1,575.00 | MAP: $1,575.00

Usually ships in 5-7 business days

  • Eliminates Complex Cable Mess
  • Elegantly Designed Front Panel
  • Advanced 12G-SDI for SD, HD and Ultra HD Routing
  • Full SDI Re-Clocking
  • Get Router Control on Mac, Windows and iPad
  • Videohub Setup Utility
  • Customize Router Control with the Developer SDK
  • Supports Multiple Formats
  • Deeper Bit Depth and Color Precision
Log in or register for YOUR best price

Blackmagic Videohub 10x10 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 10 12G-SDI inputs and 10 12G-SDI outputs plus reference connections in a one rack unit size. The front panel LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.

View full details

Specifications

Certifications
Standards
HD Video Standards 720p50, 720p59.94, 720p601080i50, 1080i59.94, 1080i601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p601080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50DCI, 2Kp59.94 DCI, 2Kp60 DCI2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI, SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and BSMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU R BT.656 and ITU R BT.601
Dimensions
Dimensions (WxDxH)
19x9.3x1.74”
Electrical
Power Requirements
Power Supply 1 x Internal 100 - 240V AC 50/60Hz.IEC power cable required.
Audio
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
Connectivity
SDI Video Inputs
10
SDI Video Outputs
10
Connections
SDI Rates” DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
Video Input Re-Sync
None
Reference Inputs
Tri-Sync or Black Burst.
Reference Outputs
Reference terminating loop output.
Ethernet
Supports 10/100/1000 BASE T.
Construction
SDI Color Precision
10, 12 bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
SDI Color Space
REC 601, REC 709, REC 2020
Controls
Built in Control Panel
24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display.
External Control Panel
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control Panel Connection
Ethernet
Environmental
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
6.64 lbs
General
SDI Reclocking
On all SDI outputs.
Computer Interface
USB C
SD Video Standards
525i59.94 NTSC, 625i50 PAL
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Video Sampling
YUV 4:2:2 and RGB 4:4:4
SDI Auto Switching
Automatically selects between 270Mb SD SDI, 1.5G HD SDI, 3G level A and level B HD-SDI, 6G HD SDI, 12G SDI and DVB ASI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Software Control
Router control included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 12.0 Monterey, Mac 13.0 Ventura or later., Windows 10, 64-bit. Windows 11.
Power Fail Protection
Crosspoint connections preserved and restored instantly at power on.
Power Usage
20.8 W max.
Physical Installation
1 rack unit height.
Indicators
Display
Built in 2.2 inch LCD for video and menu settings.
