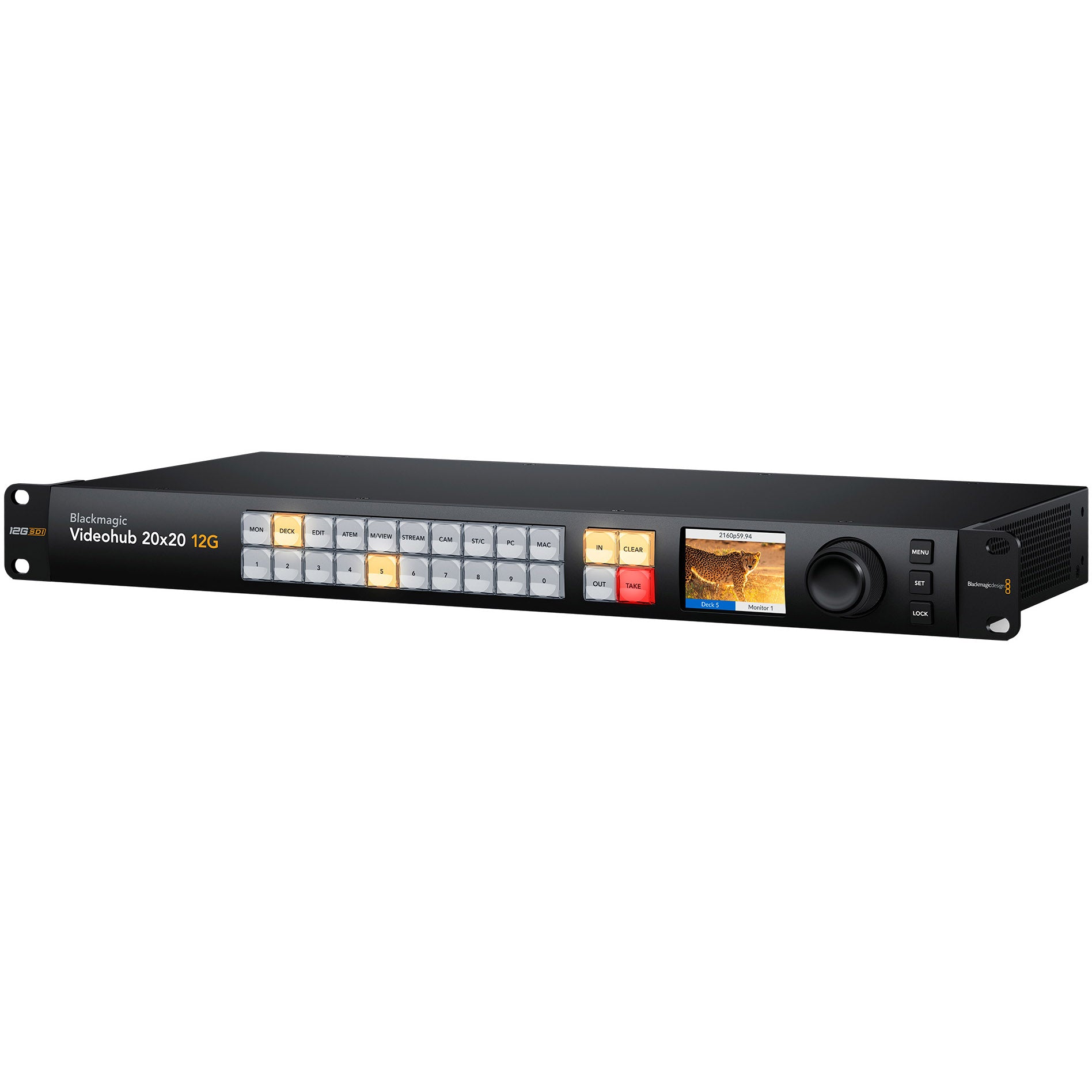

Blackmagic Design Videohub 20x20 12G

Blackmagic Design Videohub 20x20 12G

SoundPro Item: 139296 | Part Number: BMD-VHUBSMAS12G2020

$2,635.00
$2,635.00 $2,635.00
Your Price Sold out
MSRP: $2,635.00 | MAP: $2,635.00

Usually ships in 5-7 business days

  • Advanced zero latency video router t
  • Supports any combination of SD, HD and Ultra HD on the router at the same time
  • 20 12G-SDI inputs and 20 12G-SDI outputs plus reference connections in a one rack unit size
  • Front panel LCD
  • Direct button selection
  • Large spin knob control with electronic clutch
  • SDI re-clocking
  • External Ethernet control
  • Supports all SDI video standards up to 2160p60
Log in or register for YOUR best price

Blackmagic Videohub 20x20 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 20 12G-SDI inputs and 20 12G-SDI outputs plus reference connections in a one rack unit size. The front panel LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.

View full details
  • Connections
    • SDI Video Inputs: 20
    • SDI Video Outputs: 20
    • SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
    • Video Input Re-Sync: None
    • SDI Reclocking: On all SDI outputs.
    • Reference Inputs: Tri-Sync or Black Burst.
    • Reference Outputs: Reference terminating loop output.
    • Ethernet: Supports 10/100/1000 BASE T.
    • Computer Interface: USB C
  • Standards
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards
      • 720p50, 720p59.94, 720p60
      • 1080i50, 1080i59.94, 1080i60
      • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
      • 1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    • 2K Video Standards
      • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50
      • DCI, 2Kp59.94 DCI, 2Kp60 DCI
      • 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
    • 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
    • SDI Compliance
      • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B
      • SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU R BT.656 and ITU R BT.601
    • SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
    • SDI Video Sampling: YUV 4:2:2 and RGB 4:4:4
    • SDI Color Precision: 10, 12 bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
    • SDI Color Space: REC 601, REC 709, REC 2020
    • SDI Auto Switching: Automatically selects between 270Mb SD SDI, 1.5G HD SDI, 3G level A and level B HD SDI, 6G HD SDI, 12G SDI and DVB ASI on each input so that each input can be running a different television standard.
    • SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
  • Control
    • Built in Control Panel: 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display.
    • External Control Panel
      • Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart
      • Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
    • Control Panel Connection: Ethernet
  • Software
    • Software Control: Router control included free for Windows™ and Mac™.
    • Internal Software Upgrade: Via included updater application.
  • Operating Systems
    • Mac 12.0 Monterey, Mac 13.0 Ventura or later.
    • Windows 10, 64-bit. Windows 11.
  • DisplayBuilt in 2.2 inch LCD for video and menu settings.
  • Power Requirements
    • Power Supply
      • 1 x Internal 100 - 240V AC 50/60Hz.
      • IEC power cable required.
    • Power Fail Protection: Crosspoint connections preserved and restored instantly at power on.
    • Power Usage: 27.5 W max.
  • Physical Installation1 rack unit height.
  • Dimensions (WxDxH)19x9.3x1.74”
  • Weight7.87 lbs
  • Environmental
    • Operating Temperature: 0° to 40° C (32° to 104° F)
    • Storage Temperature: -20° to 60° C (-4° to 140° F)
    • Relative Humidity: 0% to 90% non-condensing
