• Blackmagic Design Videohub Smart Control Pro
1 1

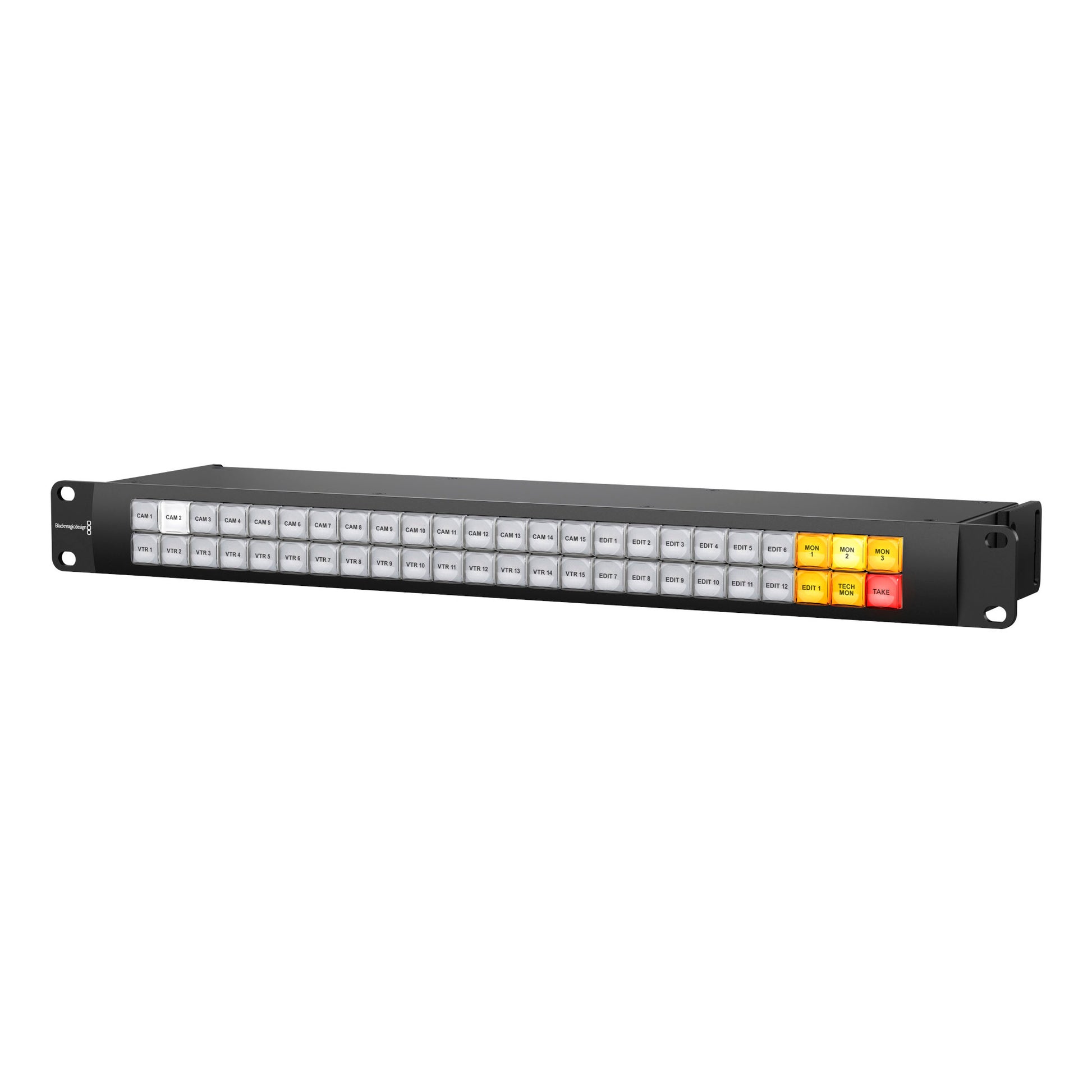

Blackmagic Design Videohub Smart Control Pro

Blackmagic Design Videohub Smart Control Pro

SoundPro Item: 43343 | Part Number: BMD-VHUB/WSC/PRO

$899.00
$899.00 $899.00
Your Price Sold out
MSRP: $899.00 | MAP: $899.00

Usually ships in 5-7 business days

  • Hardware controller for Videohub series
  • Access your router without losing speed
  • Direct button entry
  • 48 buttons, programmable via USB on the included software
  • 1RU size
  • Power via DC or Ethernet connection
  • Ideal for large broadcast systems or portable racks
  • 12 Months Limited Warranty
Log in or register for YOUR best price

Power supply not included - requires IEC cable.

Add the Videohub Smart Control Pro to have a hardware control panel for your Smart Videohub router.

The Smart Videohub mixed format routers have built-in video monitoring and spin knob router control in a machined aluminum body. Visual routing is extremely convenient and makes routing faster since you can route video simply by looking at it. Smart Videohub models are available with 6G-SDI and 12G-SDI technology, and with varying numbers of inputs. A CleanSwitch router is also available.

Access your whole router without losing any speed with the Videohub Smart Control Pro. Route with one press of a button. Program each of the 48 buttons to the router cross point of your choice via USB on the included software; press to make the route. Buttons can be programmed for multiple destinations and there is a take button. Controller is a small 1 RU and can be powered via DC or Ethernet connection, making it ideal for large broadcast systems or portable racks.

View full details

Specifications

Dimensions
Dimensions
18.97" x 4.41" x 1.74"
Connectivity
Ethernet
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
Environmental
Storage Temperature
-4°F to 113°F (-20° to 45°C)
Relative Humidity
0% to 90% non-condensing
Shipping
Weight
2.2 pounds
General
RS-422
In and Out (for future implementation)
Computer Interface
USB-C for configuration and software updates
Macro Capability
up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands
Hardware Control
48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network
Software
internal software upgrade via included firmware updater application via USB
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
Button Configuration
included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface
Power Fail Protection
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply
internal 100 - 240 V AC
Installation
1 rack unit size, less than 3" deep
Power
Power
100 - 240 AC
