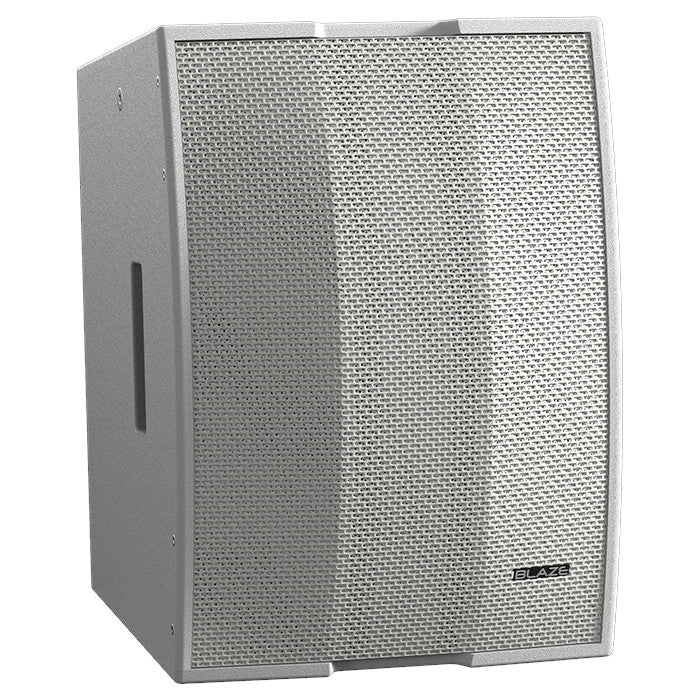

Blaze Audio CBL528 Bi-Amped Loudspeaker For Installed Audio | White

Blaze Audio CBL528 Bi-Amped Loudspeaker For Installed Audio | White

SoundPro Item: 143433 | Part Number: CBL528-BA-W

$1,200.00
$1,200.00 $1,200.00
Your Price Sold out
MSRP: $1,200.00 | MAP: $1,200.00

Usually ships in 5-7 business days

  • Bi-Amped Constant-Beamwidth Loudspeaker For Permanent Commercial Installations
  • 54Hz-18kHz Frequency Range With Symmetrical 180° H x 45° V Dispersion
  • LF: 320W AES (1280W Peak) @ 5.2Ω | HF: 200W AES (800W Peak) @ 8Ω
  • Consistent Coverage Whether Listeners Are In Front, Off-Axis, Or Moving
  • Ideal For Fitness, Sports Venues, Conference Centers, And Houses Of Worship
  • White Cabinet Finish
Log in or register for YOUR best price

The Blaze Audio CBL528 is a compact bi-amped constant-beamwidth loudspeaker designed for permanent installations where consistent coverage and intelligibility matter across the entire listening area. The cabinet supports a frequency range of 54 Hz to 18 kHz, with a symmetrical 180-degree horizontal by 45-degree vertical dispersion that keeps music natural and speech articulate whether listeners are directly in front, off to one side, or moving through the space.

Bi-amped operation separates low-frequency (320W AES @ 5.2Ω) and high-frequency (200W AES @ 8Ω) sections for the cleanest possible transient response and the highest available headroom from a cabinet this size. The white finish suits typical commercial interiors, while the controlled directivity makes the CBL528 well suited to fitness and sports venues, conference centers, multipurpose rooms, and houses of worship where listener positions move and shift during a session.

Bi-amped operation requires an amplifier with at least two output channels per cabinet — one for LF, one for HF — or a single Lo-Z amplifier configured to drive each section separately. Pair the CBL528 with PowerZone or PowerZone Connect amplifiers in the same project for matched system tuning and warranty alignment.

Downloads

View full details

Specifications

Dimensions
Dimensions (HxWxD)
19.46x19.45x15.99” (494.3x494x406.16mm)
Audio
Max SPL @ 1 W / 1 M
121 dB SPL (131 dB SPL peak)
General
Color/Finish
White
Frequency Response (-3dB)
54 Hz - 18 kHz
Frequency Response (-10dB)
48 Hz - 18 kHz
Power Handling
LF: 320W AES (1280W peak) @5.2Ω HF: 200W AES (800W peak) @8Ω
Sensitivity
LF: 93 dB HF: 95.5 dB
Country of Origin
CHN
UPC
810103860476
HTS Code
8518.21.0000
Product Dimensions
19.45" x 19.46" x 15.99" (494.03 mm x 494.28 mm x 406.15 mm)
Height
19.46" (494.28 mm)
Width
19.45" (494.03 mm)
Depth
15.99" (406.15 mm)
Weight
38.5 lbs. (17.46 kg)
Base UOM
EA
Base Dimensions
24.0" x 18.25" x 19.75" (609.6 mm x 463.55 mm x 501.65 mm)
Base Height
18.25" (46.36 cm)
Base Width
24.0" (60.96 cm)
Base Depth
19.75" (50.17 cm)
Base Weight
43.5 lbs. (19.73 kg)
Master Pack Height
18.25" (46.36 cm)
Master Pack Width
24.0" (60.96 cm)
Master Pack Depth
19.75" (50.17 cm)
Master Pack Weight
43.5 lbs. (19.73 kg)
Master Pack Units
1
Pallet Units
8
Frequency Range (-10 dB)
48 Hz - 18 kHz
Horizontal Nominal Dispersion (-6dB)
180°
Vertical Nominal Dispersion (-6 dB)
45°
