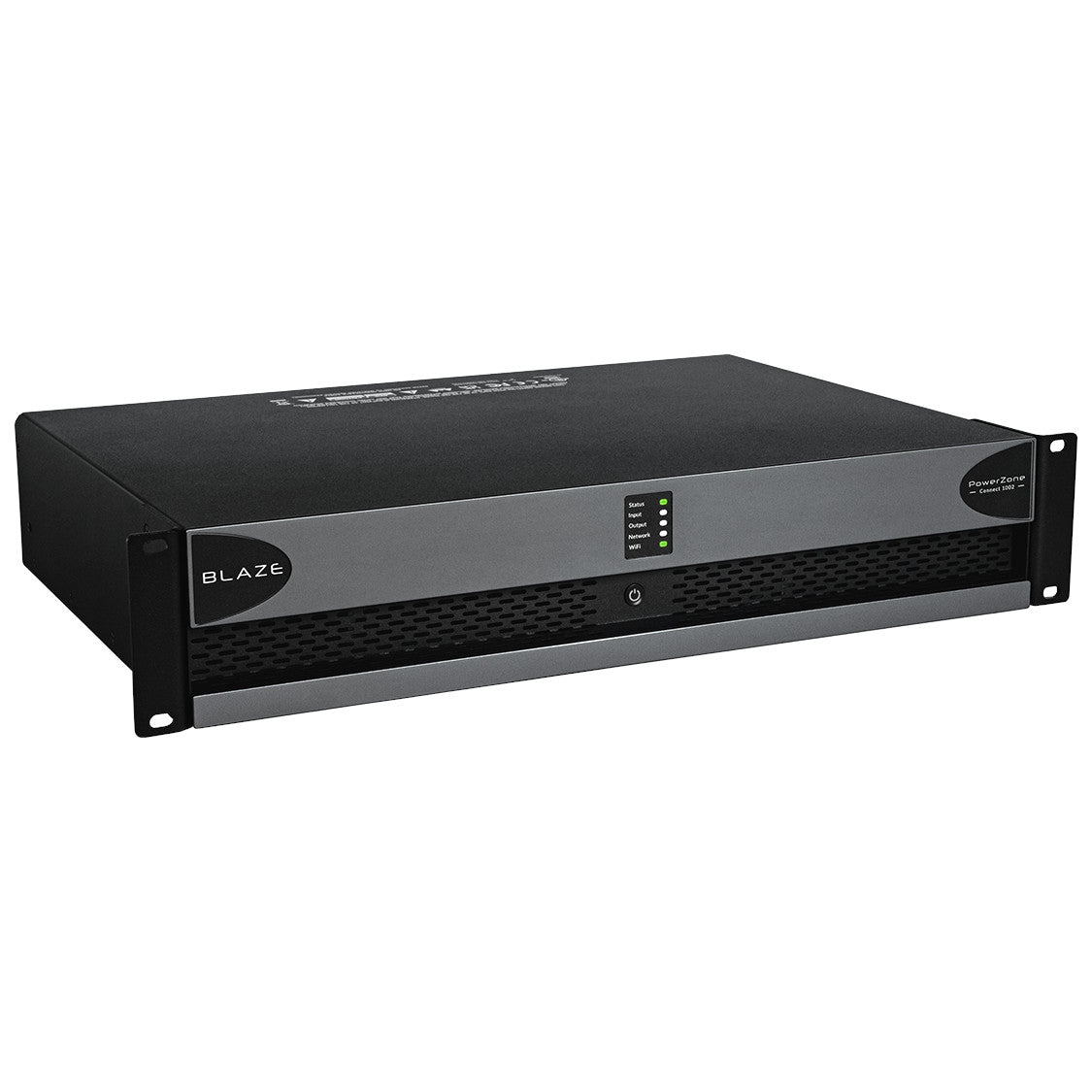

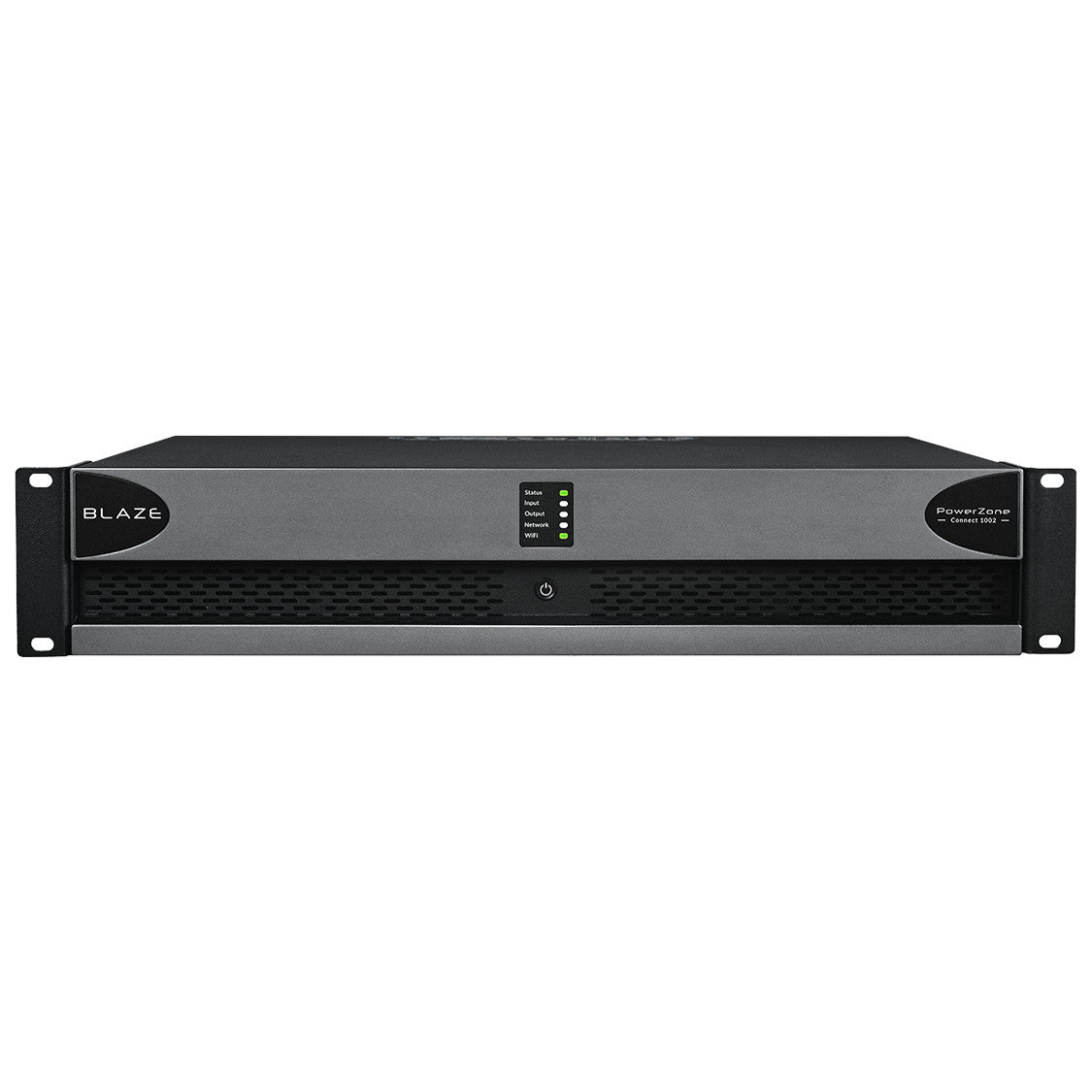

Sonance PowerZone Connect 1002 2-Channel DSP Amplifier 2U
Sonance PowerZone Connect 1002 2-Channel DSP Amplifier 2U
SoundPro Item: 143417 | Part Number: PowerZone Connect 1002
Usually ships in 5-7 business days
- Full-Matrix DSP Class-D Amplifier - A 2-channel design
- Drives 2-16Ω Low-Impedance Speakers And 70V/100V Constant-Voltage Lines
- Proportional Power-Sharing Across All Channels In Both Lo-Z And Hi-Z Modes
- Built-In PowerZone Control Web App For Browser-Based Multi-Zone DSP Configuration
- S/PDIF Output Routing And Wall-S1/Wall-M Controller Support
- Compact 2U Rack Chassis With 5-Year Manufacturer Warranty
The Sonance PowerZone Connect 1002 is part of the 2U DSP-enabled Class-D amplifier family engineered for installations that demand high system power and full-matrix routing. A 2-channel design inside a 2U chassis built to deliver scalable output from 1000W up to 6000W total system power, suiting venues from boutique hospitality spaces to multi-zone commercial deployments.
The amplifier drives conventional low-impedance (2-16 ohm) loudspeakers and constant-voltage 70V/100V transformer-coupled lines, with proportional power-sharing across channels in both Lo-Z and Hi-Z modes. The integrated PowerZone Control web app runs directly in any modern browser and exposes multi-zone setup, input mixing, priority and ducking, parametric EQ, S/PDIF output routing, high-pass filters, speaker presets, delay, Wall controller assignment, and signal generator — all without external software.
Backed by a 5-year warranty, this amplifier ships ready for universal-powercord deployment.
Suits larger commercial installations and venues where high per-channel headroom and full-matrix routing are needed without separate networked DSP infrastructure.
Downloads
Downloads
- Output Power @ 2Ω2 x 500W (SE)*
- Output Power @ 4Ω2 x 500W (SE) 1 x 1000 W (BTL)**
- Output Power @ 8Ω2 x 250W (SE) 1 x 1000 W (BTL)
- Output Power @ 70V1 x 1000W (BTL)
- Output Power @ 100V1 x 1000W (BTL)
- Total System Power1000W
- Power Consumption350W
- Dimensions3.5x17.3x13.1" (88x440x332mm)
- Weight5.9 kg
