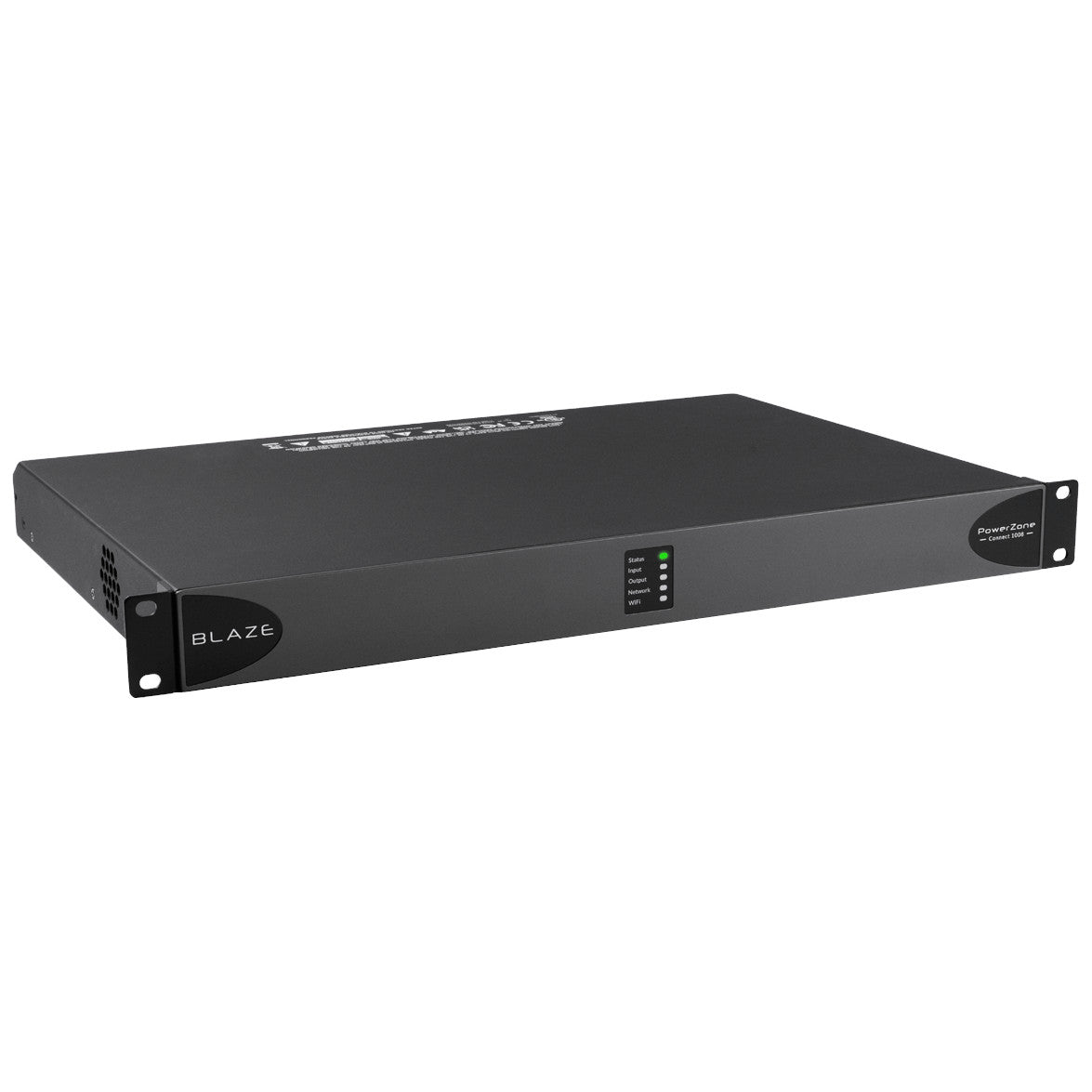

Blaze Audio PowerZone Connect 1008 8-Channel DSP Amplifier 1RU

Blaze Audio PowerZone Connect 1008 8-Channel DSP Amplifier 1RU

SoundPro Item: 143416 | Part Number: PowerZone Connect 1008

$2,700.00
$2,700.00 $2,700.00
Your Price Sold out
MSRP: $2,700.00 | MAP: $2,700.00

Usually ships in 5-7 business days

  • DSP-Enabled Class-D Amplifier - An 8-channel, 1000W-per-channel design
  • Drives Low-Impedance Loudspeakers (4 ohms to 16 ohms) And 70V/100V Constant-Voltage Lines
  • Automatic Power-Sharing Distributes Output Proportionally Across All Channels
  • Built-In PowerZone Control Web App For Browser-Based Multi-Zone Configuration
  • Compatible With Wall-M And Wall-S1 Zone Controllers For End-User Volume And Source Control
  • Compact 1U Chassis With 5-Year Manufacturer Warranty
  • Universal Power Cord Configuration
Log in or register for YOUR best price

The PowerZone Connect 1008 is part of the 1U DSP-enabled Class-D amplifier family built to simplify commercial installations. An 8-channel, 1000W-per-channel design delivering up to 1000W of total system power from a slim, low-heat chassis that fits spaces where a 2U amplifier won't.

The 1008 drives both low-impedance loudspeakers (4 ohms to 16 ohms) and constant-voltage 70V/100V transformer-coupled speakers, with automatic power-sharing that proportionally distributes output across channels in either Lo-Z or Hi-Z mode. The browser-based PowerZone Control web app is built directly into the amplifier and provides multi-zone routing, input mixing, priority and ducking, parametric EQ, high-pass filters, speaker presets, delay, signal generator, and Wall-S1/Wall-M controller setup without any external software install.

Backed by a 5-year warranty, this amplifier ships ready for universal deployment.

Suits larger commercial installations — multi-zone retail, hotels, and houses of worship — where 8 channels of independent high-power DSP-driven zone management are needed from a single chassis without separate networked DSP infrastructure.

Downloads

View full details

Specifications

Electrical
Power Consumption
300W
Connectivity
Output Power @ 4/8Ω
8 x 125W
Output Power @ 70/100V*
4 x 250W
General
Warranty
FIVE (5) YEAR
Country of Origin
THA
UPC
810103860667
HTS Code
8518.40.2000
Product Dimensions
17.3" x 1.7" x 12.6" (439.42 mm x 43.18 mm x 320.04 mm)
Height
1.7" (43.18 mm)
Width
17.3" (439.42 mm)
Depth
12.6" (320.04 mm)
Weight
8.4 lbs. (3.81 kg)
Base UOM
EA
Base Dimensions
14.33" x 3.35" x 23.31" (363.98 mm x 85.09 mm x 592.07 mm)
Base Height
3.35" (8.51 cm)
Base Width
14.33" (36.4 cm)
Base Depth
23.31" (59.21 cm)
Base Weight
12.0 lbs. (5.44 kg)
Master Pack Height
11.29" (28.68 cm)
Master Pack Width
15.0" (38.1 cm)
Master Pack Depth
24.0" (60.96 cm)
Master Pack Weight
38.36 lbs. (17.4 kg)
Master Pack Units
3
Pallet Units
66
Total System Power
1000W
