Blaze Audio PowerZone Connect 254 4-Channel DSP Amplifier Half Rack | US
Blaze Audio PowerZone Connect 254 4-Channel DSP Amplifier Half Rack | US
SoundPro Item: 143412 | Part Number: PowerZone Connect 254
Usually ships in 5-7 business days
- DSP-Enabled Class-D Amplifier - A 4-channel, 250W-per-channel design
- Drives Low-Impedance Loudspeakers (4 ohms to 16 ohms) And 70V/100V Constant-Voltage Lines
- Automatic Power-Sharing Distributes Output Proportionally Across All Channels
- Built-In PowerZone Control Web App For Browser-Based Multi-Zone Configuration
- Compatible With Wall-M And Wall-S1 Zone Controllers For End-User Volume And Source Control
- Compact 1U Chassis With 5-Year Manufacturer Warranty
- US Power Cord Configuration

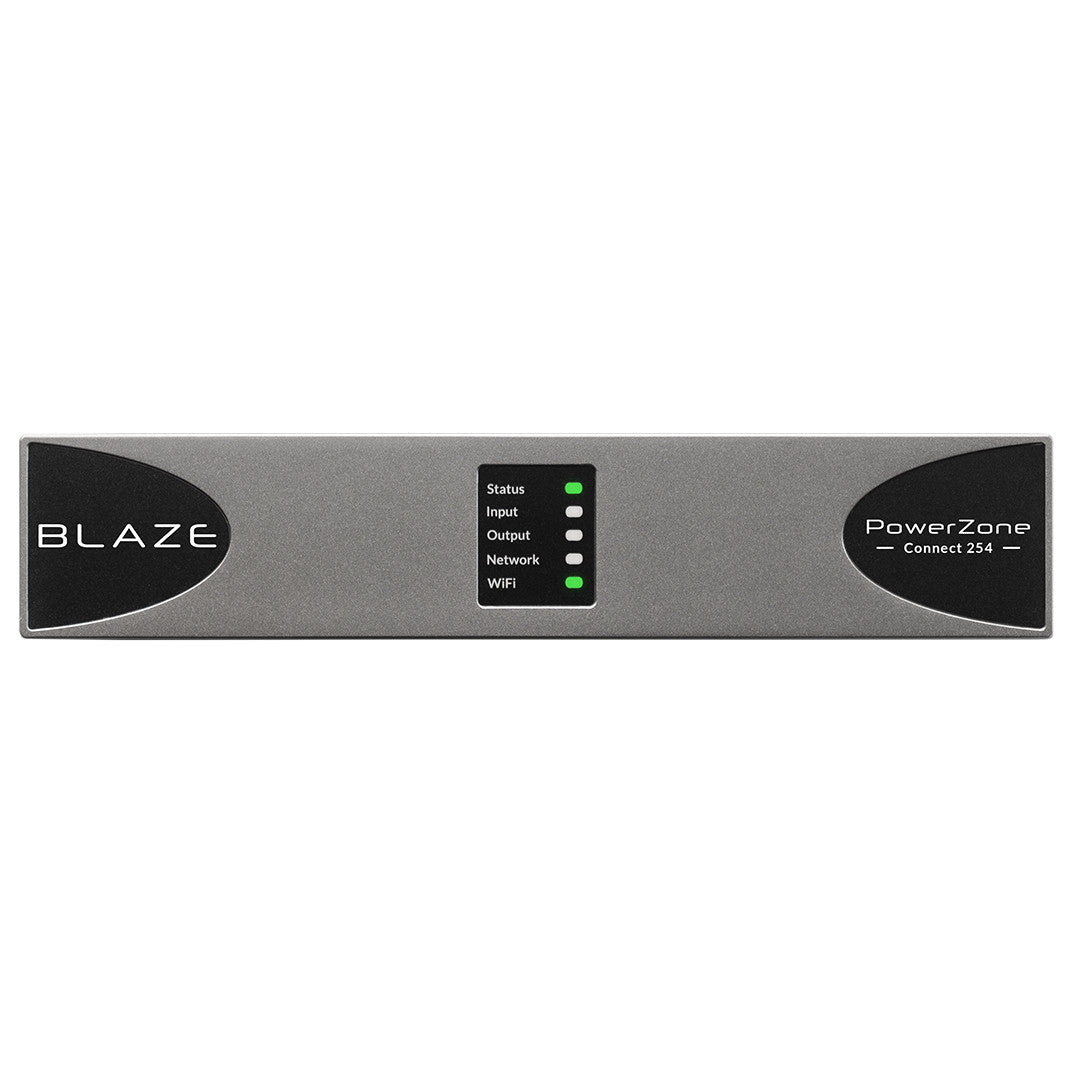

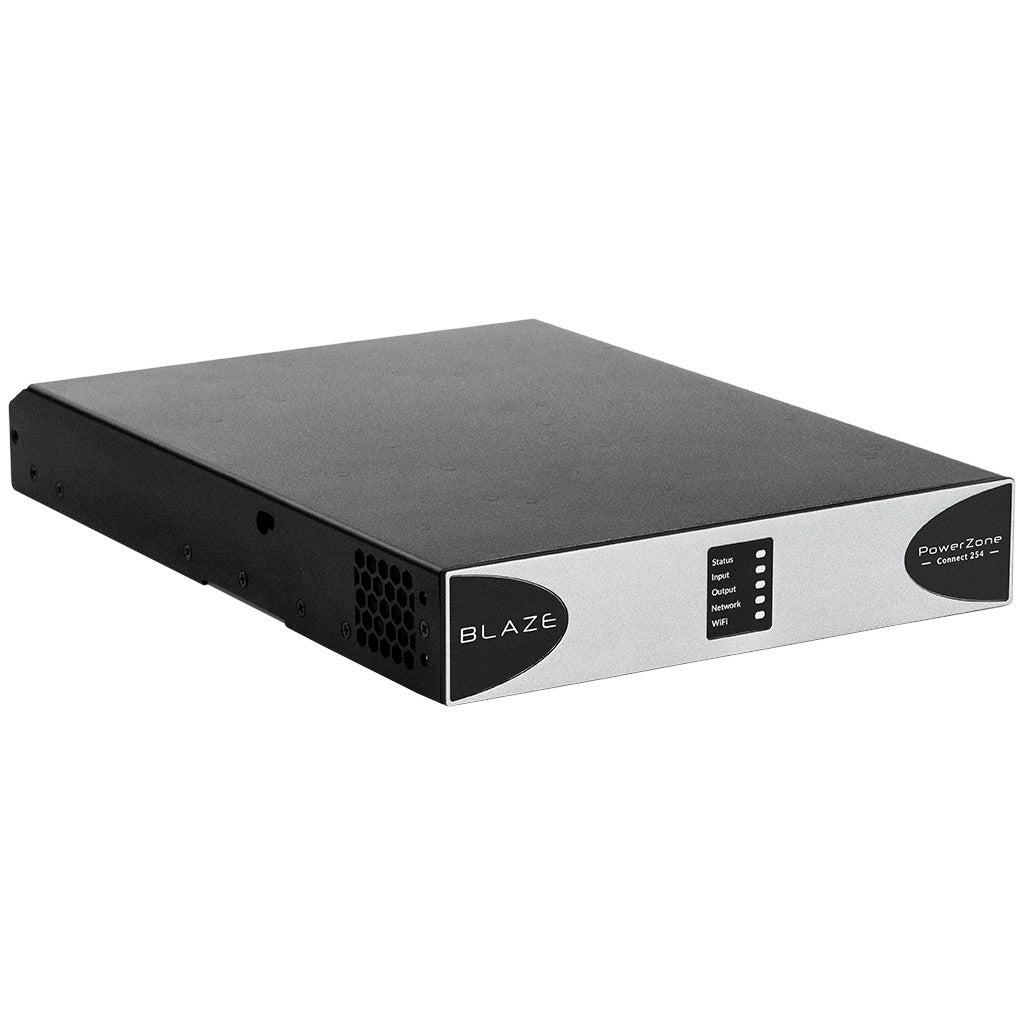

The PowerZone Connect 254 is part of the 1U DSP-enabled Class-D amplifier family built to simplify commercial installations. A 4-channel, 250W-per-channel design delivering up to 1000W of total system power from a slim, low-heat chassis that fits spaces where a 2U amplifier won't.

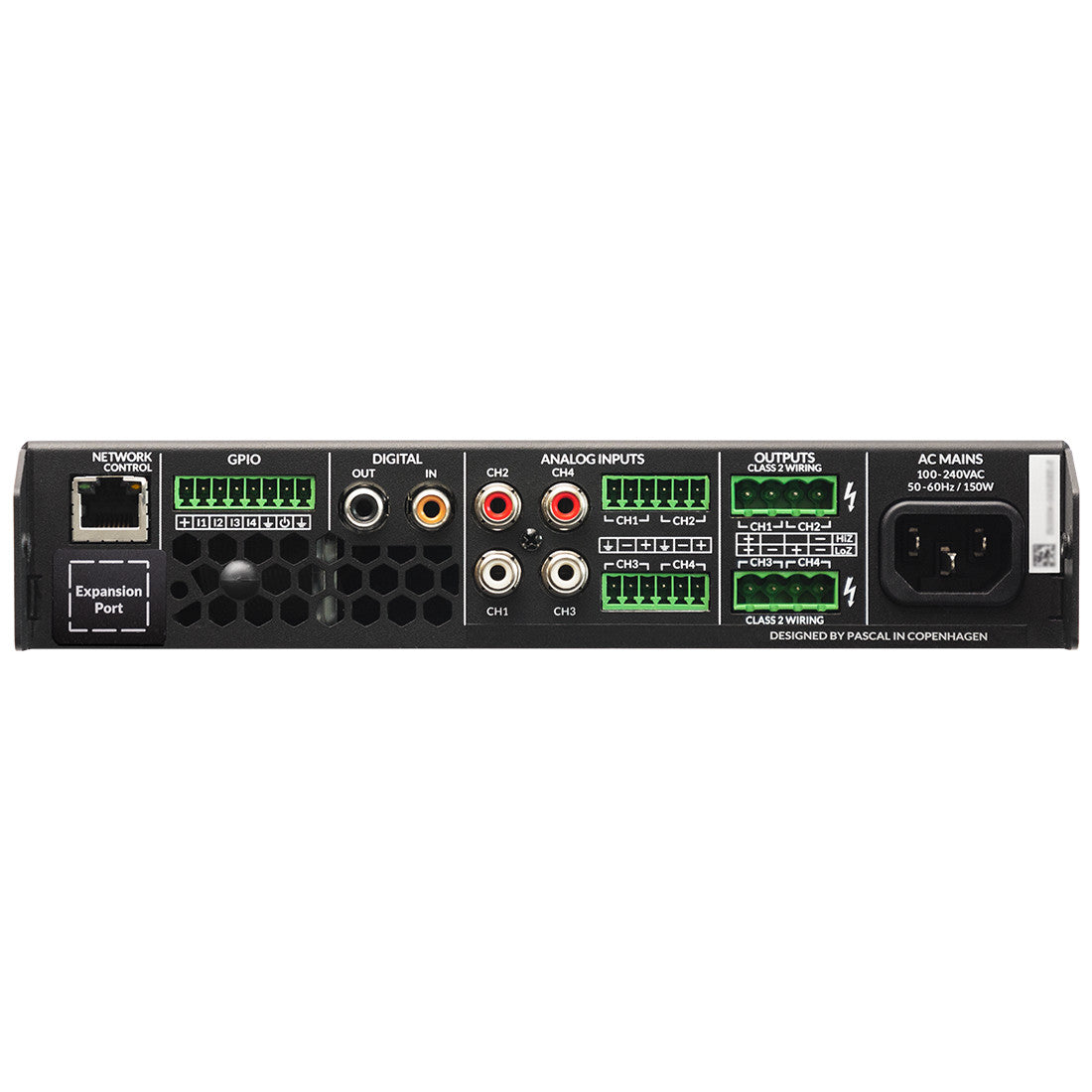

The 254 drives both low-impedance loudspeakers (4 ohms to 16 ohms) and constant-voltage 70V/100V transformer-coupled speakers, with automatic power-sharing that proportionally distributes output across channels in either Lo-Z or Hi-Z mode. The browser-based PowerZone Control web app is built directly into the amplifier and provides multi-zone routing, input mixing, priority and ducking, parametric EQ, high-pass filters, speaker presets, delay, signal generator, and Wall-S1/Wall-M controller setup without any external software install.
Backed by a 5-year warranty, this amplifier ships ready for US (North American) deployment.
Suits restaurants, retail, fitness studios, hospitality, and houses of worship where 4-channel DSP-driven zone management is needed without a separate networked DSP.
