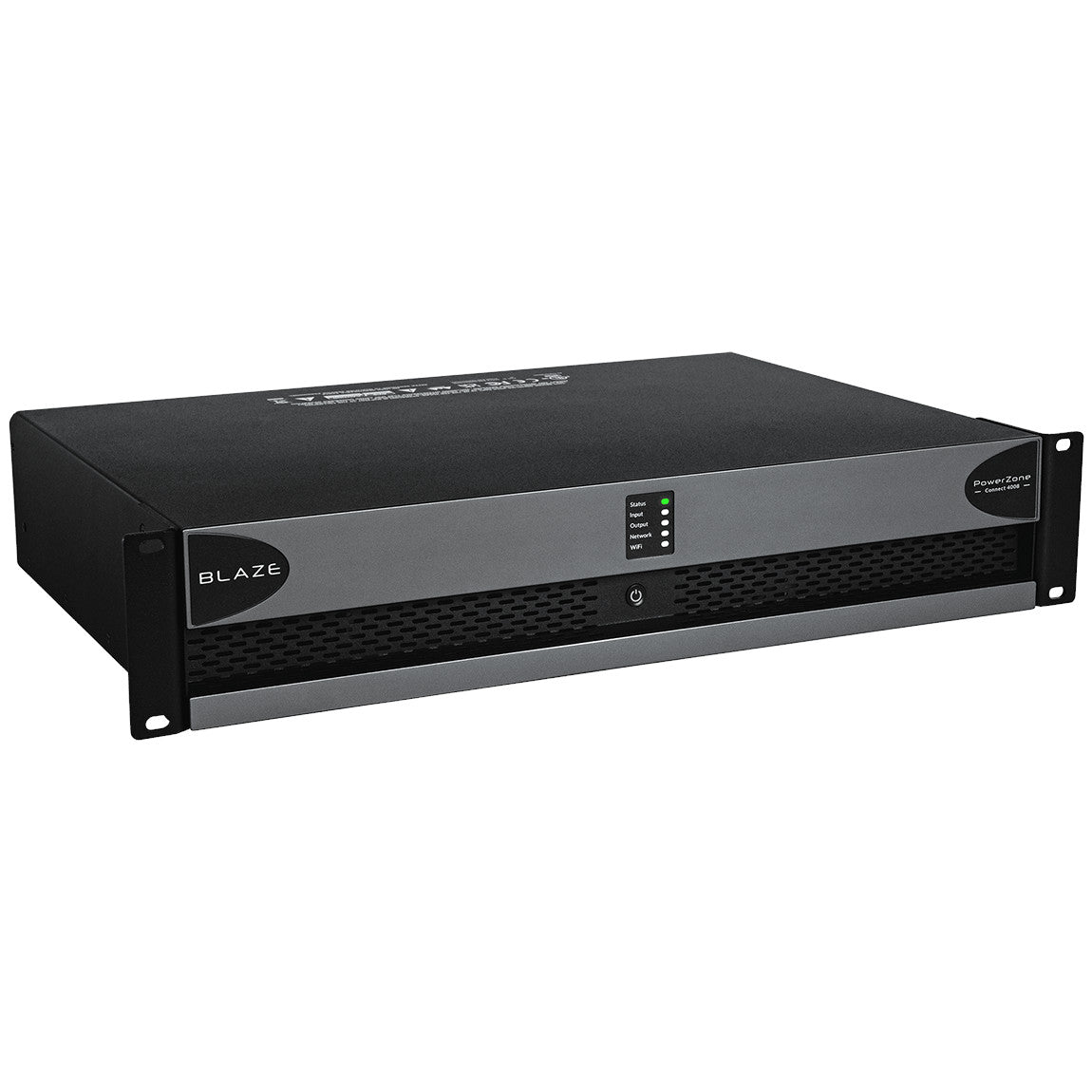

• Blaze Audio PowerZone Connect 4008 DSP-Enabled Power Amplifier

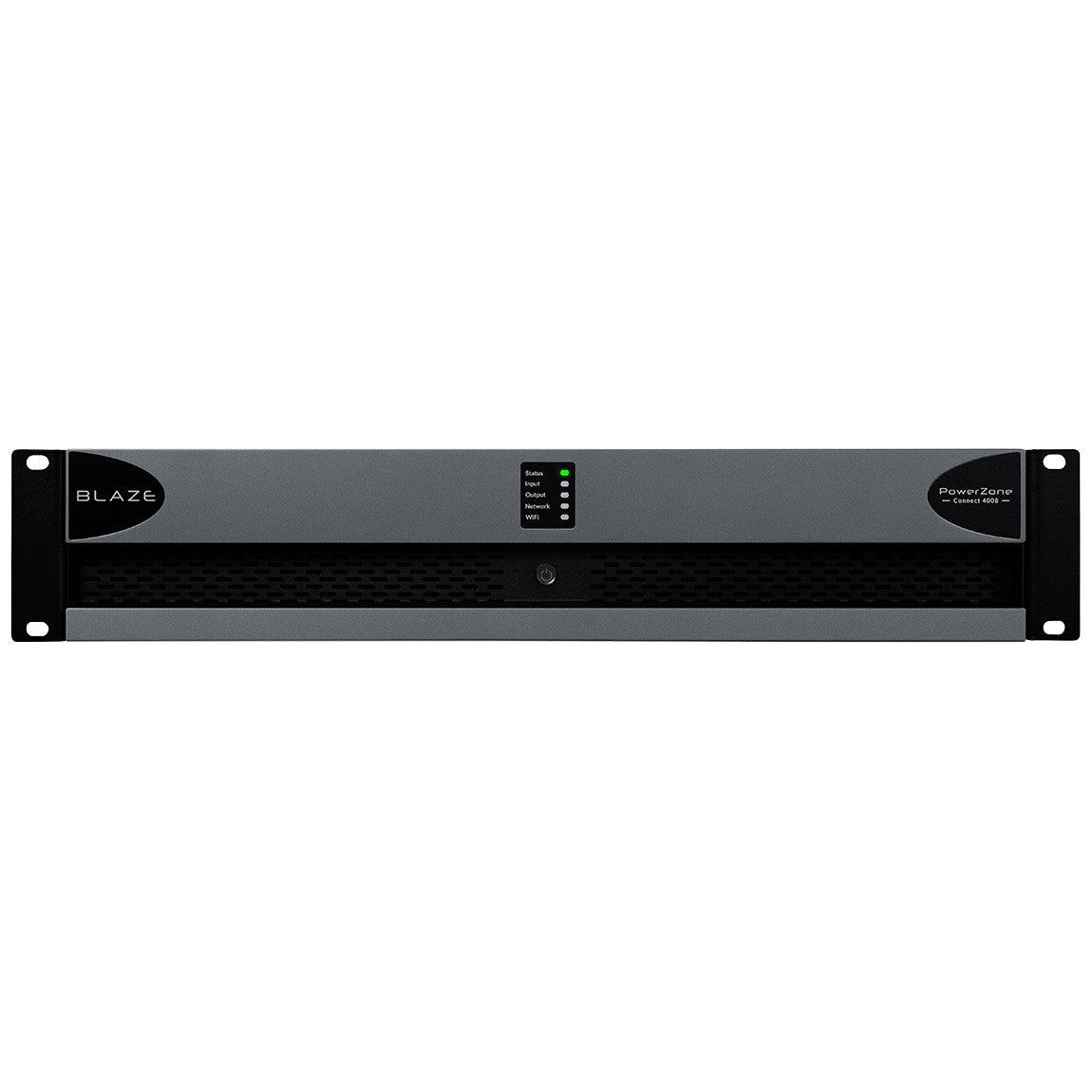

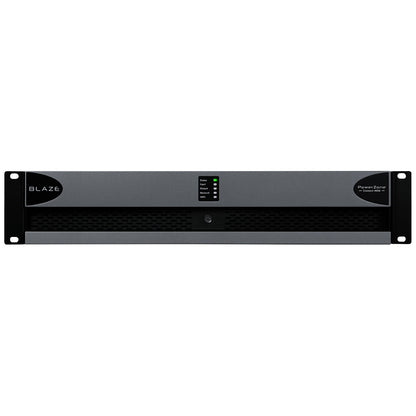

  • Blaze Audio PowerZone Connect 4008 DSP-Enabled Power Amplifier front

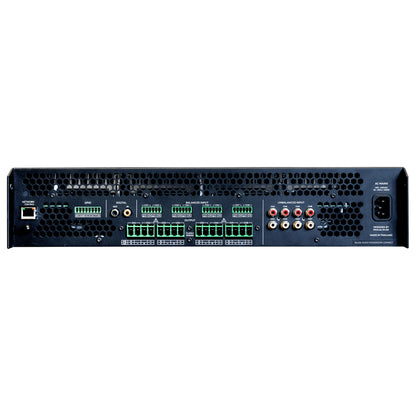

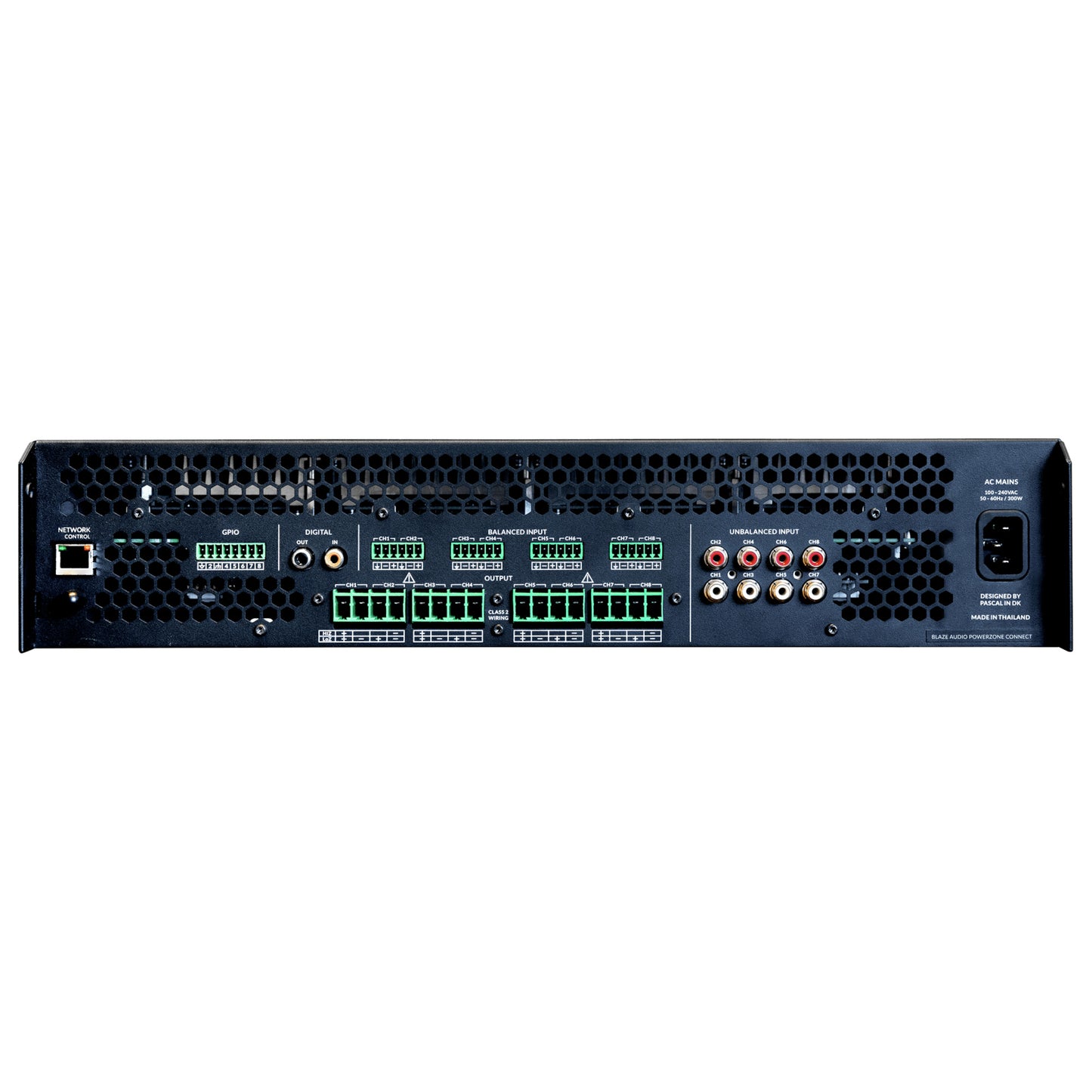

  • Blaze Audio PowerZone Connect 4008 DSP-Enabled Power Amplifier back
1 3

Blaze Audio PowerZone Connect 4008 8-Channel DSP Amplifier 2U

Blaze Audio PowerZone Connect 4008 8-Channel DSP Amplifier 2U

SoundPro Item: 143423 | Part Number: PowerZone Connect 4008

$3,750.00
$3,750.00 $3,750.00
Your Price Sold out
MSRP: $3,750.00 | MAP: $3,750.00

Usually ships in 5-7 business days

  • Full-Matrix DSP Class-D Amplifier - An 8-channel design
  • Drives 2-16Ω Low-Impedance Speakers And 70V/100V Constant-Voltage Lines
  • Proportional Power-Sharing Across All Channels In Both Lo-Z And Hi-Z Modes
  • Built-In PowerZone Control Web App For Browser-Based Multi-Zone DSP Configuration
  • S/PDIF Output Routing And Wall-S1/Wall-M Controller Support
  • Compact 2U Rack Chassis With 5-Year Manufacturer Warranty
Log in or register for YOUR best price

The PowerZone Connect 4008 is part of the 2U DSP-enabled Class-D amplifier family engineered for installations that demand high system power and full-matrix routing. An 8-channel design inside a 2U chassis built to deliver scalable output from 1000W up to 6000W total system power, suiting venues from boutique hospitality spaces to multi-zone commercial deployments.

The amplifier drives conventional low-impedance (2-16 ohm) loudspeakers and constant-voltage 70V/100V transformer-coupled lines, with proportional power-sharing across channels in both Lo-Z and Hi-Z modes. The integrated PowerZone Control web app runs directly in any modern browser and exposes multi-zone setup, input mixing, priority and ducking, parametric EQ, S/PDIF output routing, high-pass filters, speaker presets, delay, Wall controller assignment, and signal generator — all without external software.

Backed by a 5-year warranty, this amplifier ships ready for universal-powercord deployment.

Suits multi-zone hospitality, fitness, retail, and houses of worship where 8 channels of full-matrix DSP routing and substantial per-channel headroom are required from a single chassis.

Downloads

View full details

Specifications

Audio
Channels
8 x Lo-Z/4 x Hi-Z
Connectivity
Output Power @ 2Ω
8 x 500W (SE)
Output Power @ 4Ω
8 x 500W (SE) 4 x 1000W (BTL)
Output Power @ 8Ω
8 x 250W (SE) 4 x 1000W (BTL)
Output Power @ 70V
4 x 1000W (BTL)
Output Power @ 100V
4 x 1000W (BTL)
General
Warranty
FIVE (5) YEAR
Country of Origin
THA
UPC
810103860872
HTS Code
8518.40.2000
Product Dimensions
17.3" x 3.5" x 16.3" (439.42 mm x 88.9 mm x 414.02 mm)
Height
3.5" (88.9 mm)
Width
17.3" (439.42 mm)
Depth
16.3" (414.02 mm)
Weight
25.6 lbs. (11.61 kg)
Base UOM
EA
Base Dimensions
17.72" x 9.84" x 22.83" (450.09 mm x 249.94 mm x 579.88 mm)
Base Height
9.84" (24.99 cm)
Base Width
17.72" (45.01 cm)
Base Depth
22.83" (57.99 cm)
Base Weight
22.05 lbs. (10.0 kg)
Master Pack Height
9.84" (24.99 cm)
Master Pack Width
17.72" (45.01 cm)
Master Pack Depth
22.83" (57.99 cm)
Master Pack Weight
22.05 lbs. (10.0 kg)
Master Pack Units
1
Pallet Units
22
Total System Power
4000W
