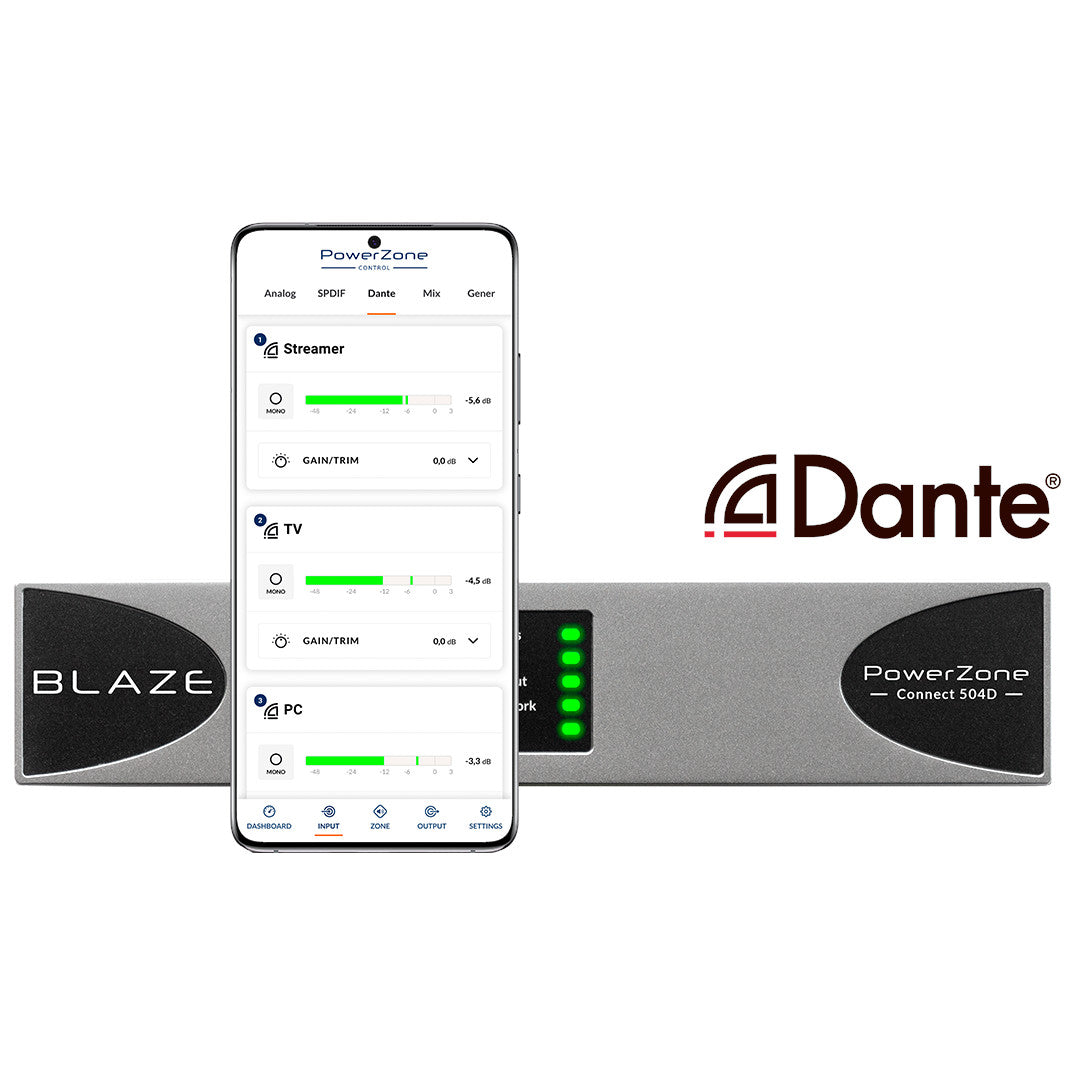

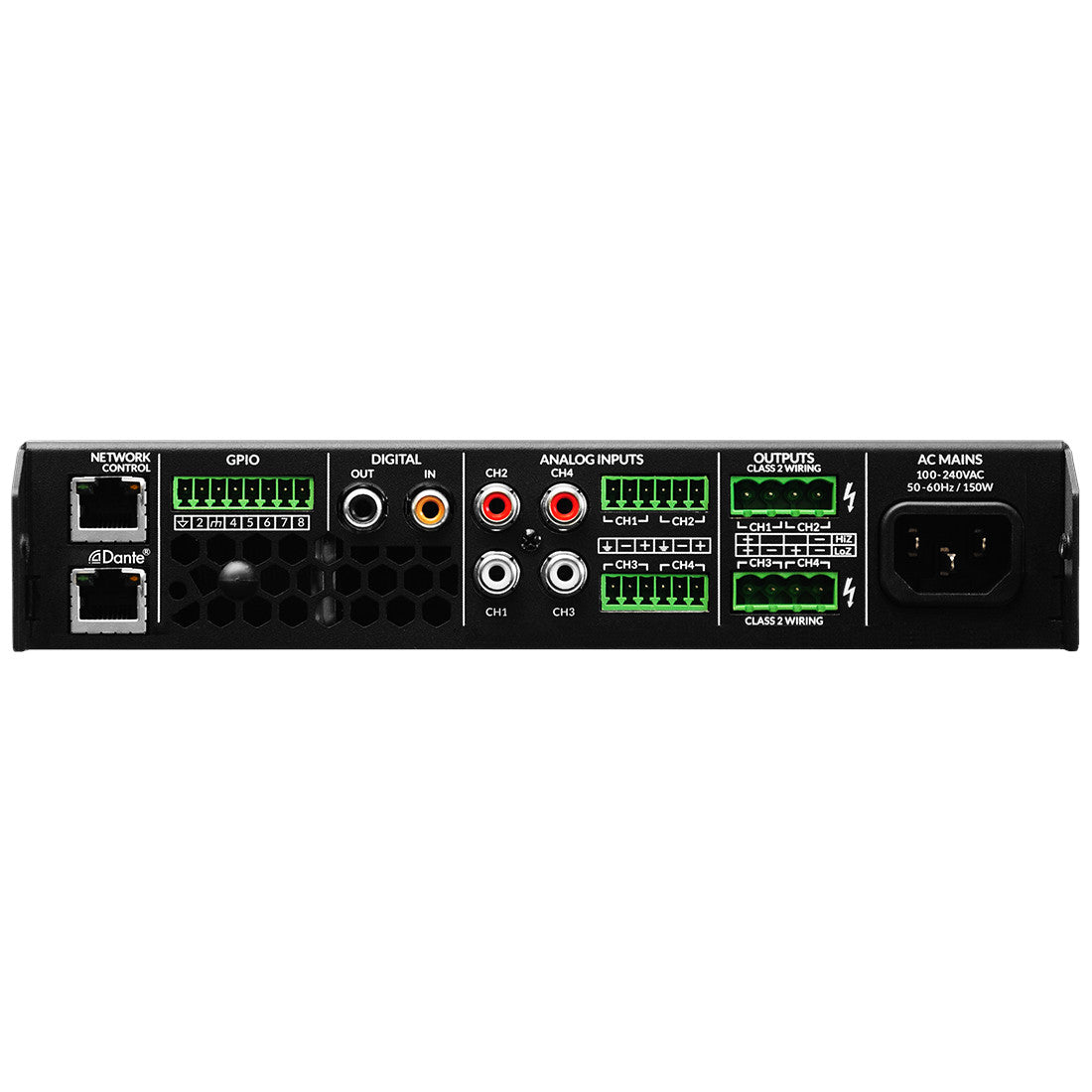

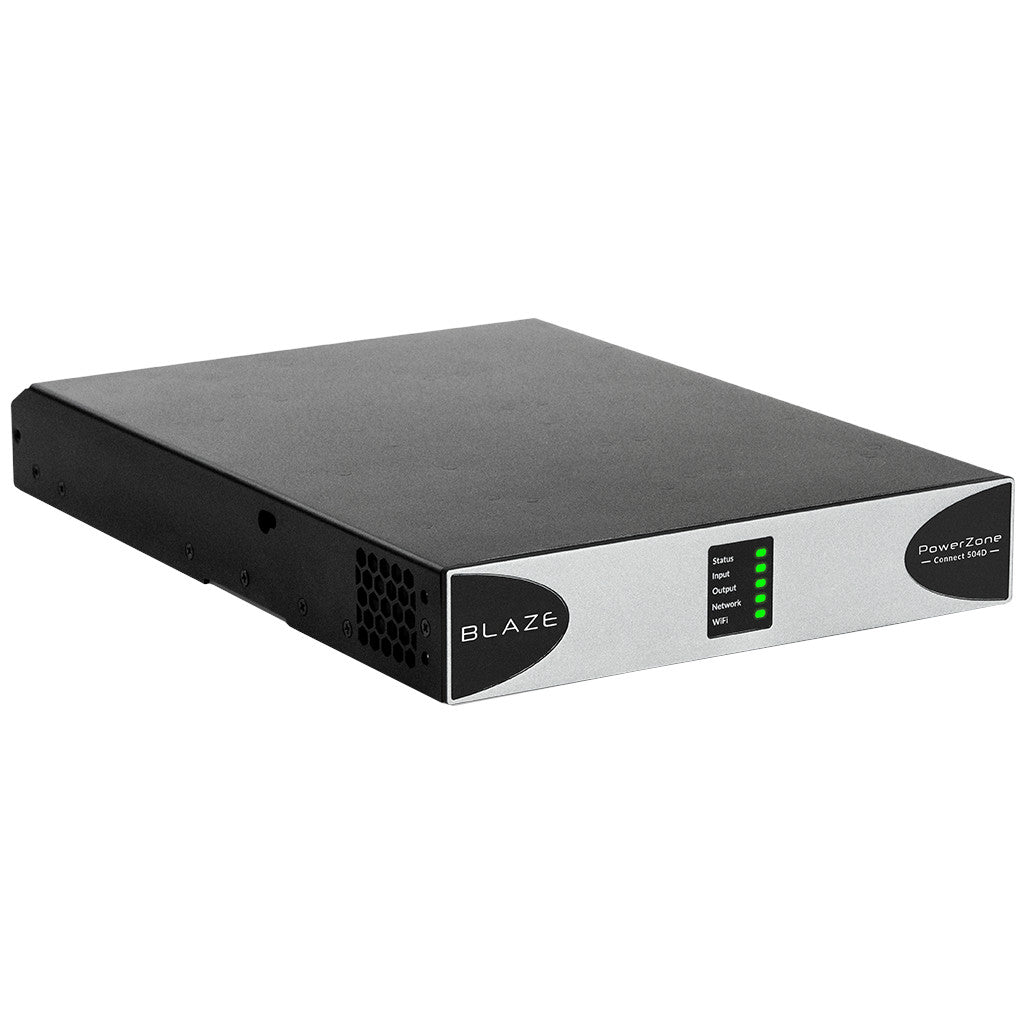

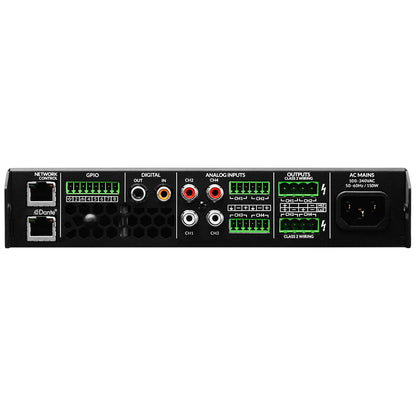

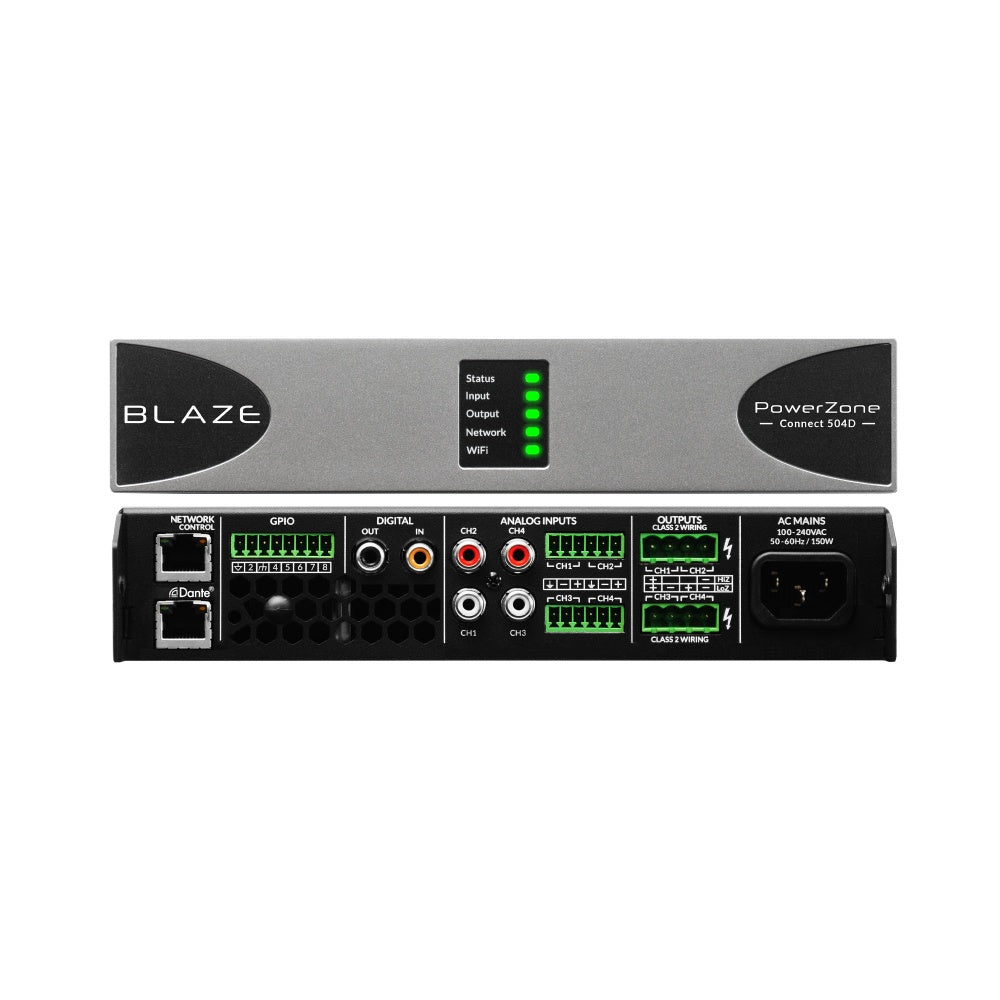

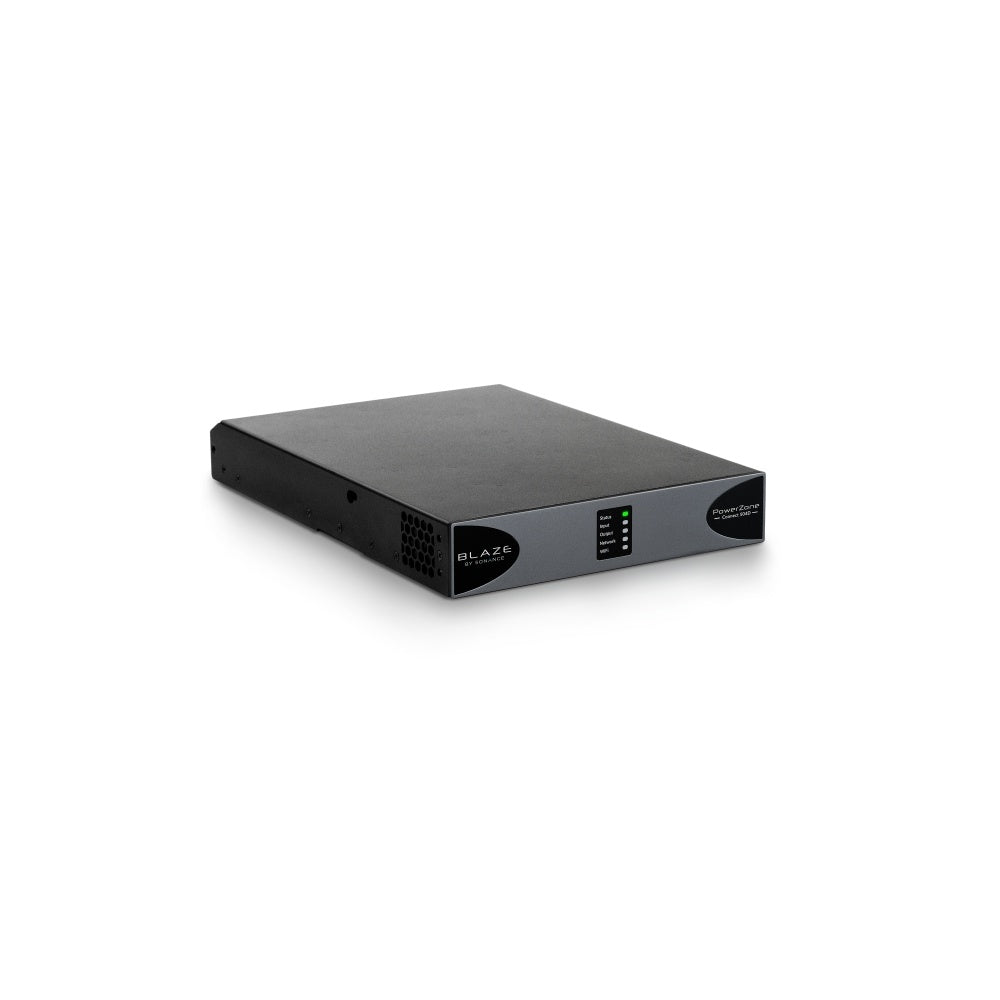

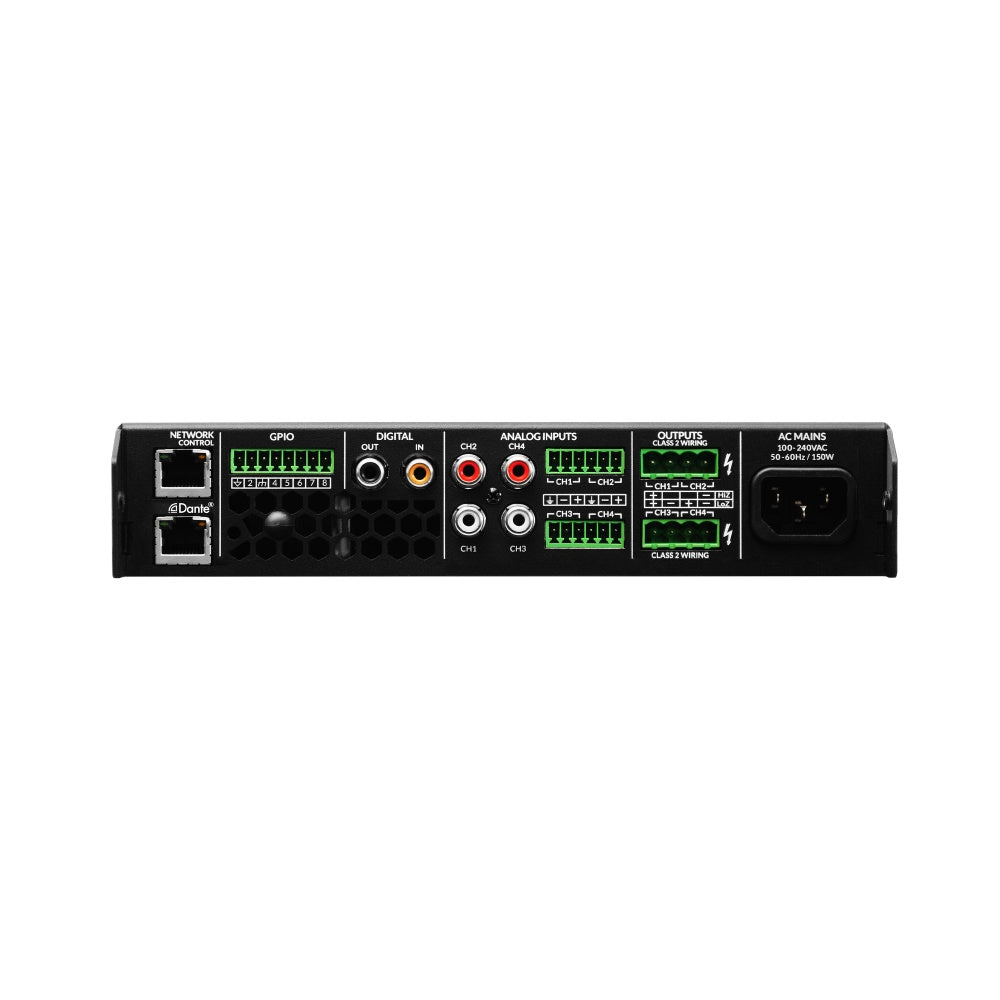

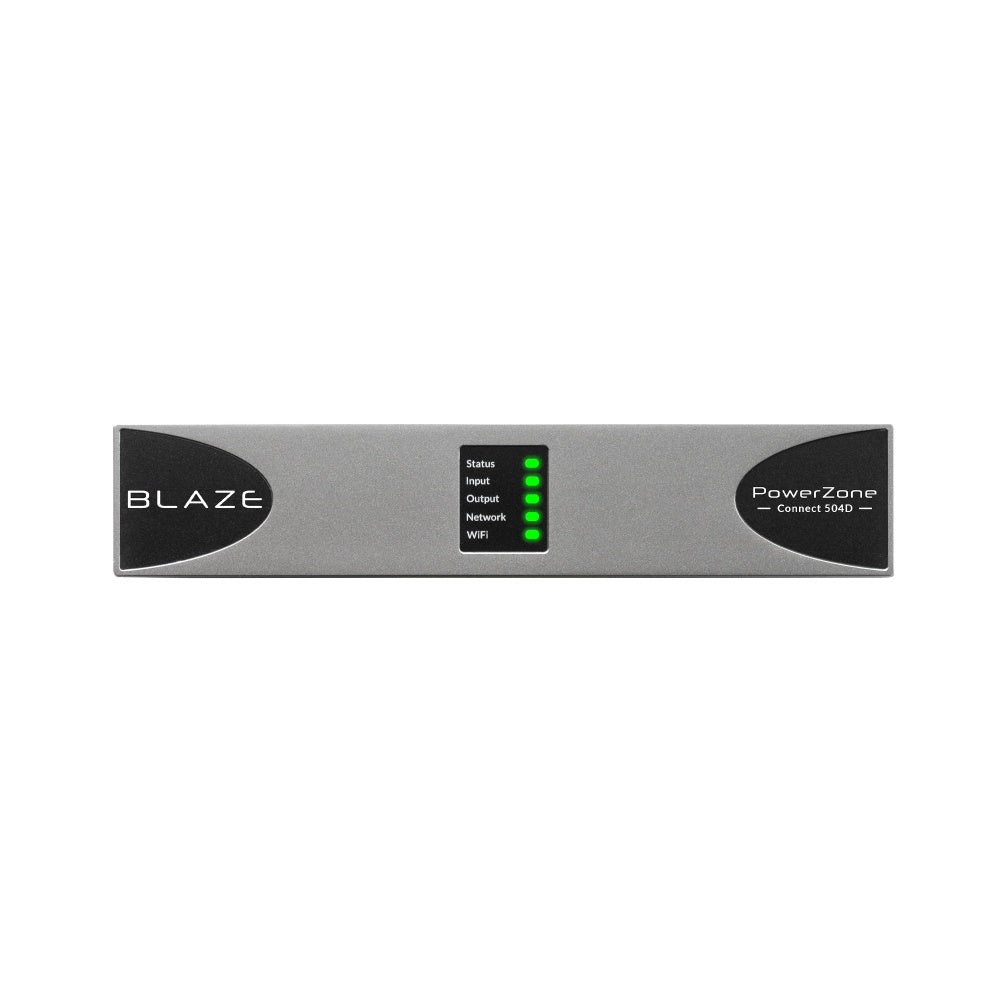

Blaze Audio PowerZone Connect 504D DSP-Enabled Dante Power Amplifier
Blaze Audio PowerZone Connect 504D DSP-Enabled Dante Power Amplifier
SoundPro Item: 143414 | Part Number: PowerZone Connect 504D
Usually ships in 5-7 business days
- Ultra-compact ½-rack form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Audinate Dante® AoIP compatibility
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- Flexible power sharing across output channels
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC™ universal power supply with PFC 5 Year warranty

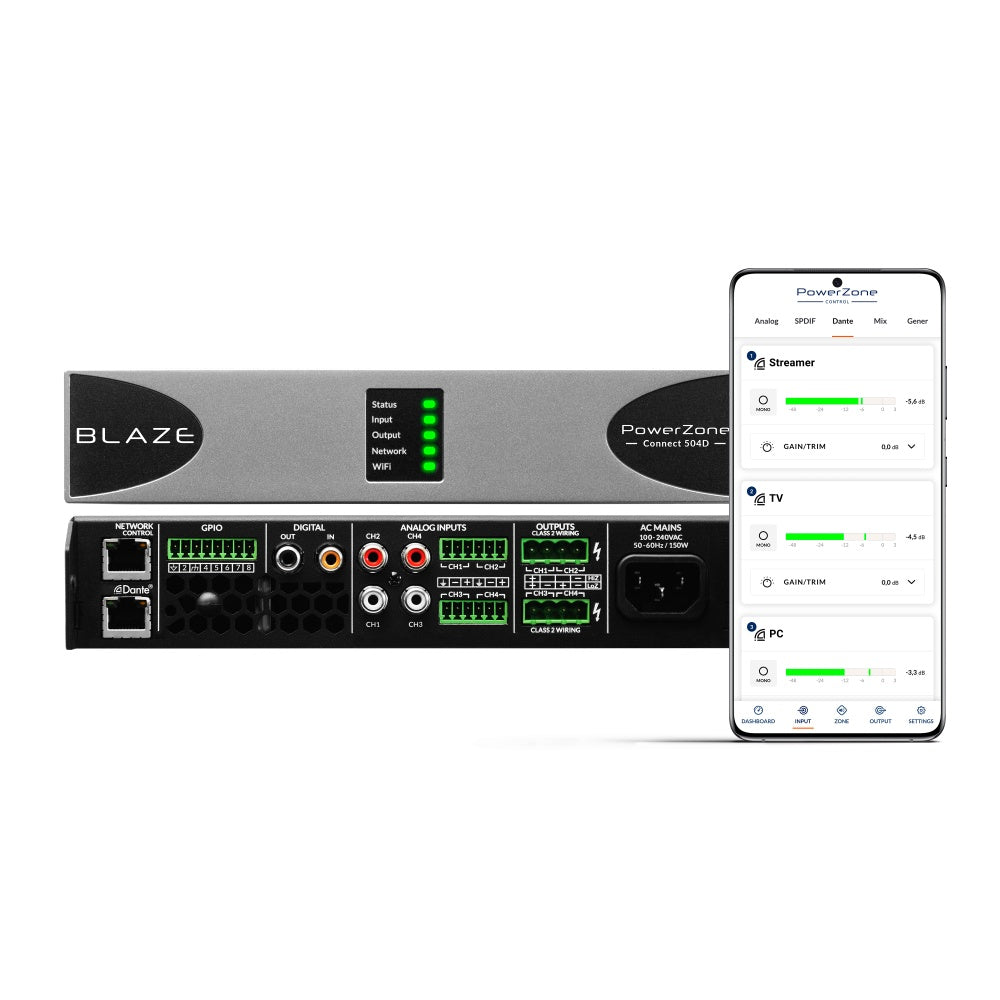

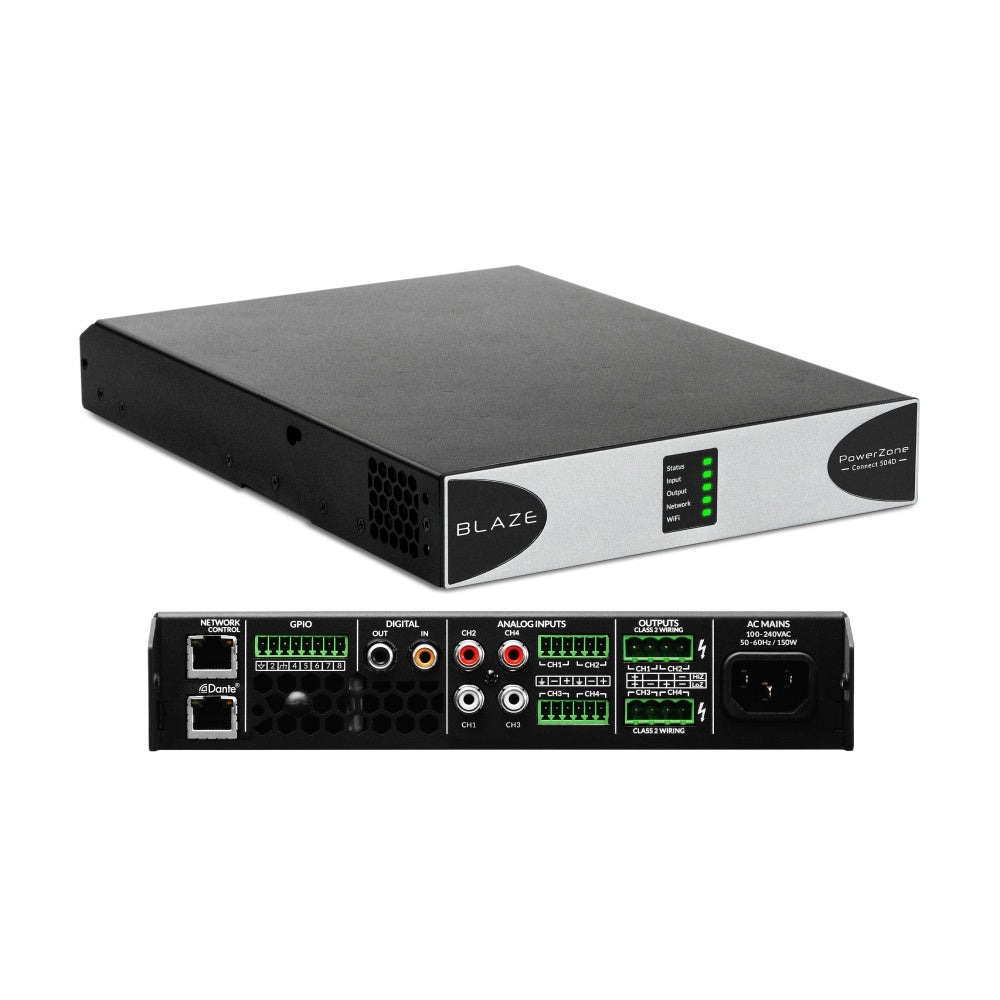

The PowerZone™ Connect 504D from Blaze Audio is a 500W DSP-enabled Class-D amplifier with 2 channels and Dante™.
The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 1000 W. The 1U family powers both conventional low-impedance (4 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.
Specific models of the PowerZone™ Connect 1U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations. Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
- Output Power @ 4/8Ω4 x 125W
- Output Power @ 70/100V* 2 x 250W
- Total System Power500W
- Power Consumption150W
- Dimensions1.7x8.7x12.6" (44x220x319mm)
- Weight2.8kg (6.2 lbs)
