Blustream CAT100AU Digital Audio Over CAT5 (100m)
Blustream CAT100AU Digital Audio Over CAT5 (100m)
SoundPro Item: 124014 | Part Number: CAT100AU
Usually ships in 5-7 business days
- Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable
- Both optical and coaxial digital can be distributed at the same time
- Built in DAC (Digital to Analogue audio Converter) converts either optical or coaxial digital (selectable) to analog stereo left/right audio output (source selected on receiver unit)
- Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution
- Ultra low jitter and high fidelity design
- *CAT100AU supports distances of up to: 192kHz - 100m; 96kHz - 150m; < 48kHz - 300m
Blustream's CAT100AU Audio over CAT5e/6 extender kit transmits audio signals up to a distance of 300m (192kHz signals up to 100m). This plug-and-play device accepts both optical and coaxial digital inputs and includes a built in DAC to enable use of the stereo left / right audio output from either input.
- CAT100AU-TX
- Audio Input Connectors: 1 x Optical (S/PDIF) & 1 x RCA (S/PDIF)
- Output Connectors: 1 x RJ45

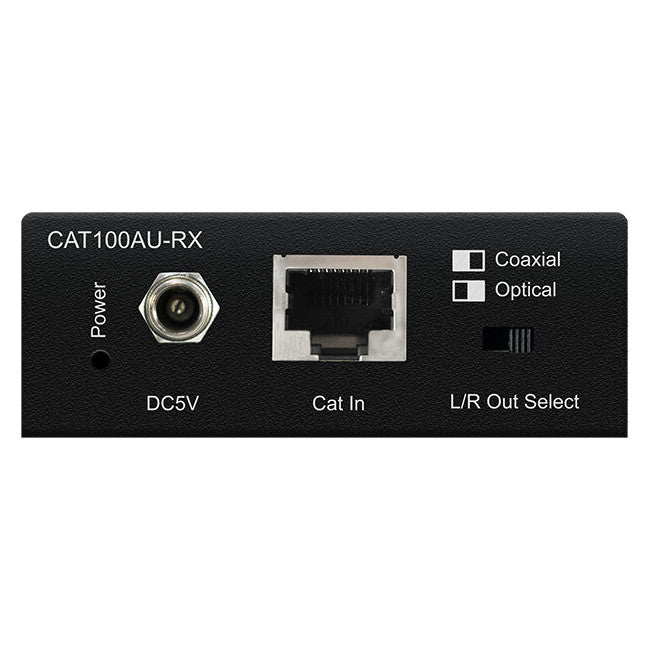

- CAT100AU-RX
- Input Connectors: 1 x RJ45 & 5V/1A DC

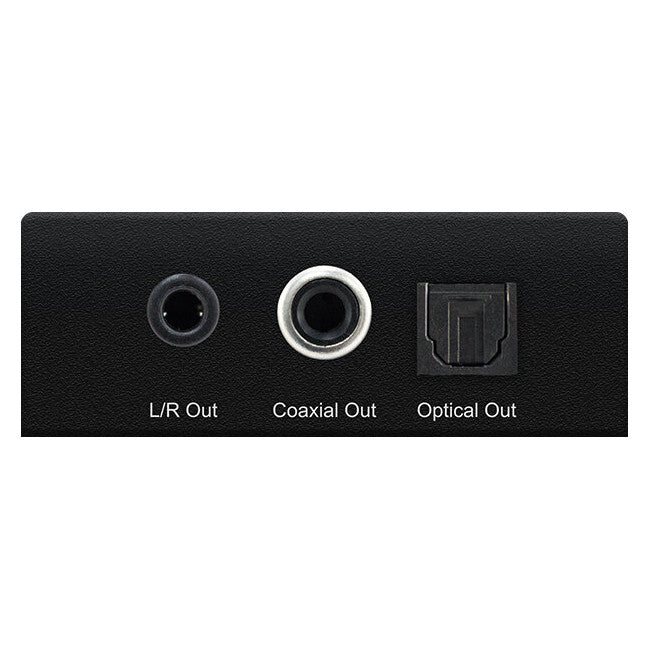

- Output Connectors: 1 x Optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x Analogue left / right - 3.5mm stereo audio jack
- Balun Dimensions (W x D x H) 65 x 80 x 25mm (with connections)
- Balun Dimensions (W x D x H) 65 x 70 x 25mm (without connections)
- Ind. Balun Weight 0.13kg (excluding accessories)
- Carton / Box Dimensions (W x D x H) 210 x 125 x 95mm
- Shipping Weight 0.6kg
- Operating Temperature 32°F to 104°F (0°C to 40°C)
- Storage Temperature -4°F to 140°F (-20°C to 60°C)
- Power Supply 5V/1A DC, barrel type connector (Power supplied to the transmitter unit from the receiver)
