Blustream HEX100CS-KIT HDBaseT CSC Extender Set - 100m
Blustream HEX100CS-KIT HDBaseT CSC Extender Set - 100m
SoundPro Item: 124004 | Part Number: HEX100CS-KIT
Usually ships in 5-7 business days
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
- Video down-conversion on HDMI receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the transmitter HDMI loop out.
- Supports 4K 60Hz 4:4:4 UHD video up to 70m
- Extends HDMI 1080p video up to 100m
- Features 1 x HDMI loop-out on HEX100CS-TX for integrating local displays or cascading to multiple devices
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
- HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
- HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
- Supports bi-directional RS-232 pass-through
- Supports bi-directional IR pass-through
- Supplied with Blustream 5V IR receiver and emitter
- Advanced EDID management
- HDCP 2.2 compliant
Blustream's HEX100CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ extender set offers market leading features and outstanding value utilizing CSC technology with video down conversion. The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 100m (4K to 70m). The transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The receiver features simultaneous analog stereo and digital coax audio breakout.

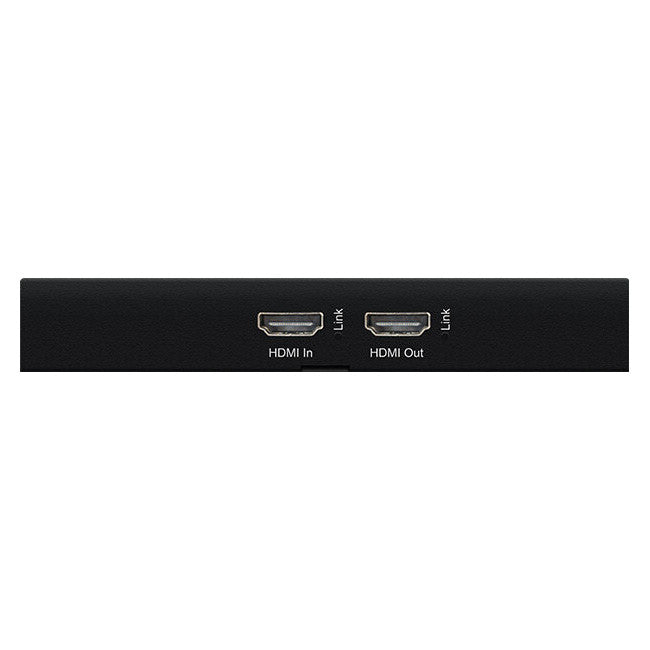

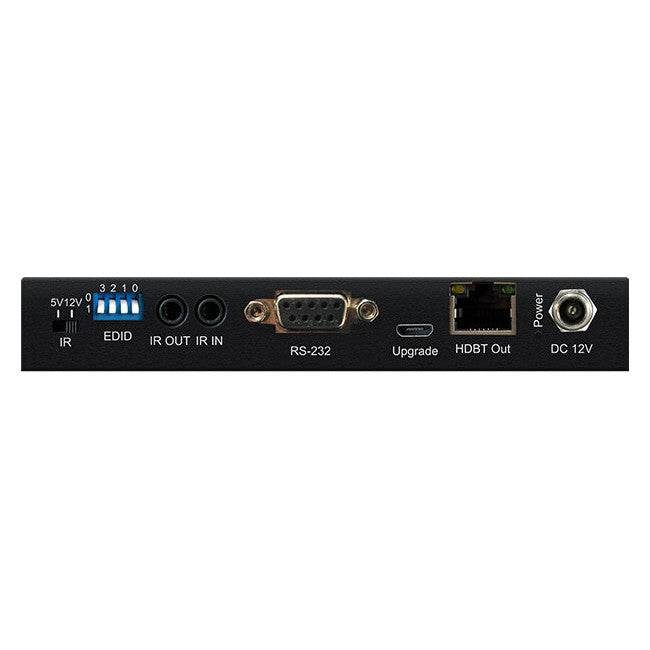

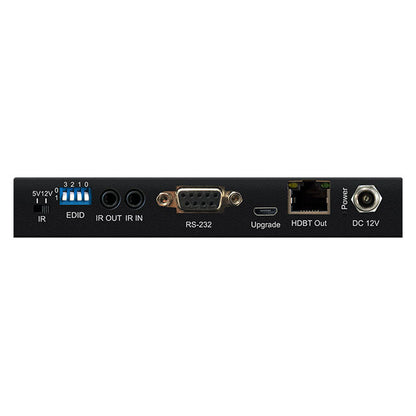

- HEX100CS-TX
- Video Input Connectors: 1 x HDMI Type A, female
- Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
- RS-232 Serial Port: 1 x DB-9 female
- IR Input Ports: 1 x 3.5mm stereo jack
- IR Output Ports: 1 x 3.5mm mono jack
- EDID DIP Switch: 4-pin

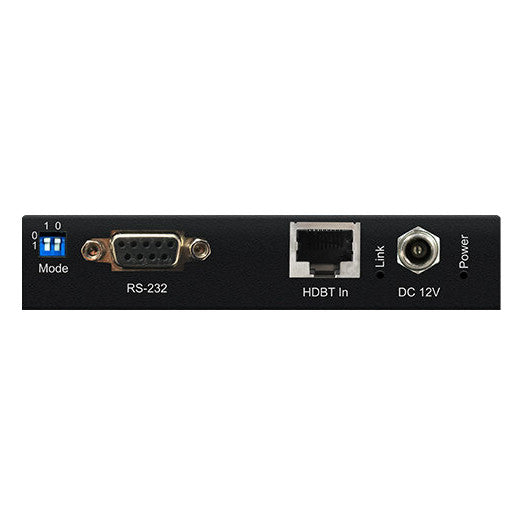

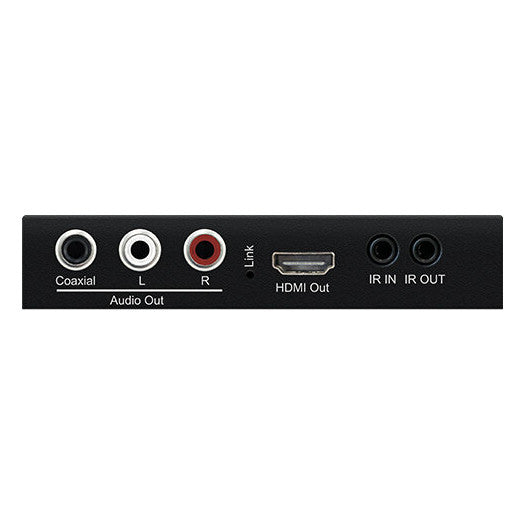

- HEX100CS-RX
- Video Input Connectors: 1 x HDBaseT™ RJ45 connector
- Video Output Connectors: 1 x HDMI Type A, female
- RS-232 Serial Port: 1 x DB-9 female
- IR Input Ports: 1 x 3.5mm stereo jack
- IR Output Ports: 1 x 3.5mm mono jack
- Audio Output Connectors: 1 x RCA (S/PDIF) & 2 x Analog RCA (Left / Right)
- Power Supply12V/2A DC, screw type connector
- Power Consumption12.7W
- Transmitter Dimensions (W x D x H) 143 x 134 x 22mm (without connections)
- Transmitter Dimensions (W x D x H)143 x 141 x 22mm (with connections)
- Receiver Dimensions (W x D x H) 113 x 124 x 22mm (without connections)
- Receiver Dimensions (W x D x H) 113 x 138 x 22mm (with connections)
- Ind. Extender Weight0.35kg (excluding accessories)
- Shipping Weight 1.4kg
- Operating Temperature32°F to 104°F (0°C to 40°C)
- Storage Temperature-4°F to 140°F (-20°C to 60°C)
