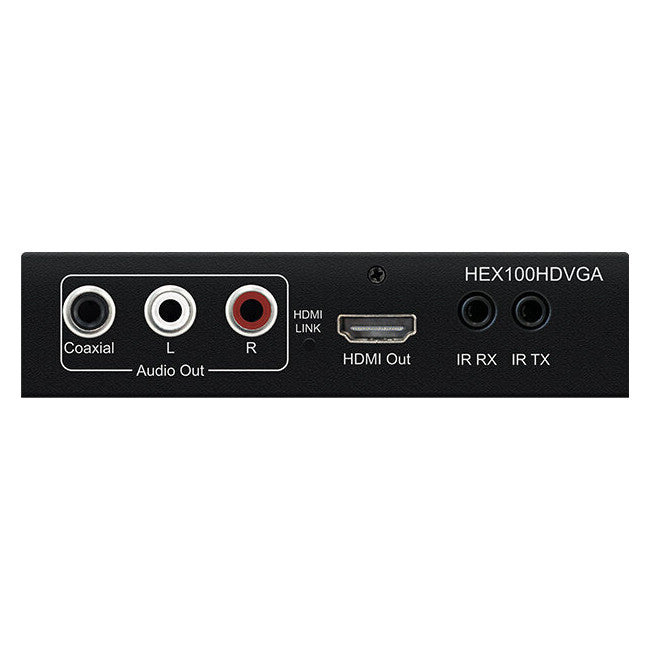

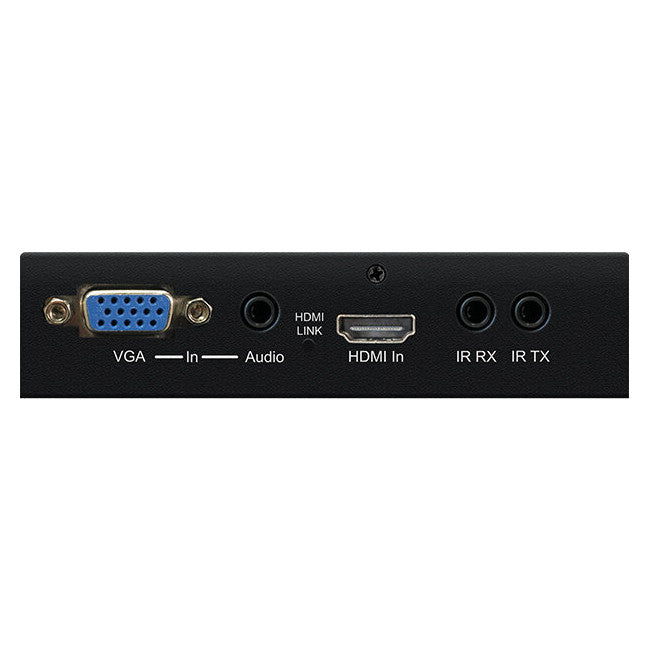

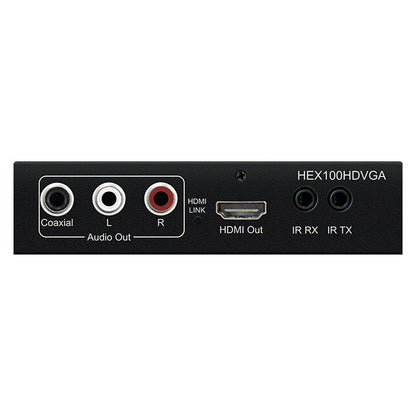

• HEX100HDVGA-RX front

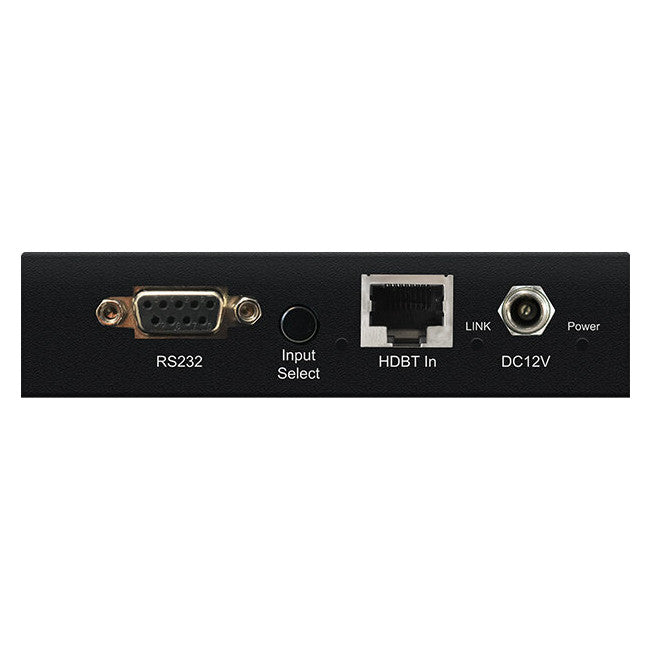

  • HEX100HDVGA-RX back
  • HEX100HDVGA-TX front

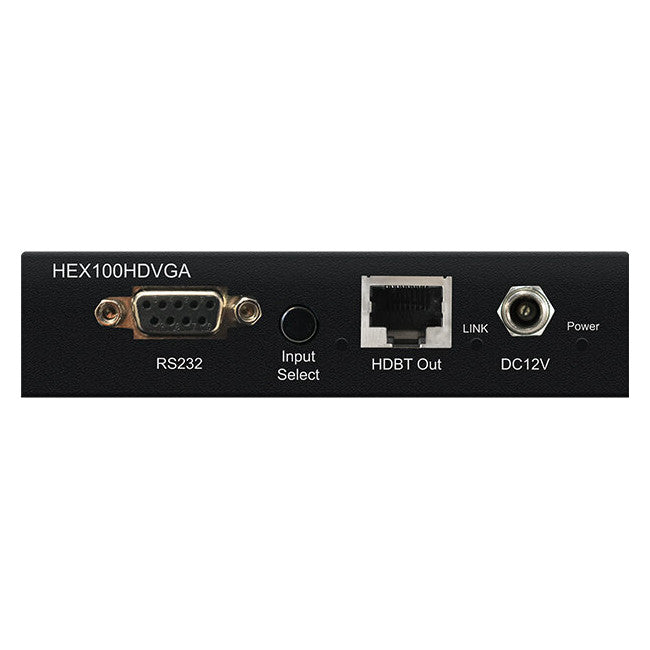

  • HEX100HDVGA-TX back
1 4

Blustream HEX100HDVGA-KIT Switchable HDMI/VGA HDBaseT Extender Set

Blustream HEX100HDVGA-KIT Switchable HDMI/VGA HDBaseT Extender Set

SoundPro Item: 124002 | Part Number: HEX100HDVGA-KIT

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Extends HDMI and VGA / Audio up to a distance of 100m over single CAT cable
  • Auto signal sensing switches between HDMI and VGA / audio inputs, will display last input signal connected
  • Manual switching between inputs using toggle button or RS-232 control on either transmitter or receiver
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports industry standard video resolutions from 480i-4K and most industry standard VGA resolutions (check manual for full list of supported VGA resolutions)
  • Supports full 3D signal display
  • Supports CEC bypass (Consumer Electronics Control) - HDMI only
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby DigiPlus and DTS-HD Master Audio transmission
  • Supports bi-directional RS-232 pass-through
  • Supports bi-directional IR from all input and output locations
  • Supplied with Blustream IR receiver and emitters
  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • HDCP 1.4 compliant
Log in or register for YOUR best price

Bluestream's HEX100HDVGA-KIT extender set is an industry leading 4K UHD HDBaseT™ solution that delivers switchable HDMI and VGA inputs. The extender set also transmits Bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT cable.

View full details

Specifications

Dimensions
Balun Dimensions (W X D X H)
115mm x 135mm x 30mm (with connections)
Carton / Box Dimensions (W X D X H)
300 x 155 x 90mm
Weight
Ind. Balun Weight
0.35kg (excluding accessories)
Shipping Weight
1.2kg
Audio
Audio Input Connectors
1 x Analogue Left / Right 3.5mm stereo jack
Audio Output Connectors
2 x Analogue RCA Left / Right & Coaxial digital
Connectivity
Video Input Connectors
1 x HDMI Type A & 1x VGA (DB-15)
Video Output Connectors
1 x HDBaseT™ RJ45 connector
IR Input Ports
1 x 3.5mm stereo jack
IR Output Ports
1 x 3.5mm mono jack
RS-232 Serial Port
1 x DB9, female
Environmental
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
General
HEX100HDVGA-TX
Mounting Brackets Included
HEX100HDVGA-RX
Mounting Brackets Included
Power Supply
12V/2A DC, screw type connector
