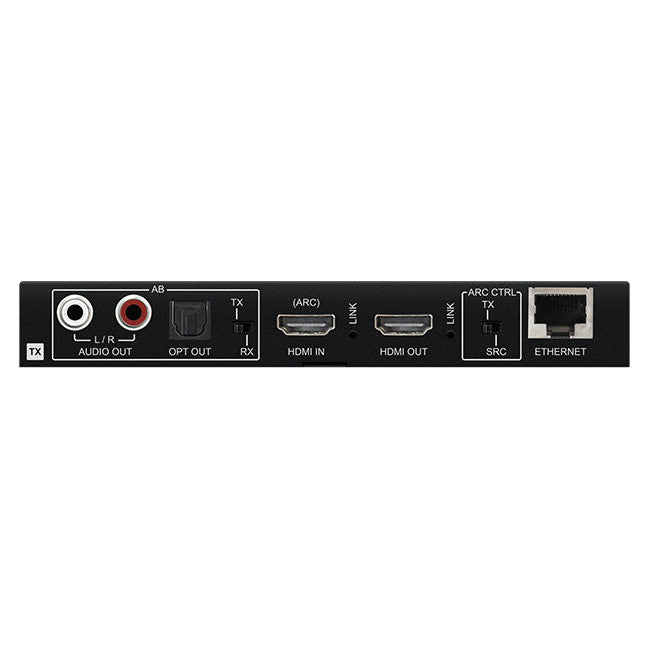

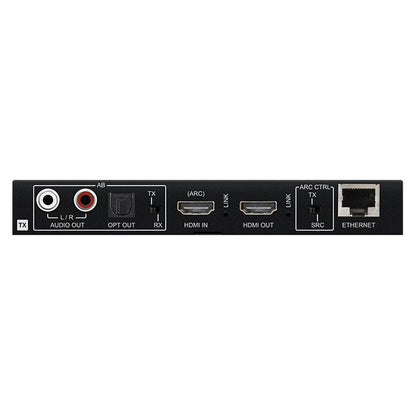

• HEX150CS-TX front

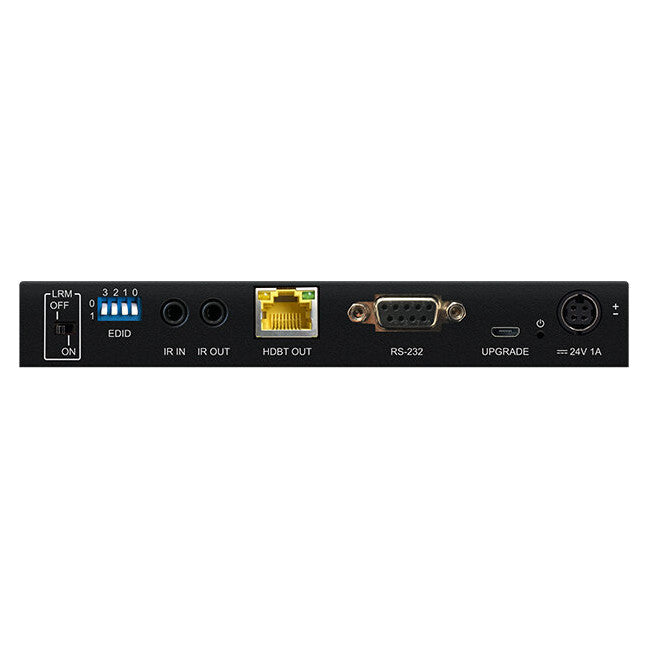

  • HEX150CS-TX back

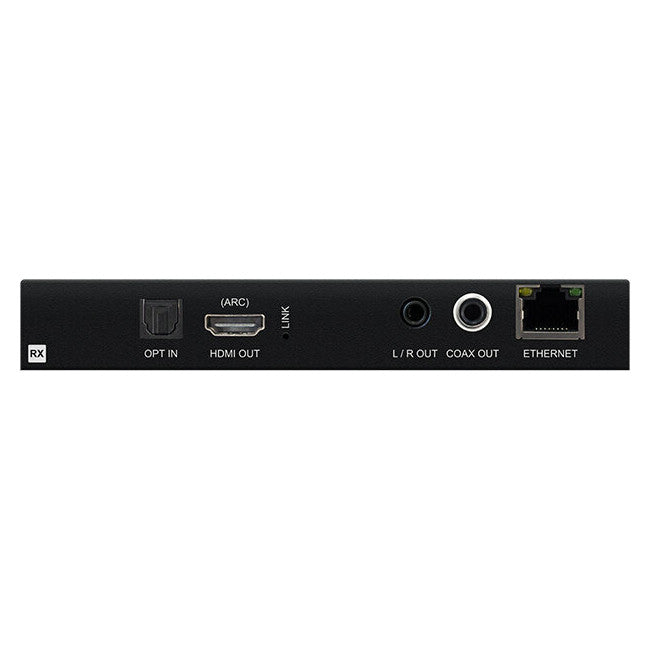

  • HEX150CS-RX front

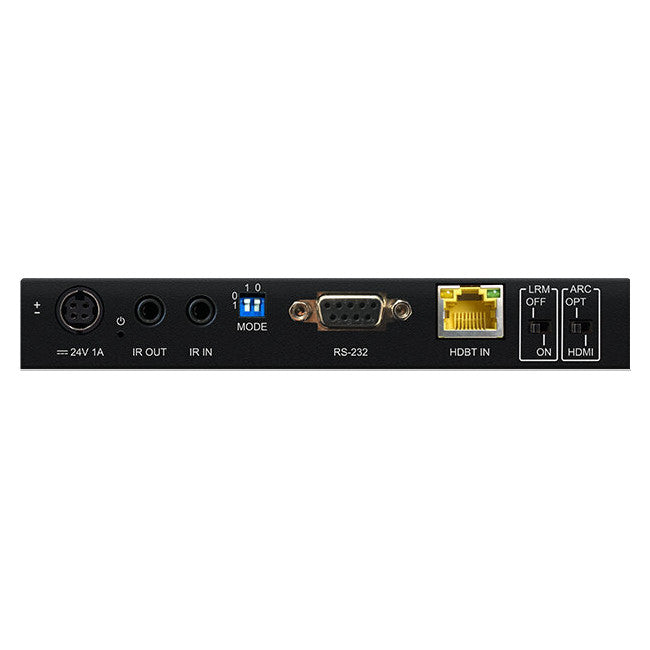

  • HEX150CS-RX back
1 4

Blustream HEX150CS-KIT HDBaseT CSC Extender Set - 150m

Blustream HEX150CS-KIT HDBaseT CSC Extender Set - 150m

SoundPro Item: 124005 | Part Number: HEX150CS-KIT

$1,291.95
$1,291.95 $1,291.95
Your Price Sold out
MSRP: $1,291.95 | MAP: $1,291.95

Usually ships in 5-7 business days

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
  • Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive 4K @ 60Hz 4:4:4 or 4K @ 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K @ 60Hz 4:4:4 UHD video up to 100m
  • Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
  • HDMI loop out on Transmitter
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI, HDCP, compatibility, and handshaking issues
  • Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
  • Supports audio return to HDMI, optical digital, and analog L/R audio outputs (analog output supports 2ch PCM only)
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Bi-directional 10/100BaseT Ethernet pass through
  • Bi-directional IR & RS-232 pass-through
  • Supplied with Blustream 5V IR receiver and emitter
  • Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • Advanced EDID management
  • HDCP 2.2 support
Log in or register for YOUR best price

Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The HEX150CS-KIT extender set is an industry leading HDMI 2.0 4K @ 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilizing CSC technology with video down conversion. The HEX150CS-KIT supports HDMI, bi-directional IR, RS-232 and PoC up to lengths of 150m over a single CAT cable. The HEX150CS-KIT also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet pass through.

View full details
  • HEX150CS-TX
    • Video Input Connectors: 1 x HDMI Type A, female
    • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
    • Audio Output Connectors: 2 x RCA (L/R), 1 x optical (SPDIF)
    • Ethernet Port: 1 x RJ45 connector
    • RS-232 Serial Port: 1 x DB-9 female
    • IR Input Ports: 1 x 3.5mm stereo jack
    • IR Output Ports: 1 x 3.5mm mono jack
    • EDID: 4-pin DIP switch
    • Power Supply: 1 x 24V/1A DC, 4-pin DIN connector
  • HEX150CS-RX
    • Video Input Connectors: 1 x HDBaseT™ RJ45 connector,
    • Video Output Connectors: 1 x HDMI Type A, female
    • Audio Input Connectors: 1 x Optical (SPDIF)
    • Audio Output Connectors: 1 x 3.5mm stereo jack (L/R), 1 x RCA Coaxial Digital
    • Ethernet Port: 1 x RJ45 connector,
    • RS-232 Serial Port: 1 x DB-9 female
    • IR Input Ports: 1 x 3.5mm stereo jack
    • IR Output Ports: 1 x 3.5mm mono jack
    • Power Supply: 1 x 24V/1A DC, 4-pin DIN connector
  • Casing Dimensions (W x D x H)148 x 134 x 22mm (RX), 156 x 123 x 23mm (TX)
  • Dimensions (W x D x H)148 x 153 x 22mm (RX), 156 x 135 x 23mm (TX) (including connections)
  • Shipping Weight (Kit)1.6 kg
  • Operating Temperature32°F to 104°F (0°C to 40°C)
  • Storage Temperature -4°F to 140°F (-20°C to 60°C)
  • Power Supply1 x 24V/1A DC, screw connector
