Blustream HEX70HDU-KIT Multi Format HDBaseT CSC Extender Set - 70m
Blustream HEX70HDU-KIT Multi Format HDBaseT CSC Extender Set - 70m
SoundPro Item: 124006 | Part Number: HEX70HDU-KIT
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

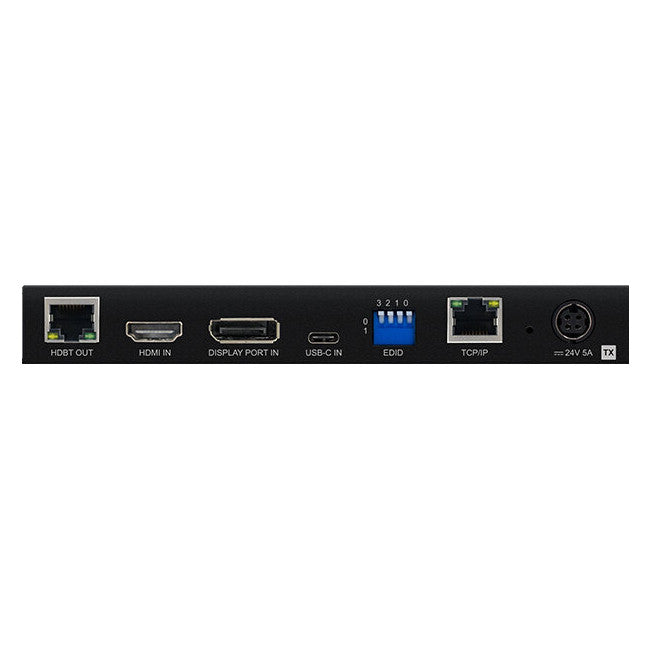

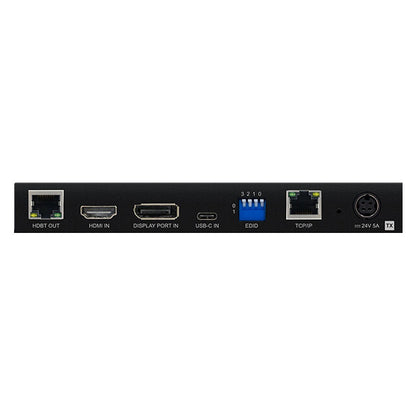

- Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ transmitter with manual or auto source selection

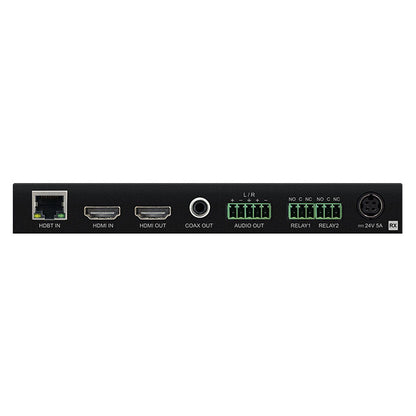

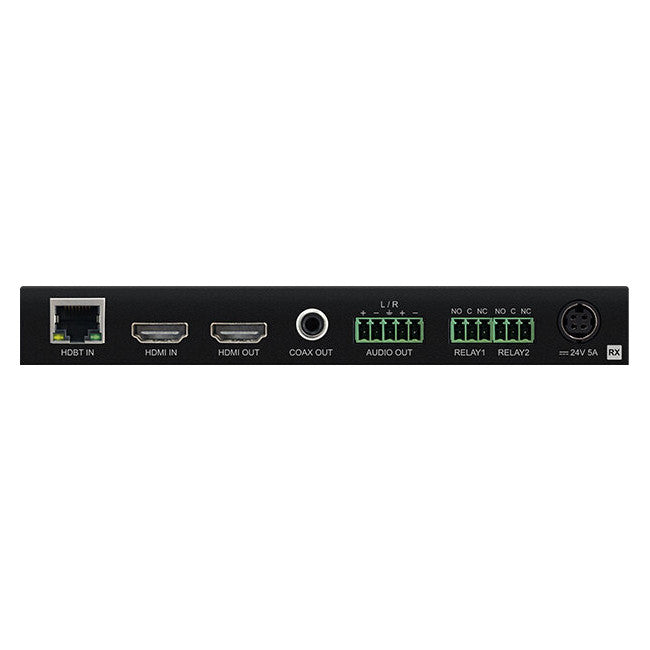

- Features 1 x local HDMI input on the HDBaseT™ receiver for connection of a source local to the display
- Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
- Extends HDMI 1080p up to a distance of 70m
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)
- Supports DisplayPort™ up to 4K UHD @ 60Hz 4:4:4, 4K @ 30Hz 4:4:4 DP1.2
- Audio breakout to analog L/R audio and Coaxial digital (S/PDIF) outputs concurrently
- Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
- Bi-directional IR pass-through
- Auto display on / off feature allowing control of display at the HDBaseT™ receiver via CEC or RS-232
- Web interface module for control and configuration of HEX70HDU-KIT

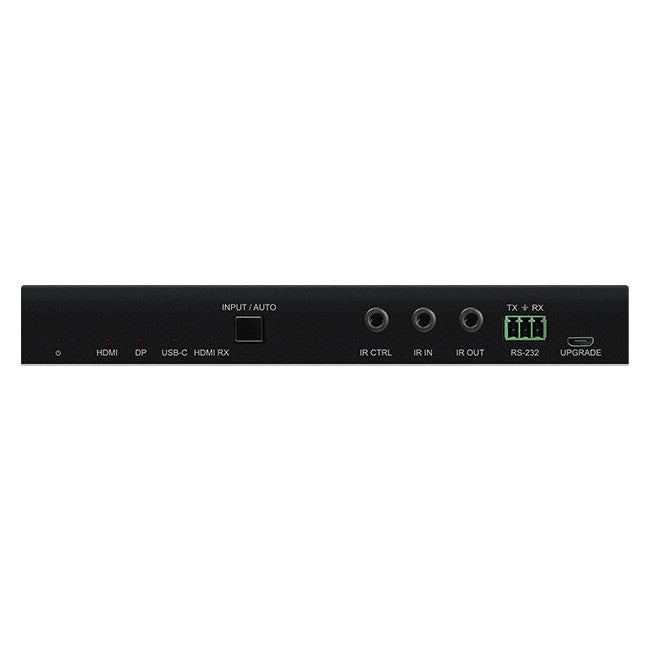

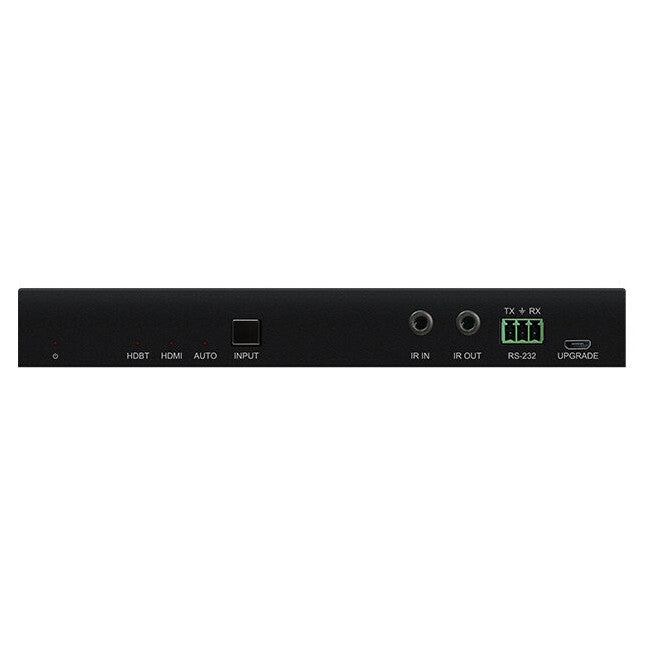

- Control via front panel, IR, RS-232 or TCP/IP
- Advanced EDID and HDCP management
- USB-C video support is limited to 4K 60Hz 4:2:0 when charging feature is activated by the source device
The HEX70HDU-KIT features control via front panel, IR, RS-232 and TCP/IP, with advanced EDID and HDCP management.
The HEX70HDU-KIT extender set is an industry leading HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ multi-format solution utilizing CSC technology to deliver HDMI, USB-C and DisplayPort at 4K to 40m (with 1080p up to 70m) over a single CAT cable. The HEX70HDU-KIT provides enhanced features including local HDMI input on the HDBaseT™ receiver for additional source input, Web GUI for control and configuration, auto display control, audio breakout, and bi-directional IR / RS-232 pass-through.
Specifications
