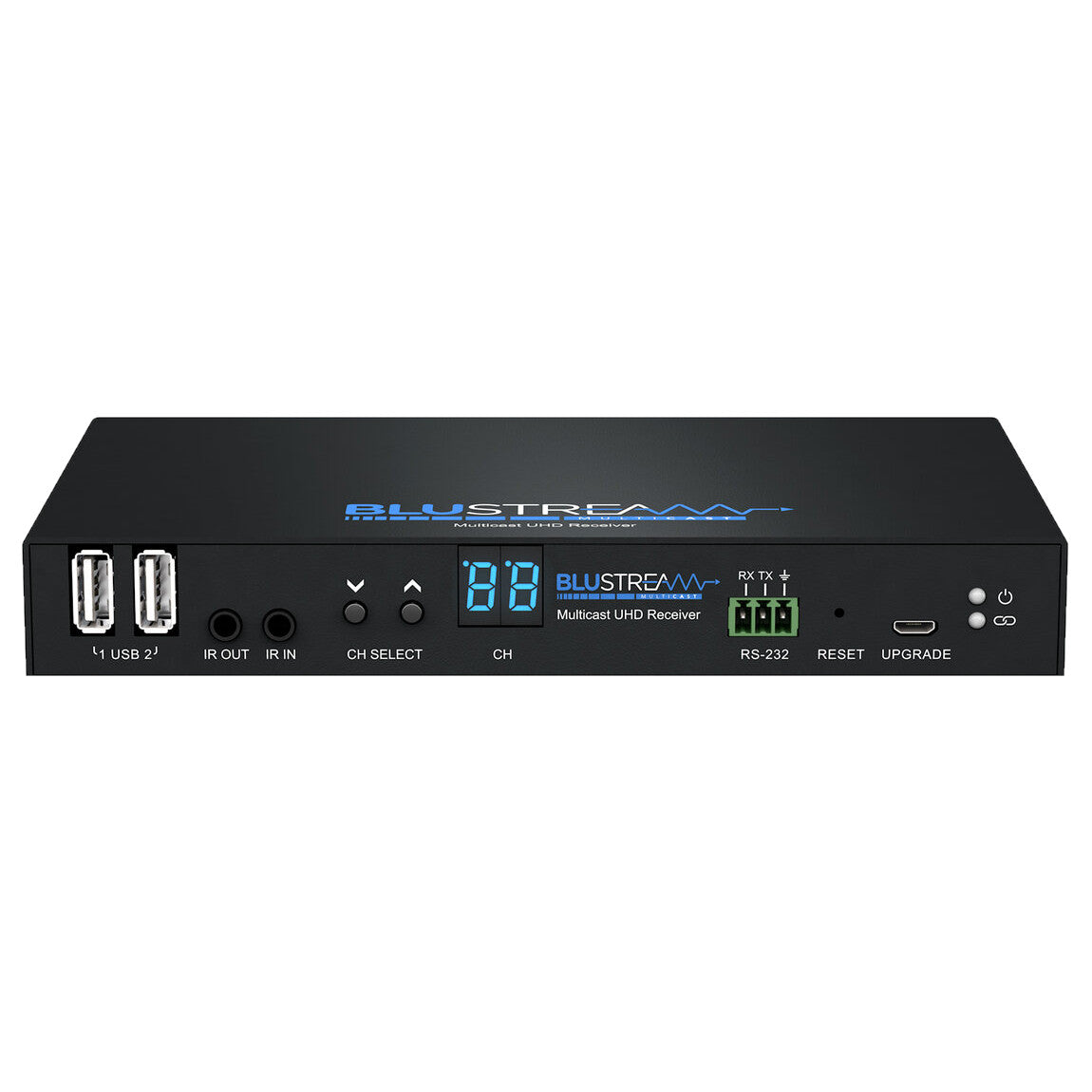

• Blustream IP200UHD-RX HDMI over IP 4K Video Receiver

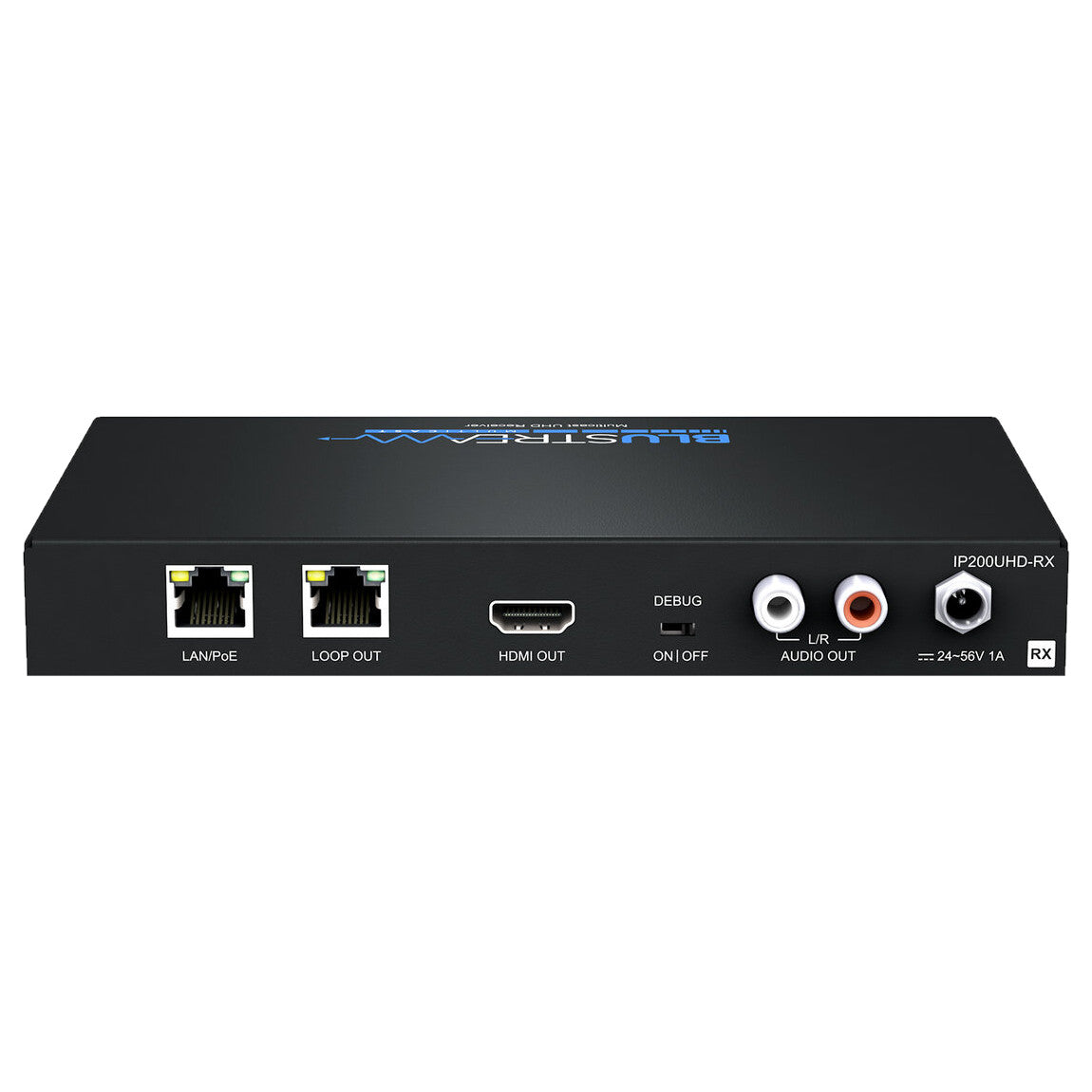

  • Blustream IP200UHD-RX HDMI over IP 4K Video Receiver back
1 2

Blustream IP200UHD-RX HDMI over IP 4K Video Receiver

Blustream IP200UHD-RX HDMI over IP 4K Video Receiver

SoundPro Item: 123996 | Part Number: IP200UHD-RX

$1,155.95
$1,160.95 $1,155.95
Your Price Sold out
MSRP: $1,160.95 | MAP: $1,155.95

Usually ships in 5-7 business days

  • Advanced UHD video over 1Gb Network
  • Virtually unlimited system size
  • Extends HDMI up to a distance of 100m over a single CAT cable
  • Video up-scaling and downscaling
  • Supports up to 4K @ 30Hz UHD video output
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
  • PoE (Power over Ethernet) to power Blustream products from PoE switch
  • HDCP 2.2 compliant with advanced EDID management
  • Analog L/R audio breakout
  • LAN loop-out for one-to-many extender mode
  • Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately
Log in or register for YOUR best price

Blustream's UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Network switch. The IP200UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that uses visually lossless compression technology to deliver HDMI, Bi-directional IR, RS-232 & USB / KVM up to lengths of 100m over standard network architecture. The IP200UHD-RX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.

View full details

Specifications

Dimensions
Dimensions (W X D X H )
190mm x 114mm x 25mm
Weight
Shipping Weight
0.8kg
Audio
Audio Output Connectors
2 x RCA L/R Analog audio
Connectivity
Video Input Connectors
1 x LAN RJ45 connector
Video Output Connectors
1 x HDMI Type A, female
Ethernet Port
1 x LAN RJ45 connector (video extension)
RS-232 Serial Port
1 x 3-Pin Phoenix connector
USB / KVM Port
2 x USB - Type A
IR Input Ports
1 x 3.5mm stereo jack
IR Output Ports
1 x 3.5mm mono jack
Controls
Firmware Update (MCU)
1 x Micro-USB
Environmental
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
General
Features 4 Operational Modes
Matrix distribution (requires 1Gb network switch), Video wall (requires 1Gb network switch), One-to-one HDMI extender (No network switch required), One-to-many HDMI extender (No network switch required)
