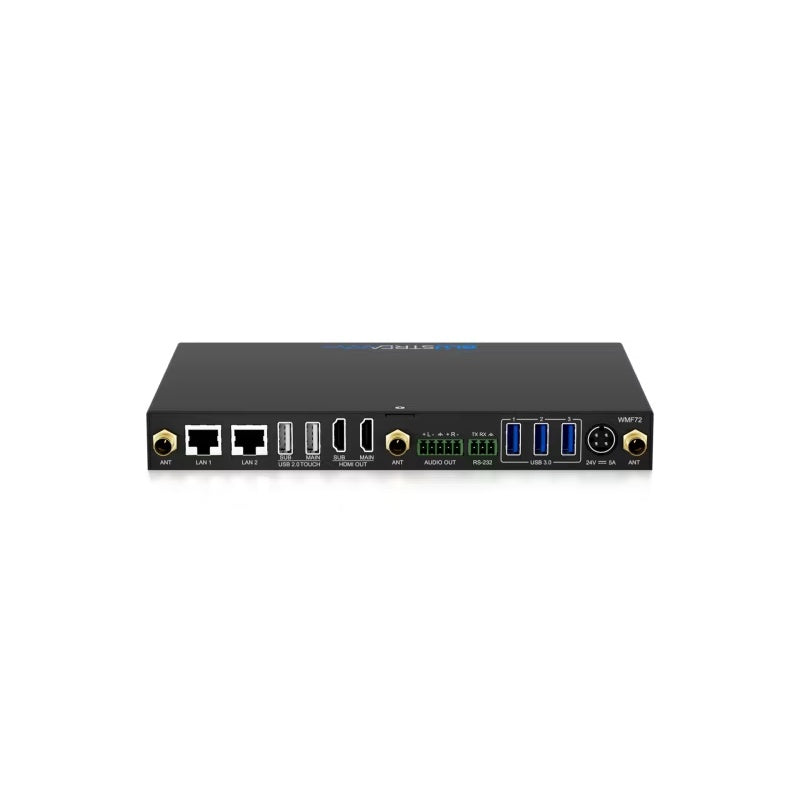

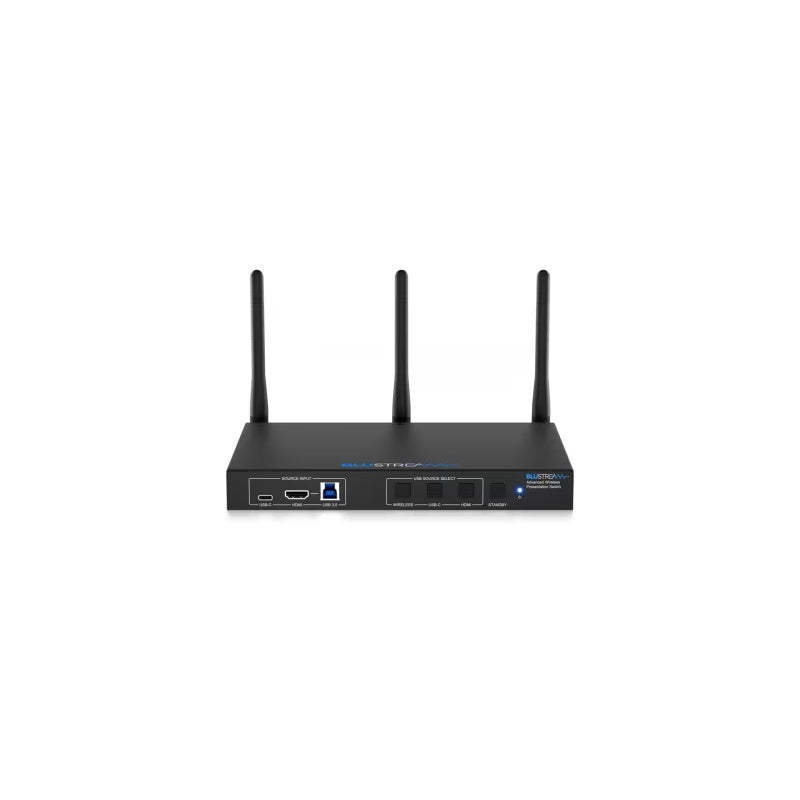

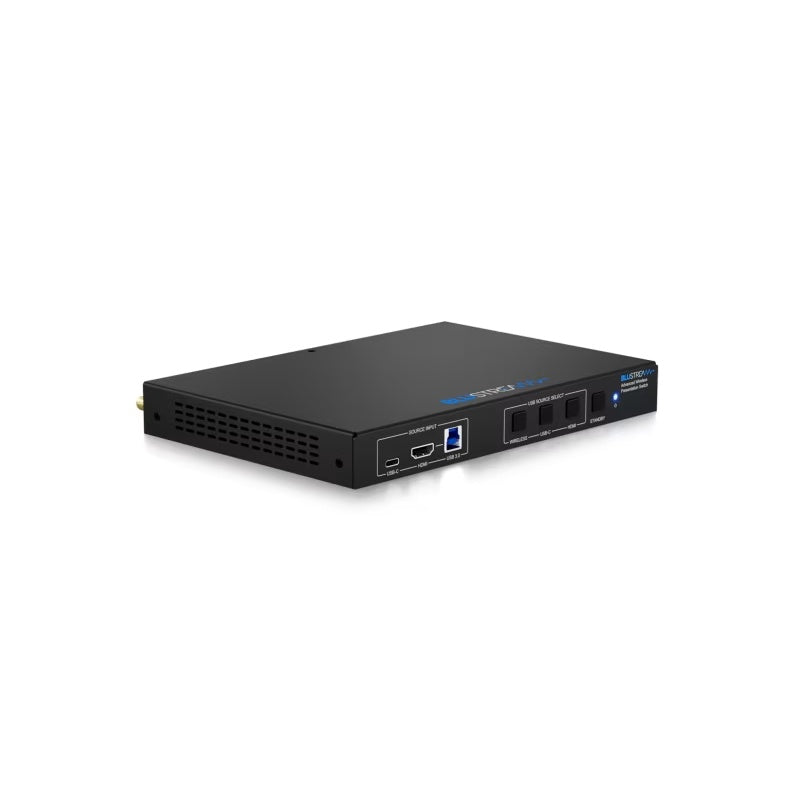

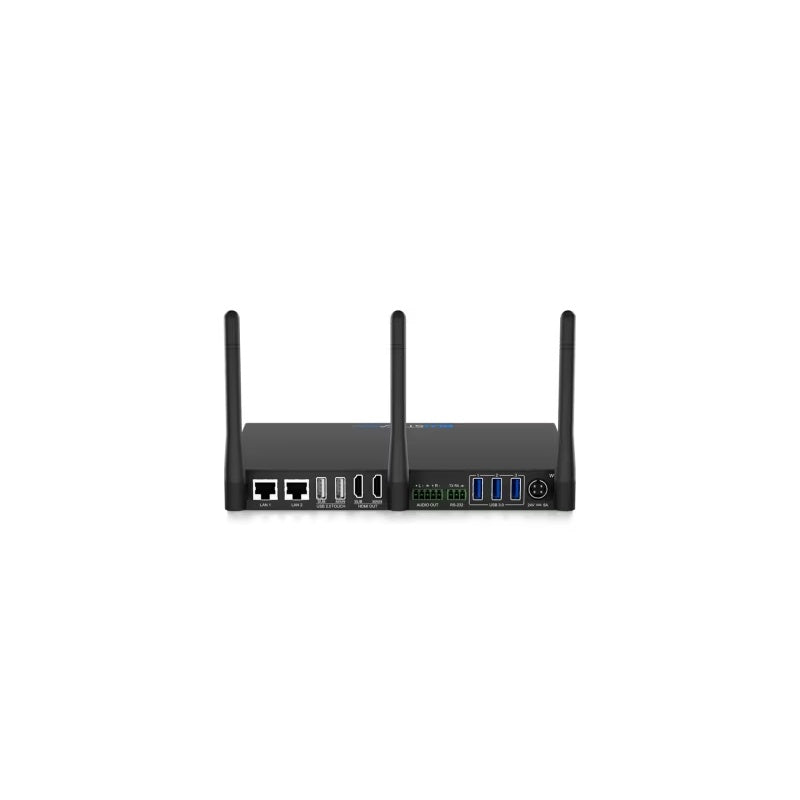

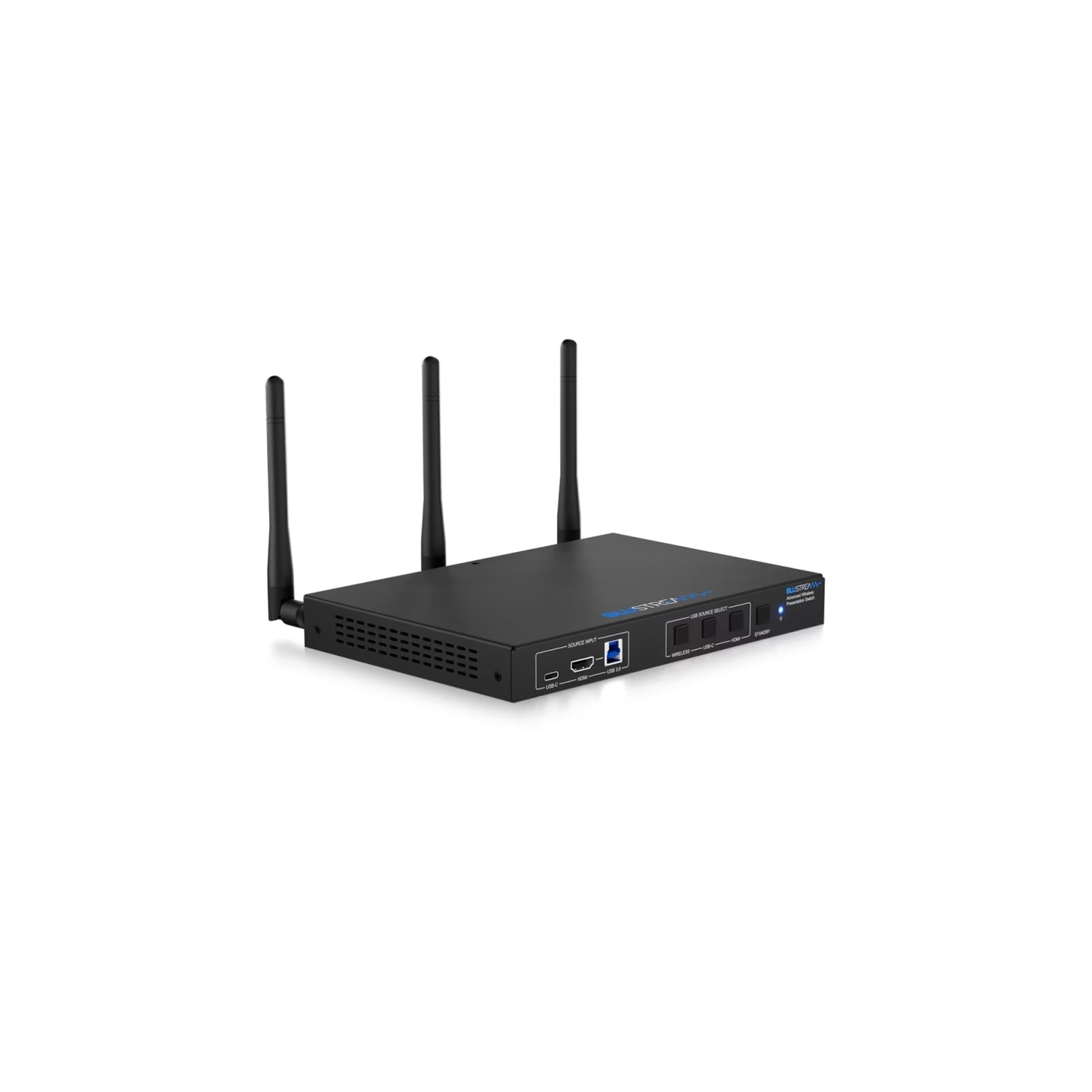

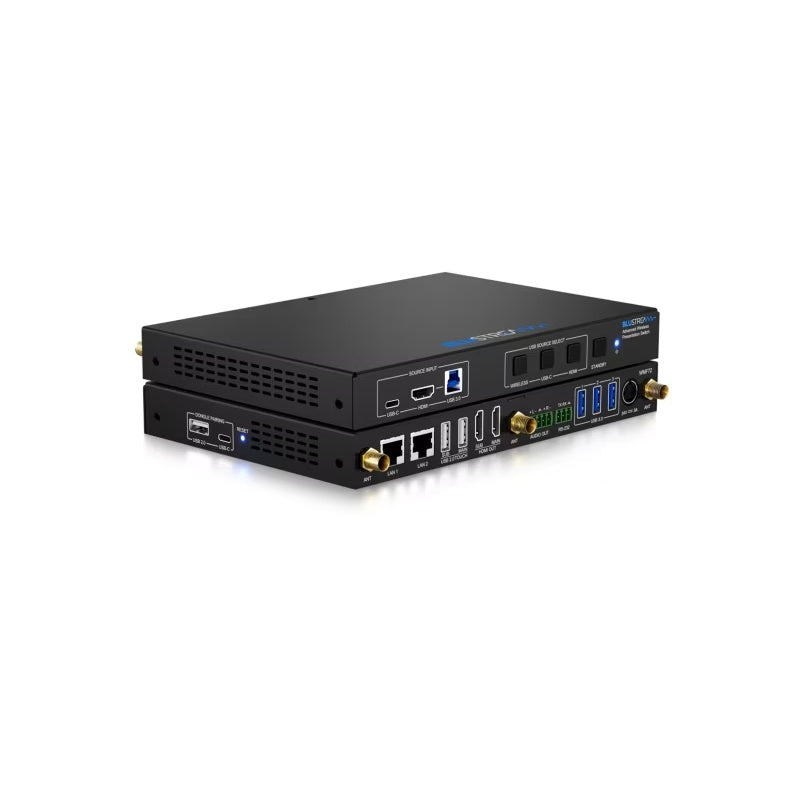

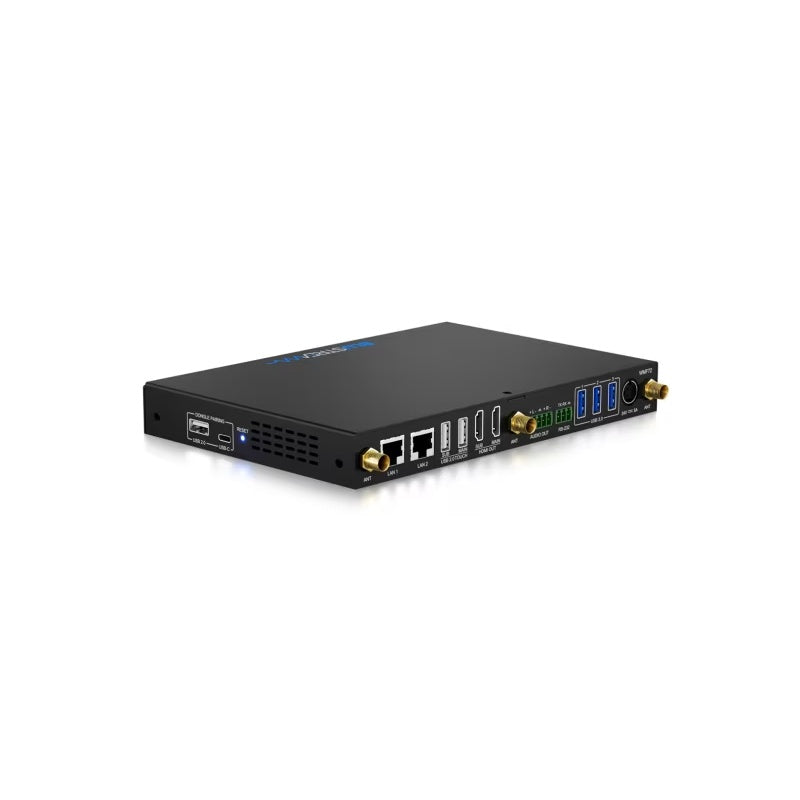

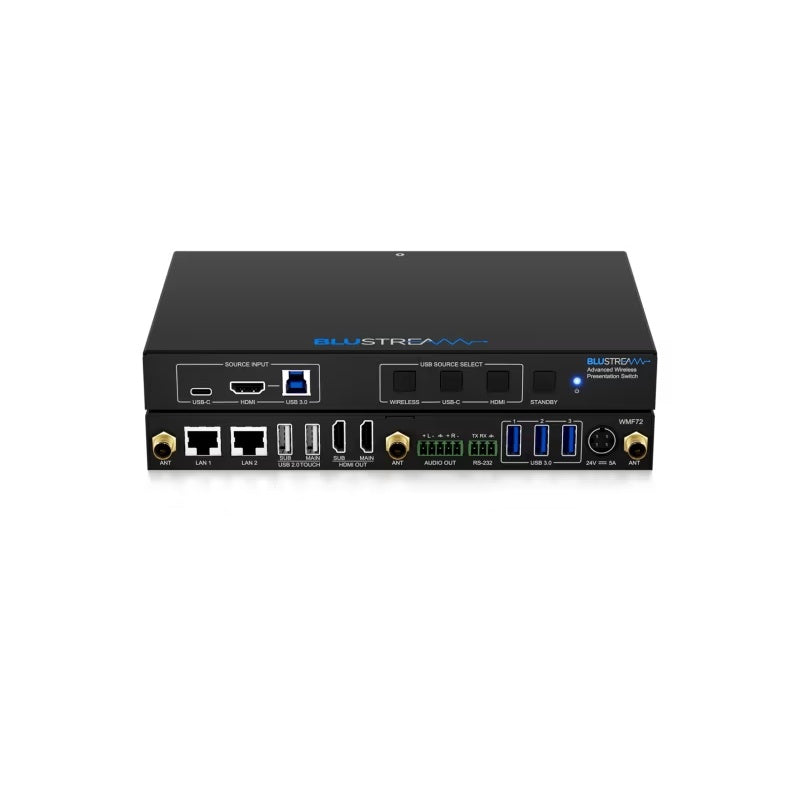

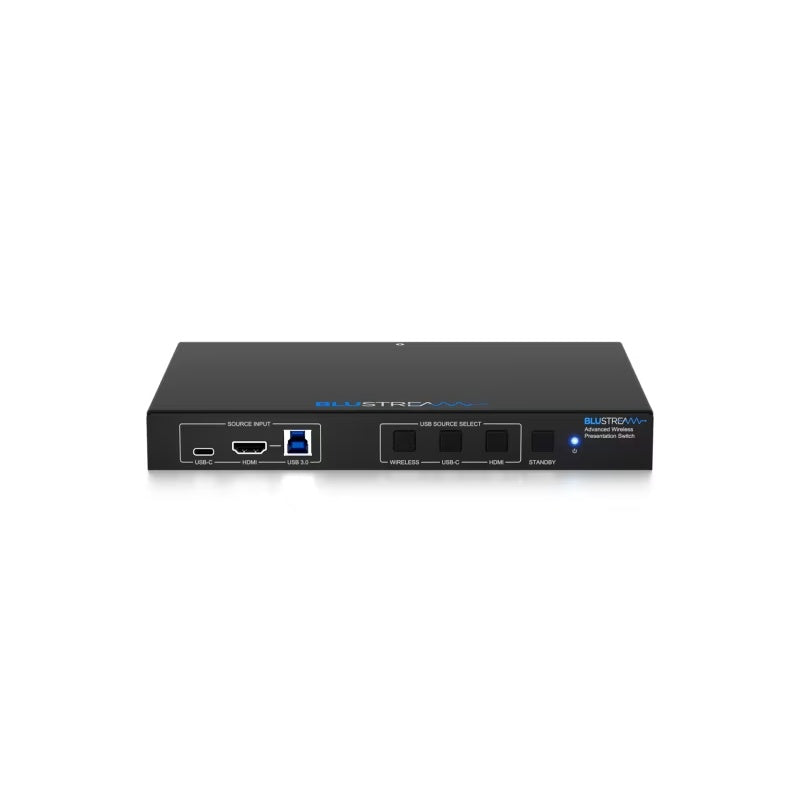

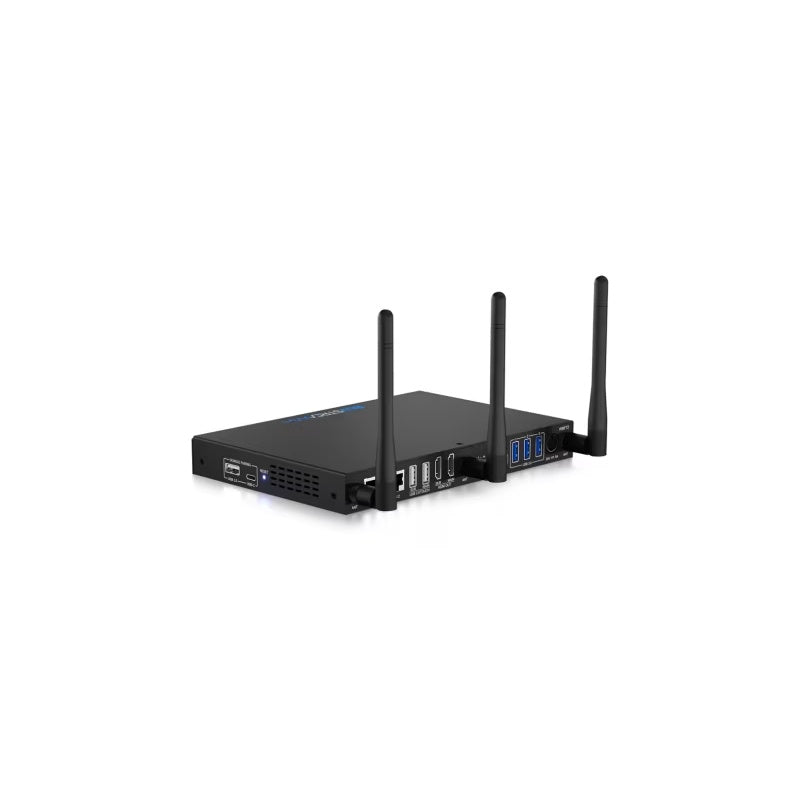

Blustream WMF72-V2 Advanced Wireless Multi-Format Presentation Switch

Blustream WMF72-V2 Advanced Wireless Multi-Format Presentation Switch

SoundPro Item: 207551 | Part Number: WMF72-V2

$2,575.00
$2,580.00 $2,575.00
Your Price Sold out
MSRP: $2,580.00 | MAP: $2,575.00

Usually ships in 5-7 business days

  • Multiview Layout Engine Supports Up To Five Concurrent Sources On Screen Simultaneously
  • Integrated 2.4G/5G Wi-Fi Access Point Operates Independent Of Existing Network Infrastructure
  • USB-C Input Delivers Display, Data, Network, And Power Delivery In A Single Cable Connection
  • Dual HDMI Outputs Enable Mirrored Or Extended Desktop For Advanced Conferencing Configurations
  • Whiteboard Canvas And Screen Overlay Annotation Extend Interactivity In Teaching Environments
  • USB Touchback And Camera/Mic Pass-Through Over Wi-Fi Reduce Physical Connection Requirements
  • Plug-And-Play Dongle Compatibility Simplifies BYOD Deployment With No Software Installation
Log in or register for YOUR best price

The Blustream WMF72-V2 is designed for AV integrators and IT managers building modern collaboration spaces — boardrooms, classrooms, and huddle rooms — where diverse bring-your-own-device scenarios demand a single, reliable switching solution. By combining wired HDMI and USB-C inputs with wireless protocols including AirPlay, Miracast, and Chromecast, it eliminates the need for multiple discrete devices to accommodate mixed presenter environments.

Dual HDMI outputs support mirrored or extended desktop configurations, making the WMF72-V2 well-suited for advanced video conferencing setups where a confidence monitor or secondary display is required alongside a main presentation screen. Multiview presentation handles up to five concurrent video signals with configurable layout, and the integrated video scaler ensures clean output regardless of source resolution. The onboard 2.4G/5G Wi-Fi access point runs local point-to-point wireless sessions without dependency on existing network infrastructure, while dual LAN ports allow simultaneous integration into managed networks for control and IT oversight.

For integrators requiring deeper system control, the WMF72-V2 supports RS-232, TCP/IP, and front-panel operation, with a web GUI for remote configuration. USB touchback, camera and microphone pass-through over Wi-Fi, and whiteboard annotation extend its value in interactive teaching and conferencing environments. Plug-and-play compatibility with Blustream WMF-USBC-D and WMF-HDMI-D wireless dongles provides a turnkey BYOD add-on path without additional infrastructure investment.

Downloads

View full details

Specifications

Connectivity
Video Input Connectors
1 x HDMI Type A female, 1 x USB Type C female
Video Output Connectors
2 x HDMI Type A 19-pin female
Audio Output Connectors
5-pin Phoenix connector (2ch balanced/unbalanced analogue L/R)
RS-232 Serial Port
1 x 3-pin Phoenix connector
TCP/IP Control
2 x RJ45 female (1000Mbps x2)
USB Connectors
3 x USB 3.0 Type A female, 1 x USB 3.0 Type B female
USB Pairing Connectors
1 x USB 2.0 Type A female, 1 x USB 2.0 Type C female
Wi-Fi Antenna Connections
3 x SMA female, MIMO (2.4G & 5G)
Performance
Main Output Resolution
Up to 4K 60Hz 4:4:4
Sub Output Resolution
Up to 1080p 60Hz
Wi-Fi Standard
IEEE 802.11 b/g/n/ac up to 1200Mbps
Wi-Fi Encryption
AES WPA PSK, WPA2 PSK
Wi-Fi Wireless (Point-to-Point Max)
Up to 1080p 30Hz
Dimensions
Product Width
8.66"
Product Length
6.34"
Product Height
1.06"
Unit Dimensions (W x H x D)
220mm x 27mm x 161mm (excluding antennas)
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Electrical
Power Supply
24V/5A DC
Shipping
Shipping Weight
1.5kg
Package Weight
3.31 lbs
Included Items
In Box
1 x WMF72-V2, 1 x 24V/5A DC Power Supply, 1 x 3-pin Phoenix Connector (RS-232), 1 x 5-pin Phoenix Connector (audio), 3 x Antenna, 1 x Mounting Kit, 1 x Quick Reference Card
