Bogen MCP35A Master Control Panel for Zone Distribution

Bogen MCP35A Master Control Panel for Zone Distribution

SoundPro Item: 207633 | Part Number: MCP35A

$2,801.81
$2,801.81 $2,801.81
Your Price Sold out
MSRP: $2,801.81 | MAP: $2,801.81

Usually ships in 5-7 business days

  • Dual Built-In Amplifiers Handle Both Program And Intercom Channels Without External Amps
  • Color-Coded Front Panel Reduces Operator Error During Routine And Emergency Use
  • Emergency Page Overrides All Program Distribution To Every Zone Simultaneously
  • Supervisory Tone Prevents Unauthorized Monitoring During Active Intercom Sessions
  • Rear-Panel Gain Trims Per Input Allow Precise Post-Installation Calibration
  • Telco Page And Time Signaling Terminals Extend Integration With External Systems
  • Compatible With Bogen Room Selector Panels For Targeted Staff Station Routing
Log in or register for YOUR best price

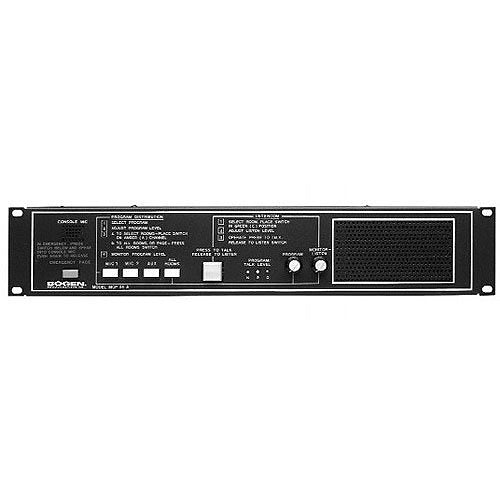

The Bogen MCP35A is a rack-mount master control panel engineered for school PA systems, commercial facilities, and industrial installations that require integrated intercom, program distribution, and emergency paging from a single control surface. It houses both a 35-watt program amplifier and a 20-watt intercom amplifier, eliminating the need for separate outboard amplification in standard installations. The color-coded front panel simplifies operation for non-technical staff, with green for intercom routing, amber for program channels, and a dedicated red emergency page button.

System integrators will find the MCP35A well-suited for multi-zone paging infrastructures that also need time signaling, telco integration, and voice call-in capability. The 25V balanced line output supports distributed speaker systems, while the 25V booster input allows for expanded coverage. Two Lo-Z balanced microphone inputs and one Hi-Z unbalanced AUX input accommodate a range of source connections. When used alongside Bogen room selector panels, the MCP35A can direct intercom or program feeds to specific staff stations with visual annunciation for incoming calls and a supervisory tone to prevent unauthorized monitoring.

Rear-panel gain controls for each input and internal adjustments for emergency page level, supervisory tone, and time tone give installers precise system calibration without requiring front-panel access after commissioning. The optional MCP-EXP Input Expander Panel and TWK351 adapter extend the platform for larger or more complex deployments.

Downloads

View full details

Specifications

Dimensions
Width
19""
Height
3.5""
Depth
10""
Rack Spaces
2U
Weight
Product Weight
Approximately 10 lbs
Package Weight
14.4 lbs
Audio
Program Output Power
35W RMS
Intercom Output Power
20W RMS
Program Frequency Response
+1, -3 dB, 80 Hz to 15 kHz
Intercom Frequency Response
Shaped for maximum intelligibility
Distortion
Less than 1% at rated power output and bandwidth
Connectivity
Microphone Inputs
Two Lo-Z balanced
AUX Input
Hi-Z unbalanced
Additional Inputs
TELCO PAGE, 25V BOOSTER
Line Output
25V balanced
Controls
Front Panel Program Selection
MIC 1, MIC 2, AUX
Front Panel Level
MONITOR/LISTEN, PROGRAM
Front Panel Distribution
ALL ROOMS, EMERGENCY PAGE, PRESS TO TALK
Front Panel Indicators
PROGRAM/TALK LEVEL
Rear Panel Input Gain
MIC 1, MIC 2, AUX, TELCO PAGE, TALK, LISTEN
Rear Panel Internal Gain
Emergency Page, Supervisory Tone, Time Tone
Rear Panel Enable/Disable
MIC1/CONSOLE MIC, MIC 2/TELCO PAGE, Phantom Power, Supervisory Tone
Tone Specifications
Time Tone
750 Hz
Supervisory Tone
Repeating, 500 Hz
Call-In Tone
Repeating, oscillates between 500 Hz and 750 Hz (Switching Frequency: 16 Hz)
Electrical
Power Requirements
120V, 60 Hz AC
Power Consumption
100W maximum
Environmental
Operating Temperature
0° - 130°F
Shipping
Package Weight
14.4 lbs
Package Width
12""
Package Length
5""
Package Height
8""
Identifiers
Optional Accessories
MCP-EXP, TWK351
