• Bose ControlCenter CC-1 zone controller in black with square faceplate, volume knob and Zone 2 label
  • Bose ControlCenter CC-1 Zone Controller 1
  • Bose ControlCenter CC-1 without faceplate showing mounting bracket, circuit board and red DIP switches

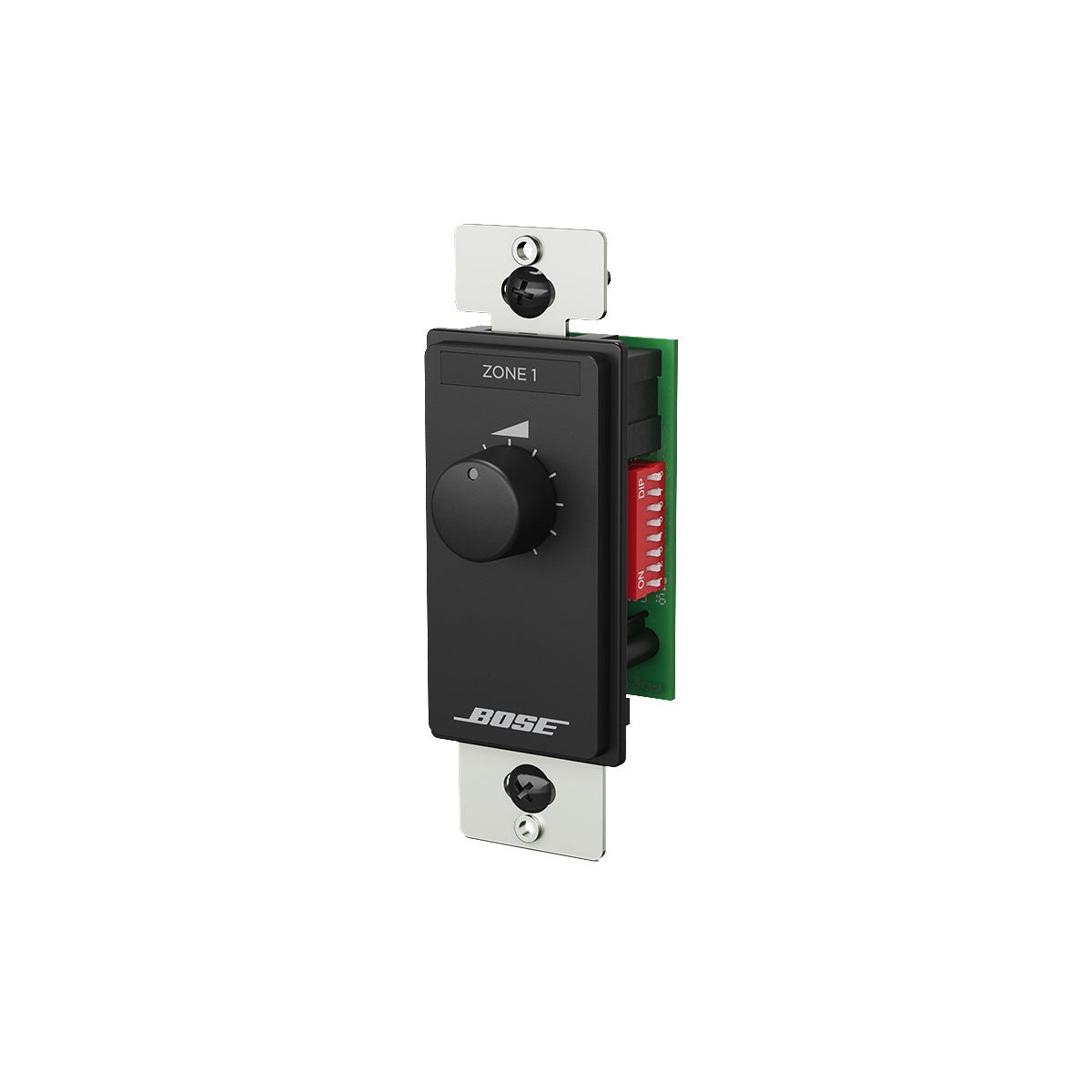

  • Bose CC-1 zone controller angled from the right, exposing green circuit board behind the Zone 1 knob plate
  • Bose ControlCenter CC-1 volume control on white mounting strap, labeled Zone 3 with rotary knob
  • Bose CC-1 wall-mount zone controller viewed from the right, showing knob detail and screw mounting yoke
1 6

Bose ControlCenter CC-1 Zone Controller | Color: Black

Bose ControlCenter CC-1 Zone Controller | Color: Black

SoundPro Item: 107089 | Part Number: 768932-0110

$103.00
$103.00 $103.00
Your Price Sold out
MSRP: $103.00 | MAP: $103.00

Usually ships in 5-7 business days

  • The ControlCenter series is a set of remote controls for use with Bose FreeSpace® amplifiers, PowerShare amplifiers, and ControlSpace® processors. The three models offer volume control (CC-1), volume plus A/B source selection (CC-2), and volume plus A/B/C/D source selection (CC-3).
  • North American and Japanese models are designed for use with Decora®-style wall plate covers (not included). The 86×86 mm European model is supplied as a finished wall plate.
  • Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.
  • The CV41 4-to-1 converter facilitates homerun wiring of CC-1 controllers.
Log in or register for YOUR best price

Bose ControlCenter CC-1 zone controllers provide volume control for FreeSpace®, PowerShare, and ControlSpace® products. Three models are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan.

Downloads

View full details

Specifications

Dimensions
Maximum Cable Length
100 ft (30 m) for ControlSpace processors, using unshielded cable; 500 ft (152 m) for ControlSpace processors, using shielded cable; 2000 ft (609 m) for FreeSpace and PowerShare amplifiers
Connectivity
Connectors
Two (2) RJ-45, allows for daisy-chaining, TIA/EIA 568B wiring standard
Cable Requirement
Cat 5
General
Settings
Channel selection via 8 DIP switch bank
Type
Passive controller, linear potentiometer 0- 10 kΩ
