• Bose DM6SE DesignMax Surface Mount Loudspeakers | Color: White
  • Bose DM6SE DesignMax Surface Mount Loudspeakers | Color: White
1 2

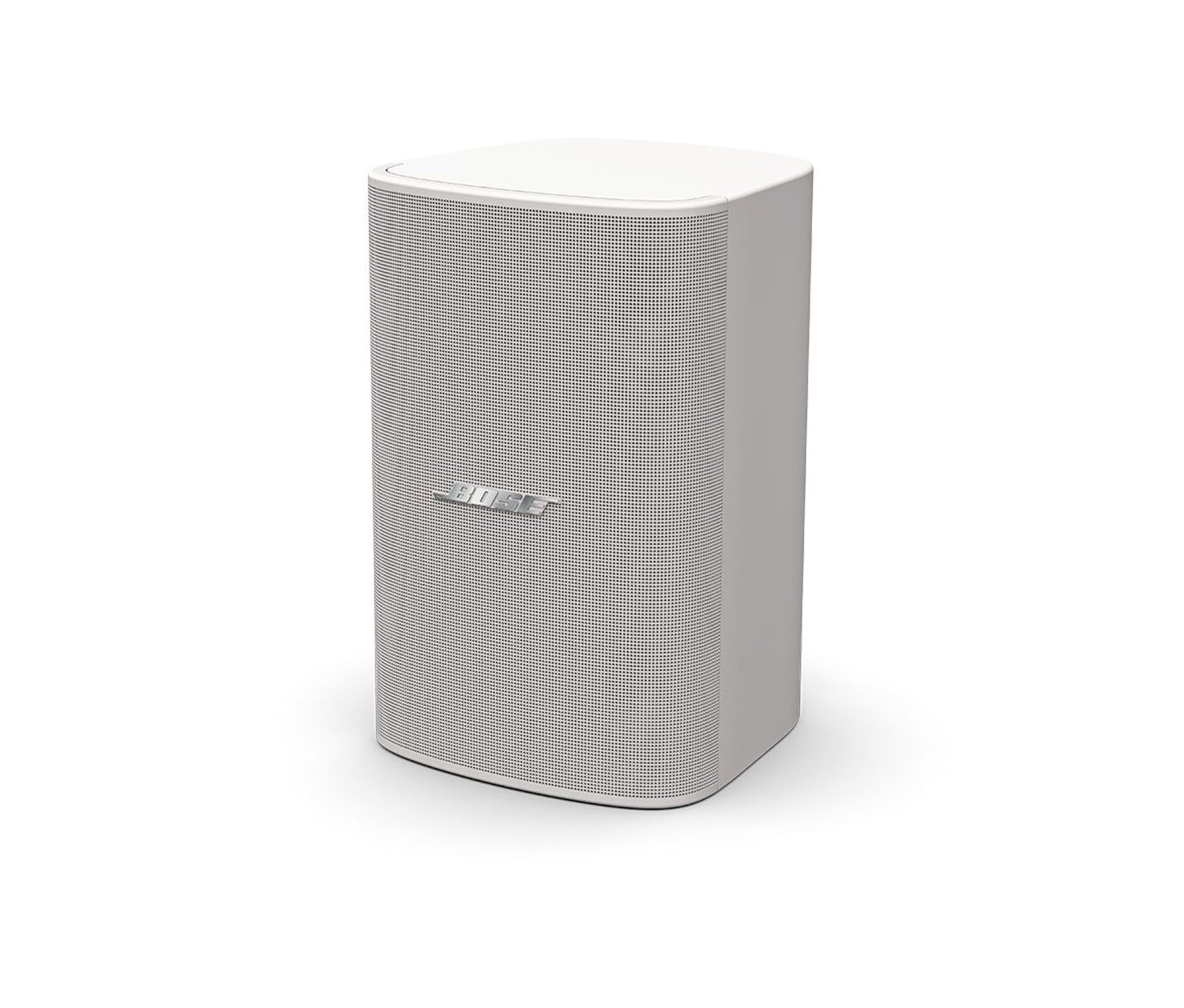

Bose DM6SE DesignMax Surface Mount Loudspeakers | Color: White

Bose DM6SE DesignMax Surface Mount Loudspeakers | Color: White

SoundPro Item: 147749 | Part Number: 829682-0220

$1,137.00
$1,263.00 $1,137.00
Your Price Sold out
MSRP: $1,263.00 | MAP: $1,137.00

Usually ships in 5-7 business days

  • Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver rich lows and clear, intelligible highs with coaxial two-way drivers - no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
  • Install DM6SE outside - IP55 rating with standard aluminum grille for outdoor use
Log in or register for YOUR best price

With coaxial two-way drivers, the 125-watt Bose Professional DesignMax DM6SE loudspeaker offers rich lows and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. The DM6SE features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz - 20 kHz. The DM6SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

View full details

Specifications

Weight
Net Weight
13.1 lb (5.9 kg), loudspeaker with grille (single)
Shipping Weight
32.5 lb (14.7 kg), pair
Audio
Crossover
1.7 kHz, passive 2-way crossover
Construction
Enclosure Material
Engineered plastics, highly UV fade-resistant
Grille
Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
Environmental
Operating Temperature Range
-25 °C to 70 °C (-13 °F to 158 °F)
General
Environmental
Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover
Ingress Protection
IP55
Logo
Rotatable, removable
Product Dimensions (HxWxD)
13.4 in x 8.7 in x 9.0 in (340 mm x 222 mm x 229 mm), loudspeaker / 13.4 in x 8.7 in x 9.7 in (340 mm x 222 mm x 245 mm), loudspeaker with bracket
Frequency Range (-10 dB)
59 Hz - 20,000 Hz
Coverage, Horizontal
125° conical
Calculated Maximum SPL @ 1 M
111 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, Long-term Continuous
125 W
Power Handling, Peak
500 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
90 dB
Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass
Transformer Taps, 70V
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Coverage, Vertical
125° conical
Driver Protection
Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
High-Frequency
1 x 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
Low-Frequency
1 x 6.5 in (165 mm) woofer, weather-treated
