Bose AudioPack Pro C6W Complete 2-Channel System | White

Bose AudioPack Pro C6W Complete 2-Channel System | White

SoundPro Item: 147727 | Part Number: 892254-1210

$1,099.00
$1,099.00 $1,099.00
Your Price Sold out
MSRP: $1,099.00 | MAP: $1,099.00

Usually ships in 5-7 business days

  • Matched Amplifier And Six Loudspeakers Eliminate Component Selection And Performance Guesswork
  • Class D Amplification Delivers 90 Watts Per Channel With Low Heat And Energy Consumption
  • Opti-Voice EQ And Dynamic EQ Processing Ensure Clear Paging And Balanced Music Reproduction
  • Transformer Taps From 1W To 16W Enable Flexible Zoning And Volume Distribution
  • QR Code Setup Instructions And Professional Support Reduce Installation Time And Complexity
  • Removable Logos And Perforated Steel Grilles Provide Discrete Aesthetic Integration
  • EN 54-24 Certification Confirms Compatibility With Life-Safety Paging Requirements
Log in or register for YOUR best price

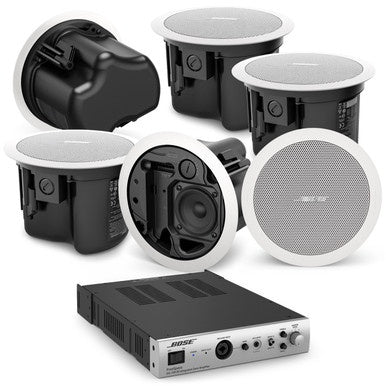

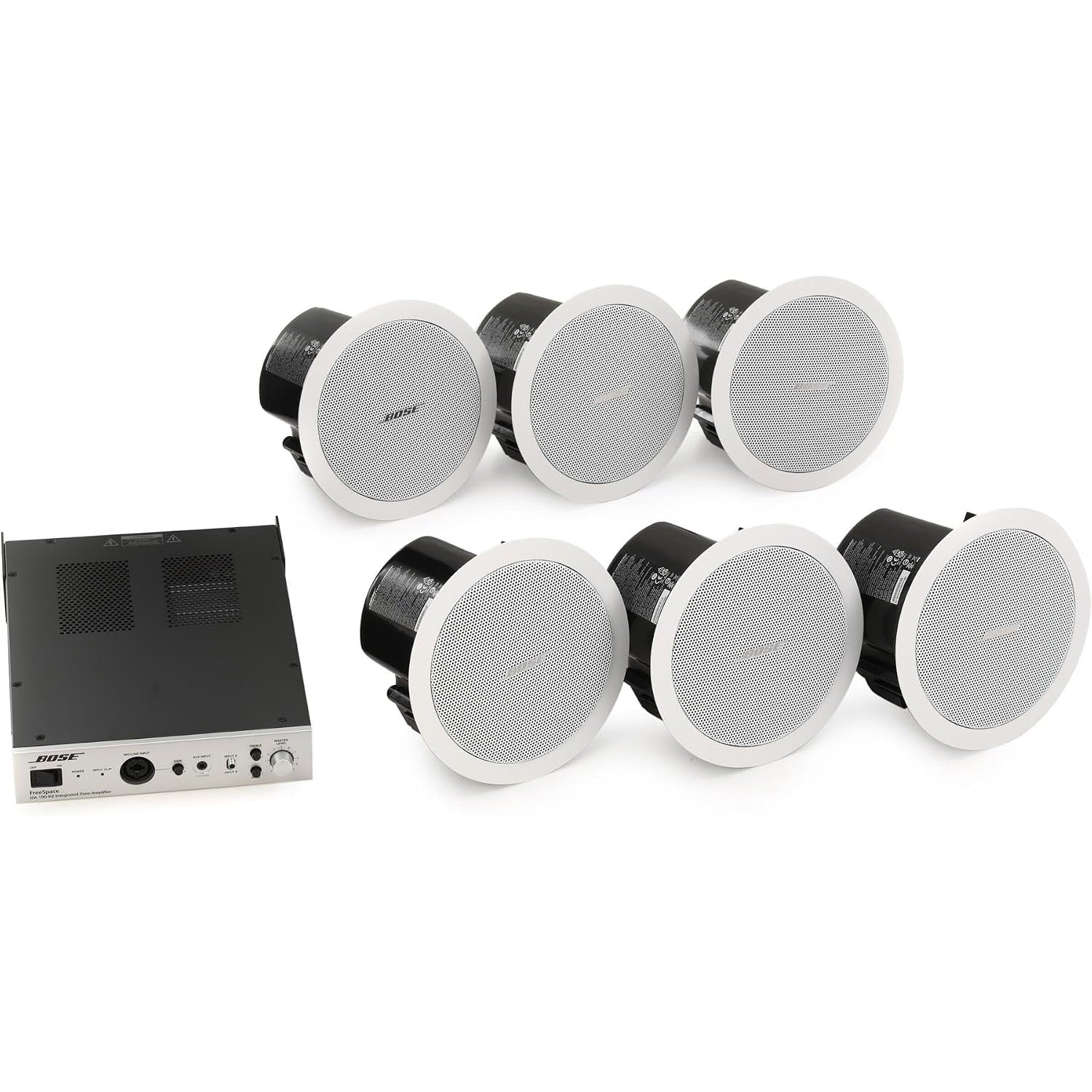

AudioPack Pro C6W combines a FreeSpace IZA 190-HZ integrated zone amplifier with six FreeSpace FS ceiling-mount loudspeakers in a single package engineered for small commercial installations. The matched components eliminate guesswork in system design, providing balanced audio coverage for cafés, retail stores, restaurants, offices, salons, and schools where both background music and paging are required.

The integrated amplifier offers 90 watts per channel at 70V or 100V with Class D efficiency, featuring dedicated inputs for line sources, microphones, and paging. Built-in DSP includes Opti-Voice EQ for paging clarity and Dynamic EQ for low-end compensation, while loudspeaker presets optimize performance for the included FreeSpace FS drivers. Each loudspeaker provides 150-degree horizontal and vertical coverage with transformer taps from 1W to 16W, plus bypass mode for direct 16-ohm operation.

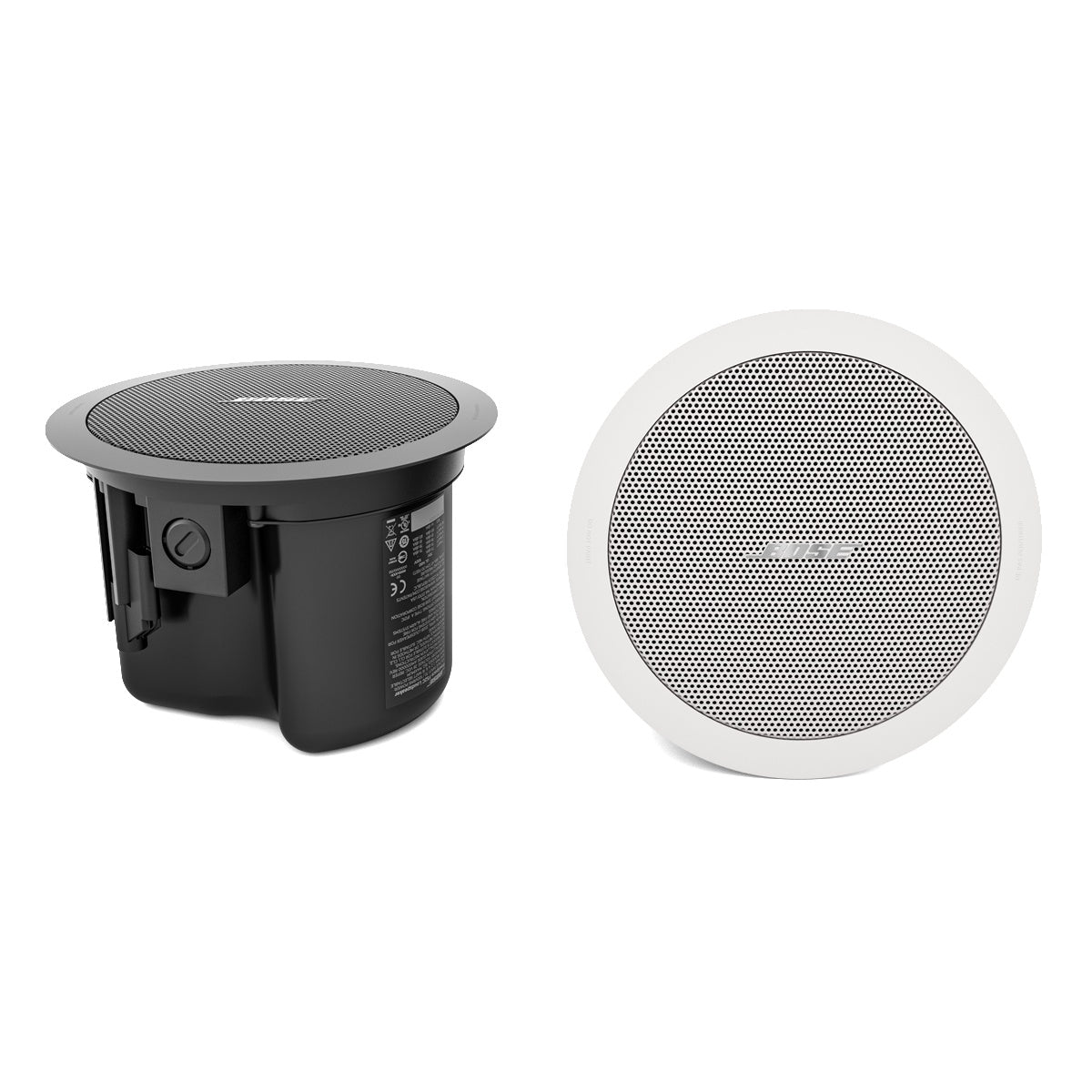

Installation is streamlined through QR code access to guided setup instructions, removable logos for unbranded aesthetics, and mounting hardware included with each component. The amplifier occupies half-rack width at 1RU height, while loudspeakers require 6.3-inch ceiling cutouts and feature perforated steel grilles in white finish. EN 54-24 certification confirms suitability for life-safety applications.

View full details

Specifications

Certifications
EN 54-24 Certified
Yes
Amplification
Number of Channels
2
Power Class
Class D
Rated Power
90 W at 70V, 100V
Frequency Response
60 Hz – 20 kHz (+0 dB/-3 dB) at 1 W, 1 kHz reference
THD+N
≤ 1% at full rated power
Dynamic Range
88 dB
Channel Separation
≤ -60 dBV below rated power, 1 kHz
Audio Inputs
Input Channels
2 unbalanced line + 1 balanced mic/line + 1 balanced page + 1 unbalanced auxiliary
Connectors
1 RCA stereo pair, 1 XLR-1/4" combo, 1 4-pin Euroblock, 1 1/8" TRS
Input Impedance
20 kΩ line / 2 kΩ mic/line / 2 kΩ page / 20 kΩ auxiliary
Input Range
-10 dBV to +10 dBV line / -60 dBV to +10 dBV mic/line / -60 dBV to +10 dBV page / 0 dBV to +10 dBV auxiliary
Adjustment Range
-20 dB to +20 dB line / 0 dB to +50 dB mic/line / 0 dB to +50 dB page / fixed auxiliary
Audio Outputs
Channels
1
Connectors
1 3-pin inverted Euroblock, 1 RCA stereo pair
Output Impedance
400 Ω auxiliary
Performance
Frequency Range
-10 dB: 83 – 19,000 Hz
Calculated Maximum SPL @ 1 m
98 dB
Sensitivity
86 dB SPL/1 W at 1 m
Coverage Horizontal
150°
Coverage Vertical
150°
Nominal Impedance
16 Ω (transformer bypass)
Power Handling Long-Term Continuous
16 W
Power Handling Peak
64 W
DSP
A/D and D/A Converters
48 kHz / 24-bit
Audio Latency
10.4 ms (analog input to analog output)
Presets
High-pass filter, FreeSpace FS2C/FS2P/FS2SE/FS4CE/FS4SE loudspeaker presets
Processing Functions
Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation)
Electrical
Mains Voltage
100–240 VAC (±10%), 50/60 Hz
AC Power Consumption
15 W idle, 200 W maximum
Current Draw Inrush
7.6 A at 120 VAC, 60 Hz / 13.9 A at 230 VAC, 50 Hz
Mains Connector
IEC C14 inlet
Protections
High temperature, short circuit
Transducers
Low-Frequency Driver
1 x 2.25" woofer
Driver Protection
Recommended high-pass protection 85 Hz with minimum 24-dB/octave filter
Transformer Taps
70V
1 W, 2 W, 4 W, 8 W, 16 W, bypass
100V
2 W, 4 W, 8 W, 16 W, bypass
Physical
Color
White (similar to RAL 9003)
Enclosure Material
Engineered-plastics front baffle with integrated steel-formed backcan
Grille
Perforated steel, powder-coated finish
Logo
Rotatable, removable
Ceiling Cutout
6.3"
Rack Spaces
1 RU high, half rack wide
Suspension/Mounting
2 mounting arms, 1 safety cable attachment point
Environmental
Environmental
Indoor only, suitable for use in plenum locations (loudspeakers only)
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Controls
Front Panel Controls
1 power switch, 1 input selection switch, 1 treble knob, 1 bass knob, 1 mic/line gain knob, 1 master level knob
Rear Panel Controls
Amplifier Mode DIP switch, Loudspeaker EQ preset selector, Input Gain (A/B/Page mic), Output trim
LED Status Indicators
1 power LED, 1 input clip LED
Weight
Loudspeaker Net Weight (Single With Grille)
3.6 lbs
Amplifier Net Weight
7.0 lbs
Cooling
Cooling System
Natural convection
Warranty
Warranty Period
5 years
Identifiers
Alternate Product Code
888472-1210
