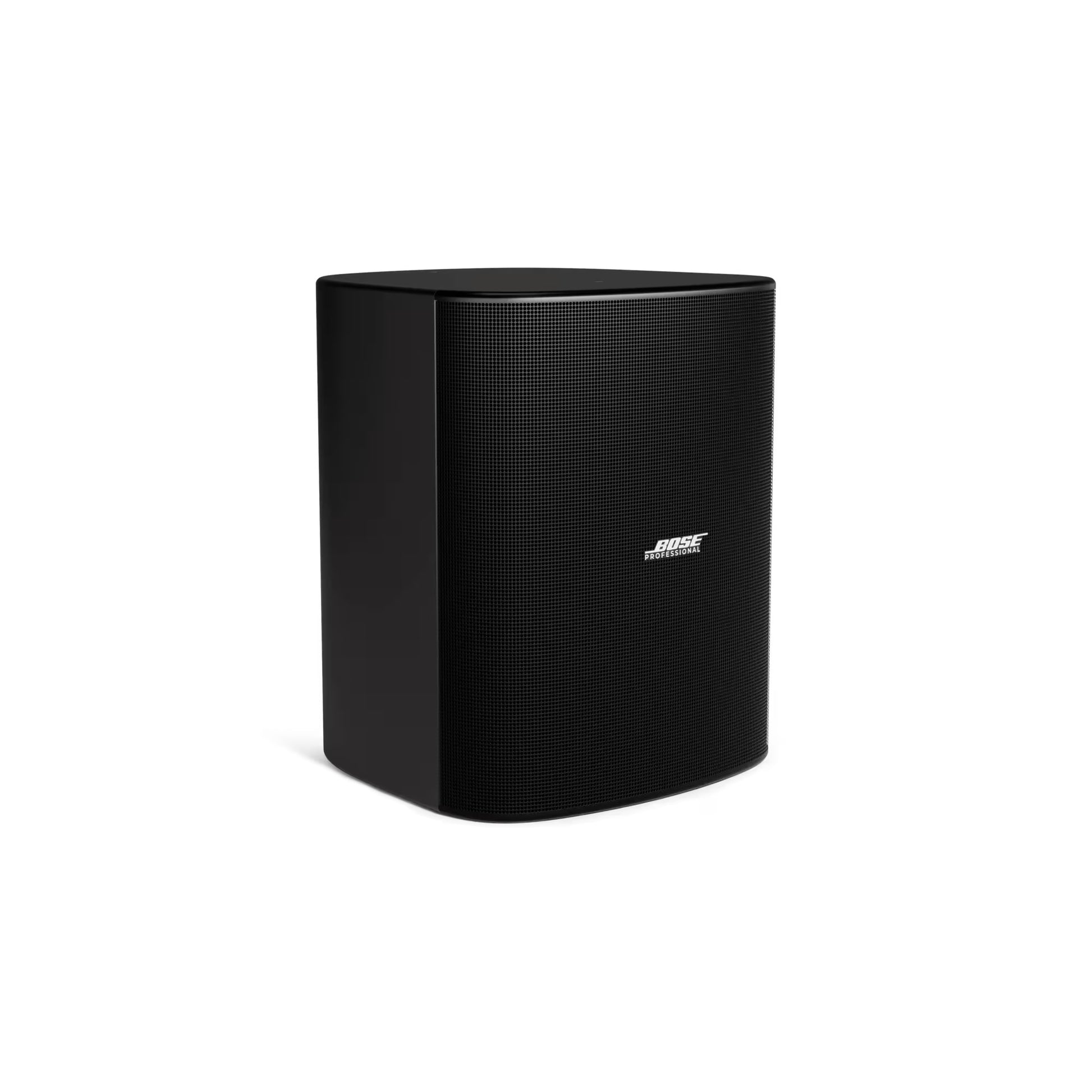

Bose A01114-0100 DesignMax 12" Outdoor Surface Mount Speaker | Black

Bose A01114-0100 DesignMax 12" Outdoor Surface Mount Speaker | Black

SoundPro Item: 203815 | Part Number: A01114-0100

$859.00
$999.00 $859.00
Your Price Sold out
MSRP: $999.00 | MAP: $859.00

Usually ships in 5-7 business days

  • 102° Conical Coverage For Even Room Coverage
  • 38 Hz Low End Supports Full-Range Playback
  • IP55 Rating For Indoor Or Outdoor Use

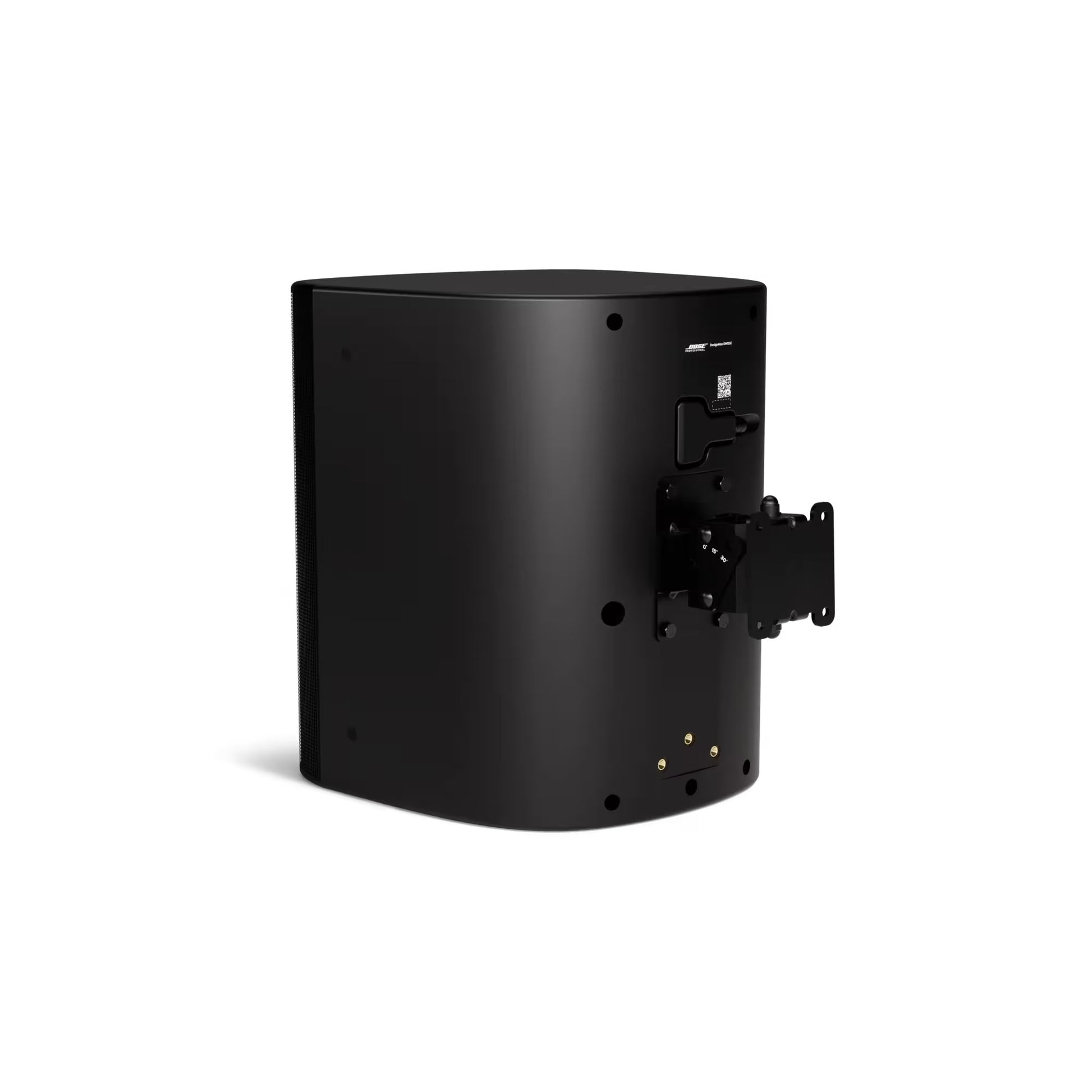

  • Included Pan/Tilt Bracket Enables Precise Aiming
  • Coaxial Design Improves Consistency Across Space
  • Paintable Grille Blends With Installed Environments
Log in or register for YOUR best price

The Bose A01114-0100 is a surface mount loudspeaker built for professional installed audio systems that need wide coverage, full-range output, and dependable operation in challenging environments. Its 12-inch coaxial design delivers consistent 102° conical dispersion, helping integrators cover audience areas more evenly while maintaining clear vocal and music reproduction. With bass response extending to 38 Hz, it is well suited for venues that want strong low-frequency performance from a single enclosure.

This model is designed for both indoor and outdoor use, with an IP55-rated weatherized enclosure, UV fade-resistant injection-molded construction, and a perforated aluminum grille. The included outdoor-ready pan and tilt bracket supports secure mounting and accurate aiming, making it practical for hospitality spaces, worship facilities, retail environments, patios, theaters, and multipurpose rooms. Factory-optimized tunings are available for Bose Professional amplifiers and processors, while recommended signal processing is not required for operation.

Downloads

View full details

Specifications

Physical
Colors
White grille (similar to RAL 9003), black grille (similar to RAL 9005), paintable
Enclosure Material
Engineered plastics, injection-molded, UV fade-resistant
Environmental
Outdoors or indoors, IP55
Grille
Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
Ingress Protection
IP55
Logo
Rotatable

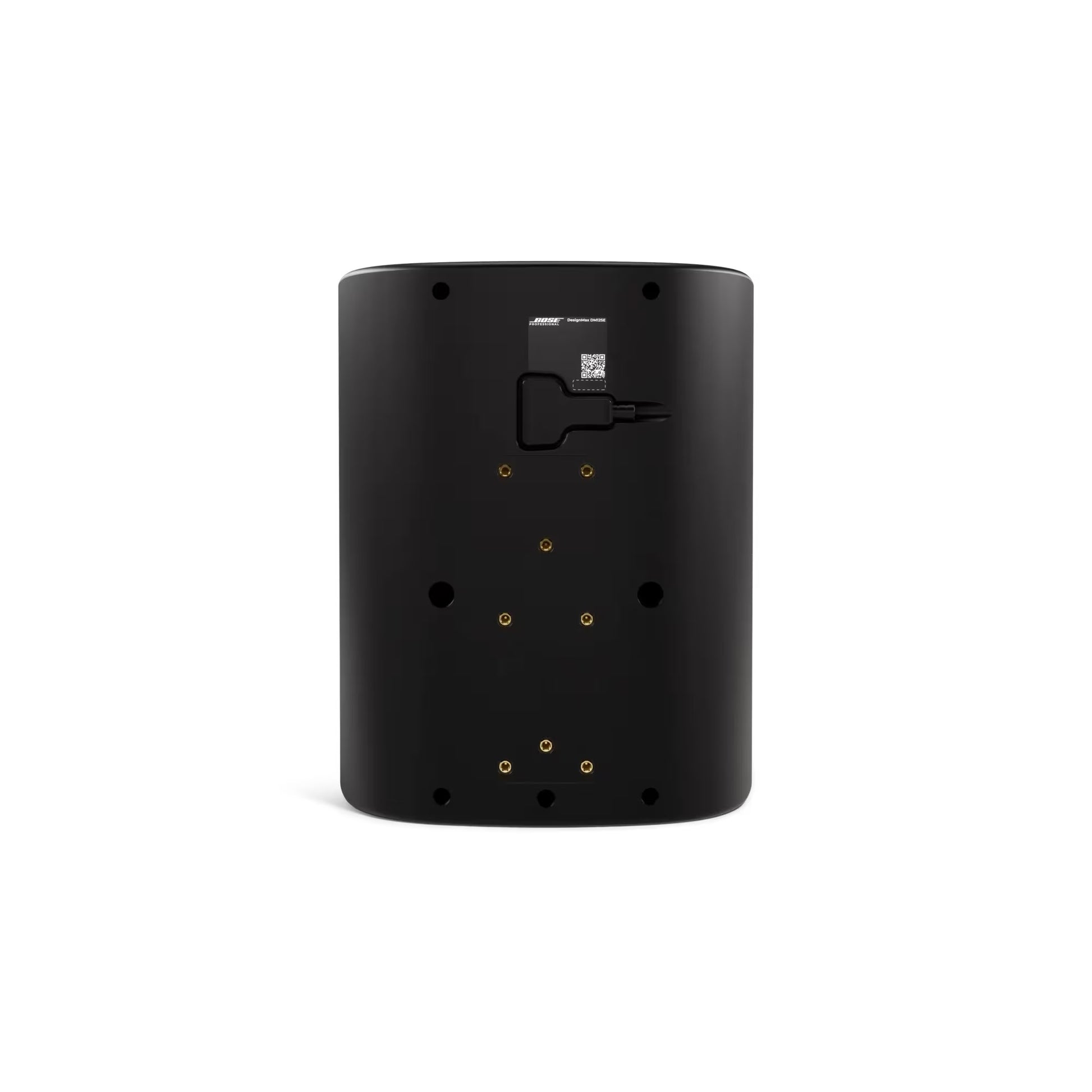

Suspension/Mounting
(12) M8 threaded inserts (2 top, 2 side, 8 rear)
Operating Temperature Range
-25 °C to 70 °C (-13 °F to 158 °F)

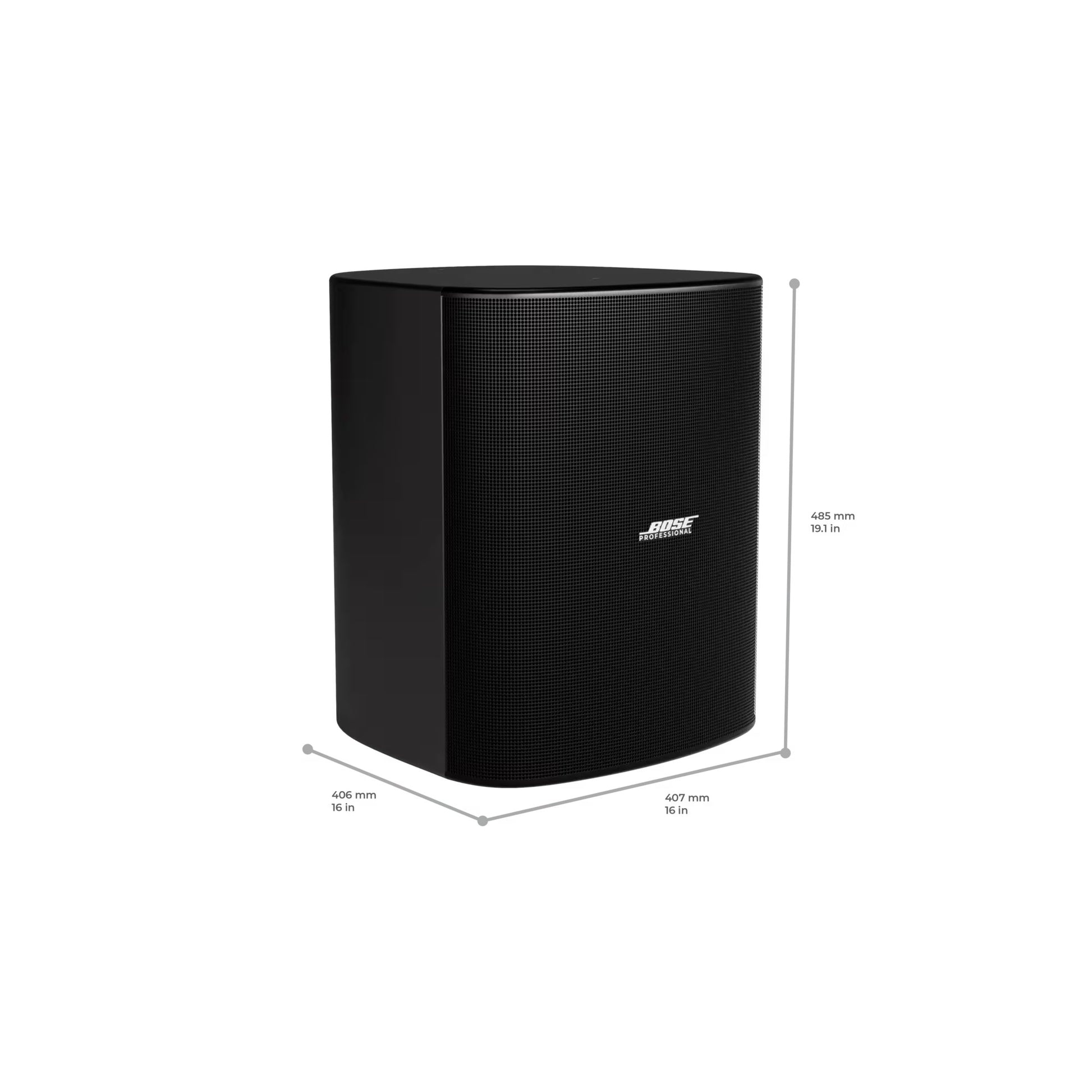

Product Dimensions (H×W×D)
19.1 in × 16.0 in × 16.0 in (485 mm × 407 mm × 406 mm)
Net Weight
37.4 lb (16.9 kg)
Performance
Frequency Range (-10 dB)
38 Hz – 20,000 Hz
Coverage, Horizontal
102° conical
Calculated Maximum SPL @ 1 m
119 dB
Nominal Impedance
8 Ω
Power Handling, long-term continuous
300 W
Power Handling, Peak
1200 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
94 dB
Transducers
Driver Protection
Recommended High-pass Protection 40 Hz with minimum 12-dB/octave filter
High-Frequency
1 × 1.4 in (36 mm) compression driver, 1.0-in (25 mm) exit, coaxial center-firing, weather-treated

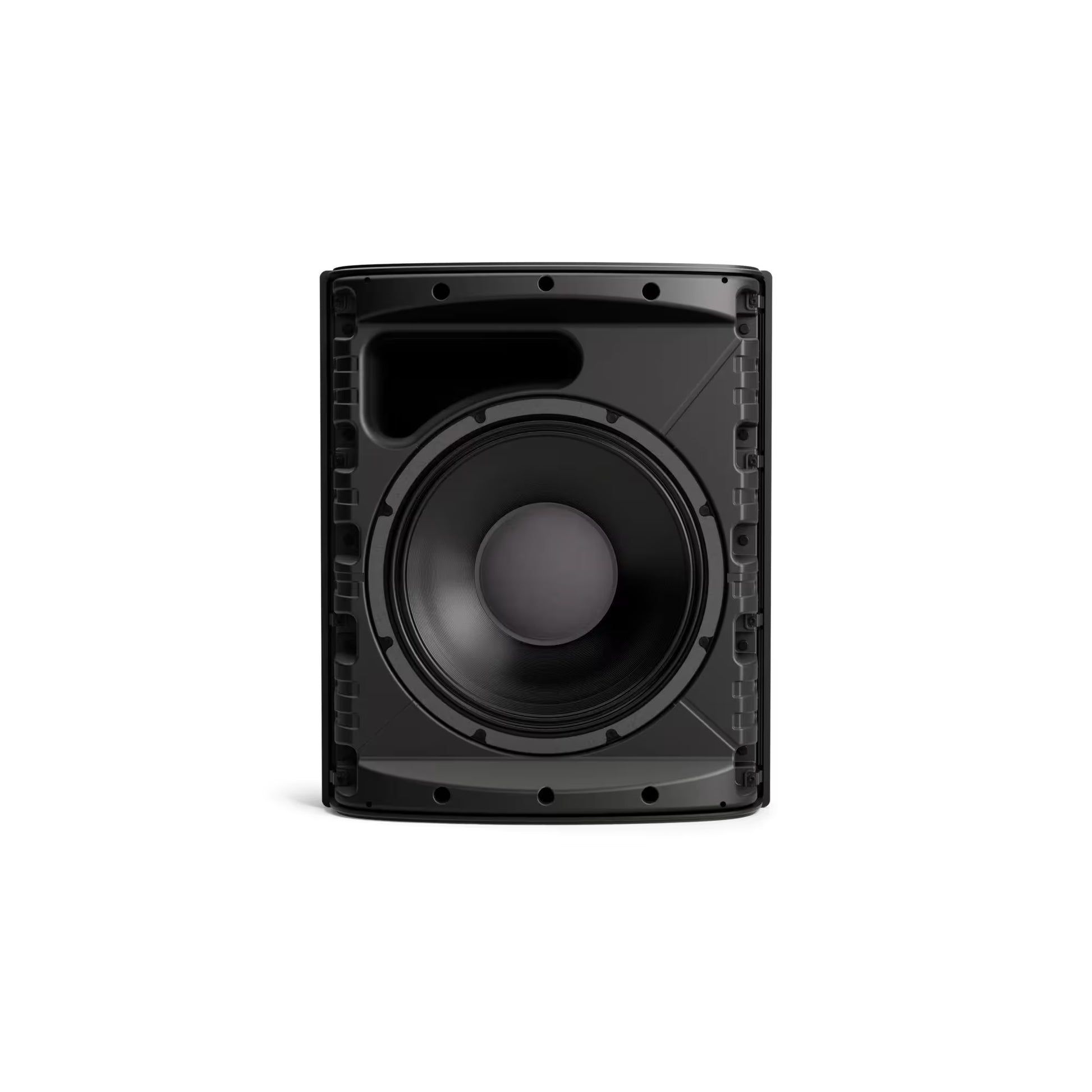

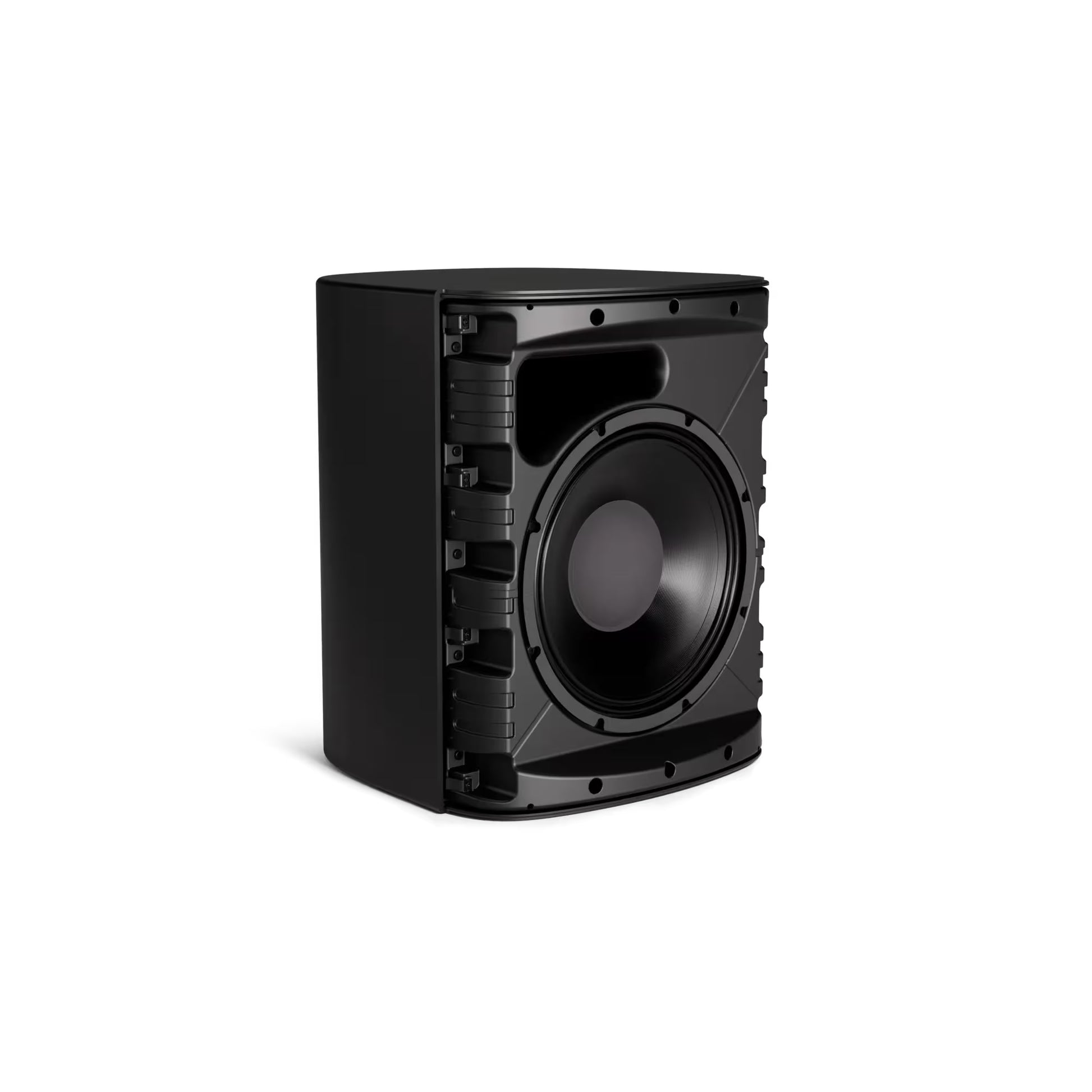

Low-Frequency
1 × 12 in (305 mm) woofer, weather-treated
