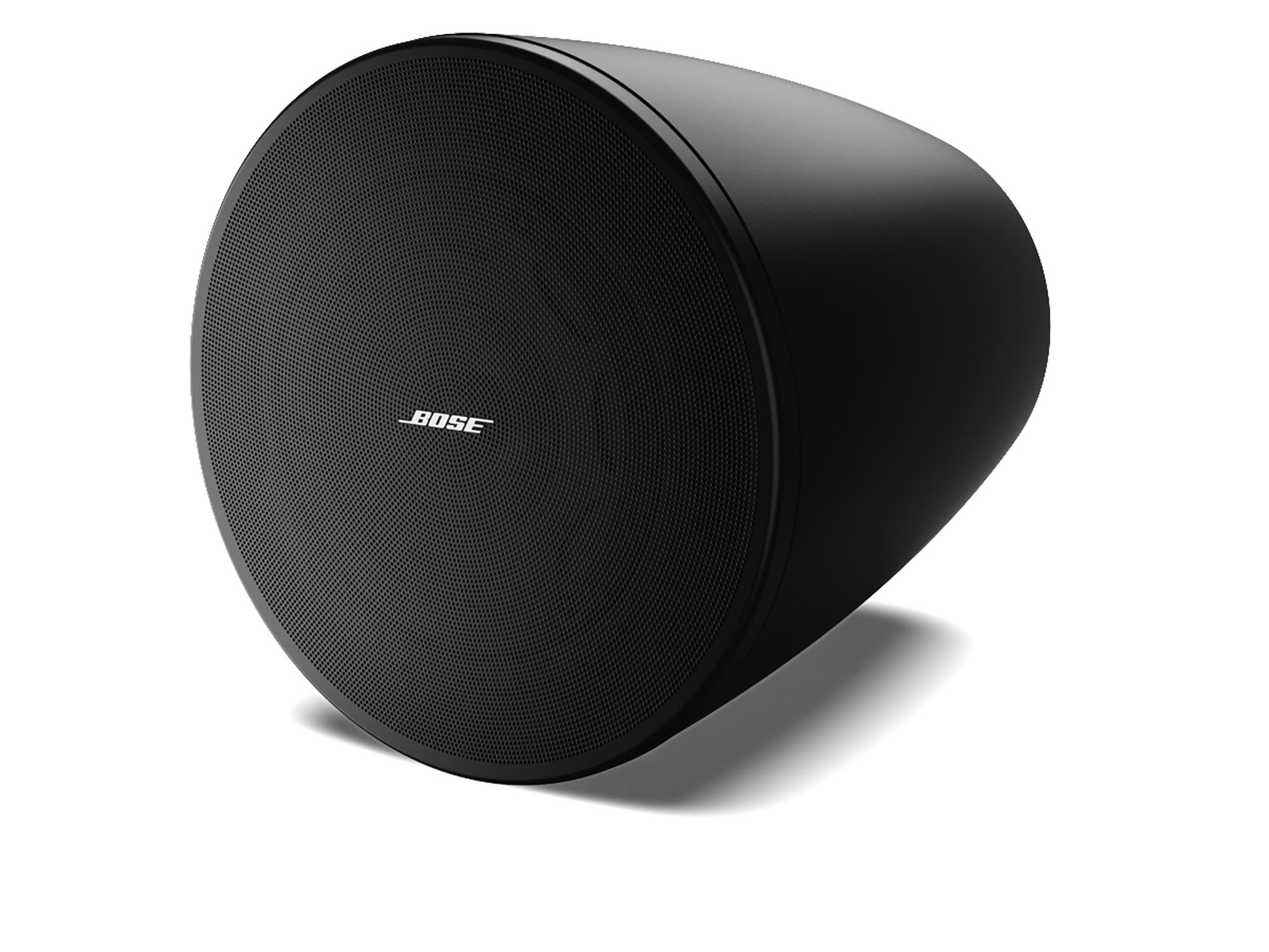

Bose DM6PE DesignMax Loudspeakers | Color: Black

Bose DM6PE DesignMax Loudspeakers | Color: Black

SoundPro Item: 147746 | Part Number: 841168-0120

Regular price $1,238.00
Regular price $1,376.00 Sale price $1,238.00
Your Price Sold out
MSRP: $1,376.00 | MAP: $1,238.00

Usually ships in 5-7 business days

  • Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options

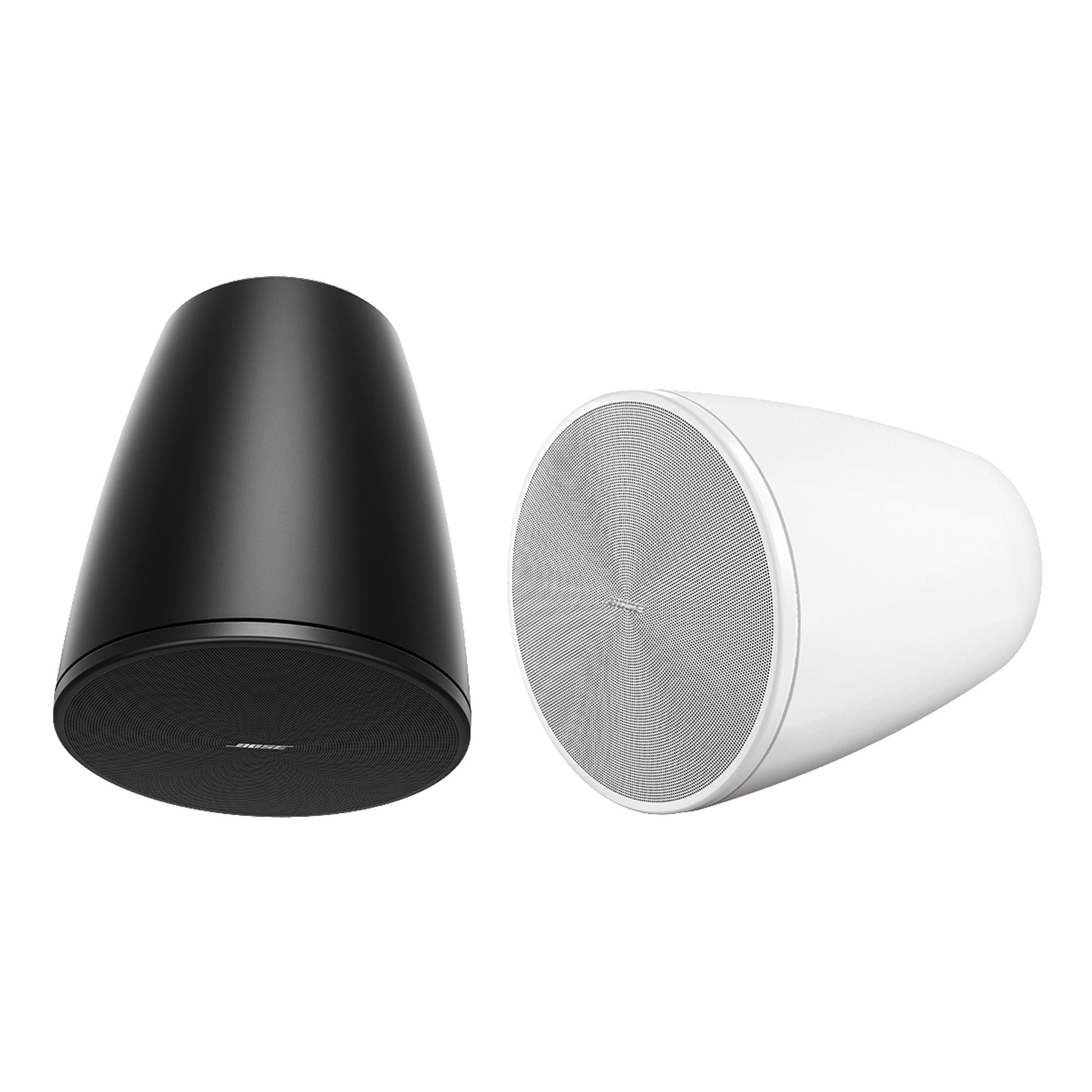

  • Choose from three DM6 models - the in-ceiling DM6C, the surface-mounted and outdoor-rated DM6SE, and the sleek, outdoor-rated DM6PE pendant loudspeaker
  • Deliver rich lows and clear, intelligible highs with a coaxial two-way design - no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
  • Install DM6PE outside - IP55 rating with powder-coated steel grille for outdoor

With a coaxial two-way design, the 125-watt Bose Professional DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. It features a coaxial 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system and the DM6PE pendant loudspeaker delivers 62 Hz - 20 kHz. The DM6PE is an IP55 outdoor-rated pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

View full details

Specifications

Weight
Net Weight
12.5 lb (5.7 kg), single
Shipping Weight
33.1 lb (15.0 kg), pair
Audio
Crossover
1.7 kHz, passive 2-way crossover
Construction
Enclosure Material
Engineered plastics, highly UV fade-resistant
Grille
Perforated steel, powder-coated finish
Environmental
Operating Temperature Range
-25 °C to 65 °C (-13 °F to 149 °F)
General
Environmental
Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover
Ingress Protection
IP55
Logo
Rotatable, removable
Suspension/Mounting
1 suspension attachment point, 1 safety cable attachment point
Product Dimensions (HxWxD)
12.1 in x 14.8 in (308 mm x 375 mm), loudspeaker diameter x depth
Frequency Range (-10 dB)
62 Hz - 20,000 Hz
Coverage, Horizontal
115° conical
Calculated Maximum SPL @ 1 M
110 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, Long-term Continuous
100 W
Power Handling, Peak
400 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
89 dB
Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass
Transformer Taps, 70V
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Coverage, Vertical
115° conical
Driver Protection
Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
High-Frequency
1 x 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
Low-Frequency
1 x 6.5 in (165 mm) woofer, weather-treated
